Factory Direct Sales QF8025HBL small Cooling Fan 110V 120V Ball Bearing Fans Low Noise Small Inverter axial Fan
- Category: >>>
- Supplier: Dongguan Qifang Electric Co. Ltd.
Share on (1600147991884):
Product Overview
Description
Product Description
|
1 |
Model Number |
QFA8025HBL |
|
2 |

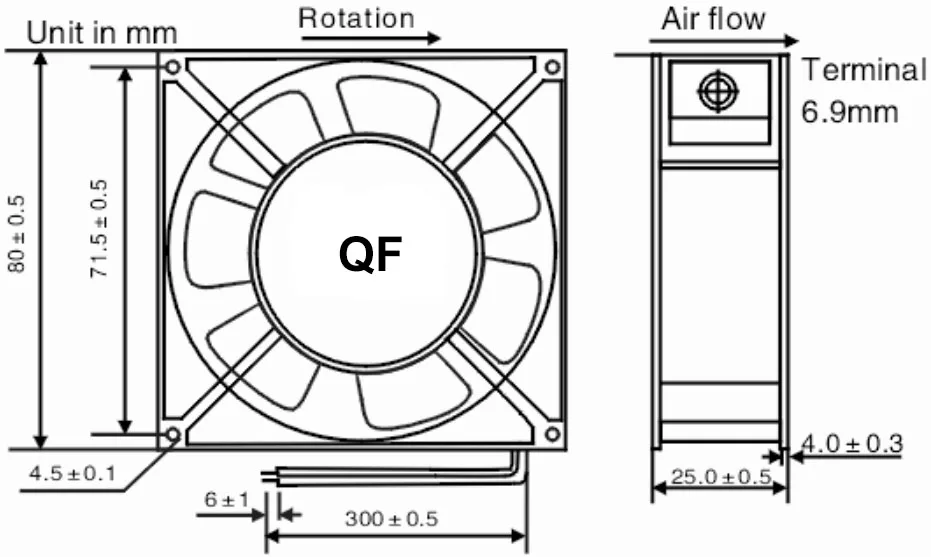

Frame size(mm) |
80*80*25mm |
|
3 |
Bearing type |
Ball bearing/Sleeve bearing |
|
4 |
Rated voltage |
110V,220V,380V, 240 V |
|
5 |
Rated Current |
0.1 A |
|
6 |
Rated speed |
2300 RPM |
|
7 |
Max. air flow |
17-22 CFM |
|
8 |
Max. air pressure |
3.0-4.5 mmH20 |
|
9 |
Noise Level |
44 dB-A |
|
10 |
Input power |
16 Watt |
|
11 |
Safety approvals |
UL,RoHS,CCC,CE |
|
12 |
Life Expectancy(Dual Ball Bearing) |
50000hrs min at 40 degree C/L10 relative humidity 65%±20% |
|
13 |
Life Expectancy(Sleeve bearing) |
30000hrs min at 40 degree C/L10 relative humidity 65%±20% |
|
14 |
Operation Temperature |
-20~80 degree C (relative humidity 35~85% RH) |
|
15 |
Storage Temperature |
-10~70 degree C (relative humidity 20~85% RH) |
|
16 |
Protection |
Thermally Protected (Auto Restart) / Impedance Protected |
|
17 |
Function |
Water Proof for IP55/IP68/IP67 |

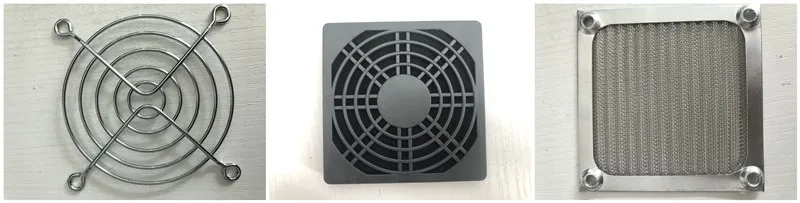

80mm fan guards
Related other Models

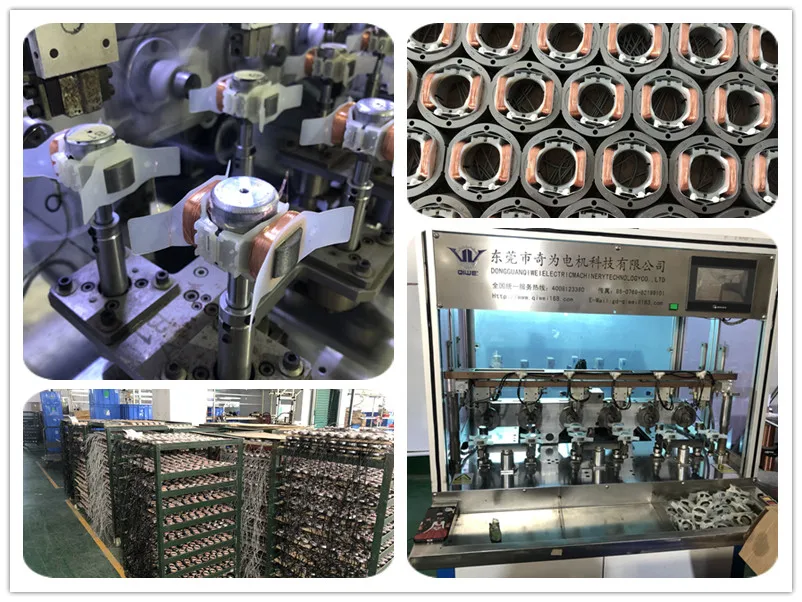

AC FANS' MOTORS SHOW
Packaging & Shipping
Packing : foam innner box and 5 layer outer carton.

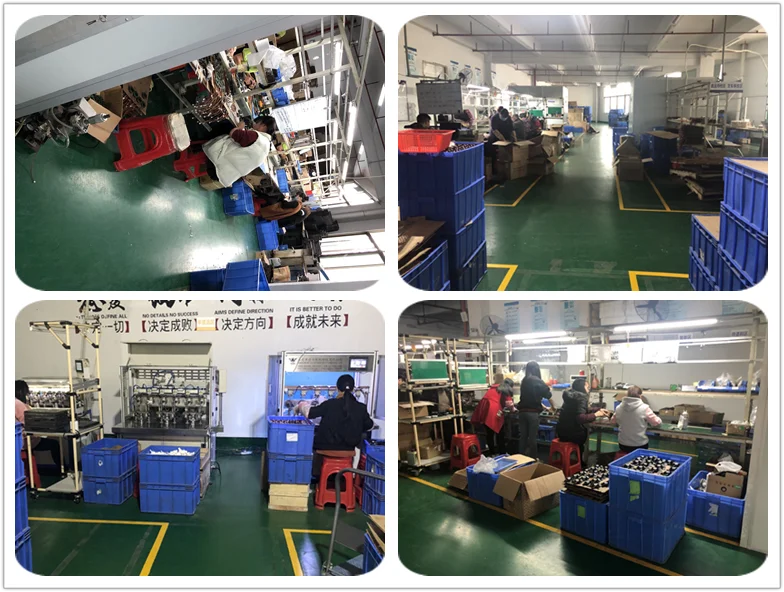

Facory Show
Our Customers

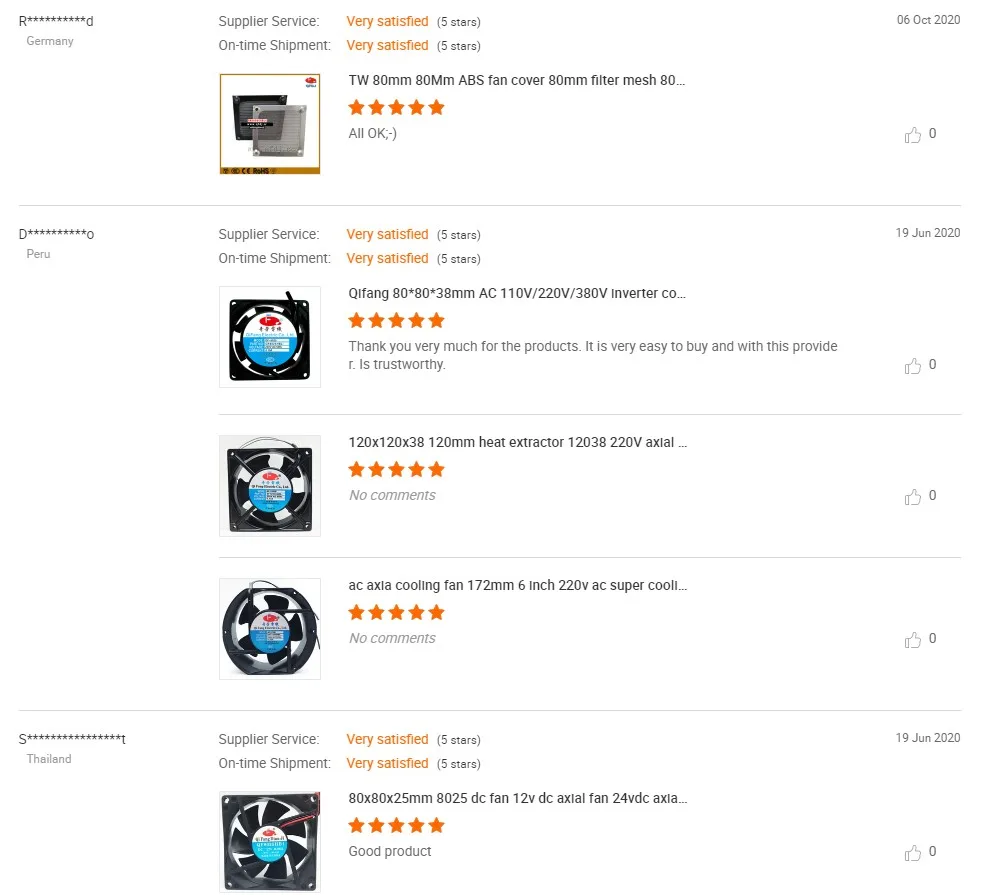

Customers' review
FAQ:
1. Are you a manufacturer or a trading company?
- we are manufacturer, factory in Dongguan City, Guangdong Province.
2. What kinds of products supplied by your factory?
- We provide DC cooling fan, DC blower fan, AC cooling fan and EC cooling fan.
3. What are kinds of information provided by the customer before inquiry?
- Please kindly advise the fan size, voltage, the type of bearing, the speed of fan , or air flow.
4. What can I do if we can not find the suitable fan model in the fan list?
- Please contact us for customized fans.
5. Can I have samples for testing before ordering products?
- Yes, we're glad to supply samples before the bulk order
6. Can we put our company logo on the label?
- Yes, will custom made the labels for you.
