| Price terms | FOB office | ||||
| Delivery terms | time: after 15 days ways: 1.Ship by Express.(DHL.TNT.UPS.FEDEX) | ||||
| Payment Item | T/T ,Western Union, L/C, B/L | ||||
| Port of Shipment | Shanghai, China | ||||
| Packing | close package to make shipment safer and suitable for import and export. | ||||
| NOTE: amend accordng to your demand! | |||||
| Model | SNH904 | ||
| Engine Model | WP4T90E20 | Maximum tractive force(KN) | 34 |
| rated power (kw) | 67 | Front tyre | 12.4-24 |
| Rated speed(rpm) | 2300 | Rear tyre | 16.9-34 |
| fuel consumption(g/kw·h) | ≤245 | Length(mm) | 4516 |
| torque reserve(%) | ≥30% | Width(mm) | 2110 |
| Gear number | 12+12 | Height to exhaust (mm) | 2765 |
| maximum hoist capacity(KN) | 18 | minimum ground clearance(mm) | 416 |
| Power output shaft speed(rpm) | 540/750 | Structural weight(kg) | 3890 |
Noted:This parameters are for reference only,different type different data, certain data please contact us.

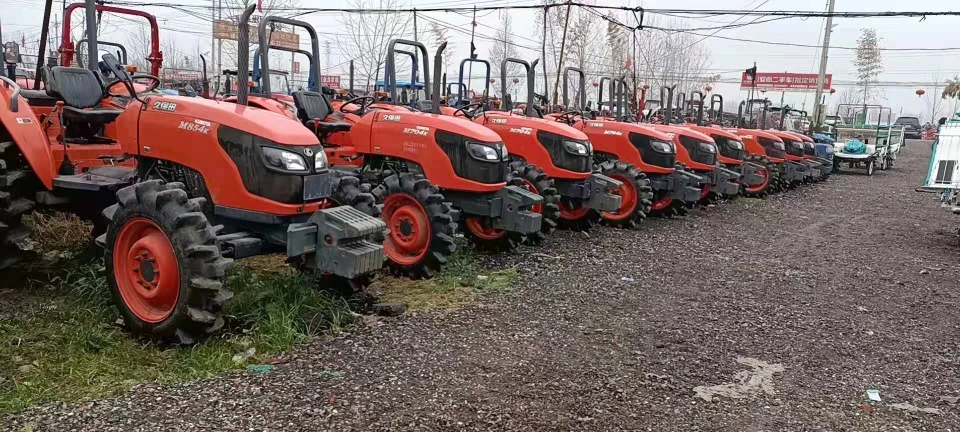

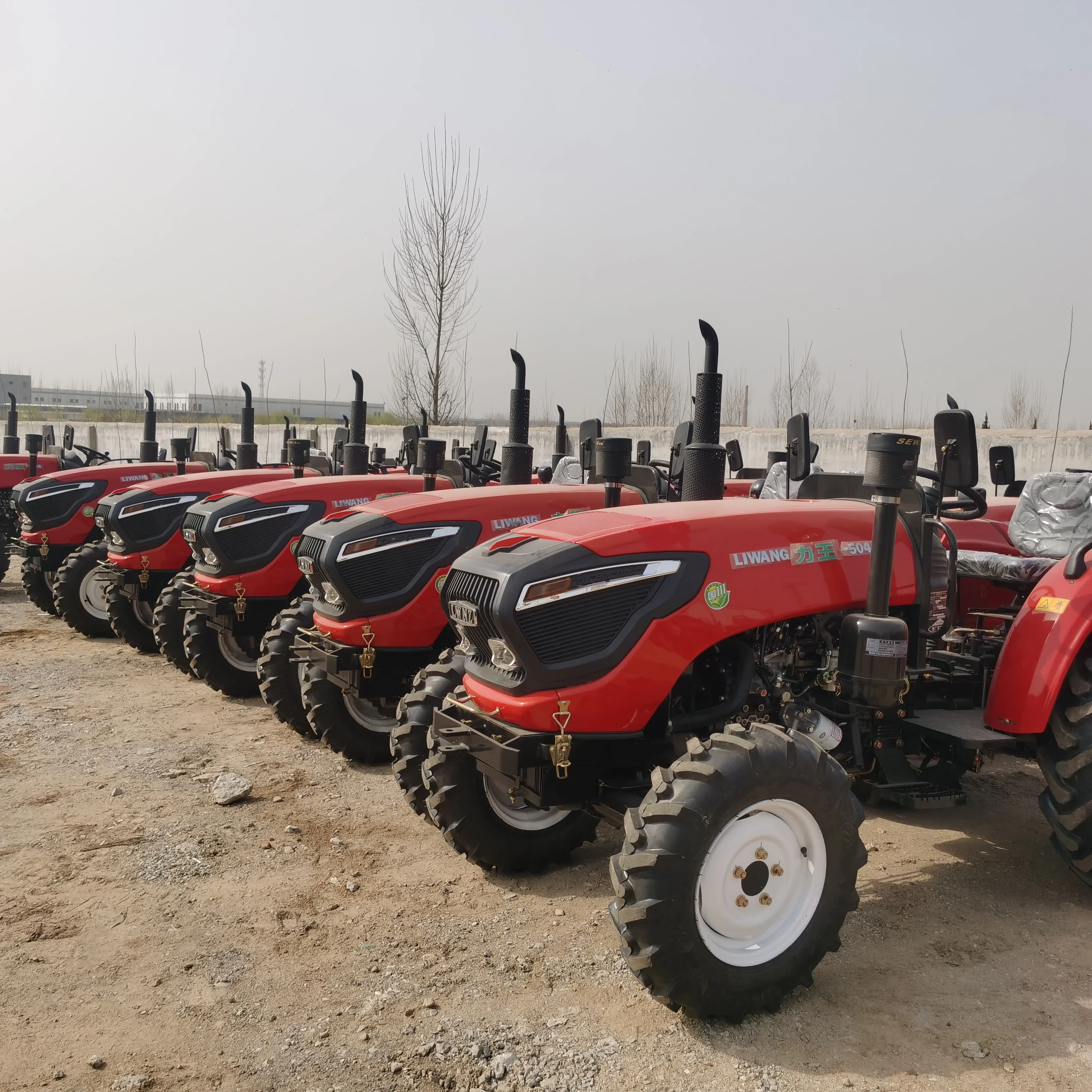

This series of products is currently the performance of advanced
direct-linked small horsepower tractors, two-wheel drive and four-wheel drive two series. With the transmission efficiency, low
vibration, traction, adaptability, start-saving features, is a small four -wheel tractor upgrading.
the mini tractor It is suitable for gardening, greenhouse,lawn and family work.The mini tractor is assembled with good diesel
engine,double stage clutch. dual-way hydraulic output and hydraulic steering,which is popular in international market.
