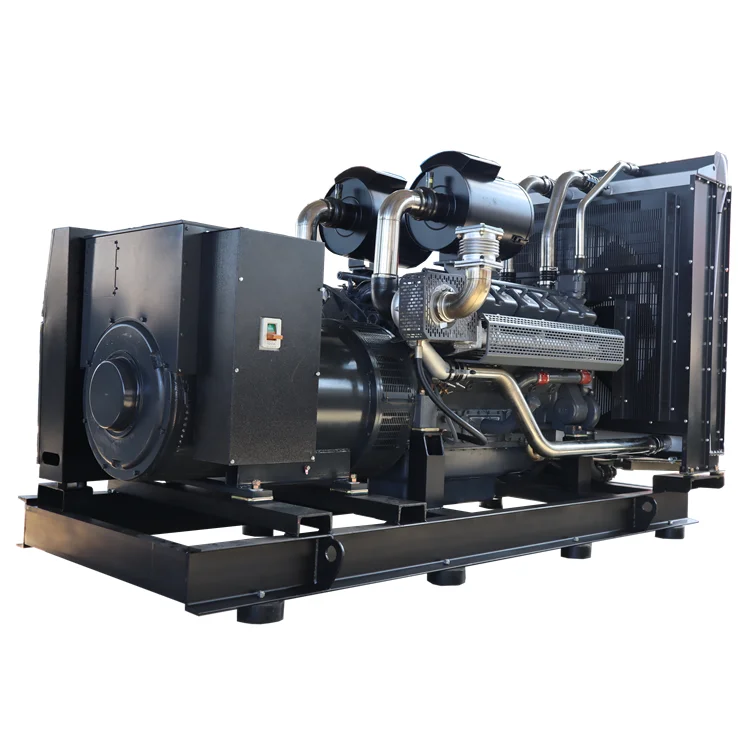

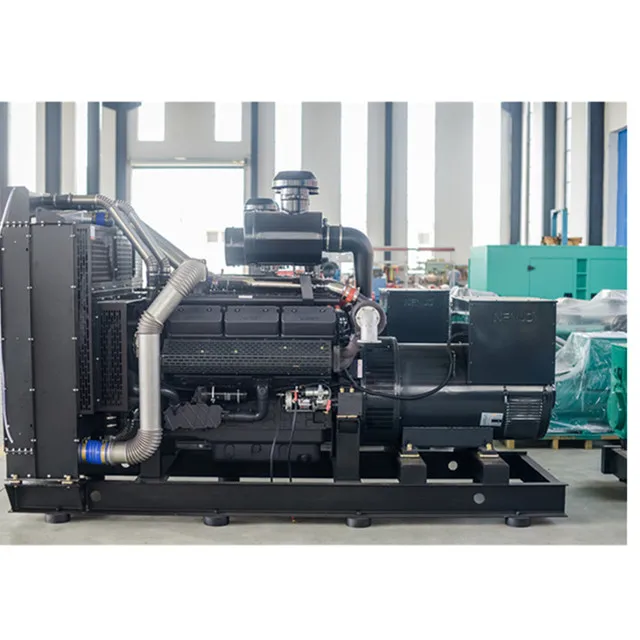

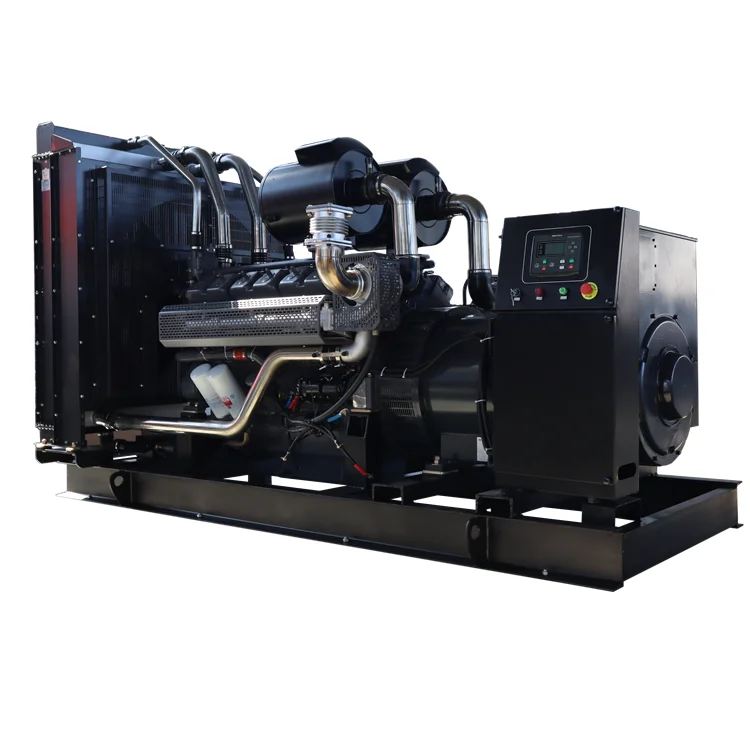

500KVA Chinese used diesel generator for sale

he main parameters of the set

The model of the unit:

FF-500

Power:

5000kva

Rated voltage:

230/400v

Rated frequency:

50Hz

Rated current:

720

The factor of rated power

COS=0.8lagging

The regulating rate of steady voltage:

≤1%

The regulating rate of instantaneous voltage:

-15%~ +20%

The time of steady voltage:

≤1.5sec

The waving rate of voltage:

≤1.0%

The regulating rate of steady frequency:

≤3%

The regulating rate of instantaneous frequency:

≤±10%

The time of steady frequency:

3sec

The waving rate of frequency:

≤1%

Displacement (L):

8.58

The waste of fuel with full load:

≤208g/kwh

The main parameters of the diesel engine

Brand:

SDEC

Model:

SC25G690D2

Type:

Four strokes

Cylinder:

12 cylinders

Cooling way:

Water cooling

Rotating speed:

1500r/min

The regulation of rotating speed:

Electrical speed regulator

Starting way:

DC24V\\ starting with electricity

The main parameters of the generator

Brand:

china stamford

Type:

Brushless ,Self-excite, AVR automatic voltage regulating

The connecting way of the phase:

Three phases four lines

Insulation degree:

H degree
