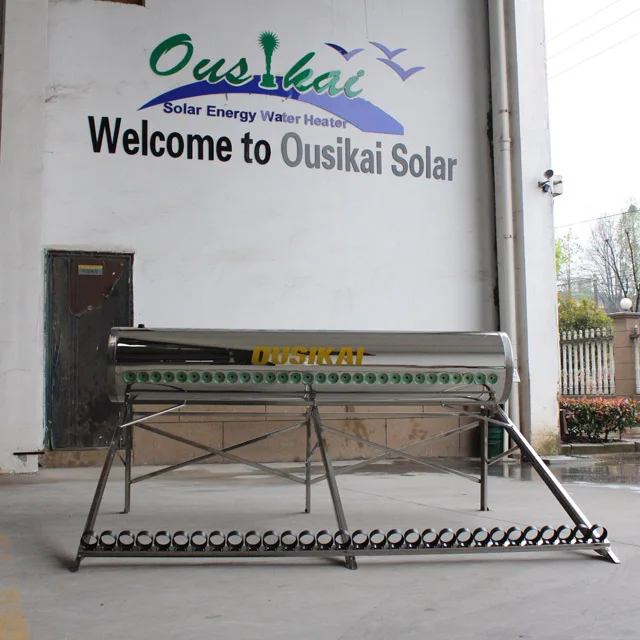

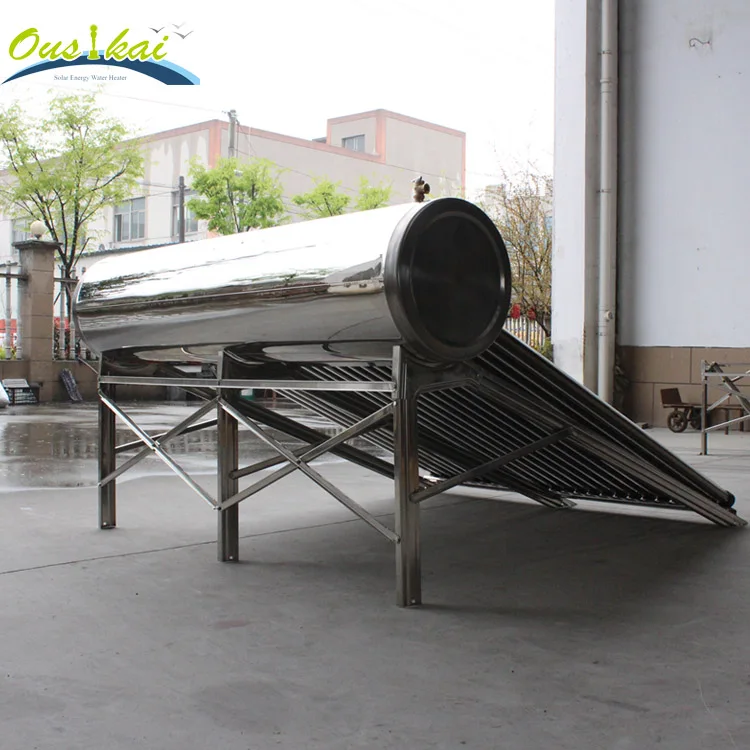

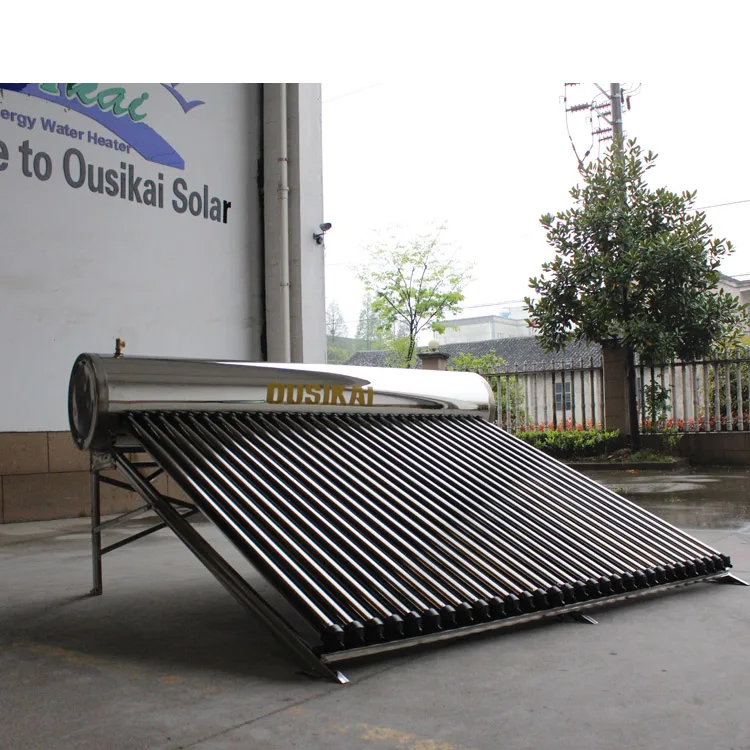

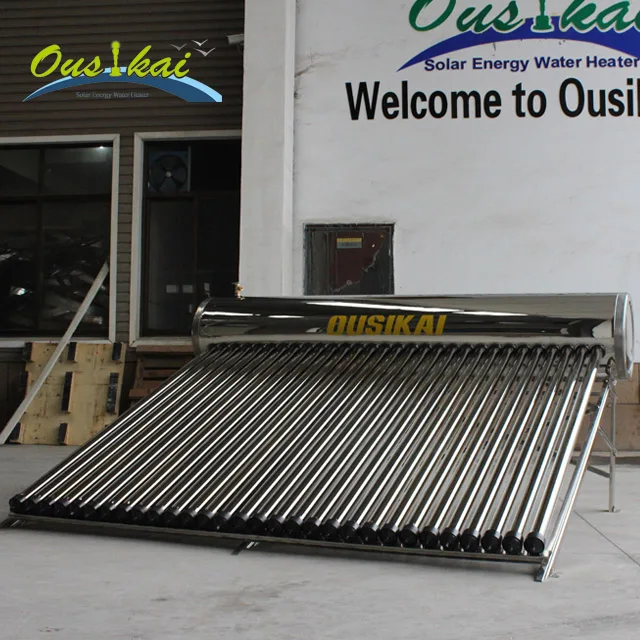

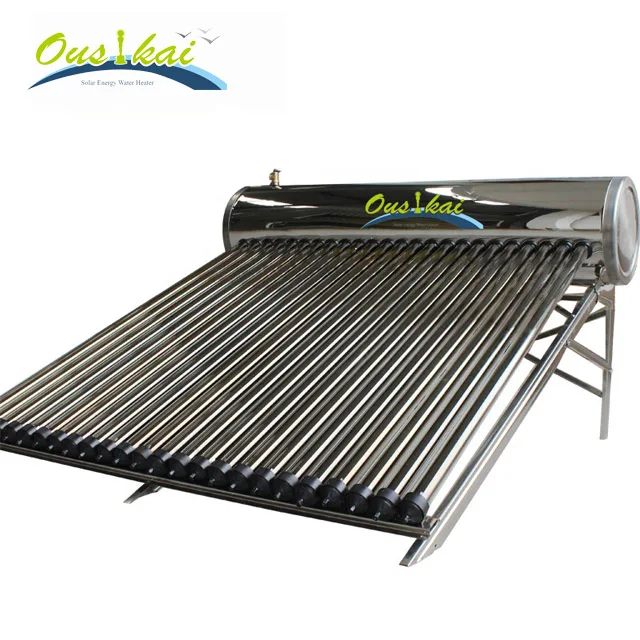

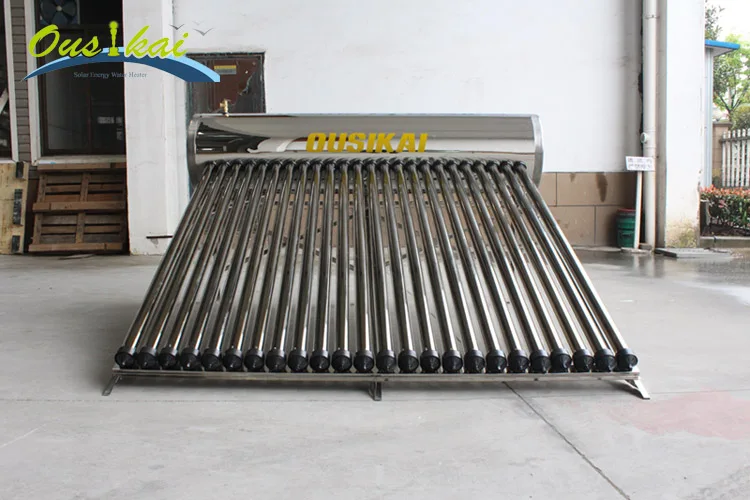

solar water maker china heat pipe solar collector price pressurized solar water heater

Share on:

Price:$335.00 - $345.00
Price in USD:Details


Product Overview


solar energy is the most important basic energy of various renewable energy,and also which is the most abundant energy that human beings can use. Compared with the conventional energy,it has many significant advantages,like geographical university,the enormous amount,non-polluting. We have already adopted a variety of different ways of developing its use, it has become necessary part in our daily life and has greatly changed our lives

1.Inner tank: 1.2mm thickness stainless steel SUS304;360 diameter

2.Outer tank:0.4mm thicknessstainless steel;470 diameter

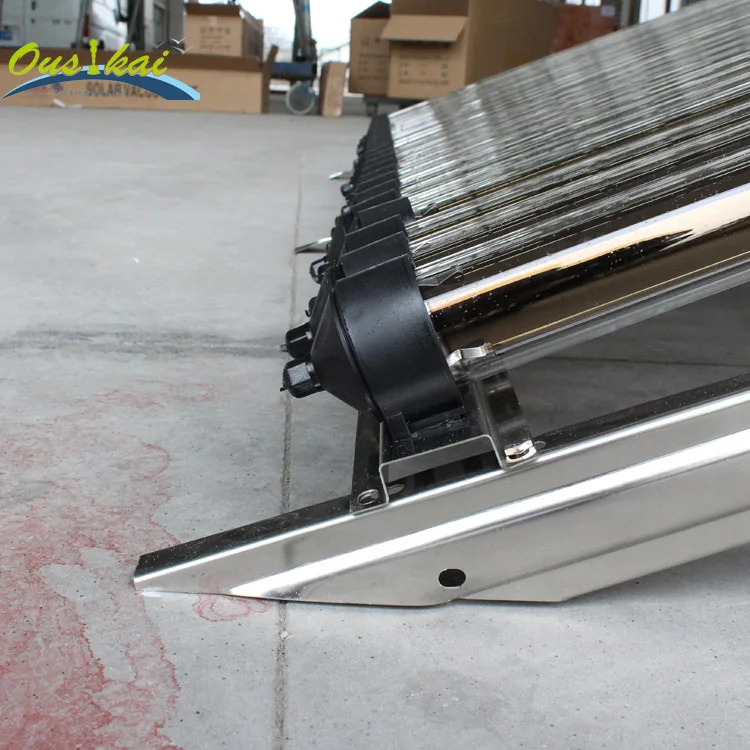

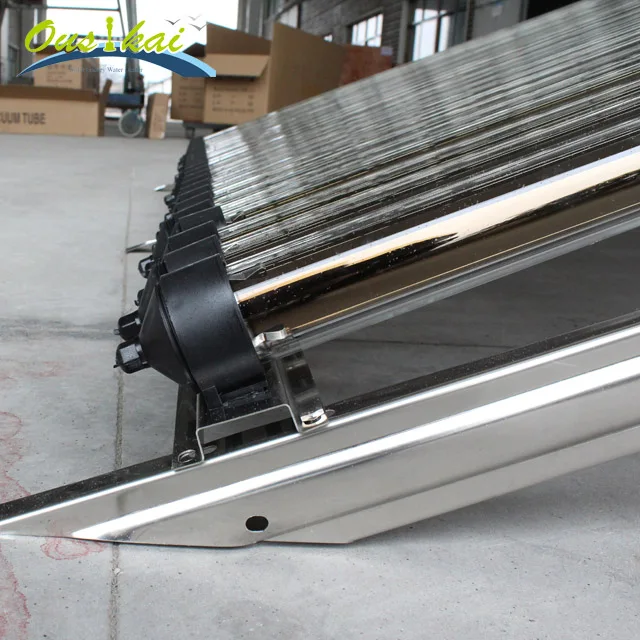

3.Vacuum tube:CU-SS-ALN-58-1800 with heat pipe

4.Frame:1.2mm thickness stainless steel

5.Max. fluid pressure:0.6Mpa

6.Operating fluid pressure:0.6Mpa

7.Test pressure:1.2Mpa

8.Insulation layer: 55mm polyurethane integral foam

9.Heat preservation:72 hours

10.Heat pipe:90mm length condensor, 14mm diameter condensor, body thickness:0.6mm11.Dust Proof Rubber:EPDM

Features and advantages
1.Anti-freezing: No water in the vacuum tube, so it still can work well even several tubes are broken.

2.Intelligent controller,electric back up heater and automatic, work at anytime and enjoyable.

3. Easy plug-in installation. Whether installed on slopes or flat roof.

4.Compact pressurized system tank can work withstands over 6 bar water pressure.

5.The hydraulic pressure is same as tap water and it creats a comfortable bathing.

6.It has T/P valve, air vent makes the system work very stable and safety.

7.Intelligent controller and electric back up heater work at any time and more enjoyable.

8.Can be used all year round in the cold climate.

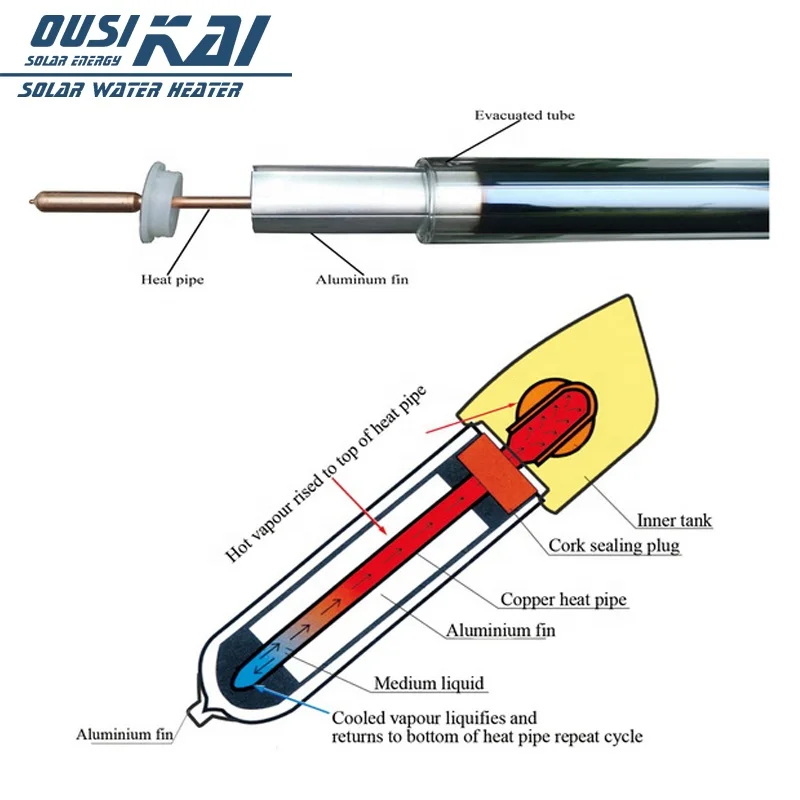

Working principle:

1. Solar absorption: Solar radition is absorbed by the vacuum tubes and then converted into heat.

2. Heat transfer: The liquid in the heat pipe changes into vapor which rises to the condenser. The heat conducts the water inside
the tank and the vapor becomes liquid, returning to the base of the heat pipe again. This continuous circulation transfers heat
from the heat pipe to the cold water in the tank as long as sun is heating the collectors.

3.When using the hot water, the cold water flows through the inlet, the condensors absorb the heat then transfer into the cold water.Finally, temperture rises up ceaselss.

What is the difference between Non-pressurized Solar water heater and pressurized type?

1. The pressurized hot water loses less energy than the normal one.
2. The pressurized can be used in cold winter,
3. strong pressure water makes your bathe more comfortable.

Why choose Ousikai?

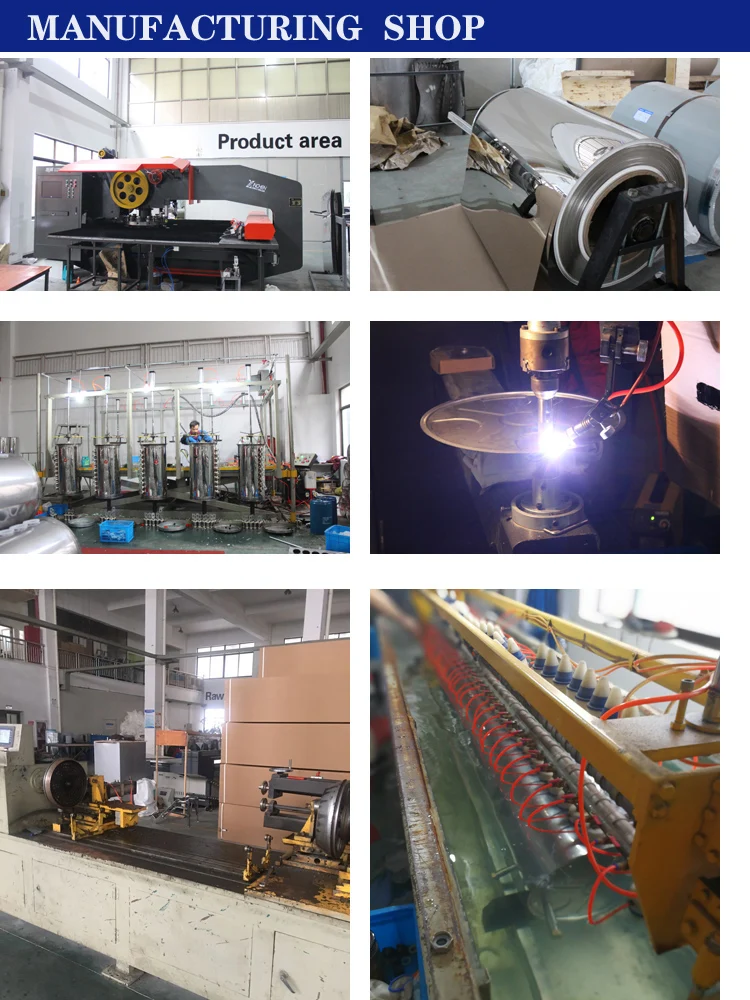

1. We have both vacuum tube factory and water tank factory for more than 8 years, professional.
2. We provide 10 years warranty for the whole system. Others normally with 5 years.
3. Keep the delivery time exactly.

Payment Terms

1) 100% T/T in advance (sample)

2) L/C at sight

3) 30% Deposit in advance and balance should be paid before shipment based on you nominate the forwarder

4) 30% Deposit in advance and balance should be paid after receiving the B/L copy.
