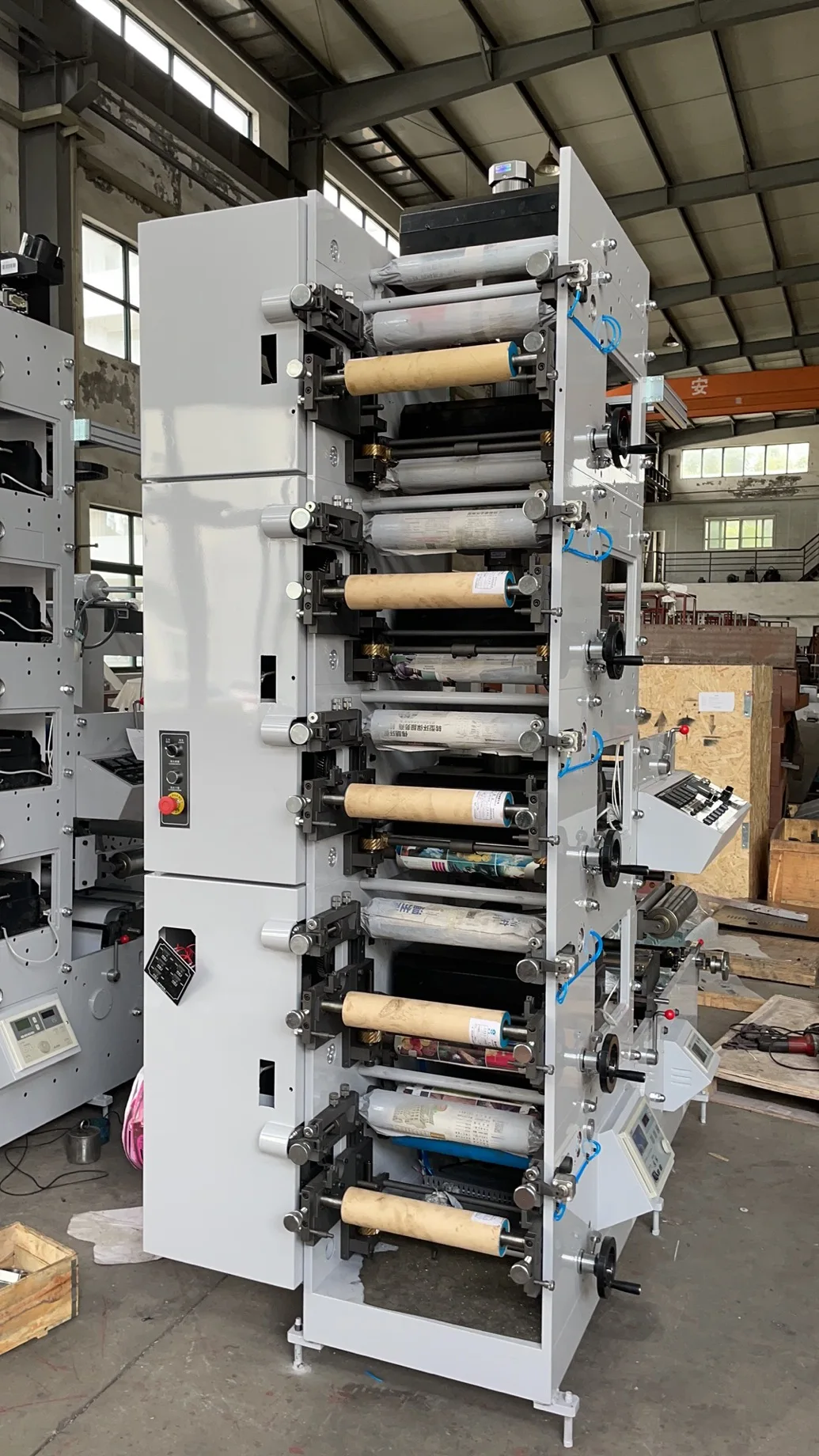

High Quality 6 Color Flexo Label Printing Machine ZBS 320
- Category: >>>
- Supplier: Hangzhou,Taoxing,Printing,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Machine Descriptions
A. Characteristic
1, Ceramic anilox cylinder are adopted for ink transferring.
2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.
3, Each printing unit is adopted 360°printing plate-adjustment.
4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)
5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.
7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.
8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.
2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo machine equipped with Mitsubishi auto tension controller.
3, Each printing unit is adopted 360°printing plate-adjustment.
4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option)
5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process.
6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus preventing ink from drying.
7, The main motor is equipped with an imported variable frequency stepless speed govermor.This guarantees the stable performance of flexo press.
8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke. It is an ideal machine for printing trade invoice and top-grade adhesive label.
B. MATERIAL SUBSTRATE:
10 Micron Film To 400 Micron Board
Unsupported Film
Aluminium Foil
Tissue paper
Self adhesive paper
Vinyls/PVC
Carton weight board
Unsupported Film
Aluminium Foil
Tissue paper
Self adhesive paper
Vinyls/PVC
Carton weight board
C. Option:
• Free standing unwind with roll lifter, roll diameter max 900mm.
• Corona Treater.
• UV Dryer
• Turn Bar
• Additional printing units.
• Cold foiling.

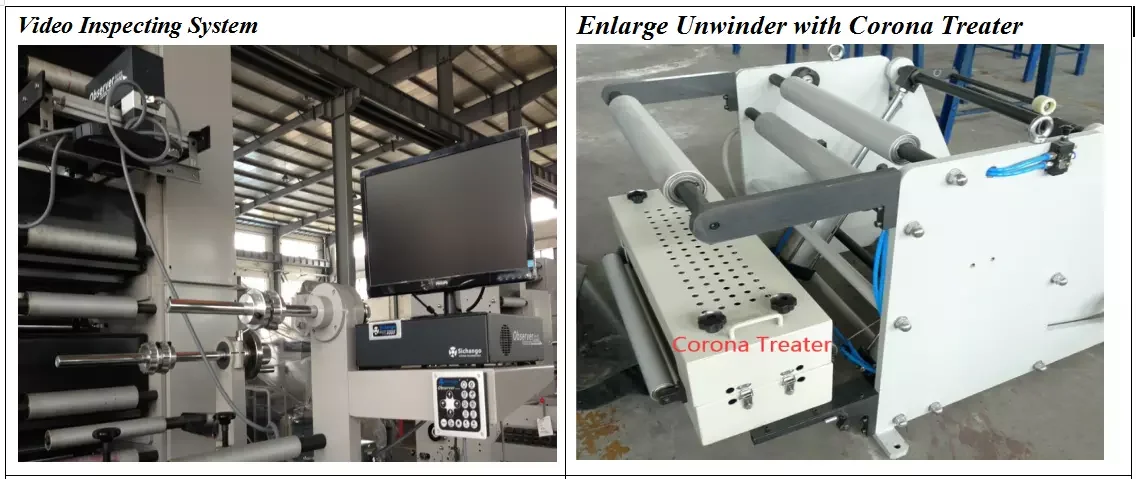

• Video web inspection
• Corona Treater.
• UV Dryer
• Turn Bar
• Additional printing units.
• Cold foiling.
• Video web inspection
Specification of ZBS-320 Flexo Printing Machine | ||
Model | TX-ZBS-320 | |
Printing speed | 50m/min | |
Printing color | 6colours | |
Max. width of paper | 320mm | |
Max .printing width | 310mm | |
Max. unwinding diameter | 600mm | |
Max. rewinding diameter | 600mm | |
Printing length | 177.8-355.6mm | |
Precision of chromatography | ±0.1mm | |
Dimensions | 2000X1100X2600mm | |
Machine Weight | About 2150kg | |
Factory Show

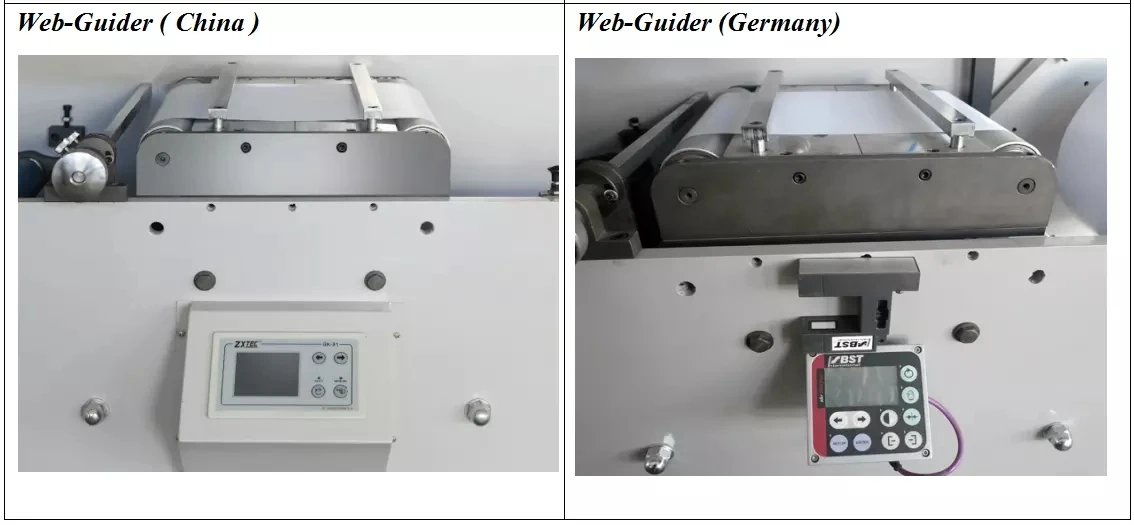

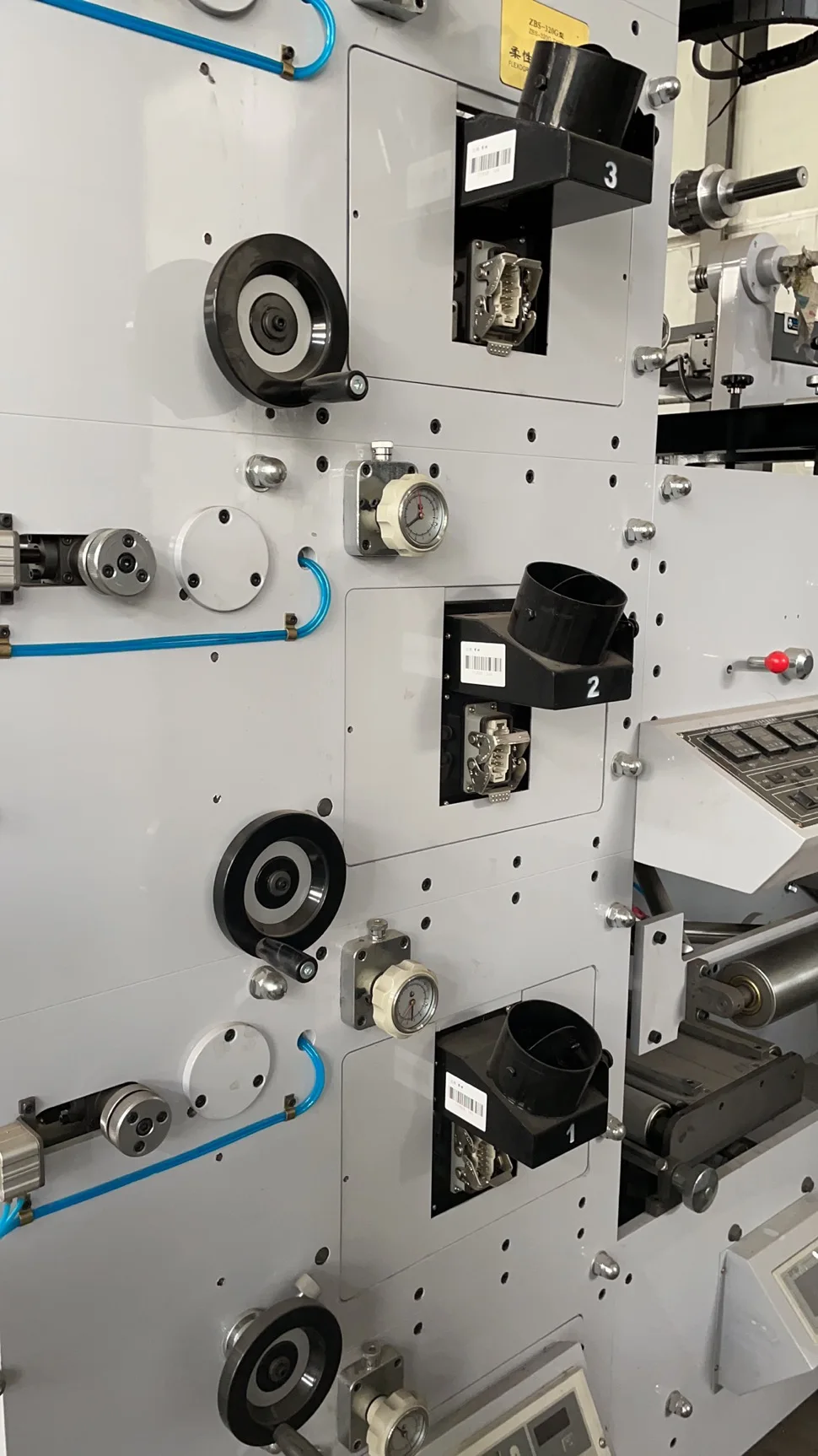

Detailed Images
Printing Sample
Packing & Delivery
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (40% deposit to start the production, 60% paid before delivery)
3. Delivery date：14 business days after received the payment.
4. Delivery means: By sea from Shanghai
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
