Raycus Jpt Ipg 20W 30W 50W 100W Mopa Color Fiber Metal Plastic Laser Marking Cutting Engraving Machine with Rotary
- Category: Industry Laser Equipment >>>
- Supplier: Jinan Vmade CNC Machine Co. Ltd.
Share on (1600148852495):
Product Overview
Description
Product Description

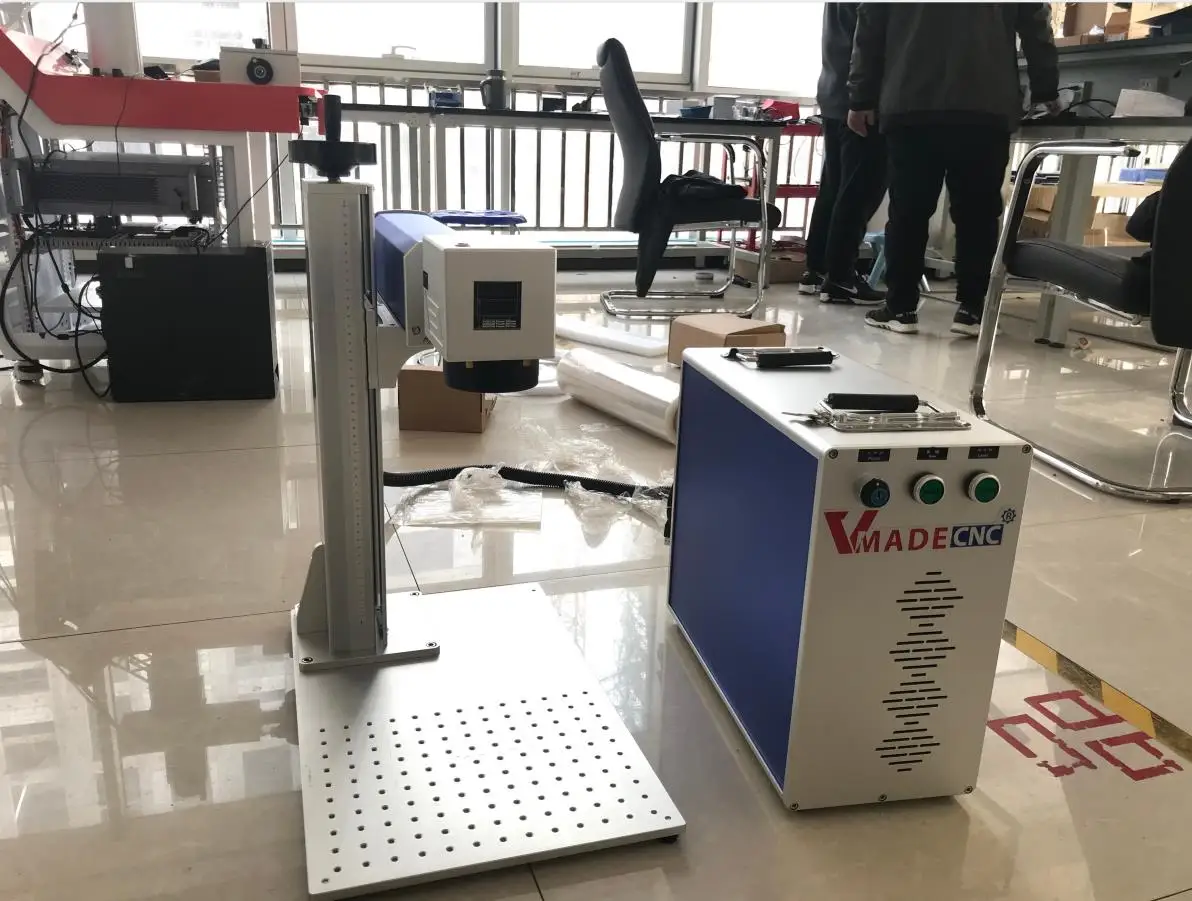

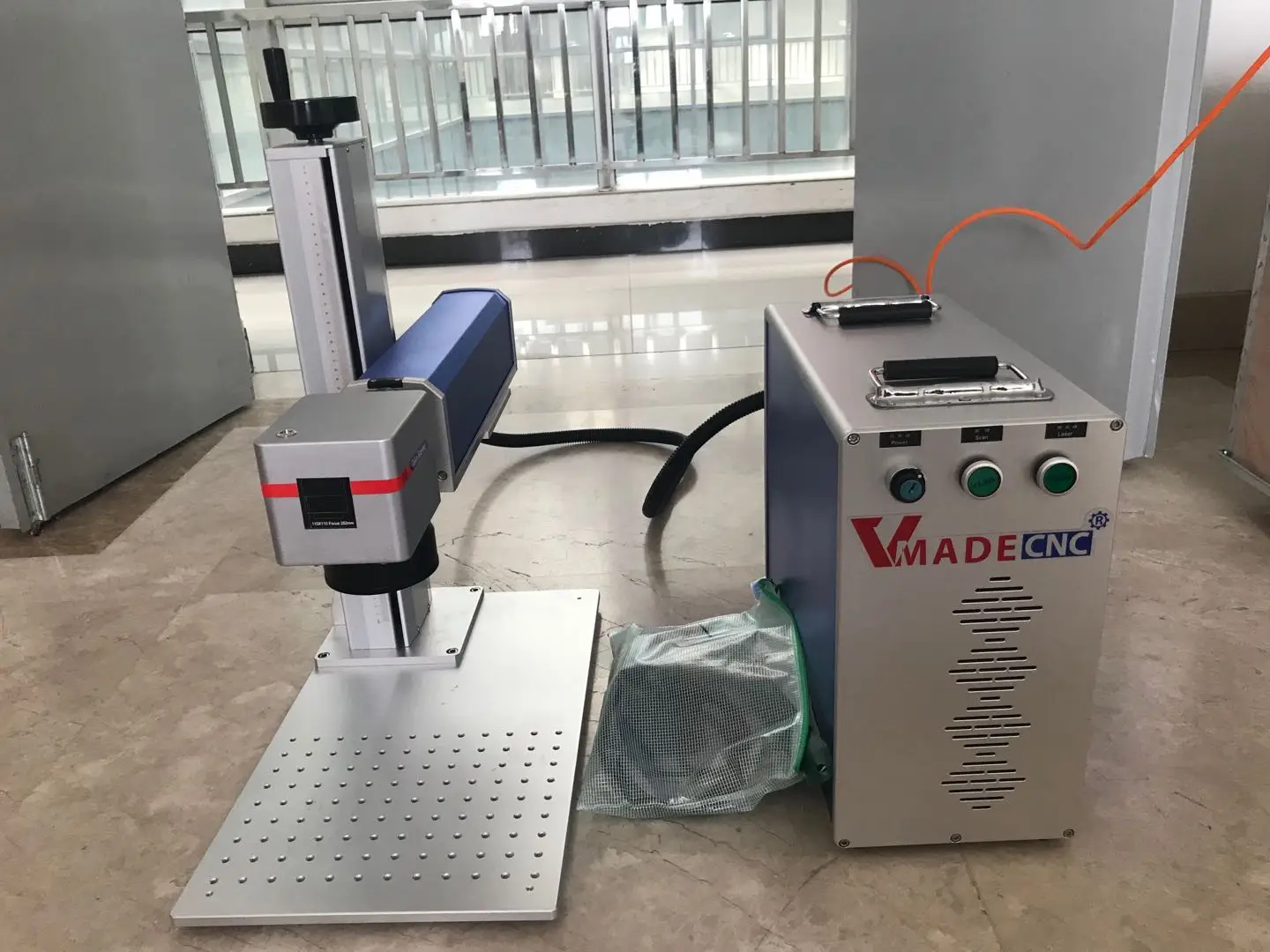

The fiber laser marking machine is a new generation of laser marking system developed by our company using the advanced laser technology in the world.
The laser is output by optical fiber, and the marking function is realized by the high-speed scanning galvanometer system. Fiber laser marking has high electric-optical conversion efficiency and adopts air-cooled cooling method. The whole machine is small in size, good in output beam quality and high in reliability. It can engrave metal materials and some non-metal materials, and is mainly used in fields that require high depth, smoothness and fineness.
FEATURES AT A GLANCE
1.High Precision: Re-position precision is 0.001mm
2.High Speed:Imported scanning system makes the scannng speed is up to 7m/s
3.Easily Opreating:Afford the specific marking software based on windows,you can input and output by computer accorfing to edit in
the both of the specific marking software and the graphic software such as AutoCAD,CorelDRAW and Photoshop
4.High Reliability:MTBF>100,000 hours
5.Energy Saving: The effectiency of optic-electrical converting is up to 30%
6.Low Running Cost: No wearing part. Free maintaining
7.Rotary is optional
2.High Speed:Imported scanning system makes the scannng speed is up to 7m/s
3.Easily Opreating:Afford the specific marking software based on windows,you can input and output by computer accorfing to edit in
the both of the specific marking software and the graphic software such as AutoCAD,CorelDRAW and Photoshop
4.High Reliability:MTBF>100,000 hours
5.Energy Saving: The effectiency of optic-electrical converting is up to 30%
6.Low Running Cost: No wearing part. Free maintaining
7.Rotary is optional
PRODUCT SPECIFICATIONS
Model | VLM |
Metal tube brand | Raycus/IPG/JPT/Max |
Max Power | 20w/30w/50w/70w/100w |
Marking Range | 110*110m,150*150mm,175*175mm,200*200mm,300*300mm working area option |
Minimum Line Width | 0.01mm |
Minimum Character | 0.1mm |
Marking Speed | 10000mm/s |
Marking Depth | 0-1.5mm |
Engraving Line Speed | ≤7000mm/s |
Repeatability Accuracy | ±0.001mm |
Graphic Format Supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, ETC. |
Working Environment | Clean and dust free or dust less |
Laser Module Life | >100000 hours |
Product packing Weight | 68KG |
Product packing Size | 75cm* 47cm* 85cm |
Matching system | Win7,Win8,Win9,Win10 |
PRODUCT CONFIGURATION
Galvo scan head
Aluminum beam
Double red light
Protective glass
cabinet
box
rotary
Ezcad software
Foot switch
Successful Project
Project in Thailand
Project in India
Project in Russia
