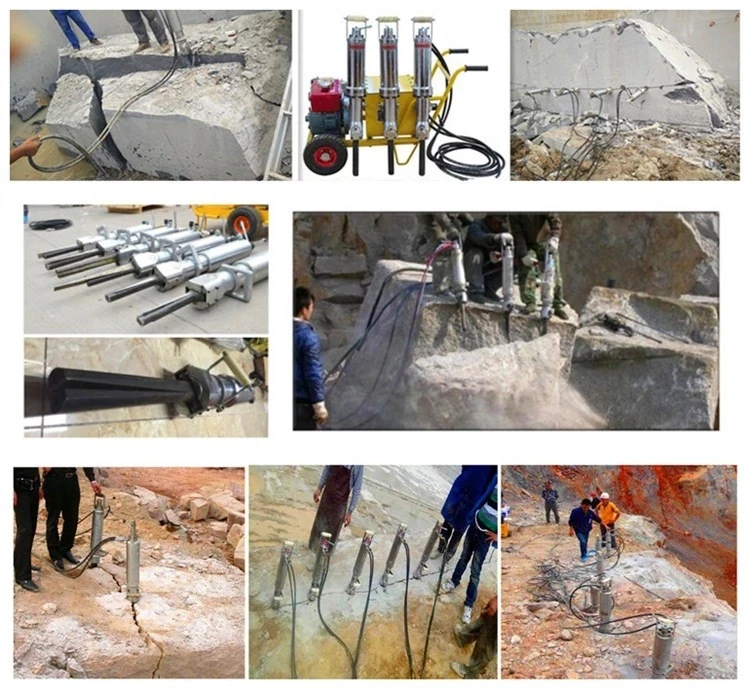

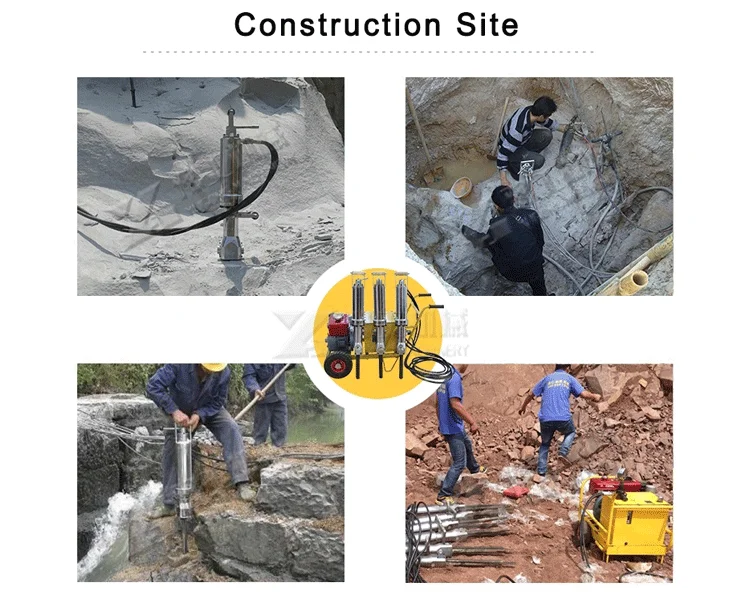

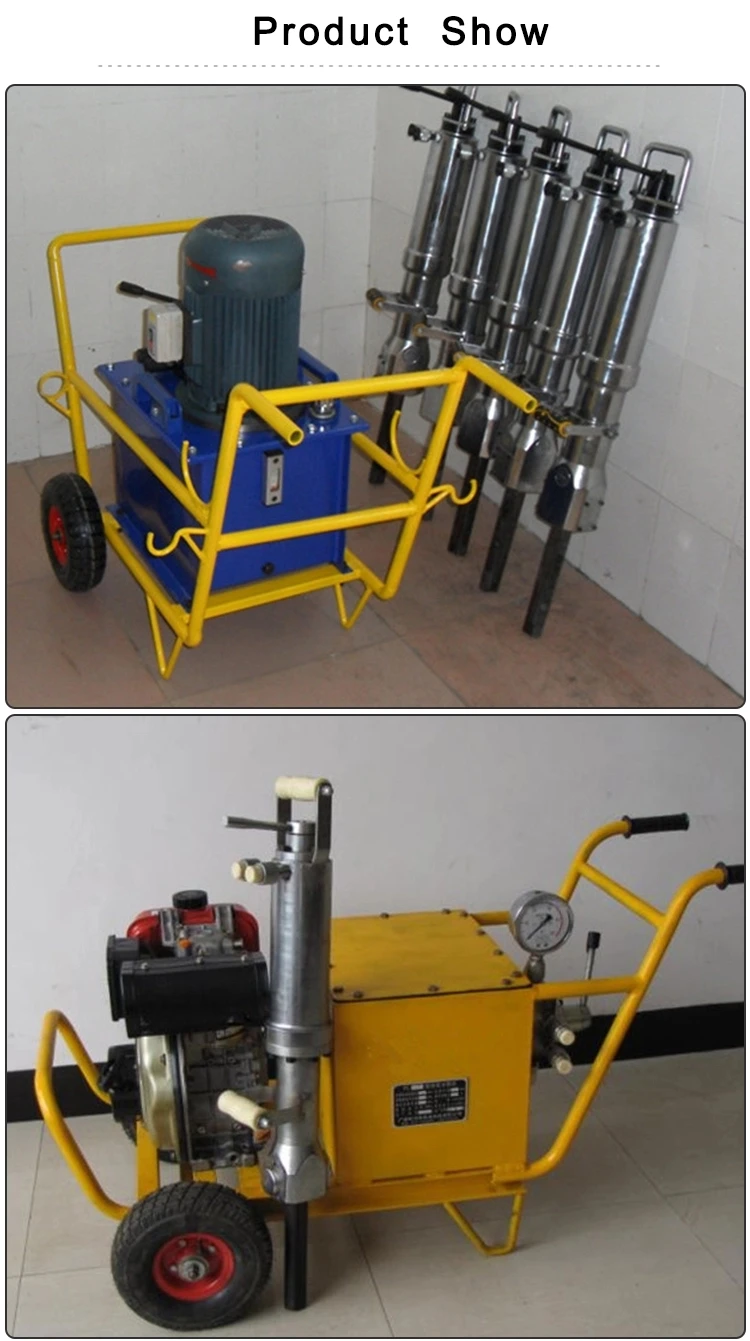

hydraulic rock splitter description: Hydraulic rock splitting machine, also known as rock splitting machine, is a machine used to split rocks. It is mostly used in construction, decoration, engineering construction, ore mining operations, secondary disintegration of large ore, and partial and complete demolition of concrete components.
hydraulic rock splitter Specifications:
Model
YG-250
YG-350
YG-450
Wedge length (mm)
250
350
450
Piston stroke (mm)
90/220mm
90/220mm
90/220mm
Punching depth (mm)
>500mm
>700mm
>900mm
Punch diameter (mm)
42mm
46mm
46mm
Crack width (mm)
10-20mm
10-20mm
10-20mm
Splitting time (s)
10-15/s
10-15/s
10-15/s
Splitting force (T)
500t
800t
800t
Weight (kg)
30kg
32kg
35kg

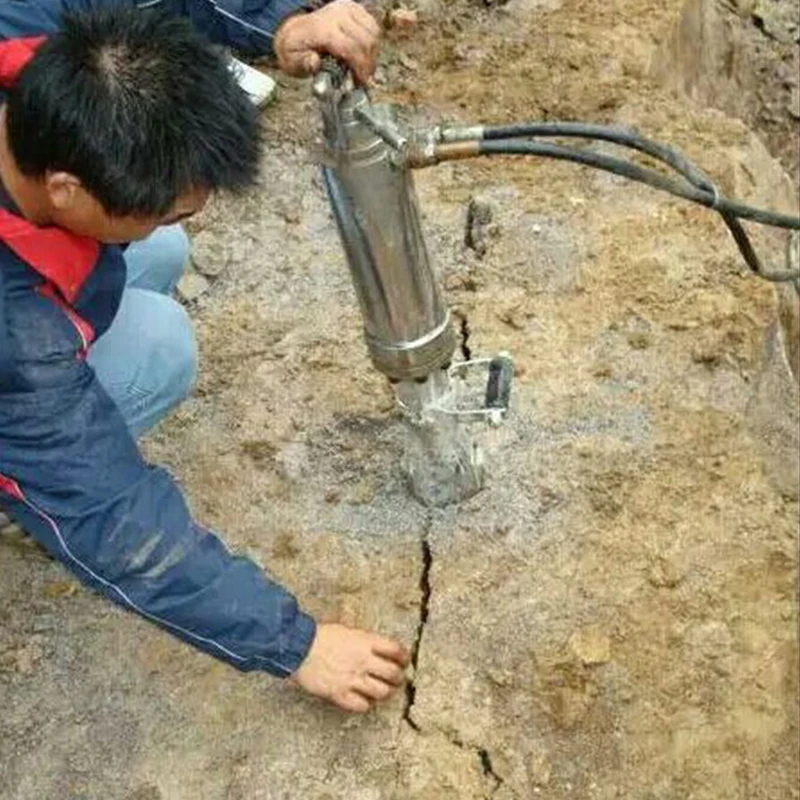

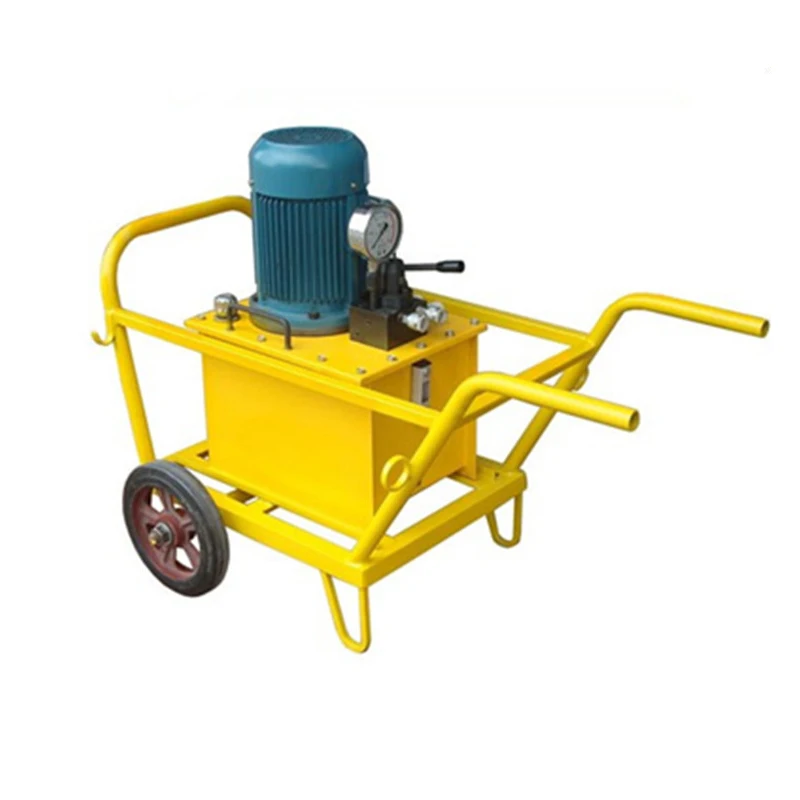

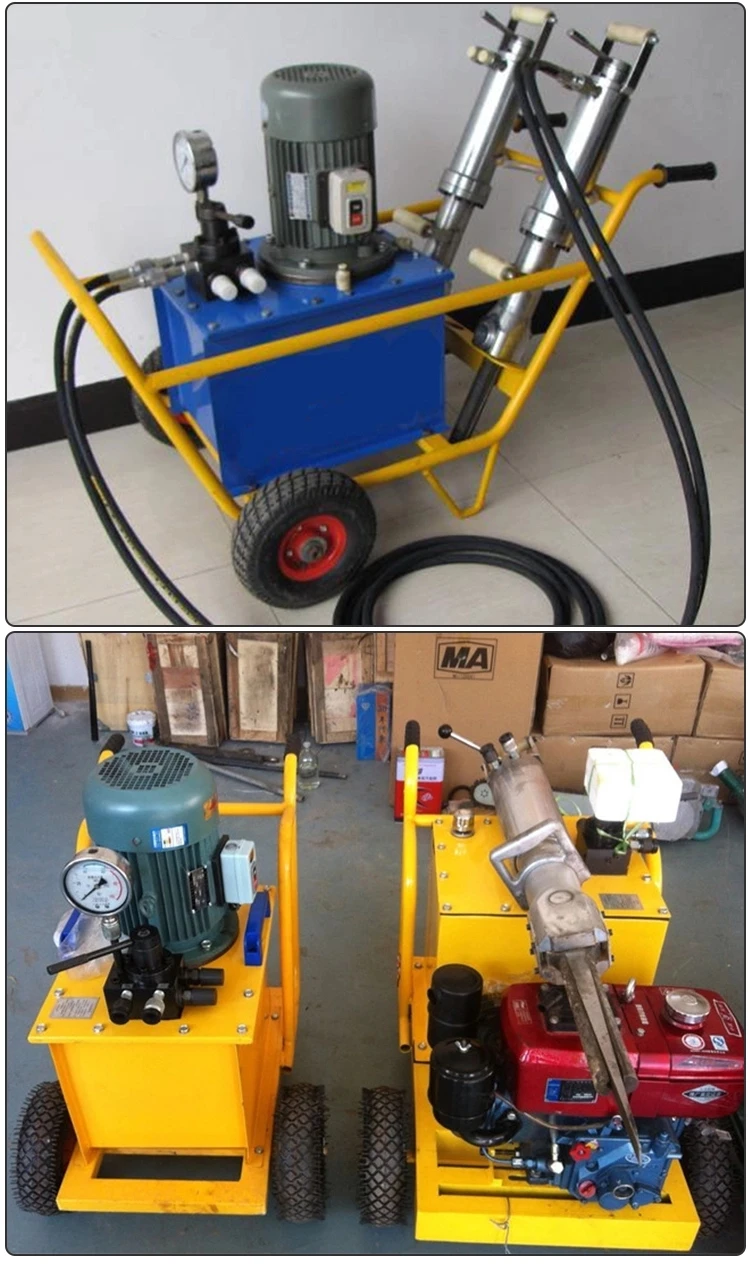

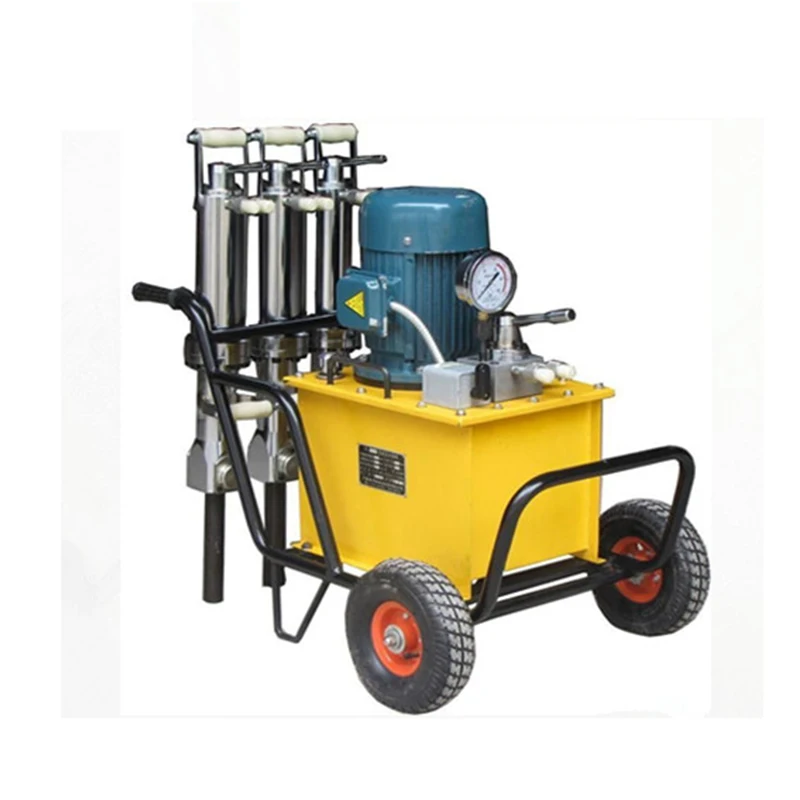

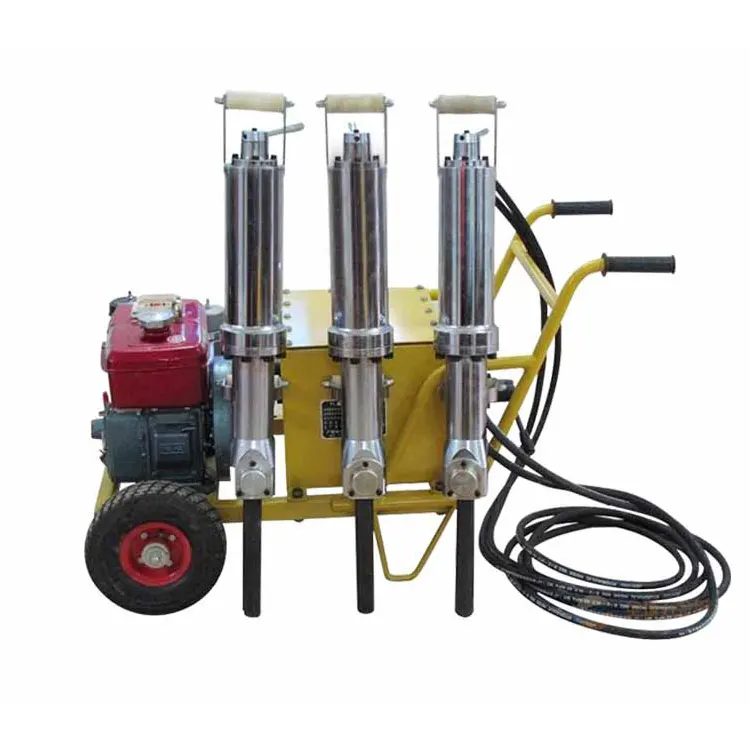

Product working principle: When working, the pumping station outputs high-pressure oil to drive the cylinder to generate huge thrust. When the high-pressure oil output from the hydraulic station pushes the middle wedge of the splitting gun forward, the side wedge is propped to both sides, and the object to be split is split in a predetermined direction in a short time.
Packaging & Shipping

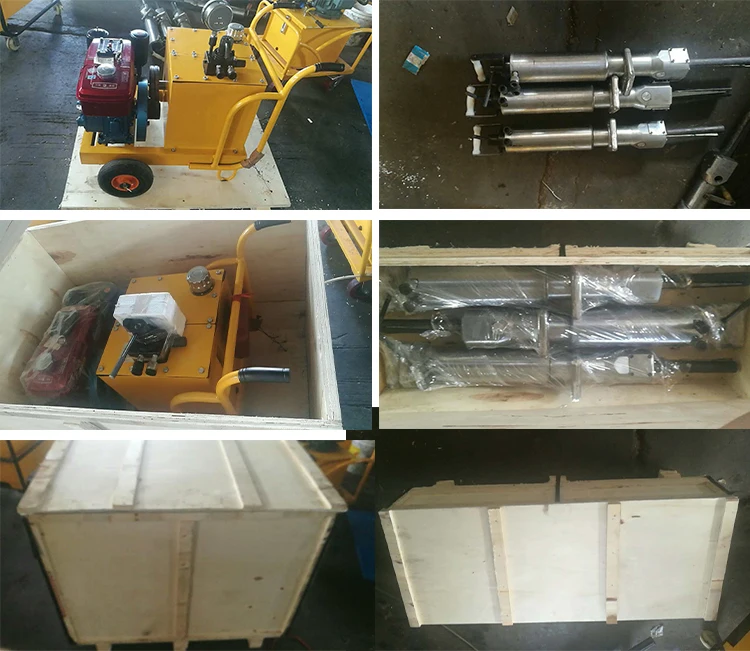

1. rock splitter Packaging: 1. Wrapped by protective film; 2. Packed by standard import & export wooden cases or carton boxes; 3. Customized according to your requirement. 2. rock splitter Shipping: Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements. Sea freight: FOB/CIF/DDU quotation are all available. Transport method: By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Certifications
Customer Visit
Our Services
1.We have more than15 years manufacture and export experience. 2.Exporting to all over the world,win high reputation among customers. 3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products. 4.Near the Qingdao port convenient for exporting. 5.Customer service staff 24 hours online,offer free technical support. 6.Factory and Competitive Price we offer. 7.Strong Research & Development technical team. 8.Various machinery to meet all your needs at our factory. 9.Engineers are available to guide the installation and take care of other problems. 10.We offer OEM&ODM service to meet all your requirements.
