Индикатор уровня воды зеркального/прозрачного типа
- Category: Measuring & Gauging Tools >>>
- Supplier: Hebei,Xukang,Meter,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
The Reflex Liquid Level Gauge
Reflex glass level gauges working principle is based on the light refraction and reflection laws.
Reflex glass level gauges use glasses having the face fitted towards the chamber shaped to have prismatic grooves with section angle of 90°. When in operation, the chamber is filled with liquid in the lower zone and gases or vapors in the upper zone; the liquid level is distinguished by different brightness of the glass in the liquid and in the gas/vapor zone. The reflex level gauges do not need a specific illumination: the day environmental light is enough. Only during the night an artificial light must be provided.
Applications
Reflex glass level gauges can be used in most of the cases and offer great advantages in terms of: low initial cost, low operating cost, easy level reading.
Reflex glass level gauges use glasses having the face fitted towards the chamber shaped to have prismatic grooves with section angle of 90°. When in operation, the chamber is filled with liquid in the lower zone and gases or vapors in the upper zone; the liquid level is distinguished by different brightness of the glass in the liquid and in the gas/vapor zone. The reflex level gauges do not need a specific illumination: the day environmental light is enough. Only during the night an artificial light must be provided.
Applications
Reflex glass level gauges can be used in most of the cases and offer great advantages in terms of: low initial cost, low operating cost, easy level reading.
See-Thru (Transparent) Liquid Level Gauge
Transparent level gauges are always fitted with two plate transparent glasses between which the fluid is contained. The fluid level is indicated as the result of the different transparency of the two media and in some cases (for water steam), by conveying upwards on to the surface of separation (between liquid and gaseous substances) a source of light located at the back of the gauge, the rays of which are totally reflected down to the observer.
To avoid leakage in case of glass breakage, safety ball-check device can be provided in cross-fittings or shut-off valves. This kind of indicator is suitable for water/steam. To protect glass surfaces from corrosive action of the process fluid, Transparent Level Gauges can be fitted with Mica shields or Polytrifluorochloroethilene shields. This kind of indicator is suitable for liquids colorless and very fluid.
To avoid leakage in case of glass breakage, safety ball-check device can be provided in cross-fittings or shut-off valves. This kind of indicator is suitable for water/steam. To protect glass surfaces from corrosive action of the process fluid, Transparent Level Gauges can be fitted with Mica shields or Polytrifluorochloroethilene shields. This kind of indicator is suitable for liquids colorless and very fluid.
Features:
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
7. Not affected by the chemical or electrical properties of the process liquid.
8. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
1. They do not need electrical power to operate. This can be a great advantage in the case of a power outage.
2. Simple to install – no calibration is necessary.
3. Can be used as a reference to check, or calibrate, other level technologies.
4. Pressure rating from vacuum to 4Mpa.
5. Temperature rating from -20℃ to 450℃
7. Not affected by the chemical or electrical properties of the process liquid.
8. Specific gravity, dielectric, conductivity, surface turbulence, vapor, foam, etc. no longer needs to be considered.
Product Paramenters
Model | TBS-F | TBS-A | TBS-HR | TBS-HT | RFL-40C | ||||
Type | Reflex type | Transparent type | High pressure reflex type | High pressure Transparent type | 90 degree Quick open/close type | ||||
C-C (mm) | 325-3600 | 285-2590 | |||||||
Visible Length (mm) | 95-3360 | 141-2433 | |||||||
Level Gauge Material | CS、SS304、SS316L、Ti、etc | Cast steel | |||||||
Glass Material | Borosilicate; Alumina-silicate | ||||||||
Gasket Type | Graphite composite gasket; non-Asbestos gasket; Mica seal components | ||||||||
Working temperature ℃ | ≤450℃ | ||||||||
Working pressure Bar | 40 (Groove glass) 100 (Plate glass) | 100 (Plate glass) | 40 (Groove glass) 160 (Plate glass) | 160 (Plate glass) | 40 (Groove glass) | ||||

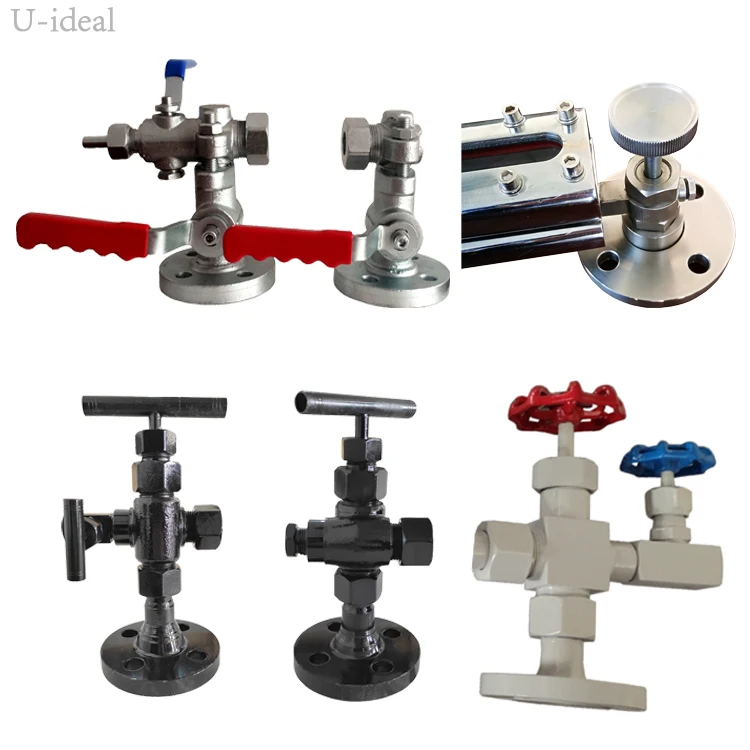

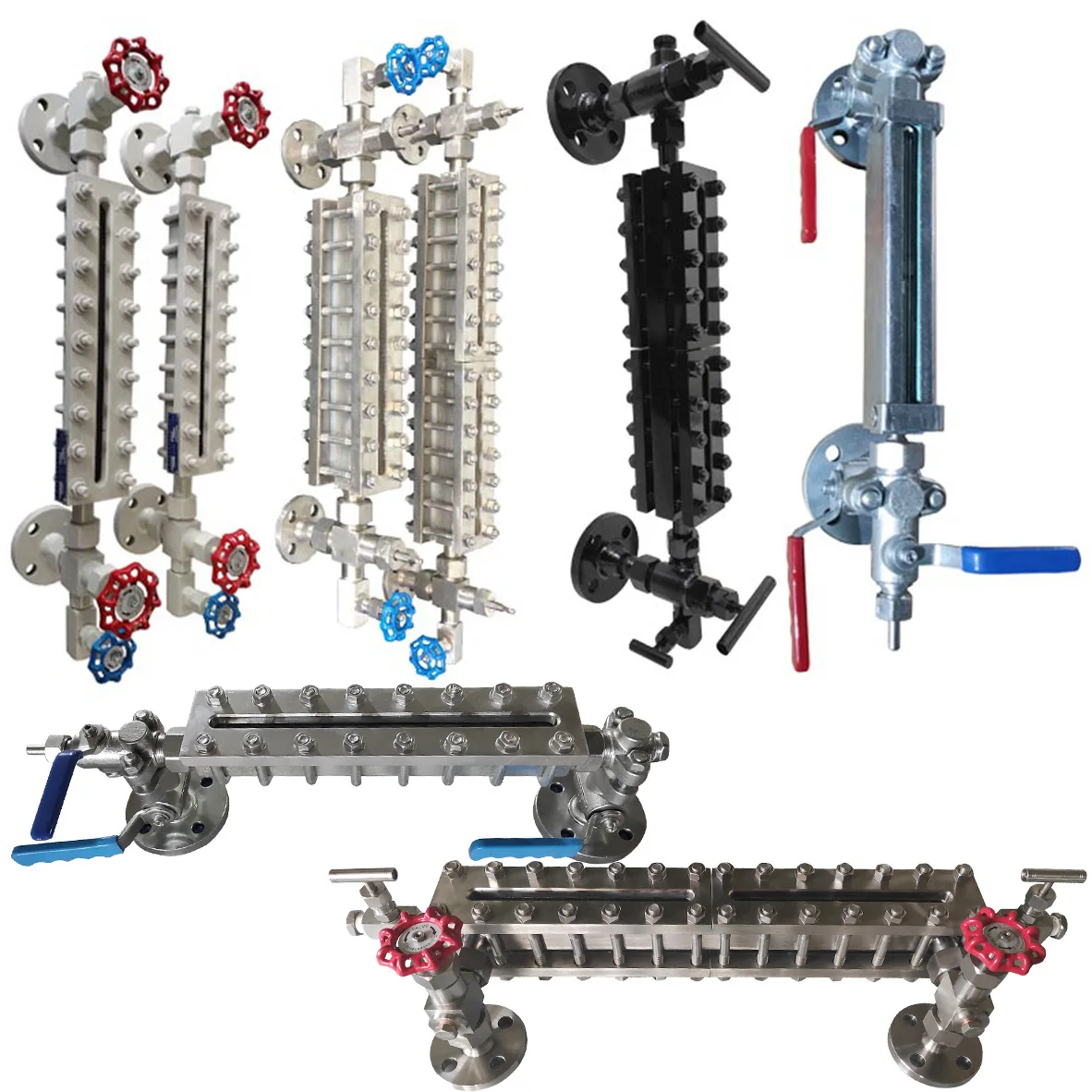

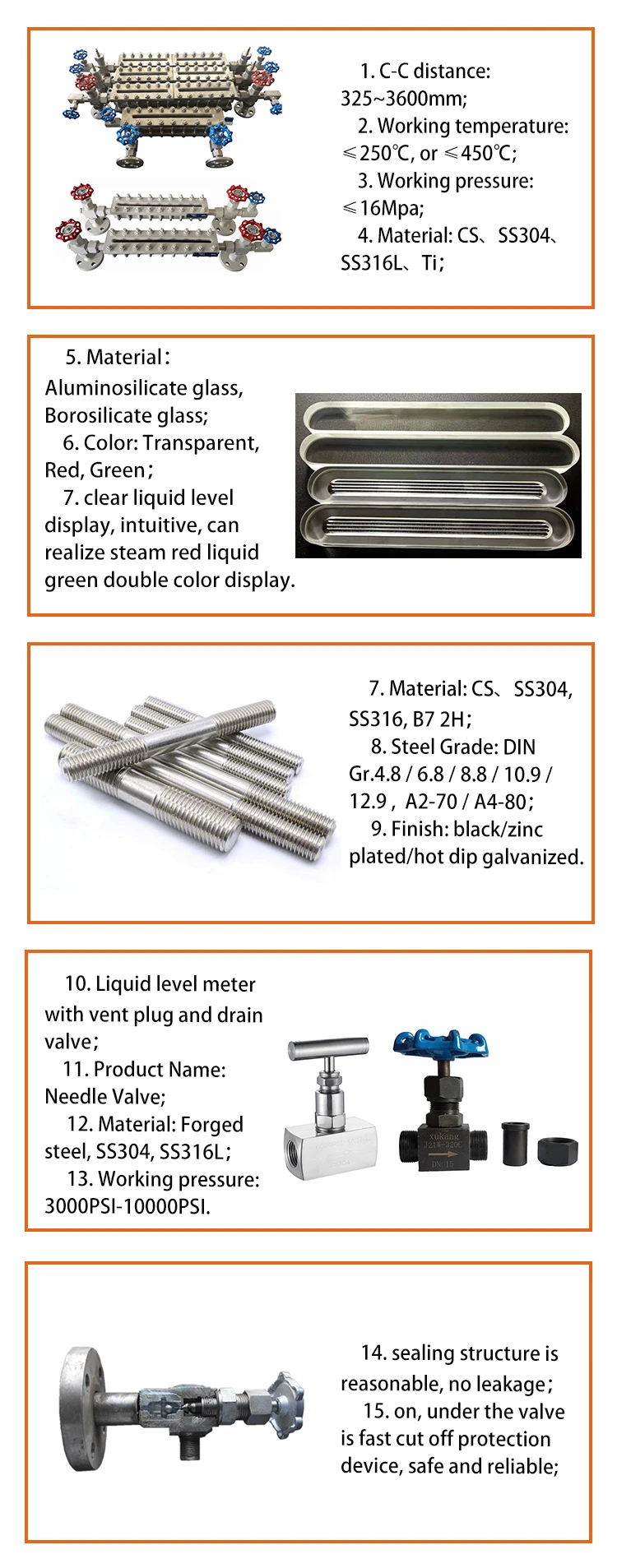

Details Images
