DF RAWP 2 Series Specification 6A/10A 250V AC, 10A/15A 125V AC
- Category: >>>
- Supplier: Dongguan Honest Power Industrial Co. Ltd.
Share on (1600149014390):
Product Overview
Description

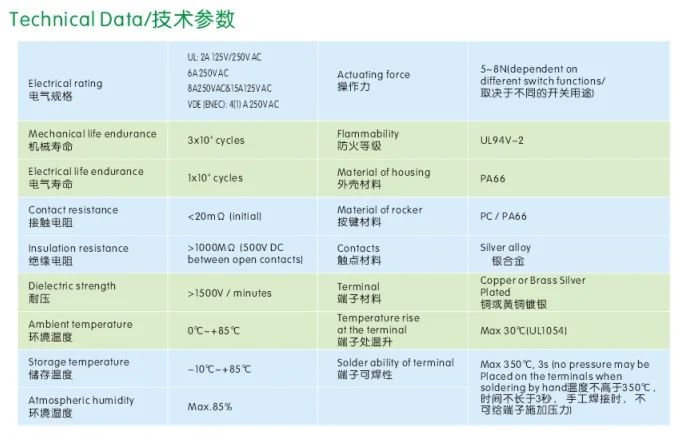

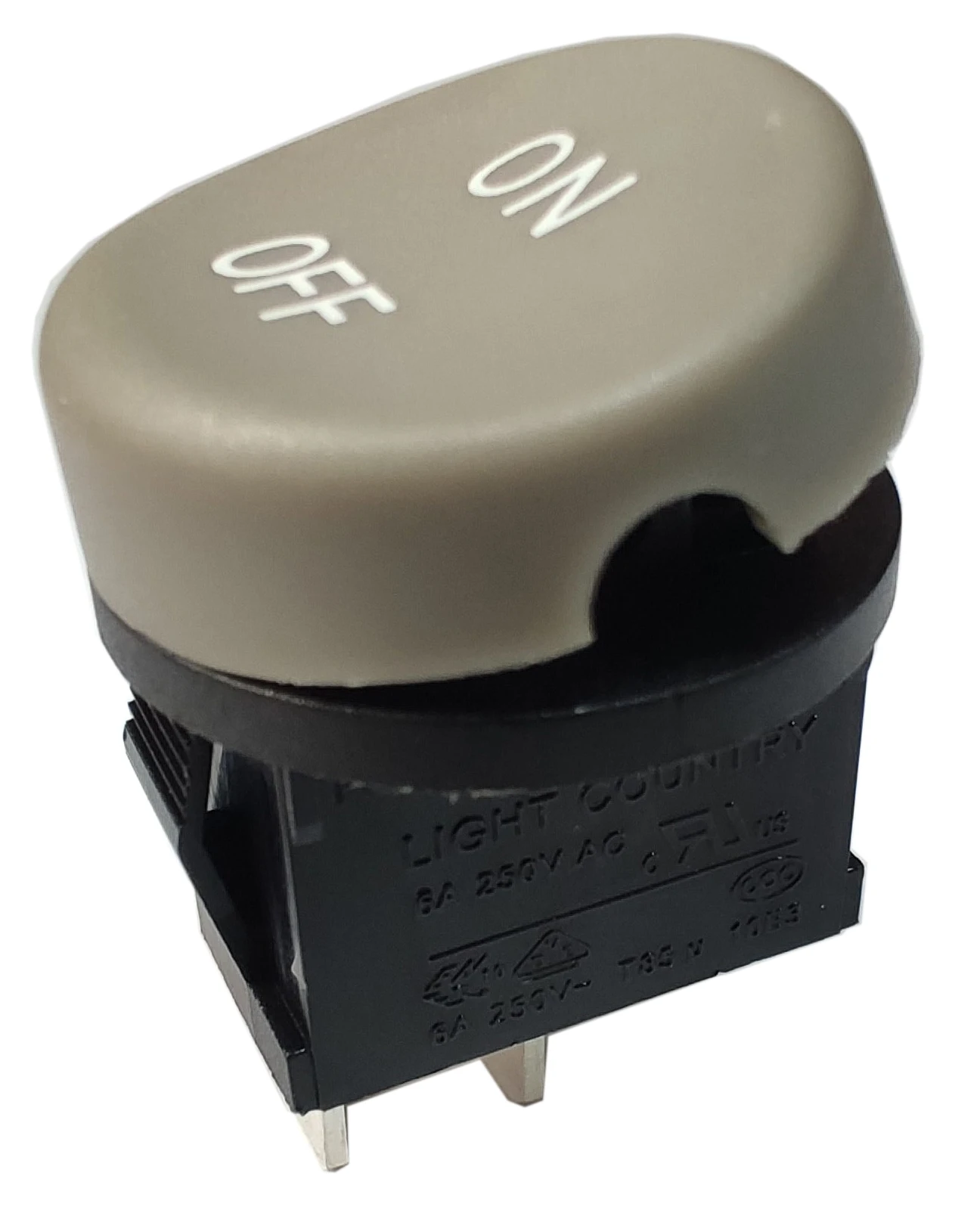

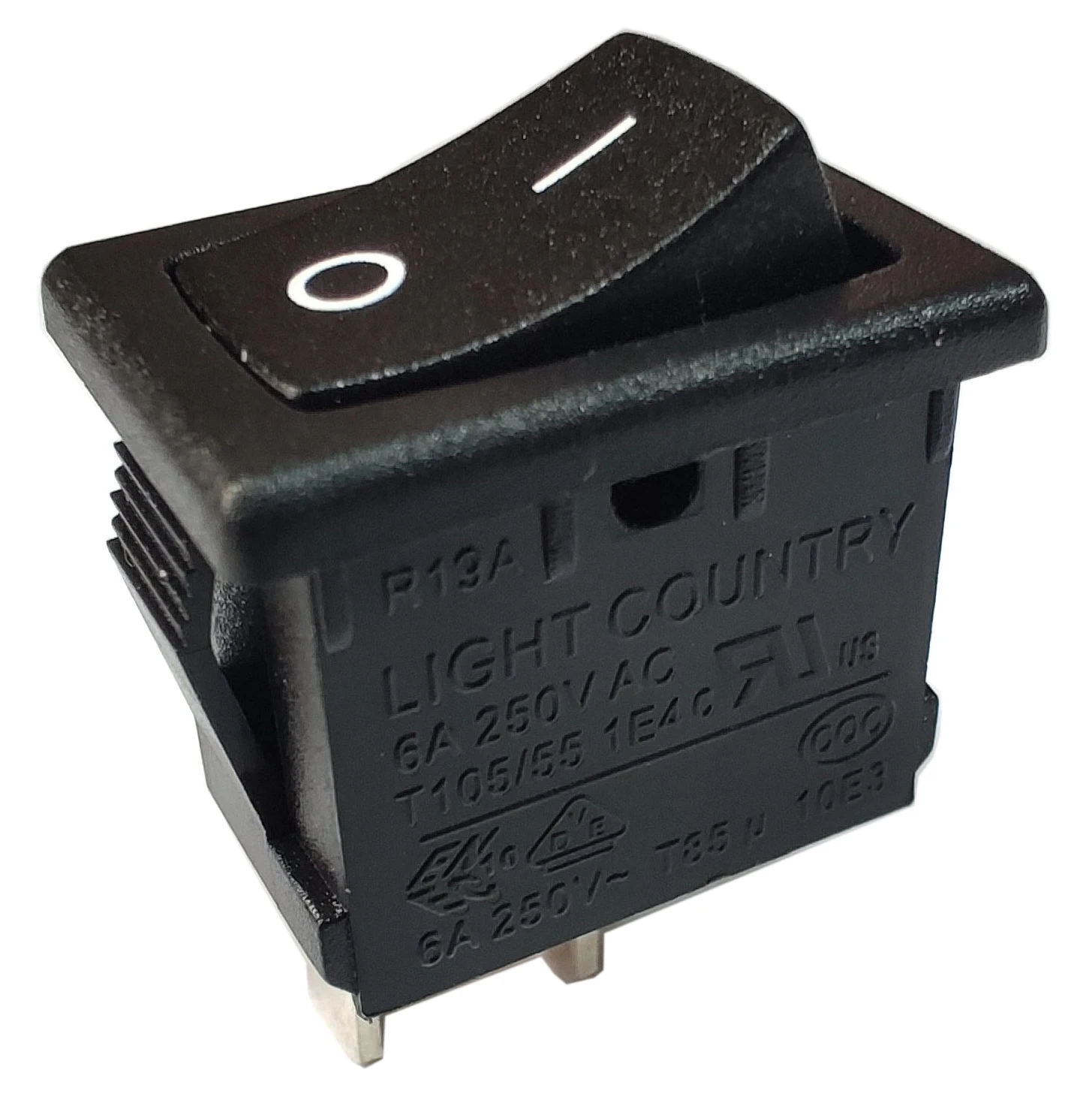

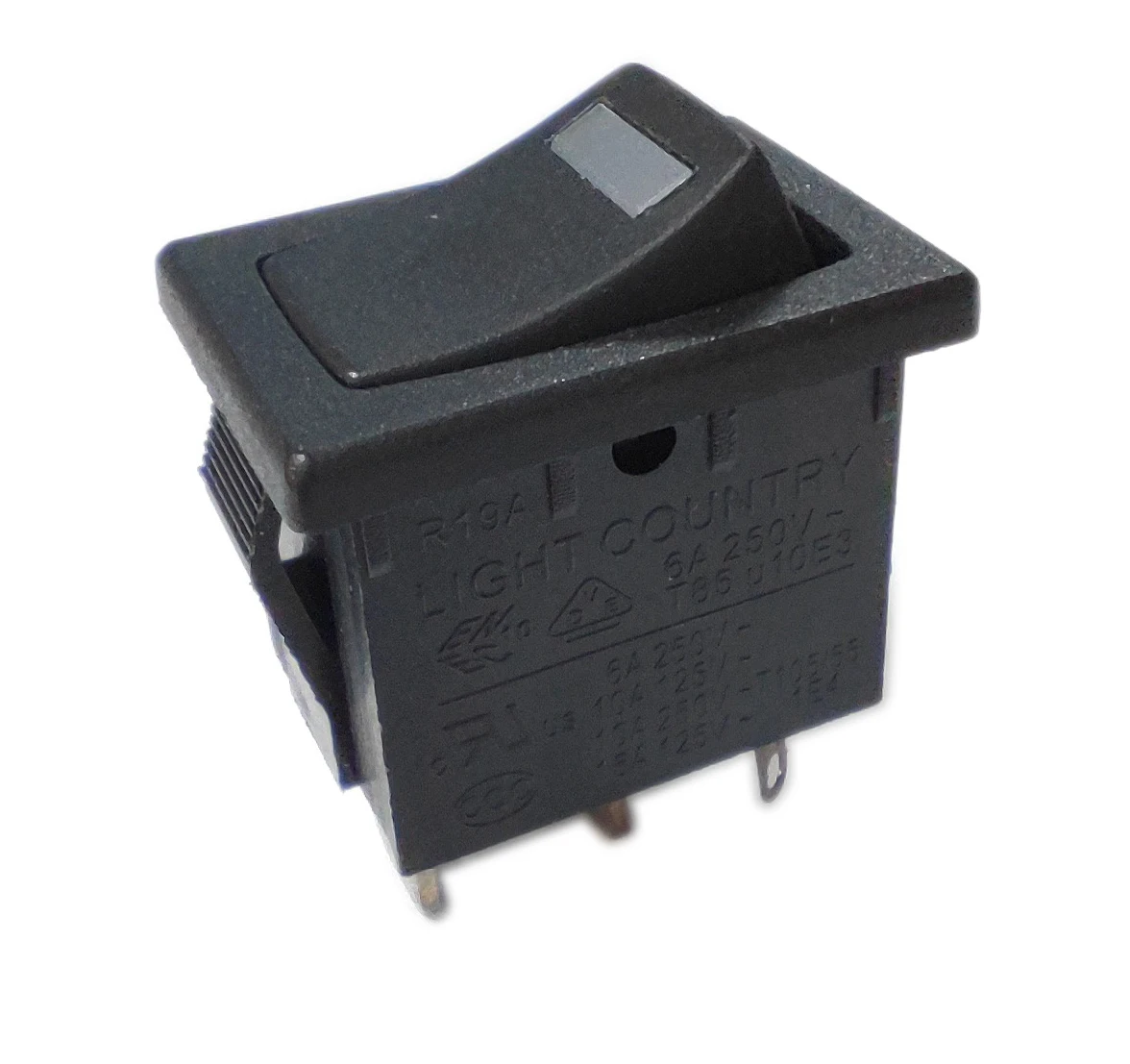

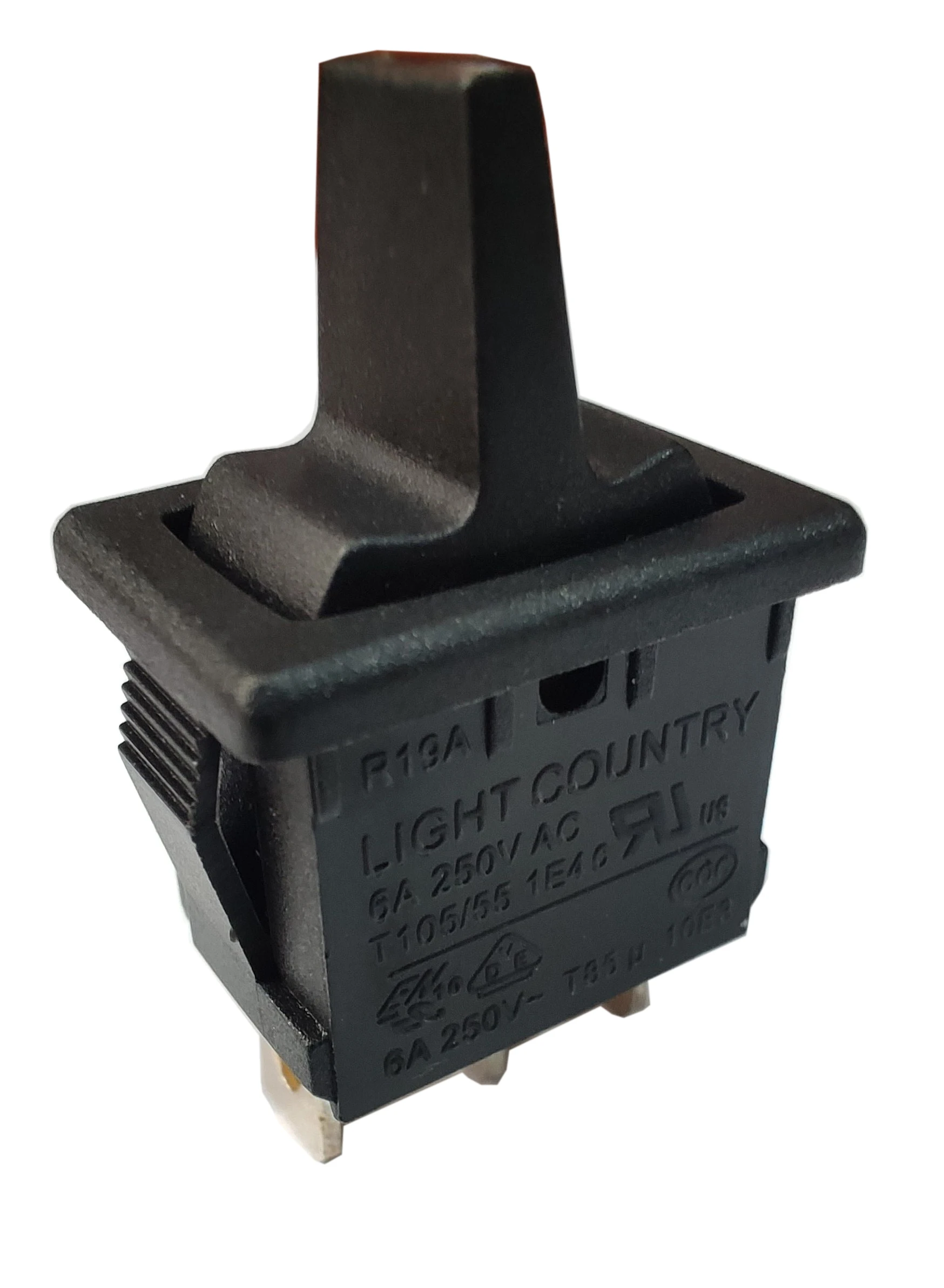

RA Series Specification
l Safely approval: UL, CUL, VDE, ENEN, CQC, KC
l Electrical rating: 6A/10A 250V AC, 10A/15A 125V AC
l Mechanical life endurance: 30,000 cycles
l Electrical life endurance: 10,000 cycles
l Contract resistance: <20mΩ
l Insulation resistance: >1000MΩ
l Ambient temperature: T85/T105
l Fire rating: UL 94V-2. UL 94V-0. Glow-wire, needle flame test.
l Material of housing: PA66
l Material of contacts: Silver alloy
l Material of terminal: Copper silver plated
l Solder ability of terminal: Max 350℃ 3S, do not apply pressure to the terminal when welding by hand.

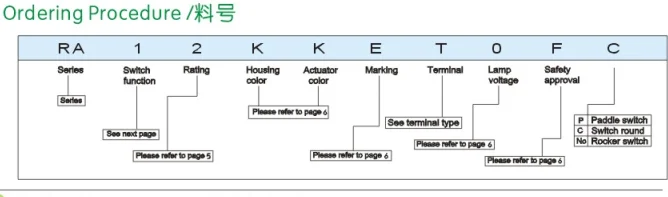

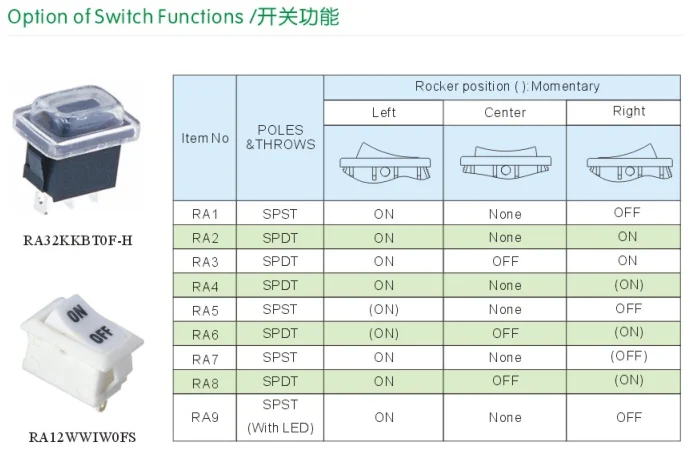

l Part number cording rule: Choices of switch function, Housing color, Actuator color and tape, Marking, Terminal type, Lamp color can be found here.
Contact us
Prices
- The price listed on website is not workable for many cases due to each buyer final deal terms may be different.
- We sincerly invite you to contact us by email or communicate on alibaba with your requirement details.
- For customized order, our price could only be offered after we know the size and the model that you need, the specification that you need and the packing details you prefer to have ,the shipping terms, etc, finally, we need know your order qty before we make price for your order.
- We will try to give you fast services and best price that we could .
Price & Quotation
The price will be offered after contact with us.
