Graphical menu operation interface, support mouse operation
Password security
Two-level management of user password and administrator password
Audio and video
Video format
PAL/NTSC
Compression standard
H.264
Image Resolution
720P /960H/D1/CIF
Playback quality
720P /960H/D1/CIF
Decoding ability
1 channel 720P real-time
Video quality
Level 1 to 6 can be equipped
Screen display
Support 1, 4 screen display
Audio compression
G.726
Recording method
Synchronous recording of sound and video
Recording and playback
Video mode
Manual, alarm
Video bitrate
Full frame 4096Mbps, 6-level image quality optional
Audio bit rate
8KB/s
Storage medium
SD card storage
Video query
Search by channel and video type
Local playback
Playback by file
Software upgrade
Upgrade mode
Manual upgrade, automatic upgrade
Upgrade method
USB interface

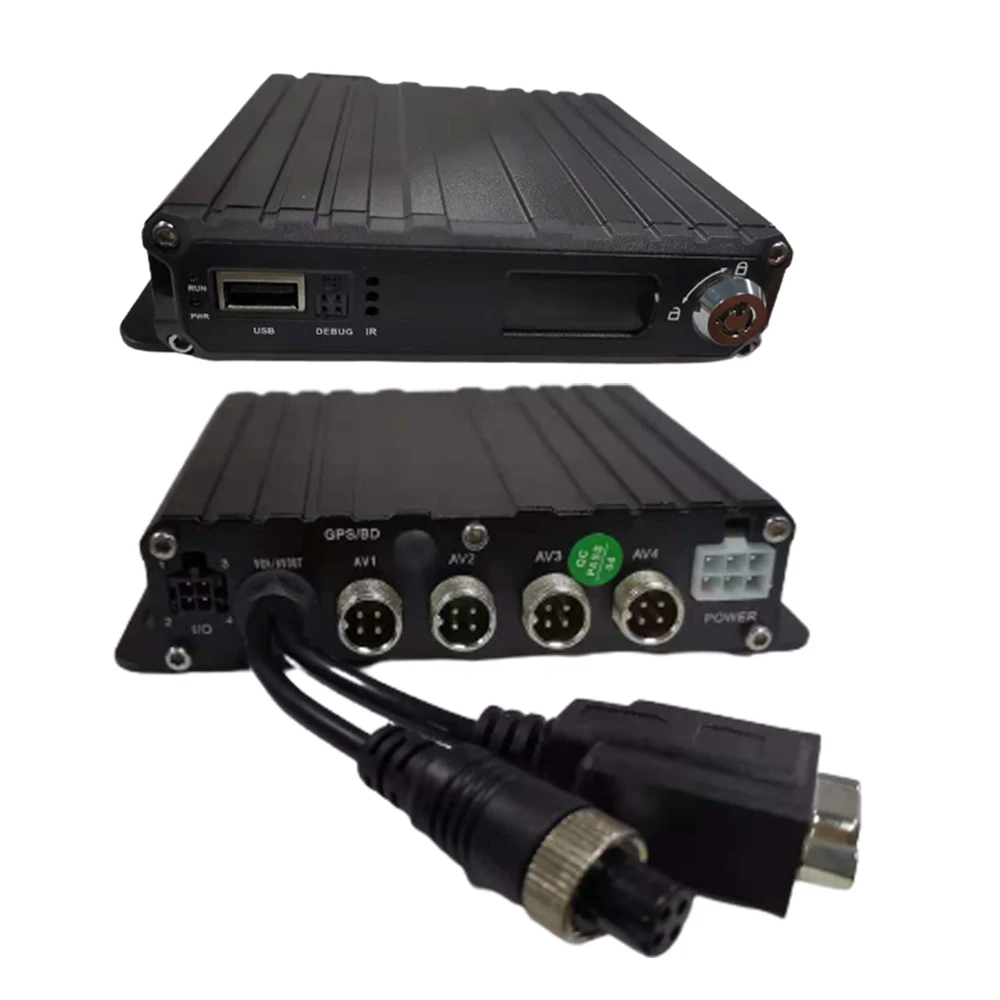

Interface
Audio and video input

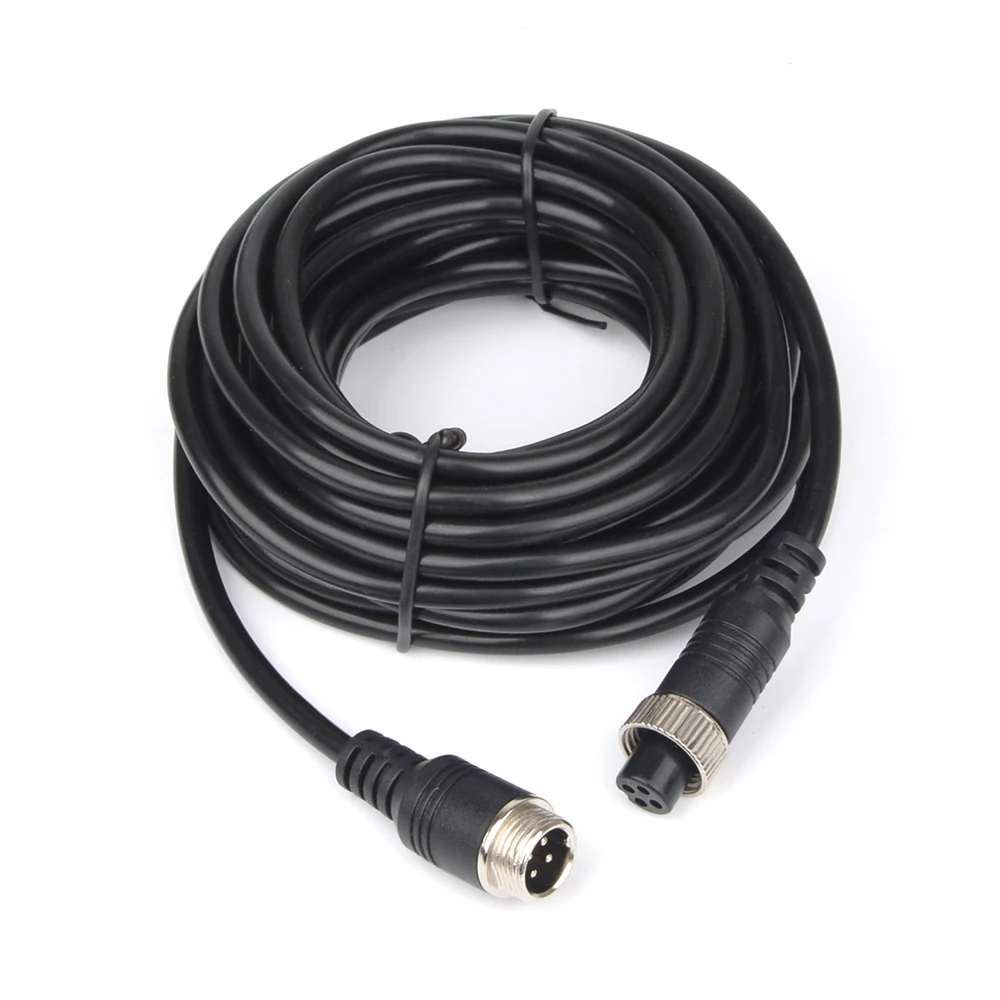

4-way aviation head interface
Audio and video output
1 VGA video output or 1 aviation audio and video output
Alarm input
4 digital inputs (plus and minus trigger can be equipped)
SD card
1 SDXC high-speed card (maximum support 256G)
USB interface
1 USB 2.0 (support full mouse operation, USB delayed self-test)
Ignition input
1 channel ACC signal
LED indicator
PWR/RUN
SD card lock
1 piece
Debug serial port
1 piece
Extensions
GPS/BD
Support antenna insertion/unplug/short circuit detection
Other
power input
DC：8V~36V
Power consumption
Standby power consumption: 4mA Maximum power consumption: 1120mA
Operating temperature
-20 --- 70℃
storage capacity
720P 1G/hour/channel 960H 750M/hour/channel

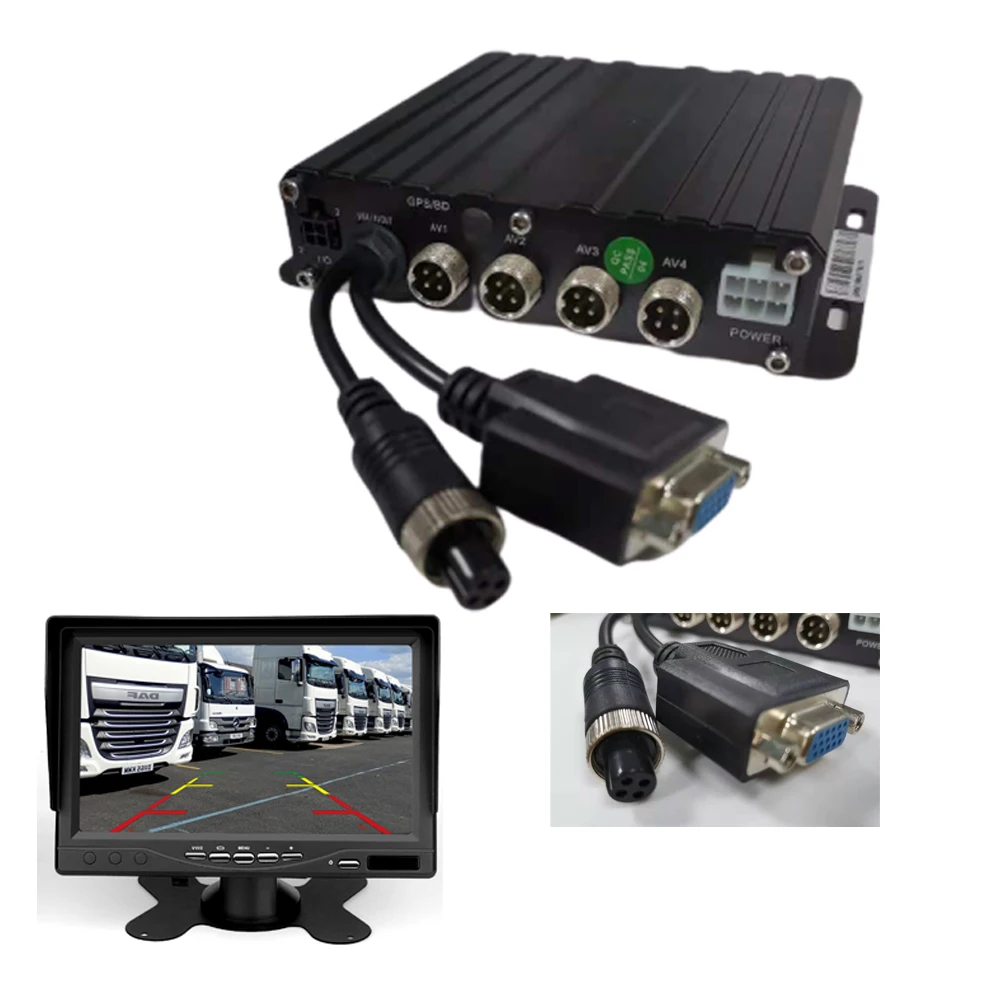

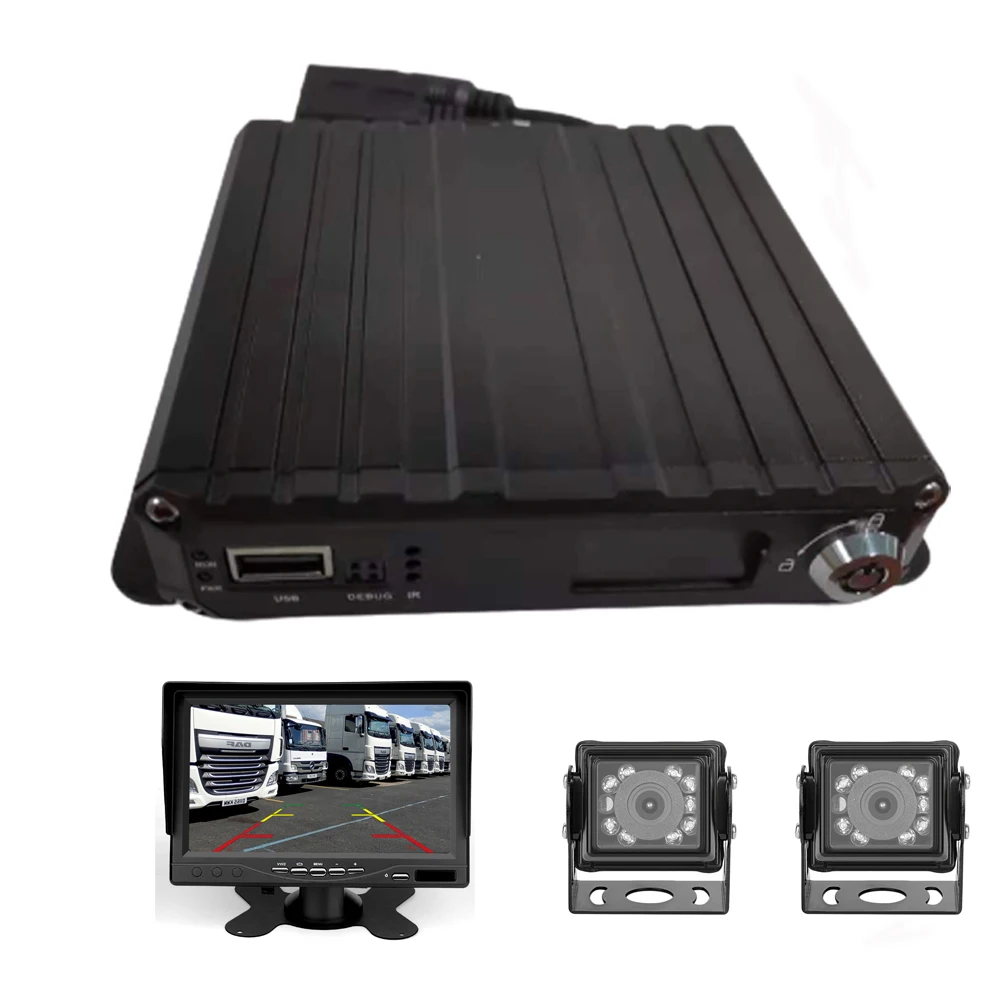

Details Images

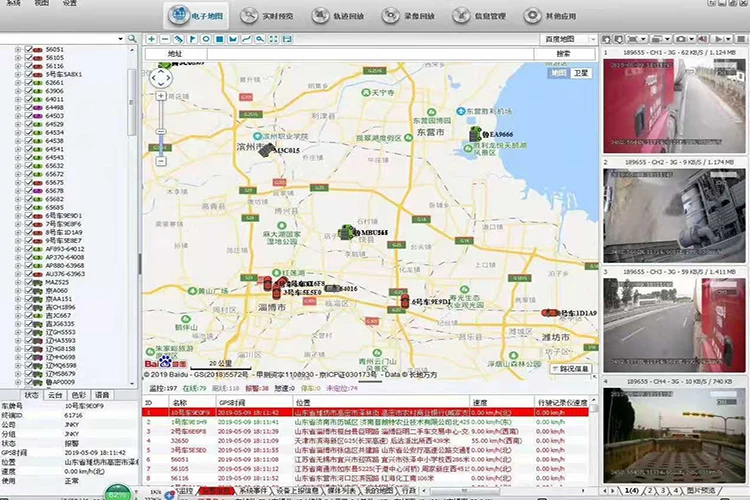

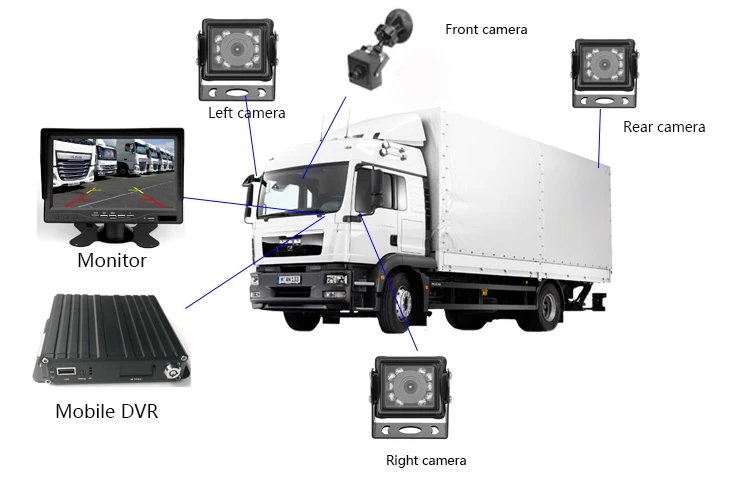

The intelligent monitoring system is based on the driver's operation habits,manual and automatic control of the road surface displayed by the video

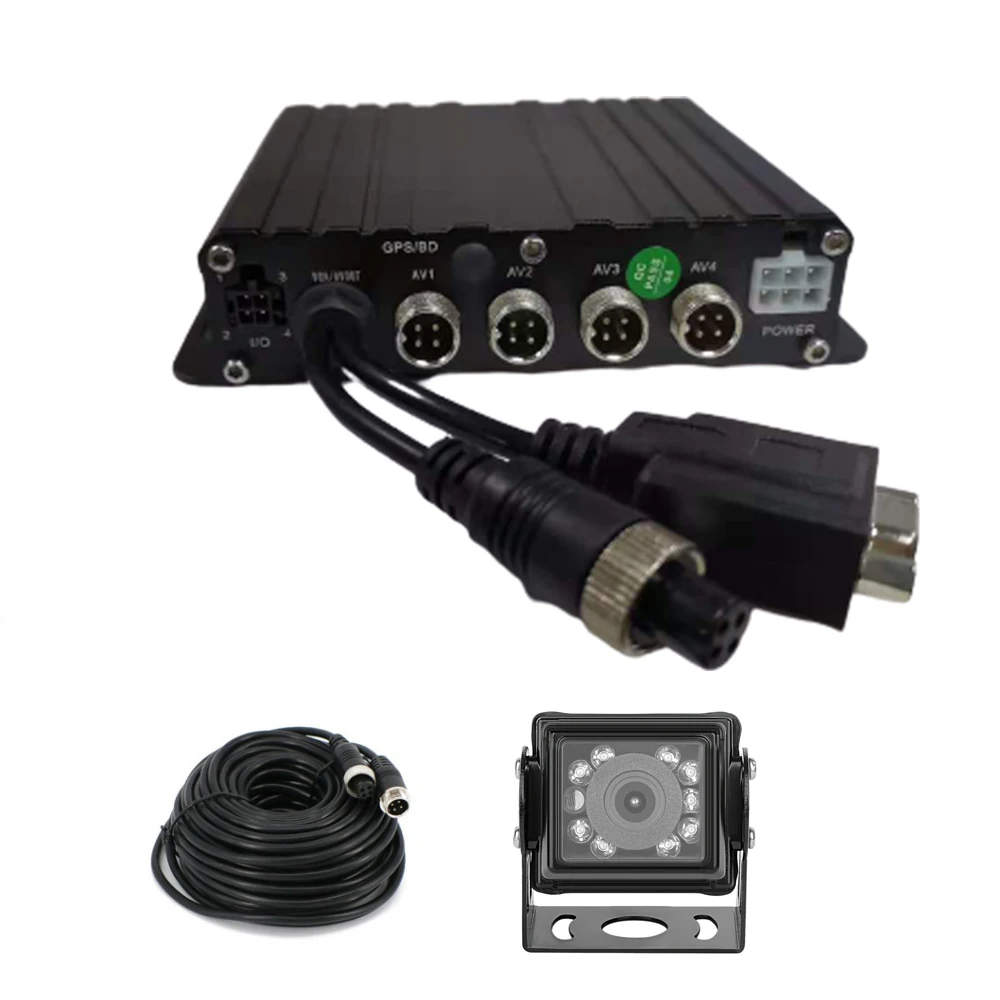

1.6 channel car recorder,mini size,more convenient to install

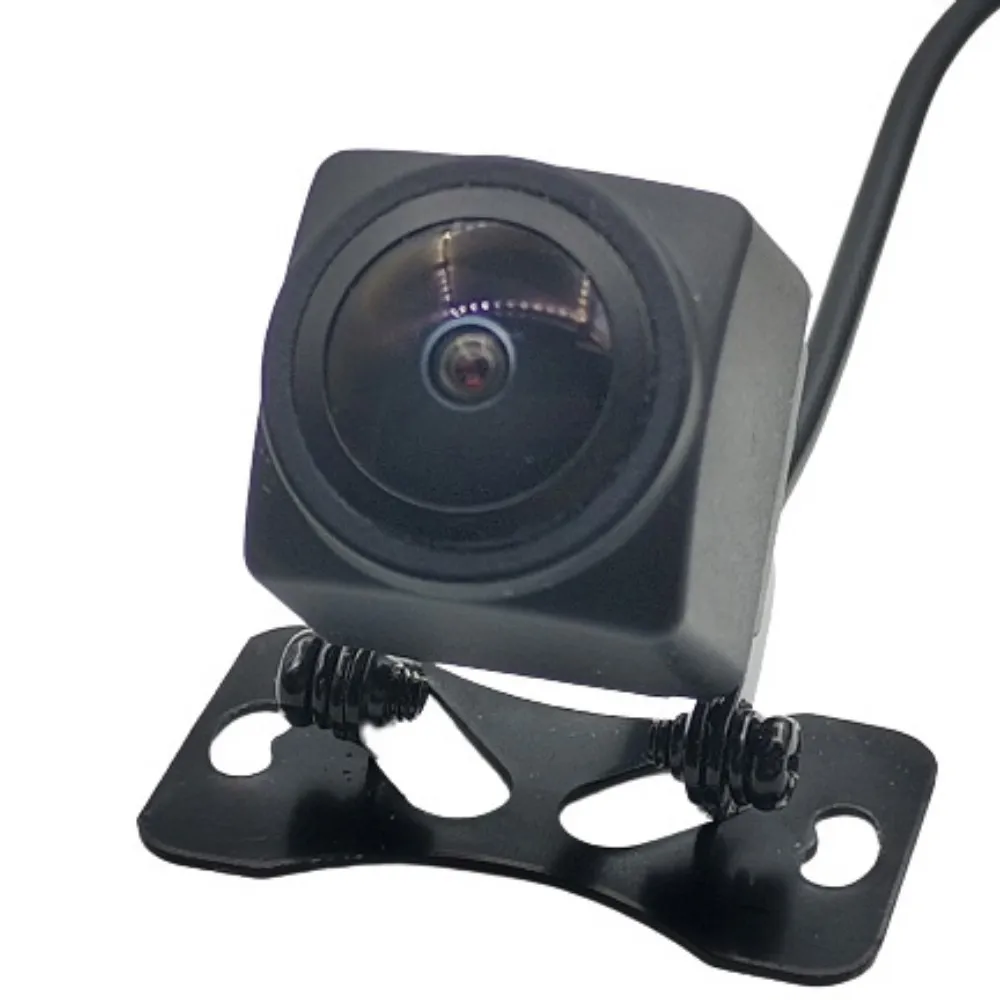

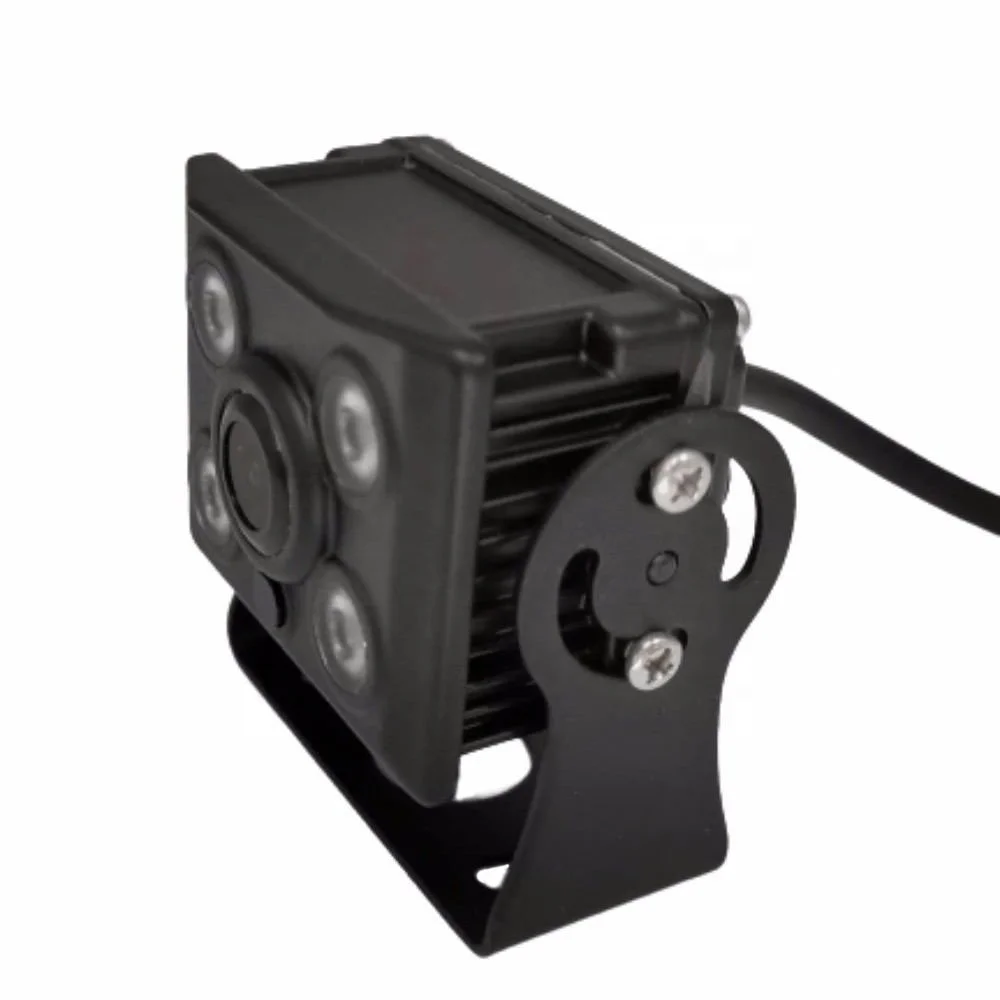

2 Dual core camera,the monitoring perspective is perspective is broader and more intuitive
3 It supports wireless handle control and wire control triggering making it more flexible to use
4.High definition image quality,9~35V wide voltage
5.Support G-sonsor for recording
6.Support power loss shutdown and protect car battery
7,Multiple display mode settings

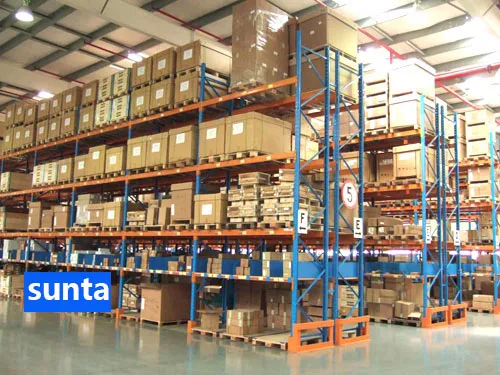

Packing&Shipping
