1. This machine adopts integral casting body with stable performance, good precision and good rigidity;

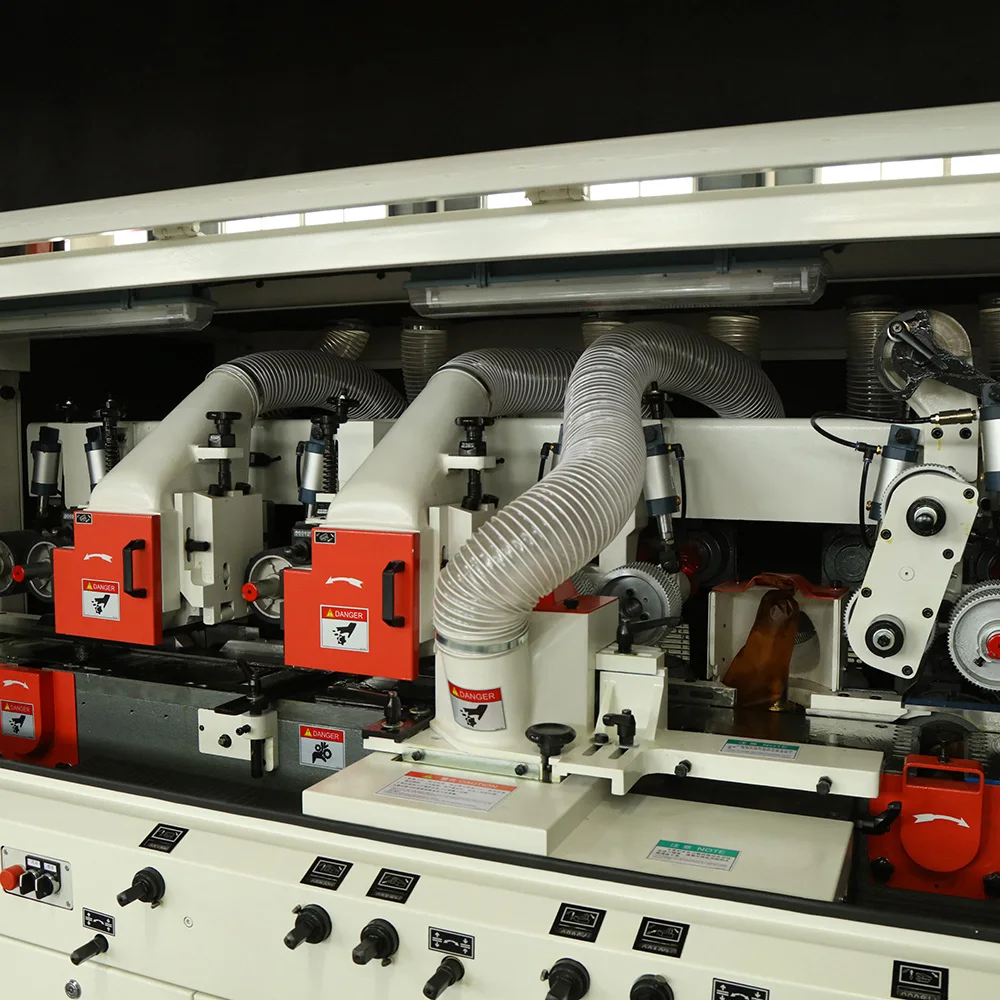

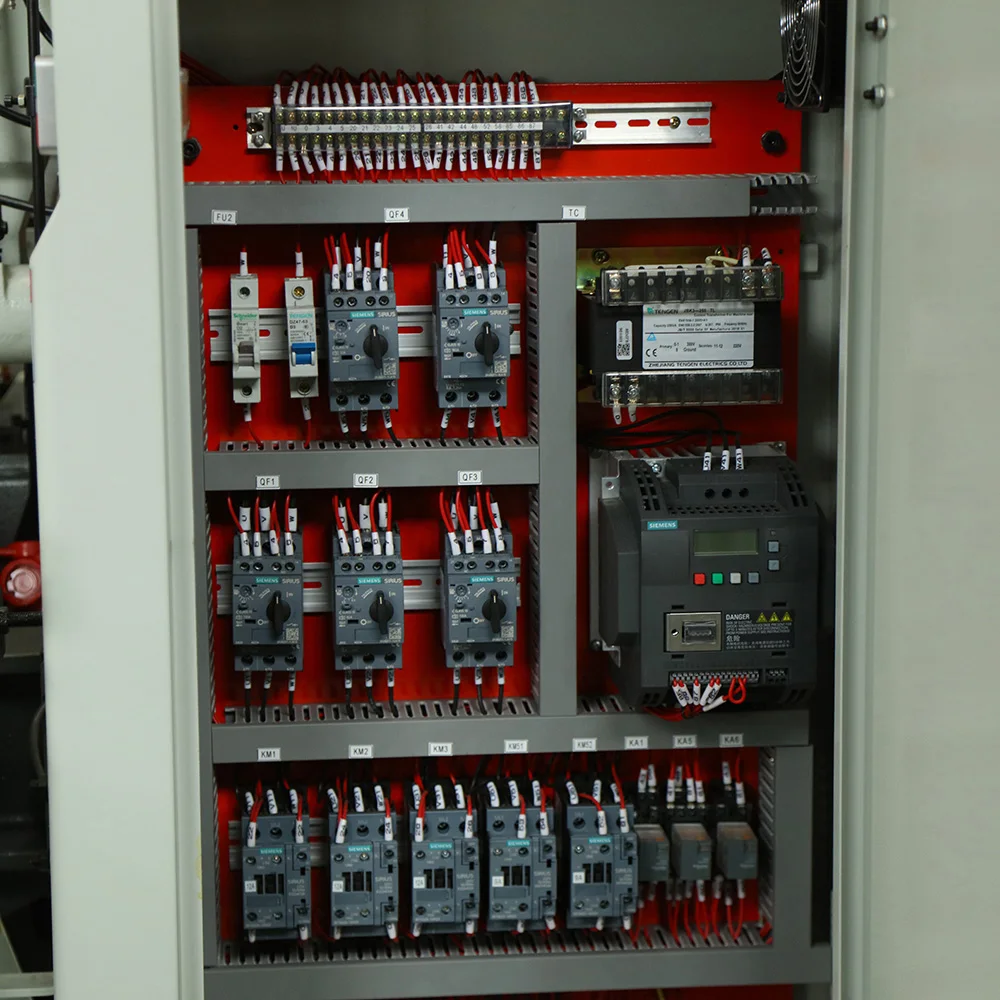

2. Fully enclosed safety shield and door open power protection, low working noise, safety and environmental protection;
3. The spindle is precisely machined, dynamically balanced, and precisely assembled, so it runs smoothly and has good accuracy;

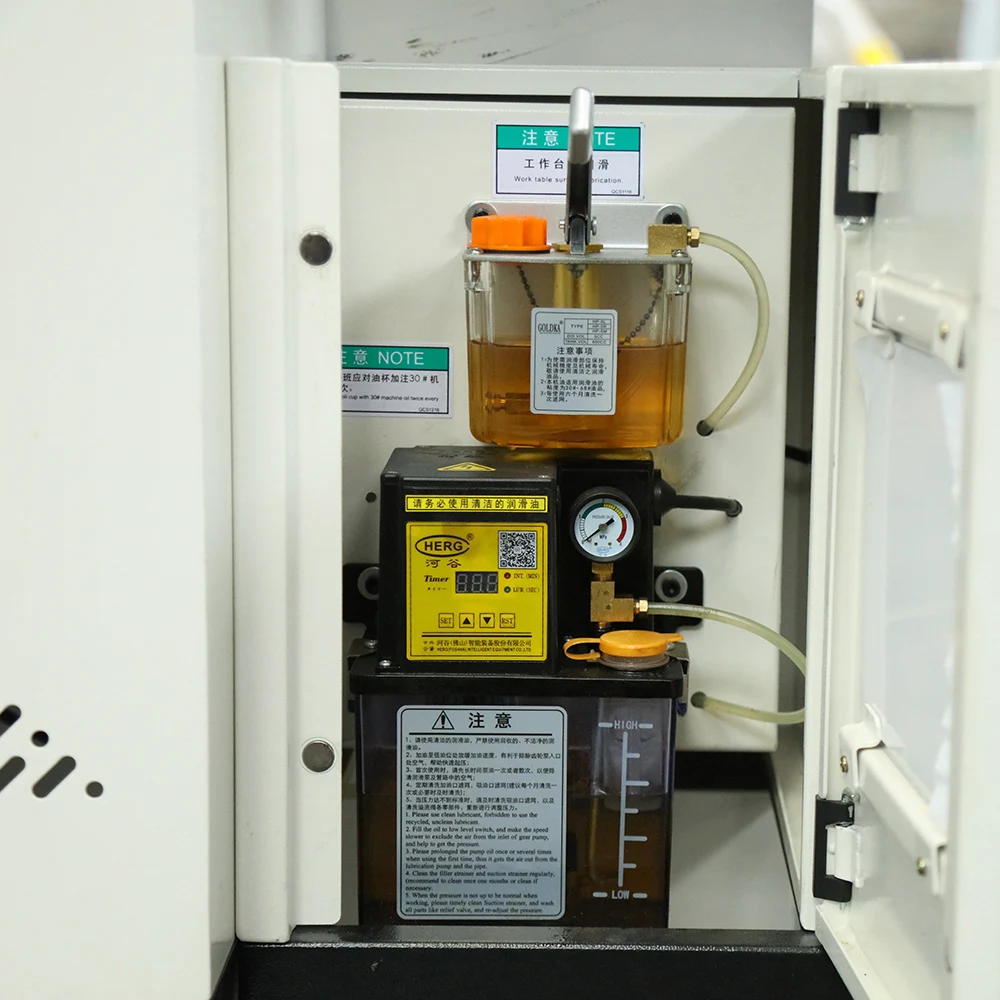

4. The work surface is made of special materials and special heat treatment, and is hard chrome plated for wear resistance;

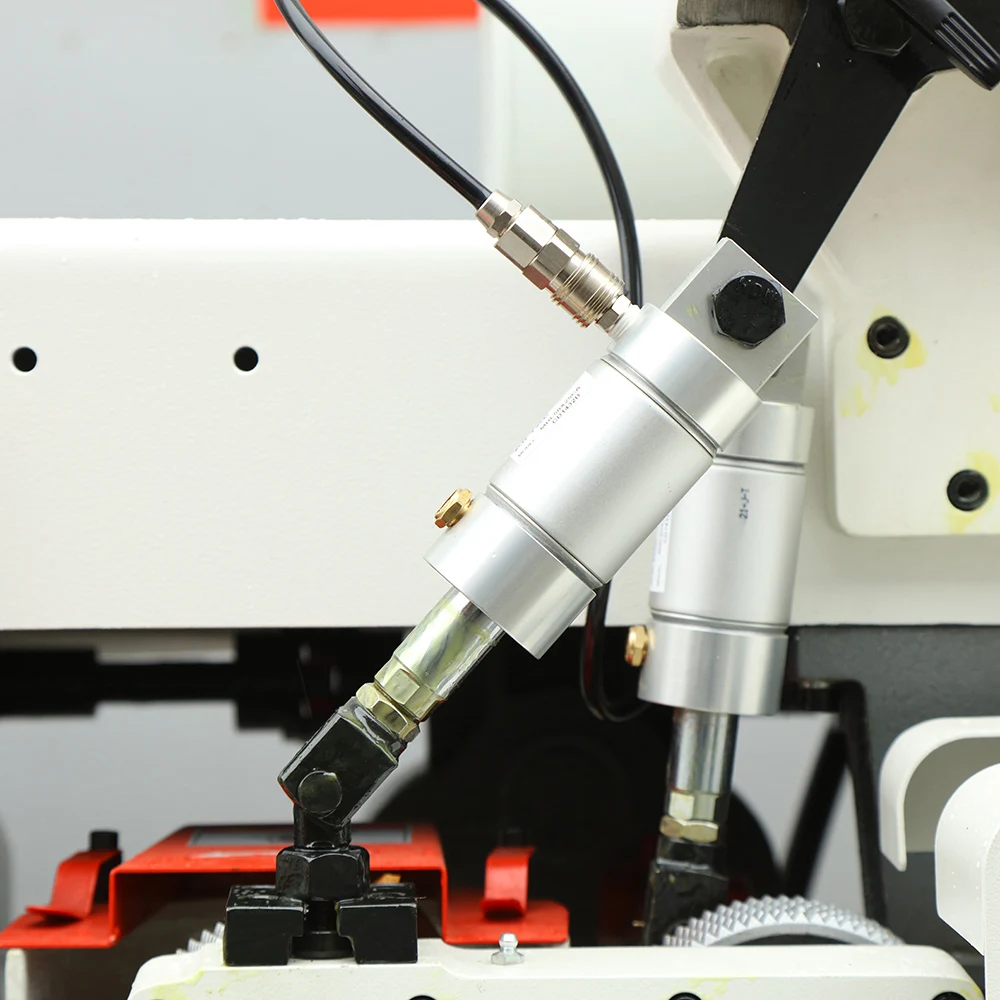

5. The feeding system presses materials with three cylinders in the front, middle and back sections, with stable pressure and convenient adjustment;

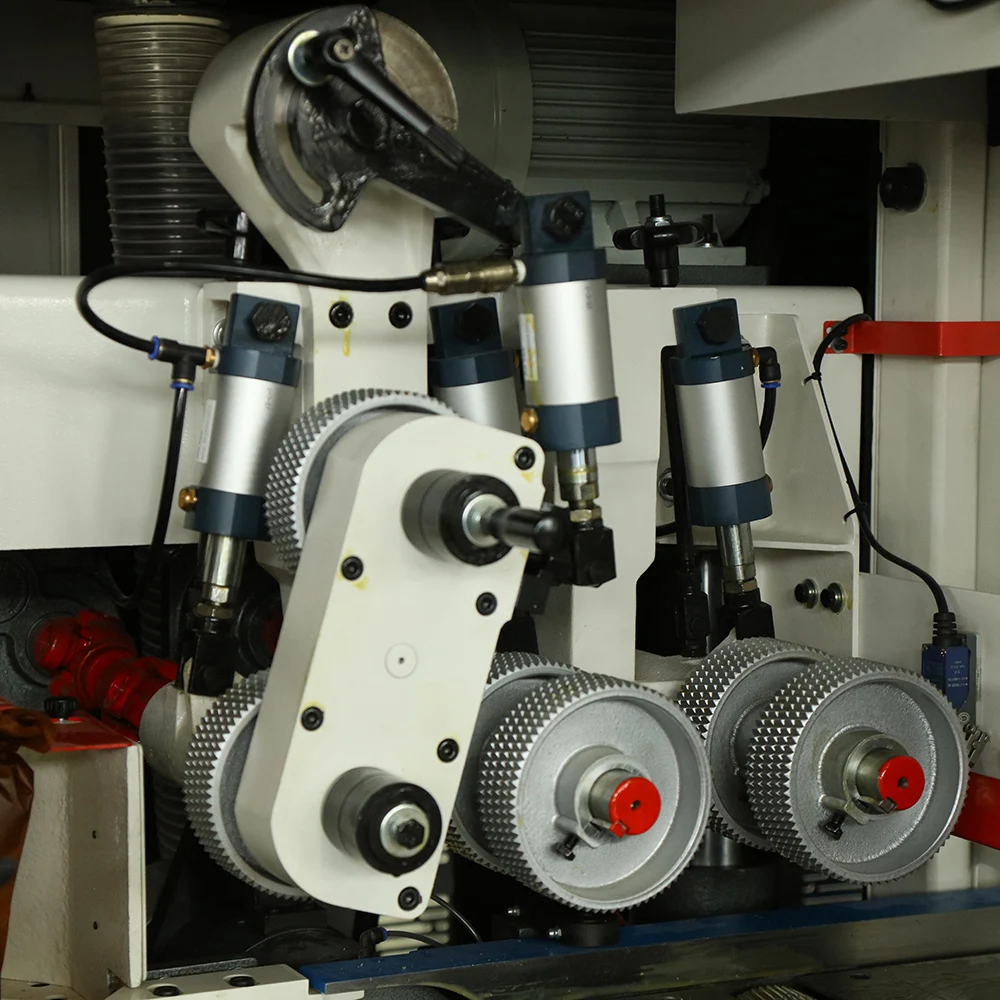

6. Multiple sets of lower driving rollers are used in the front, middle and back of the worktable to ensure smooth and powerful feeding.
QCM The 33H series heavy-duty four-side moulder
Technical Parameter
Wood Planer Moulder Four Side Moulder
Specifications
Unit
QMB633H-D
QMB533H-D
QMB433H-D
QMB626H-K
Working width
mm
50-330
50-330
50-330
30-260
Working thickness
mm
20-250
20-250
20-250
10-200
Min.working length
(intermittent/continuous)
mm
700/300
700/300
700/300
840/280
Dia of spindle
mm
Φ50
Φ50
Φ50
Φ50
Dia of feeding roller
mm
Φ180
Φ180
Φ180
Φ140
Feeding speed
m/min
8-36
8-36
6-36
8-36
Rotation speed of spindle
r/min
6000
6000
6000
6500
Cutter dia of first bottom cutter
r/min
Φ140
Φ140
Φ140
Φ125-Φ140
Left/Right vertical cutter
mm
Φ140-Φ230
Φ140-Φ230
Φ118-Φ230
Φ118-Φ200
The first upper cutter
mm
Φ140-Φ230
Φ140-Φ230
Φ140-Φ230
Φ118-Φ200
The Second upper cutter
mm
Φ140-Φ230
/
/
Φ118-Φ200
Back bottom cutter
mm
Φ140-Φ230
Φ140-Φ230
/
Φ118-Φ250
Total power
kW/HP
84/112
70/93
53.4/71
71.68/96
The First bottom cutter
kW/HP
11/15
11/15
11/15
7.5/10
Left vertical cutter
kW/HP
11/15
11/15
11/15
11/15
Right vertical cutter
kW/HP
11/15
11/15
11/15
11/15
The first upper cutter
kW/HP
15/20
15/20
11/15
11/15
The second upper cutter
kW/HP
11/15
/
/
11/15
The second bottom cutter
kW/HP
11/15
11/15
/
11/15
Feeding motor
kW/HP
11/15
7.5/10
7.5/10
7.5/10
Beam lifting motor
kW/HP
1.5/2
1.5/2
0.75/1
0.75/1
Upper cutter lifting motor
kW/HP
0.75/1
0.75/1
0.75/1
0.75/1
Radial adjustment of the vertical spindle
kW/HP
0.37/0.5
0.37/0.5
0.37/0.5
0.18/0.25
Rear pressing plate elevation
kW/HP
0.37/0.5
0.37/0.5
/
/
Suction hood motor dia.
mm
6*Φ180
5*Φ180
4*Φ180
6*Φ180
Air supply pressure
MPa
0.6
0.6
0.6
0.6
Overall dimensions
mm
6000*2280*2090
5370*2280*2090
4430*2260*2100
5250*1930*1860
Weight
kg
9600
8800
8000
6650
