Punching Type Biomass Coke/shisha Charcoal Briquette Machine
- Category: >>>
- Supplier: Zhengzhou Huayu Briquette Equipment Co. Ltd.
Share on (1600149093727):
Product Overview
Description
Product Description

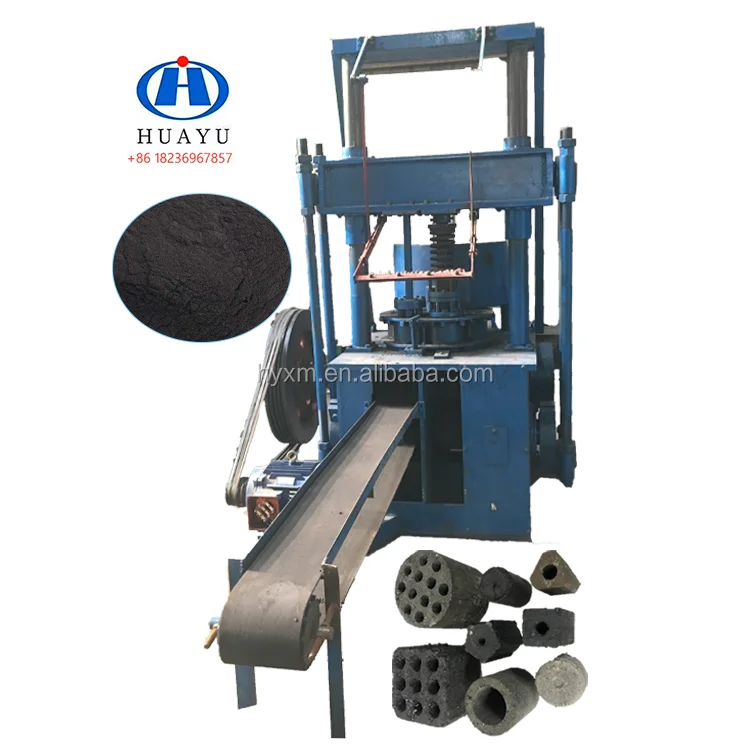

Industrial Charcoal BBQ Briquette Punching Press Honeycomb Briquette Machine

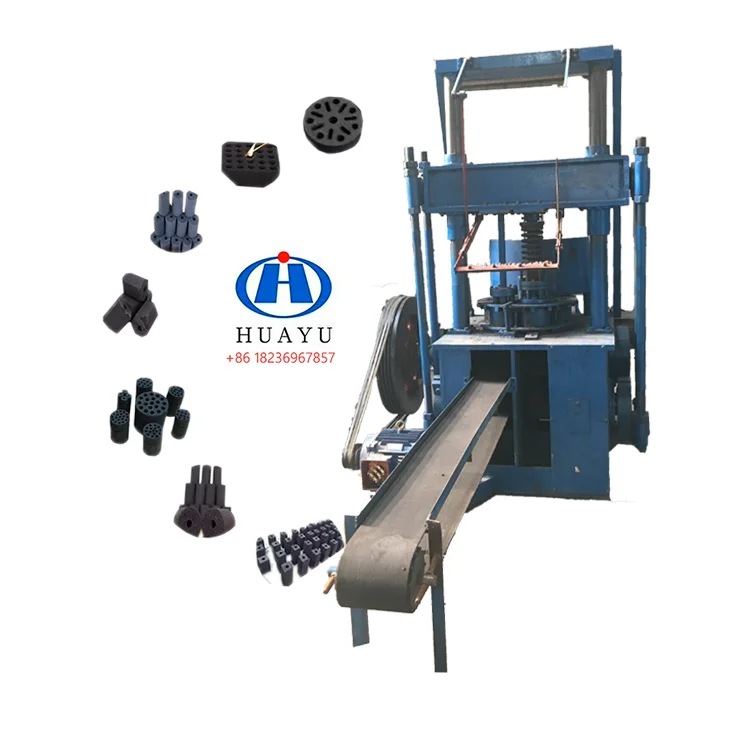

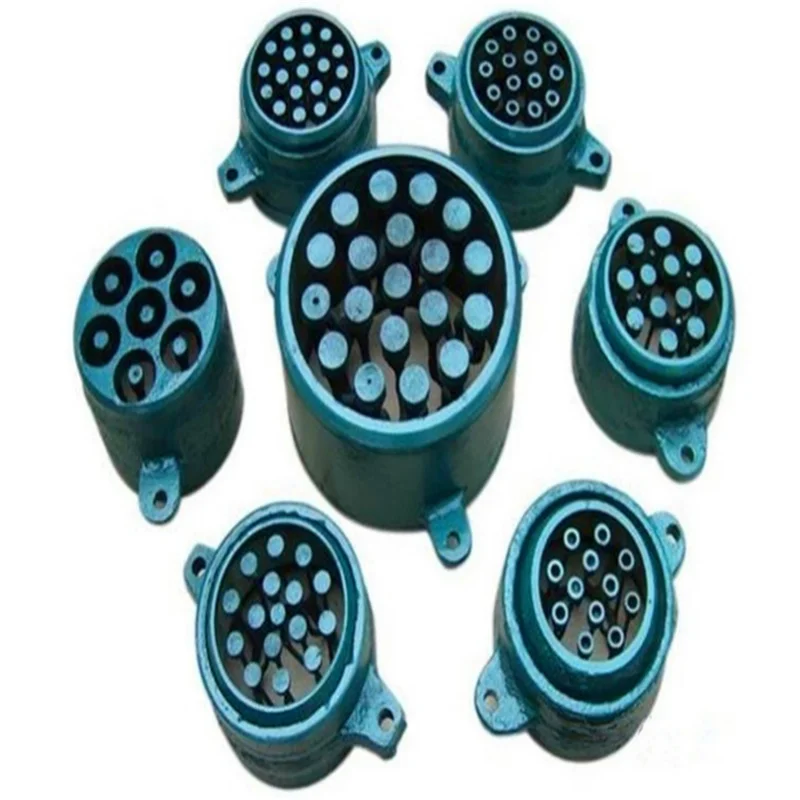

For our honeycomb coal briquette machine, we have several different types 140, 160, 180, 220 etc, several different models to provide you different capacity and different size and different shape according to your needs. And for our charcoal carbon powder briquette moulding machine, we can use coal, charcoal, carbon powder etc as raw material to make the briquette, and the briquette size and shape can be customized. And shape can be round, cylinder, square, rectangle, polygon, hexagon, flower, section etc; and the size can be also customized for you.The coal briquettes produced by our honeycomb coal briquette making machine are no chemical additives, no smell, no smoke, non-toxic, combustible. So it is really an energy saving, environment protection coal molding equipment.

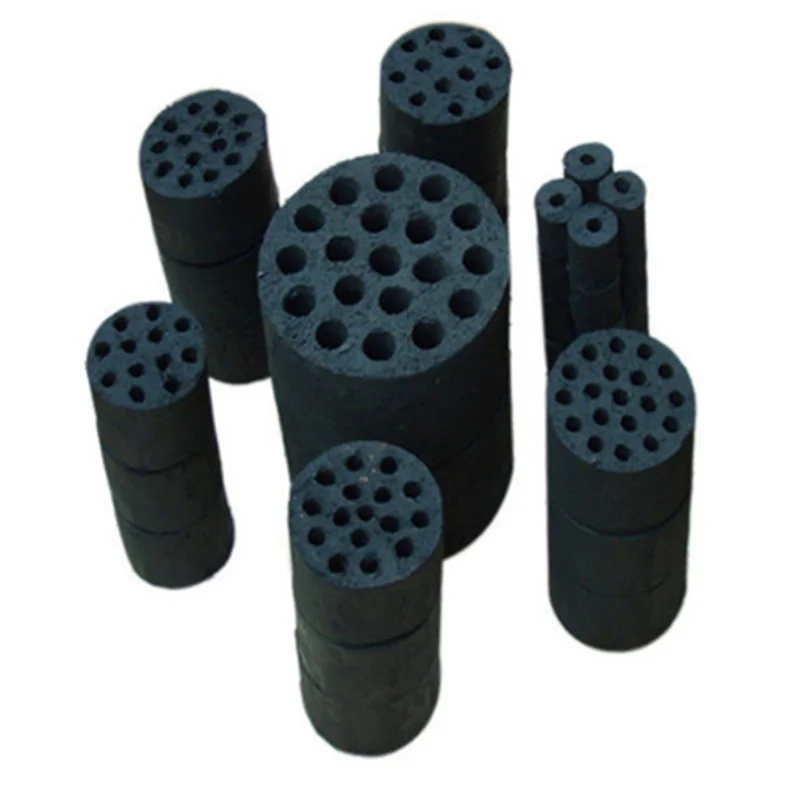

The honeycomb press machine is mainly used to make the coal briquettes in honeycomb shapes.Previously raw coal been processed into the coal sphere slightly larger than ping-pong, and later the coal processed into one cylinder, and marked with a number of holes
inside the cylinder makes it seems like honeycomb, because it can increase the surface area of coal, make the full combustion of coal, to reduce resource waste.
inside the cylinder makes it seems like honeycomb, because it can increase the surface area of coal, make the full combustion of coal, to reduce resource waste.

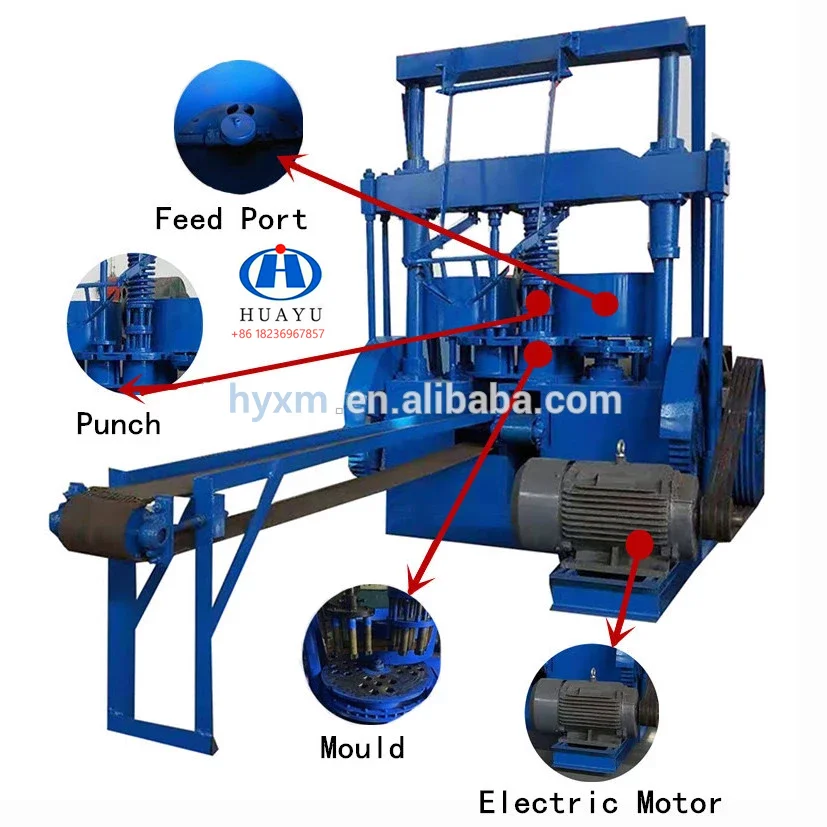

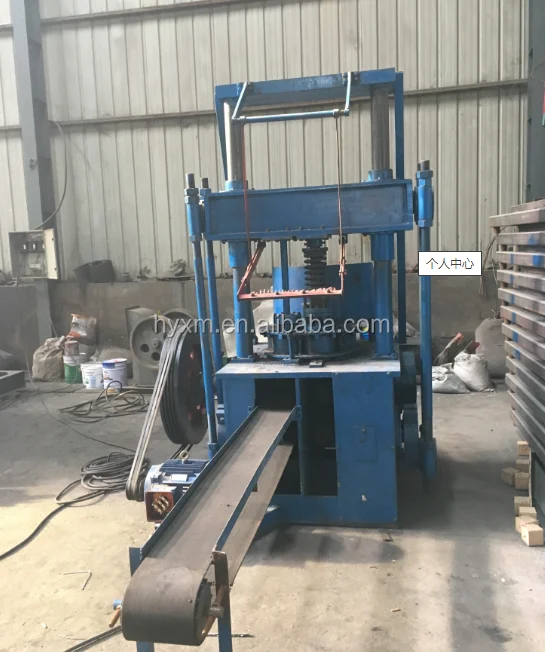

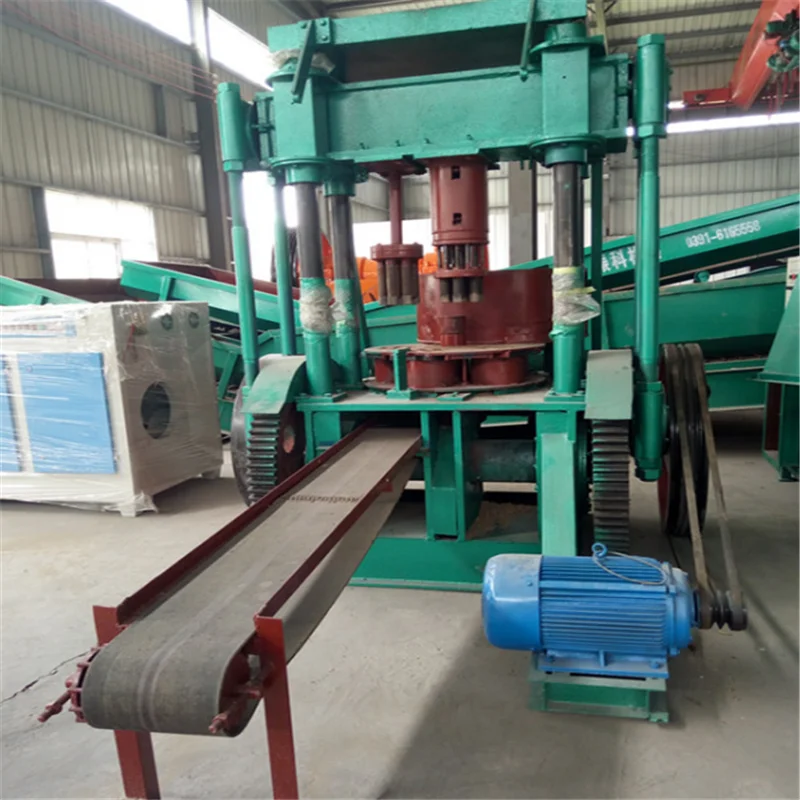

Structures of the machine
1.Frame: It consists of a pressure plate and an engine base to form a skeleton body.
2.Transmission part: It consists of electric motor, belt traction, gear, transmission shaft and so on.

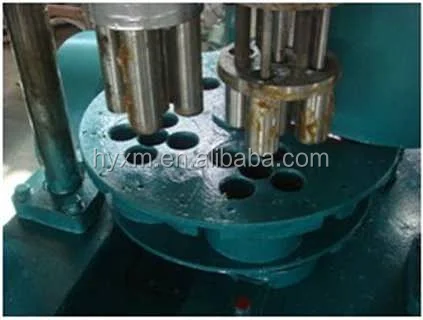

3.Stamping parts: consisting of four sliders, sliding beam, punch, punch seat, punching needle, movable platen, movable end mode,spring and so on.
4.Conveying parts: consisting of a transmission rack, a pulley, a bracket, a conveyor belt, and the like.
1.Frame: It consists of a pressure plate and an engine base to form a skeleton body.
2.Transmission part: It consists of electric motor, belt traction, gear, transmission shaft and so on.
3.Stamping parts: consisting of four sliders, sliding beam, punch, punch seat, punching needle, movable platen, movable end mode,spring and so on.
4.Conveying parts: consisting of a transmission rack, a pulley, a bracket, a conveyor belt, and the like.
Specification
Model | Power( kw) | Capacity ( piece/min) | feeder height(mm) | packing size (m) | weight | Standard of coal (mm) | ||
circle | square shape | |||||||
140 | 7.5KW | 45 | 930mm | 2.85*1.22*1.83 | 1500kgs | <Φ140 | <100*100 | |
140 | 7.5KW | 50 | 930mm | 2.85*1.22*1.83 | 1950kgs | <Φ140 | <100*100 | |
160 | 7.5KW | 50 | 970mm | 3.05*1.28*1.86 | 2150kgs | <Φ160 | <120*120 | |
180 | 11KW | 22-26 | 1000mm | 3.2*1.28*1.86 | 2500kgs | <Φ180 | <150*150 <200*200 | |
220 | 11KW | 22-26 | 1050mm | 3.40*1.35*2.0 | 3500kgs | <Φ220 | ||
Charcoal briquette machine working principle
Machine will pass the powder on to the two pressure roller through the reducer. The two sides and roll rotation, in both the rotating roll. Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product .
The feature of Charcoal briquette machine
1, the first carbonization after forming, the original five processes reduced to two;
2. The life span of the vulnerable parts has been increased from 40 hours to 40000 hours.
3, the cost of electricity consumption is reduced by 60%.
4, the output of the punching machine is 2-3 times higher.
5, the cost of each ton of punching type charcoal rod machine drops 200 yuan.
6, the difficulty of operation is greatly reduced.
7, a weak carbon into high quality carbon, high quality carbon into special carbon.
8, weak carbon content increased from 60% to 70-75%; high quality content to more than 83%, the market is expanding.

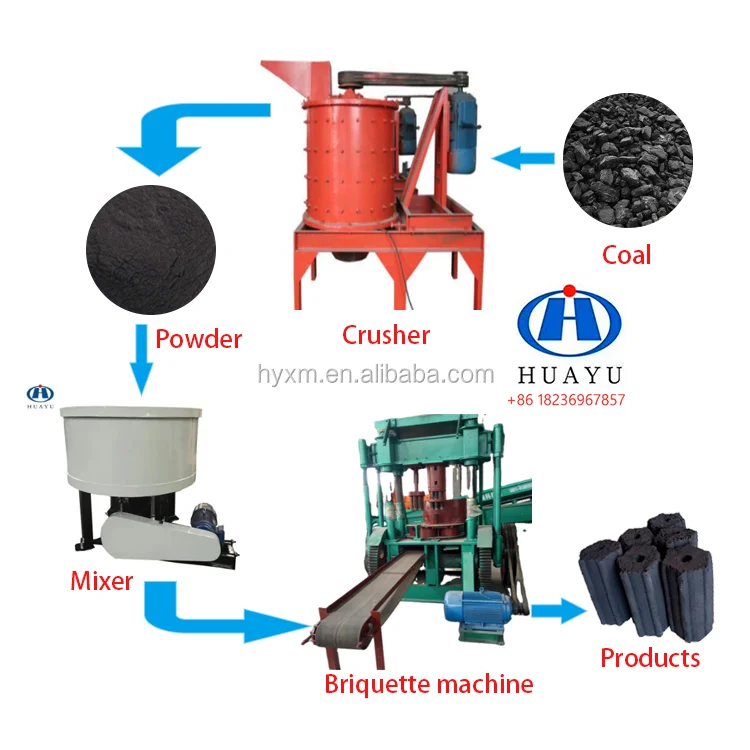

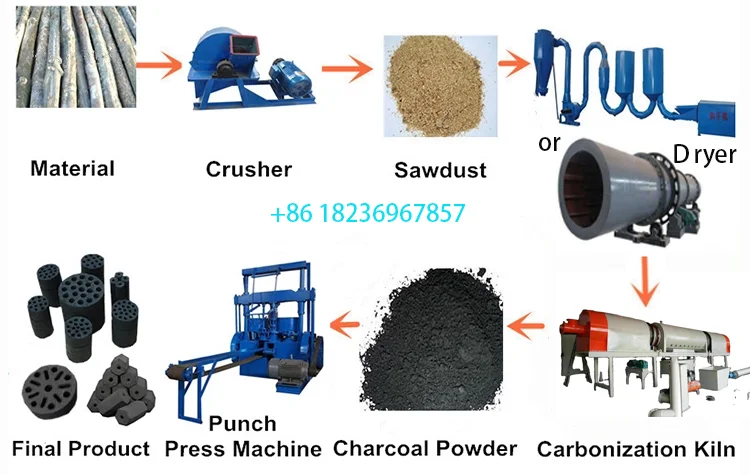

The process of the production line
Besides the charcoal carbon powder briquette moulding machine, for the whole product line, we have also the assistant equipment for you, such as the Coal Crusher, Binder Mixer, Double -shaft Mixer, Belt Conveyor, Auto Feeder, etc. The following are the brief introduction of the procedures, please have a check:
1. Firstly, you need to crush the coal into powder material by our Coal Crusher.
2. Secondly, you need to make liquid binder for increasing the hardness of the coal powder by our Binder Mixer.
3. Third, you have to mix the liquid binder with the coal powder by the Double-shaft Mixer.
4. The forth step for you to do is to feed the material into Coal Briquette Machine for producing coal briquettes.
5. The last step, you need to dry the coal briquettes duo to the liquid binder by our Box-type Dryer or just under the sunshine if it is strong enough.
6. If you want, we can also provide you the Auto Packaging Machine for packaging the coal briquettes after they are totally dried.
1. Firstly, you need to crush the coal into powder material by our Coal Crusher.
2. Secondly, you need to make liquid binder for increasing the hardness of the coal powder by our Binder Mixer.
3. Third, you have to mix the liquid binder with the coal powder by the Double-shaft Mixer.
4. The forth step for you to do is to feed the material into Coal Briquette Machine for producing coal briquettes.
5. The last step, you need to dry the coal briquettes duo to the liquid binder by our Box-type Dryer or just under the sunshine if it is strong enough.
6. If you want, we can also provide you the Auto Packaging Machine for packaging the coal briquettes after they are totally dried.
If your raw materials are wood, sawdust and other biomass materials, you need crush them into powder first, and then carbonize them.

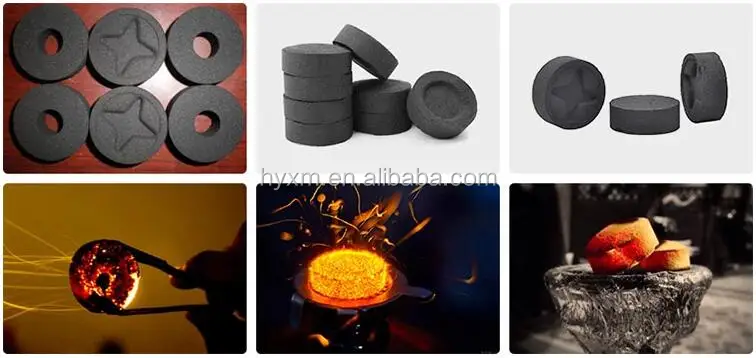

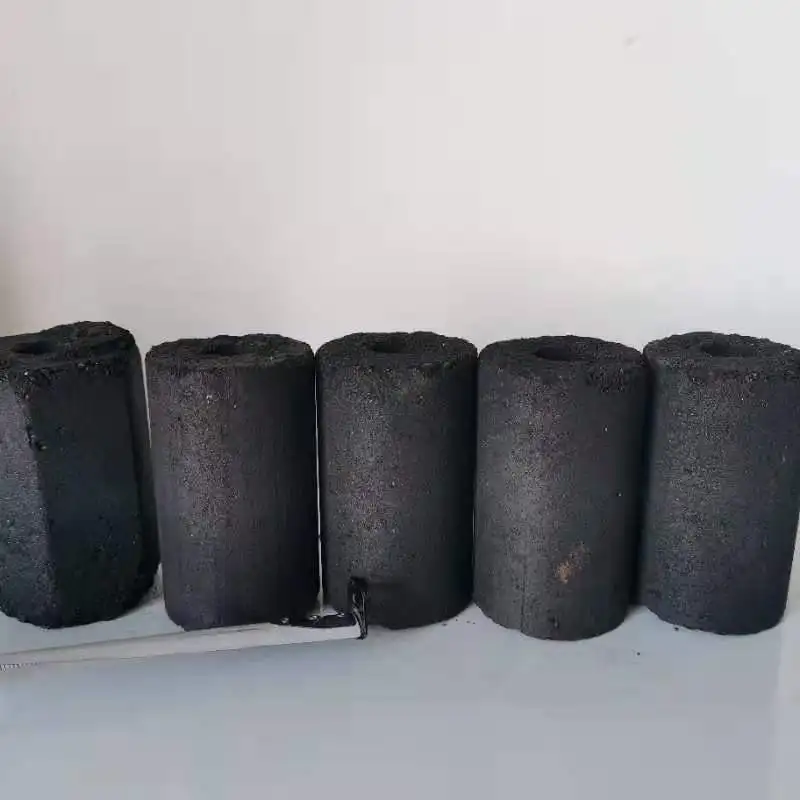

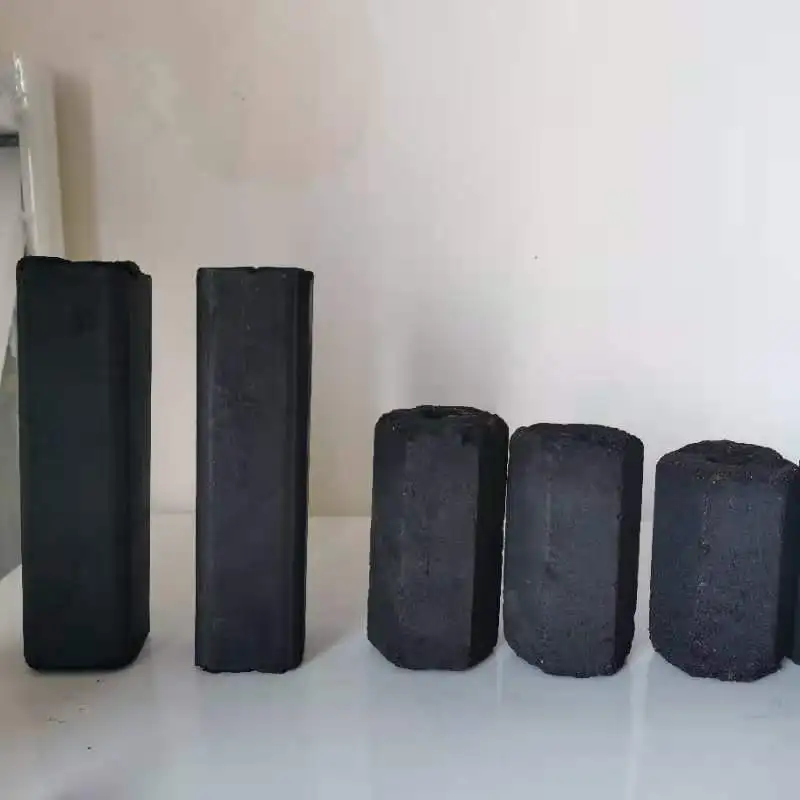

Final products

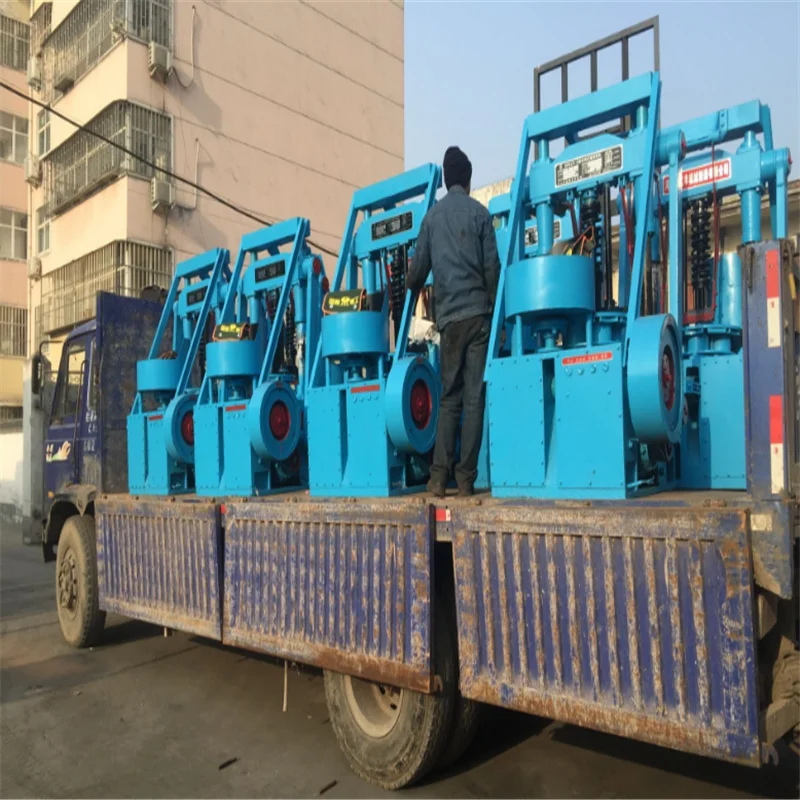

Packing & Delivery
Packing: We can install machines in the factory first or send the installation instructions to assist you.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of machines. We can also use other ways as your requirements.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of machines. We can also use other ways as your requirements.
Company Profile
Zhengzhou Huayu briquette equipment Co., Ltd, founded in 2016, the registered capital is 3 million yuan, has 500 workers and officers, located in Zhengzhou, Henan province, is a company specializing in the production of coal series equipment of the enterprises, mainly engaged in coal production equipment research and development, production, processing, sales and export business, has been selling products to France, Germany, the United States, Japan, South Korea and other countries. Zhengzhou HuaYu briquette equipment main products: briquette series equipment, press the ball machine, the rod making machine, the charcoal machine, the pellet machine equipment, constructs the complete set briquette production line, the pellet production line, the mechanism charcoal production line, the biomass pellet production line.
The company takes the customer request as the standard, develops the new product unceasingly, takes the modern enterprise management as the foundation, to improve the management system unceasingly, to improve the product quality and the service level, to satisfy the domestic and foreign customer's request. The company has always been honest and trustworthy, innovation, excellence as the purpose, dedicated to provide customers with the fastest and best quality service, the company's leaders and employees have
always been quality for survival, technology for development, market-oriented, in good faith as the basis, we warmly welcome all new and old customers to consult, negotiate，visit and purchase!
The company takes the customer request as the standard, develops the new product unceasingly, takes the modern enterprise management as the foundation, to improve the management system unceasingly, to improve the product quality and the service level, to satisfy the domestic and foreign customer's request. The company has always been honest and trustworthy, innovation, excellence as the purpose, dedicated to provide customers with the fastest and best quality service, the company's leaders and employees have
always been quality for survival, technology for development, market-oriented, in good faith as the basis, we warmly welcome all new and old customers to consult, negotiate，visit and purchase!
Our service
Pre-Sales Service
* Inquiry and consulting support swiftly
* View our factory
* Using your mailed sample to test the machine
After-Sales Service
* Training how to install the machine and how to use the machine
* Engineers available to service machinery overseas
If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to
meet your demand.
* Inquiry and consulting support swiftly
* View our factory
* Using your mailed sample to test the machine
After-Sales Service
* Training how to install the machine and how to use the machine
* Engineers available to service machinery overseas
If you have any questions about the machine or our company, please contact us freely. We will response swiftly and do our best to
meet your demand.
Great Service is our mission and making high-quality machines is our duty.
