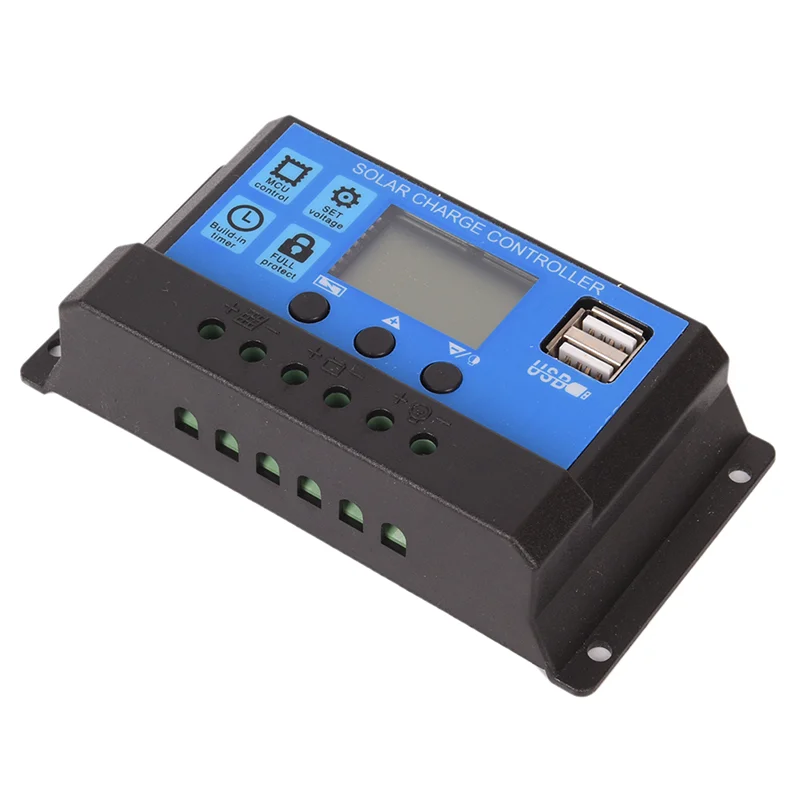

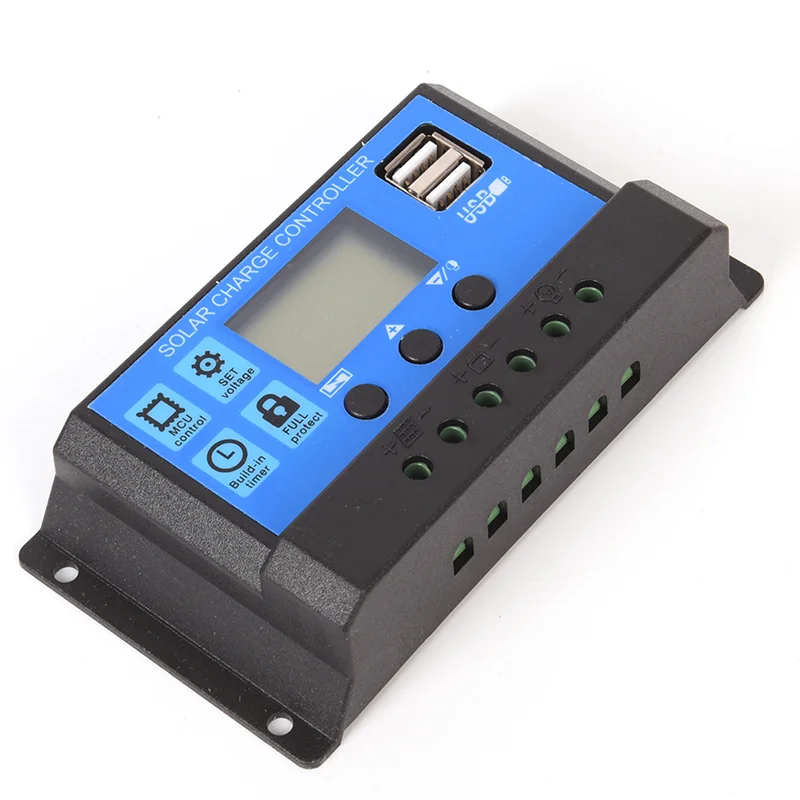

12V 24V 10A 20A 30A 40A 50A 60A PWM Auto Solar Charge Controller smart panel regulator solar controller with Dual USB 5V port

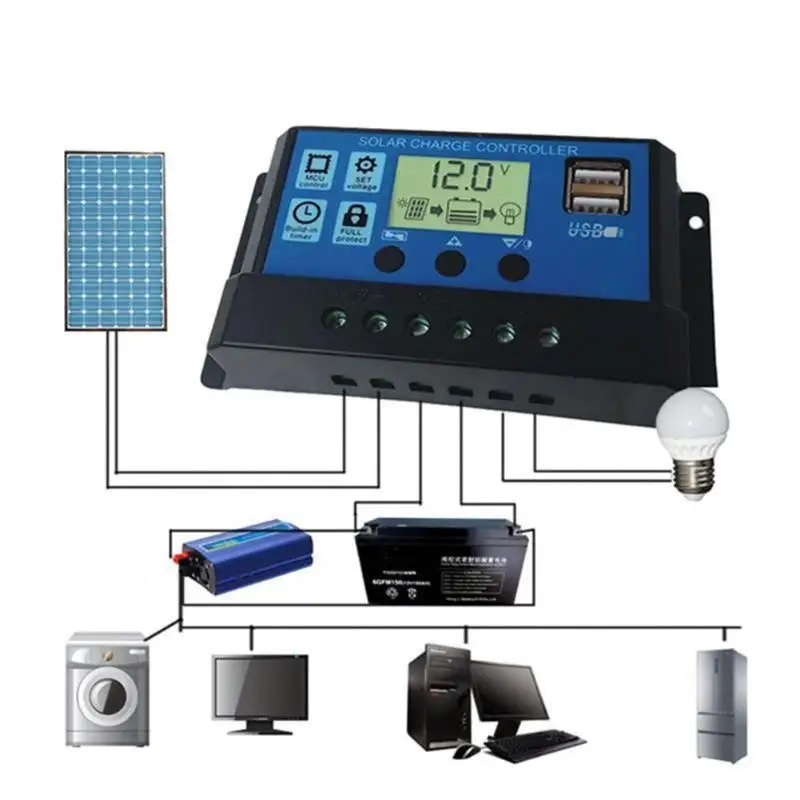

1. Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the charge regulator-plus and minus.

The reverse order applies when deinstalling!
An improper sequence order can damage the controller!
This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system )requirements .It can
recongize 12V and 24V Lead acid ,Gel battery automatically
There are optional 10A 20A 30A model
10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W
Features:
1.Build-in industrial micro controller.
2.Big LCD display,all adjustable parameter.
3.Fully 4-stage PWM charge management.
4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
5.Dual mosfet Reverse current protection ,low heat production.
