12000 LPM Flow Rate Remote Fire Water Monitors with Stainless Steel Material
12000 LPM Flow Rate Remote Fire Water Monitors with Stainless Steel Material

12000 LPM Flow Rate Remote Fire Water Monitors with Stainless Steel Material

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tContact Us \t\t\t\t\t\t\t




Description

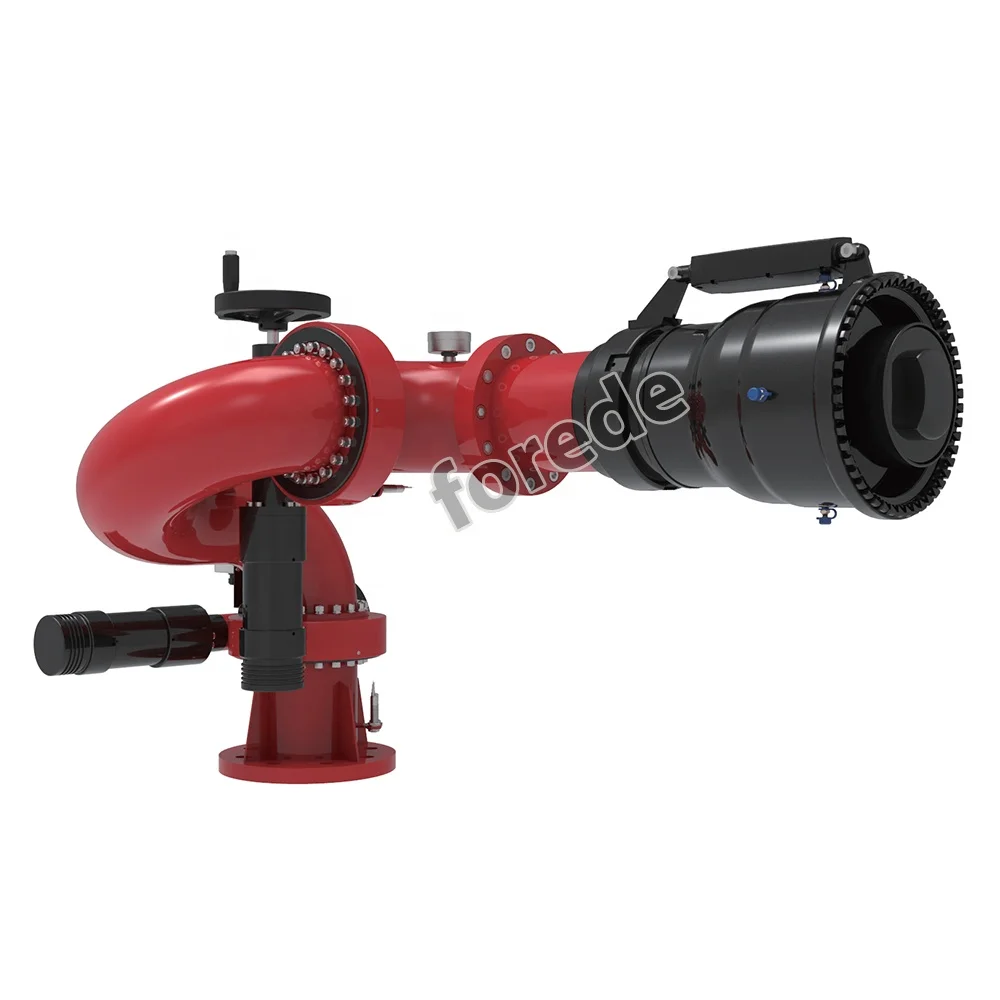

The Forede brand PSKD-A Series of Remote Fire Water Monitors are suited to be used in dangerous situation,the long distance remote control range help the fire man to avoid high risk of different fire danger.


General Volume Explosion Proof Electric Fire Monitor
Features:

● SS304 stainless steel construction;
● Automatic Nozzle supply a stable flow at different flow rate;
● Available controlled both by wired Control Box and RC transmitter wireless;
● Max.wireless control distance up to 150m;
● IP65 Water proof;
●AC 220V or 380V power supply;
●Automatic Monitor Nozzle.



Technical Paramenter
Model Number
PSKD150A
PSKD180A
PSKD200A
Working Pressure
10 bar
10 bar
10 bar
Max. Working Pressure
24 bar
24 bar
24 bar
Flow Rate
9000 LPM
10800 LPM
12000 LPM
Flow Reach
105 m
110 m
115 m
Max. Fog Angle
120°
120°
120°
Movement
-45°~+90° Vertically (Adjustable);    360° Horizontally(Adjustable)
Turnning Speed
7° / second
Power Supply
AC 110V / 220V / 380V Optional
Water Proof Class
IP65
Inlet
6 inch Flange @ BS4504 is standard (ANSI and other stadard available)
Material
Waterway --- SS304
Worm --- SS304
Gear --- SS304
Nozzle --- Hardcoated anodizing aluminum
Package
SS304 Fire Monitor with Nozzle   (standard)
1 set
Control Box (standard)
1 set
RC Receiver (standard)
1 set
RC Transmitter (standard)
1 set
Camera (Option)
1 set
