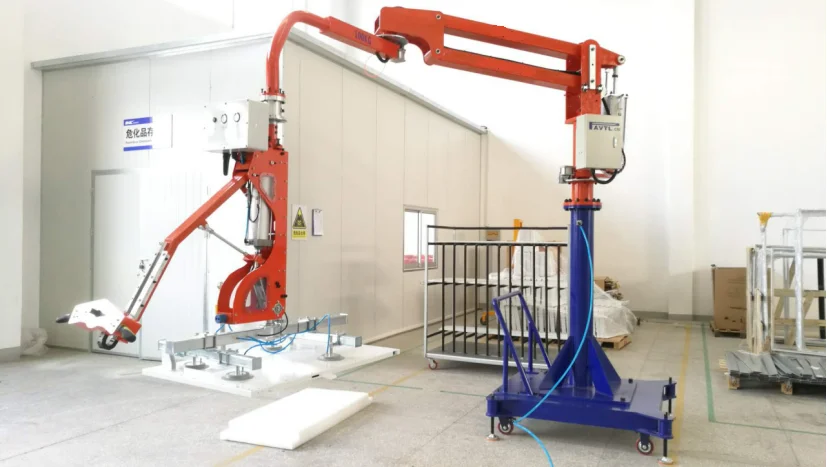

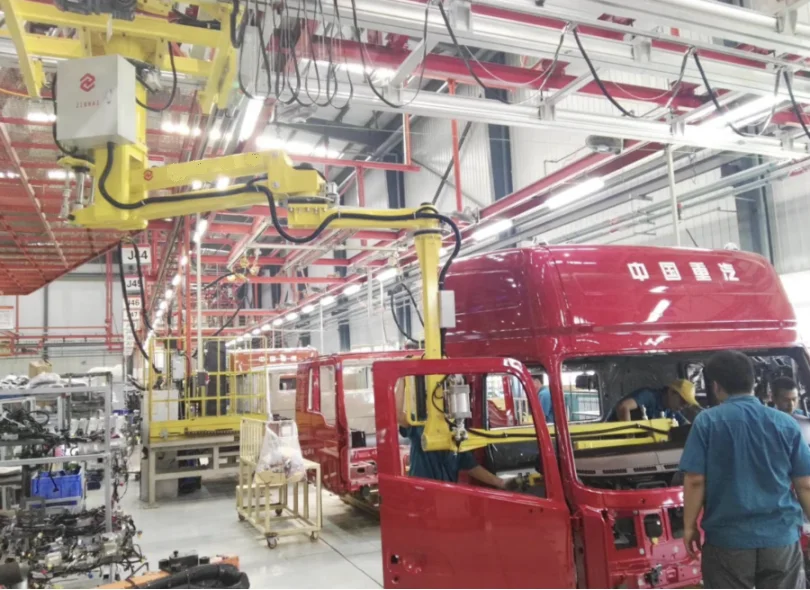

Air Manipulator

Product Overview

Description

Main Specifications:

1. Maximum load: 50kg in vertical

2. Maximum lifting height: 0-1250mm, with mechanical limiters

3. Self weight: about 300kg with mobile base

4. total height: about 2000mm

5. up&down control: by manual valves, the speed is sensible by handy buttons

6. Lifting unit: By an air cylinder, diameter is 125mm,working stroke 350mm

7. Tilting unit: By an air cylinder, diameter is 80mm,working stroke 250mm

8. Driven unit: 4 of 5’’ wheels driven by manual, and 2 of fork holes for forklift conveying

9. Outerleg: 4 outerlegs for parallel adjustment

10. rotation joint: 3 of rotation joints

11. joint brake: air cylinder controlled brake units for arm holding

12. Mobile base: 1200*1200mm

13. Air consumption: 50L/ minute

14. Lifting control: by buttons
