Best price WC67K cnc sheet bending machine hydraulic aluminum pressbrake export to Israel
- Category: >>>
- Supplier: Maanshan Haas International Trading Co. Ltd.
Share on (1600149237396):
Product Overview
Description

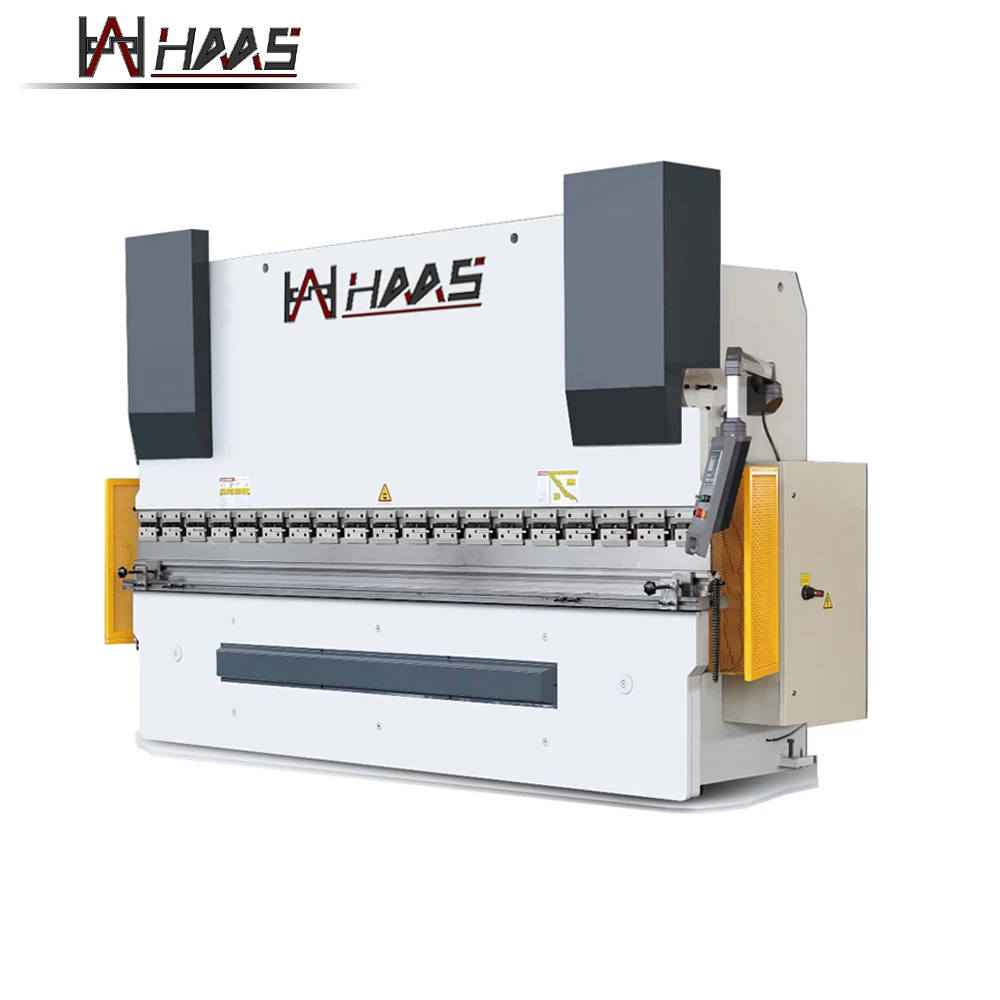

Haas machine tool Haas HSK series torsion axis synchronous CNC bending machine
The Haas HSK series torsion axis synchronous CNC bending machine is equipped with the E21 series CNC system independently developed by Nanjing, China. It is easy to operate, with 10 steps of programming, and can be changed to different sizes at any time.
In the machinery industry, Haas has always maintained its original intention to meet quality, efficiency and safety requirements.
Details Images
CNC system（Optional）
DA-41S(DELEM)
● Bright LCD display
● Beam stop control
● Backgauge control
● Angle programming
● Tool programming
● Retract function
● Up to 100 programs
● Up to 25 bends per program
CybTouch-6
● Large, vivid and high-contrast fully touch screen.
● Simple pages, clear display, large keys.
● Very simple single bends with EasyBend page.
● Complete programming allows efficient mass-production of parts with multiple bends.
● Online help and warning pop-ups make it a very user-friendly software.
● Available in many languages.
● Comfortable wireless software updating and data backup using PC or Notebook.
E200P
● Color LCD hd display, with Both Chinese and English language optional, one page display programming parameters, more rapid and convenient programming.
● Using CAN bus technology, servo control X, Y axis, high control accuracy, high resolution up to 0.001; simple installation and wiring, improve the reliability of the system.
● Support multi-step programming, complex workpieces can be processed at one time, improving production efficiency and processing accuracy.
● Built-in PLC, with machine control function, and built-in pressure holding time, unloading delay setting function, the operation is more simple and fast, according to the actual timing of the valve set free match.
● It has the function of adjustable return distance, which solves the problem of inconvenient opening height adjustment of twist-shaft machine tool, and improves the overall working effect of machine tool.
● With self-diagnosis and real-time alarm function, debugging and maintenance more convenient.
● Support multi-step programming, can process complex workpieces at one time, improve production efficiency and processing accuracy.
● All the buttons on the panel are micro switches, which have undergone strict EMC, high and low temperature and vibration tests to ensure the stability and service life of the product.
● Pass CE certification to meet the needs of overseas markets.
E21
● High-definition LCD display, with two language options, Chinese and English, one page of programming parameters, programming is faster and more convenient.
● You can also manually adjust the intelligent positioning of the X and Y axis as needed, without the need for mechanical manual positioning equipment.
● Built-in pressure holding time, unloading delay setting function, easy operation, no time relay, reducing cost.
● Using the one-key backup and parameter recovery functions, parameters can be restored at any time as needed, thereby reducing maintenance costs.
● Support multi-step programming, can process complex workpieces at one time, improve production efficiency and processing accuracy.
● All the buttons on the panel are micro switches, which have undergone strict EMC, high and low temperature and vibration tests to ensure the stability and service life of the product.
● Pass CE certification to meet the needs of overseas markets.

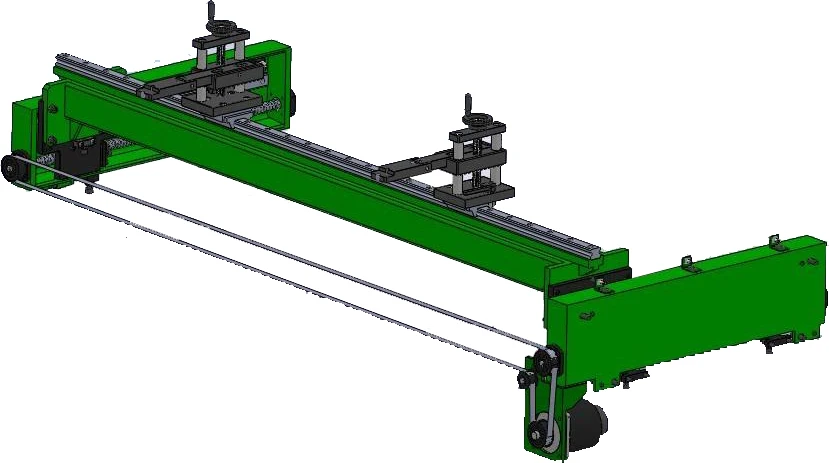

CNC BACKGAUGE
The Haas HSK series bending machine is equipped with a rear stop made of a solid structure to ensure the best repeatability and high precision of shaft positioning.
Axes | X.R.Z | ||||||
Compensation | Manual compensation | ||||||
X-travel(mm) | 500 | ||||||
X-speed(mm/s) | 200 | ||||||

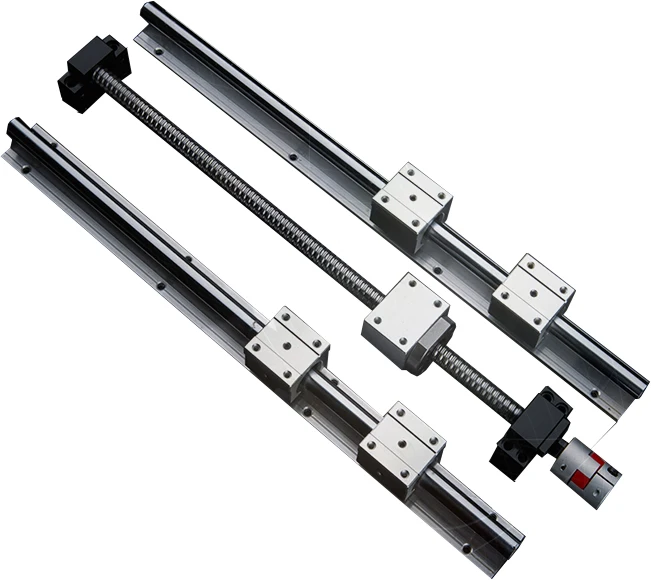

Ball screw and linear guide
Haas HSK series bending machine is equipped with ball screw and linear guide. The advantage of using ball screw and linear guide is that it can reduce driving torque, improve transmission efficiency and ensure positioning accuracy.
Haas HSK series bending machine is equipped with ball screw and linear guide. The advantage of using ball screw and linear guide is that it can reduce driving torque, improve transmission efficiency and ensure positioning accuracy.

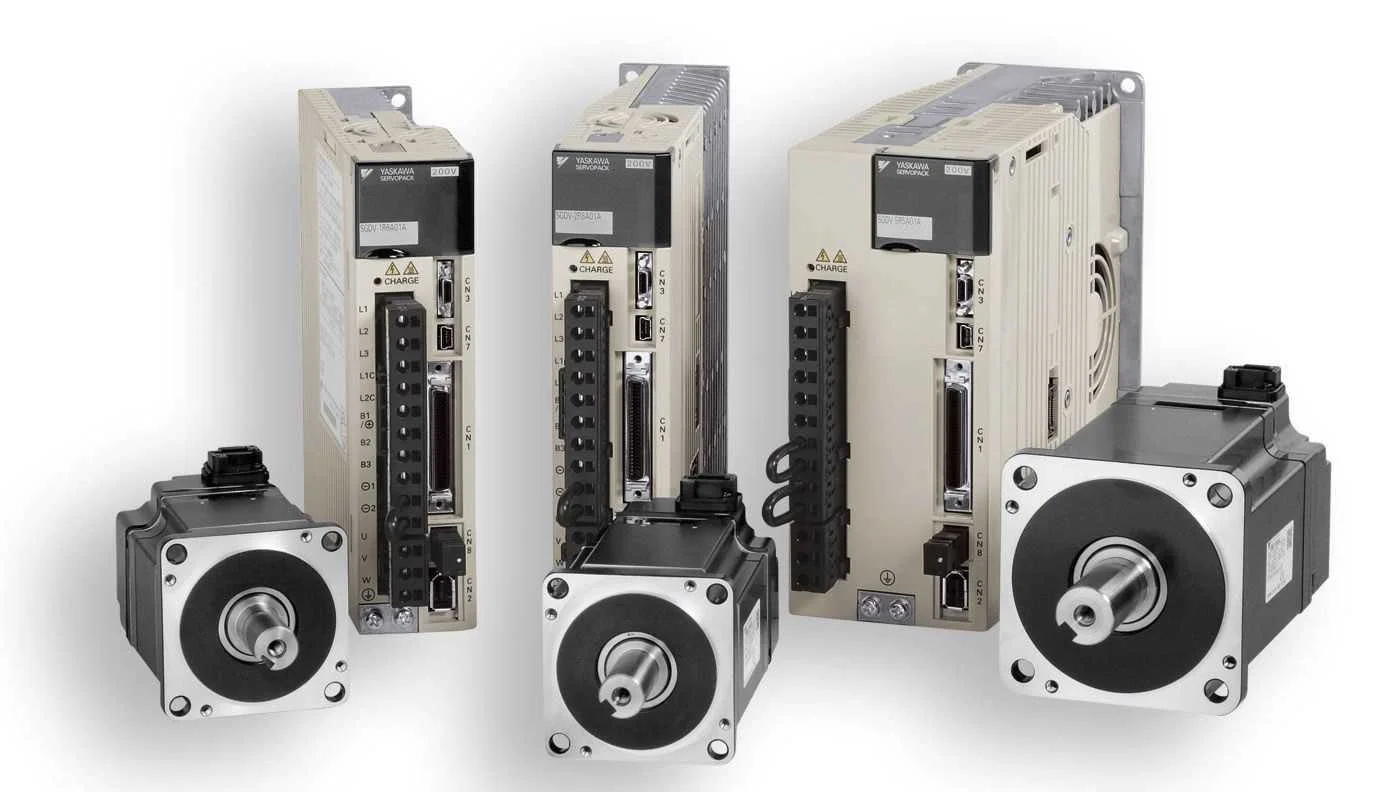

servo motor
The Haas HSK series bending machine is equipped with a servo motor and driver. The advantages of the servo motor are high positioning accuracy, strong anti-overload ability, and stable low-speed operation.

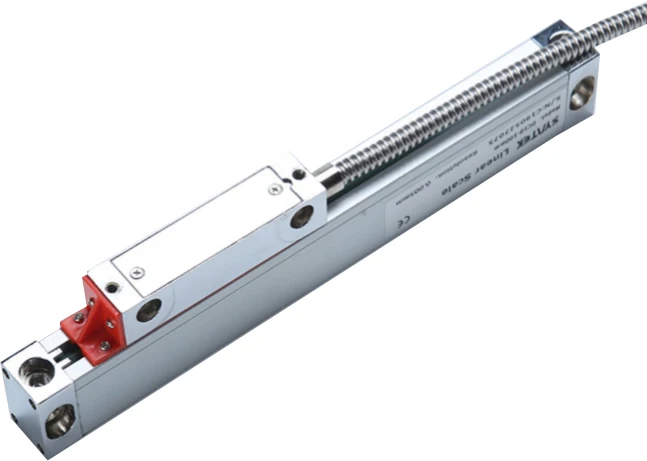

Grating ruler
Haas HSS series bending machine adopts grating ruler to measure feedback accuracy. The grating ruler adopts a semi-sealed design, which has certain functions of waterproof, dustproof and iron filings.
Haas HSS series bending machine adopts grating ruler to measure feedback accuracy. The grating ruler adopts a semi-sealed design, which has certain functions of waterproof, dustproof and iron filings.

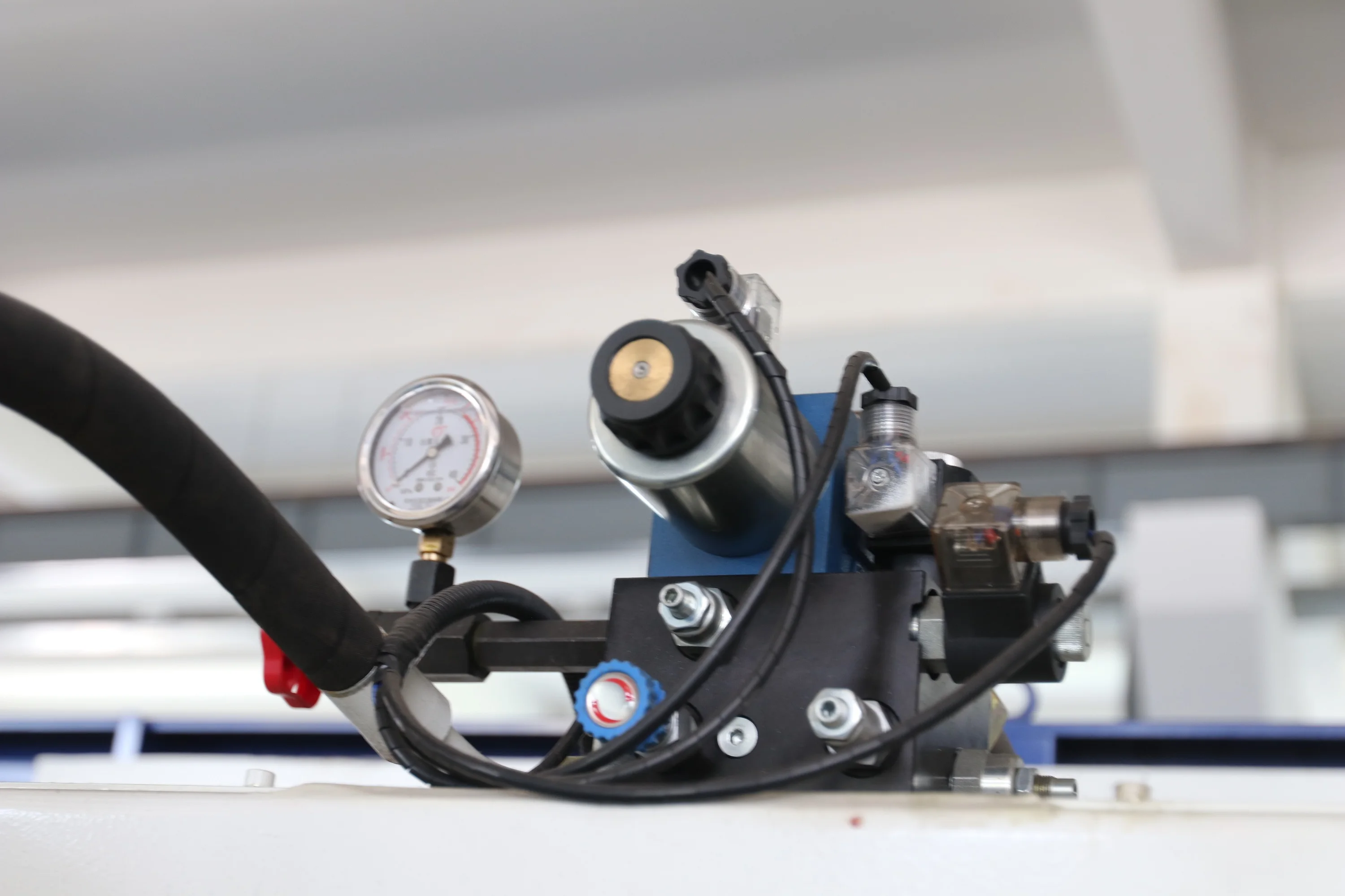

Solenoid Valve Group
The Haas HSK series bending machine adopts the German Rexroth solenoid valve group. The advantage of the solenoid valve group is that the external leakage is blocked, the internal leakage is easy to control, the use is safe, the system is simple, the power is small, and it can be connected to the computer.

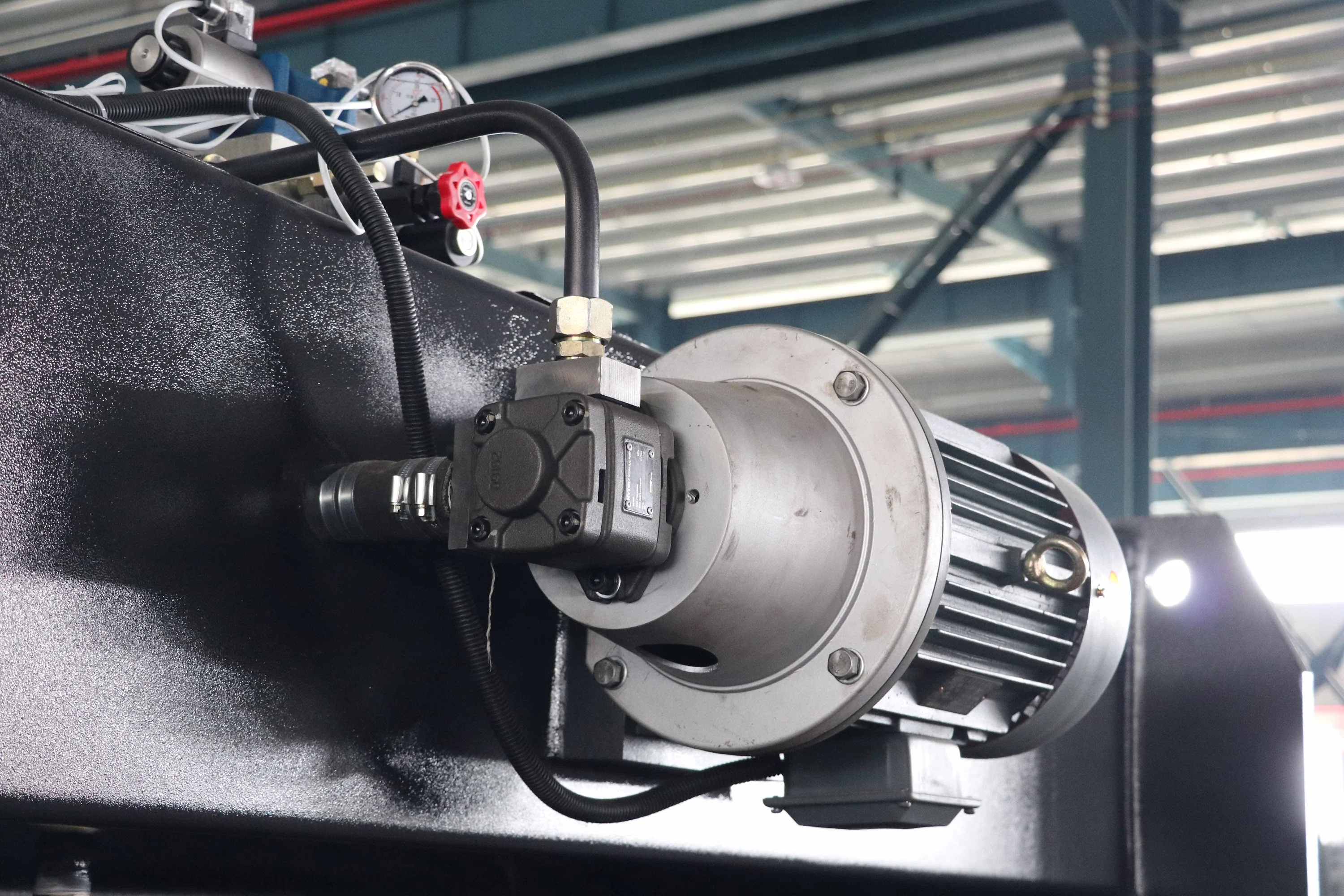

Motor
Haas HSK series bending machine is equipped with American Sunny oil pump. The advantages of SUNNY oil pump are low noise, small flow and pressure fluctuation, stable flow and pressure output at low speed, insensitive to oil pollution, long service life .

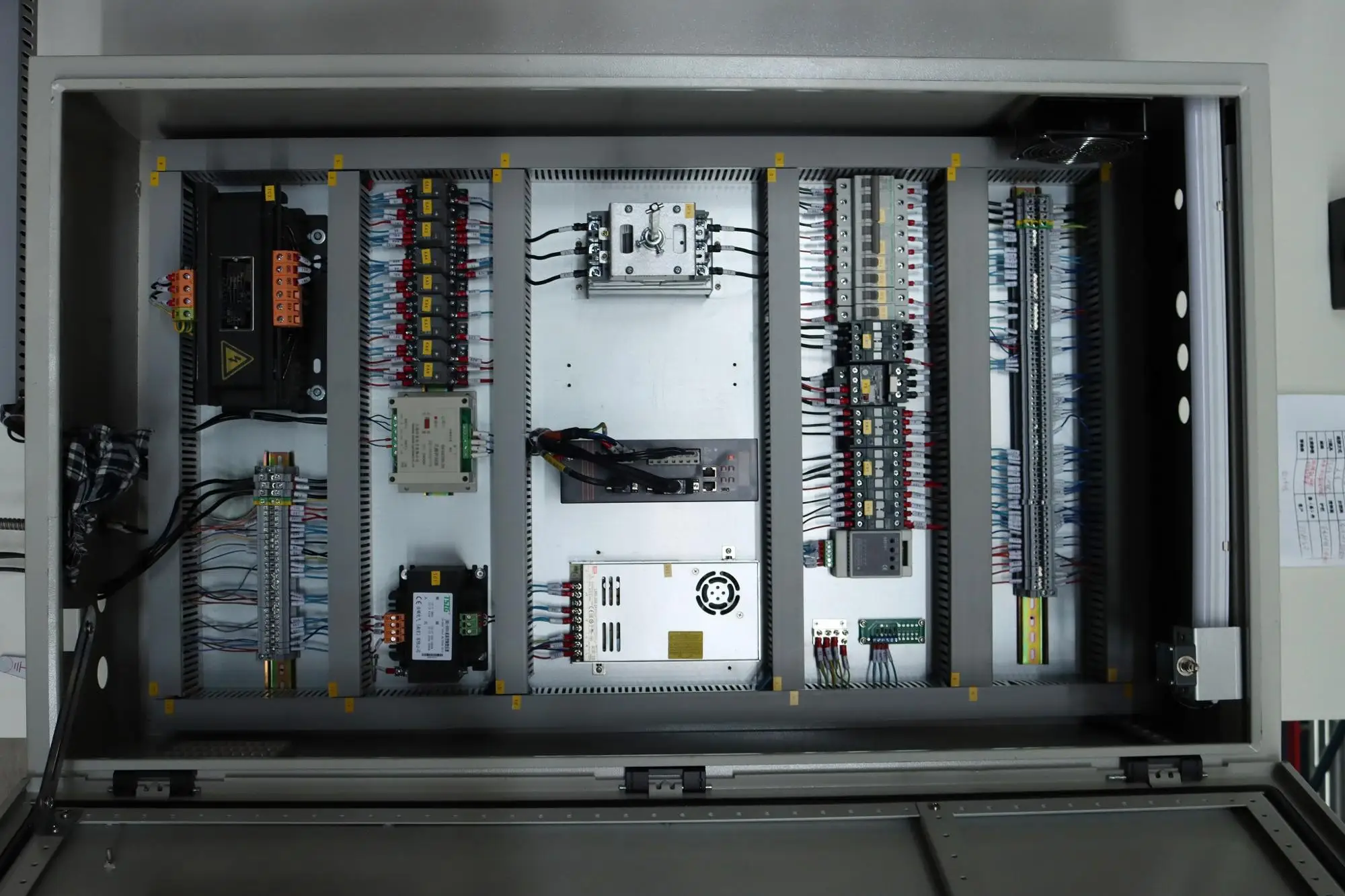

Main electrical components
Haas HSK series bending machine adopts French Schneider electric components, which are safe and reliable, strong anti-interference ability, and have short circuit, overload, and phase loss protection.

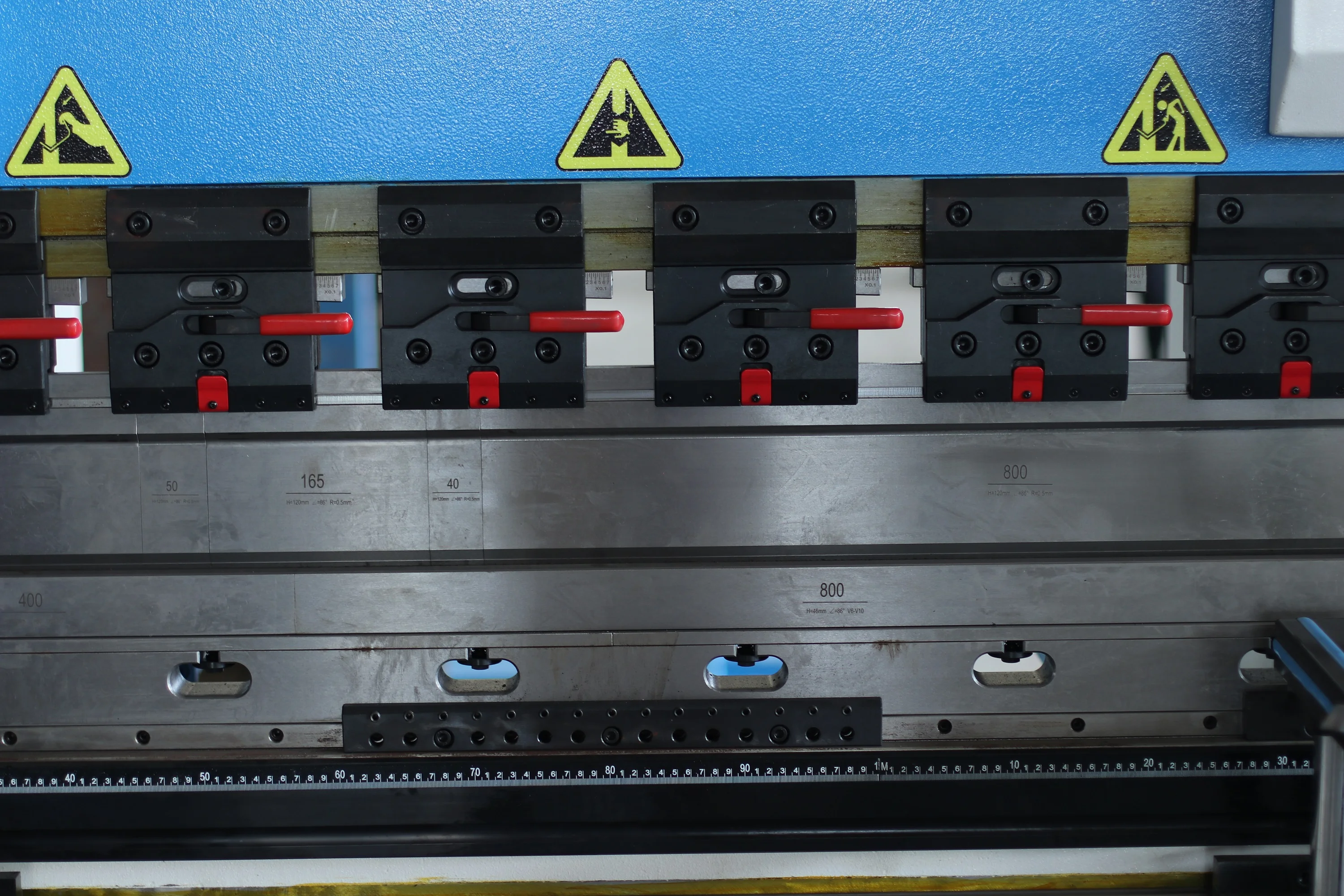

Haas quick clamping system
● safe and fast tool change
● substantial improvement in time consumption and related costs
● Secure against tool falling down
●Available in manual, pneumatic and hydraulic models.
● Mounting: Simply from the bottom into the housing, tighten-DONE!
● Easy to mount on your press brake.Modify cation of the press brake is not necessar
Security configuration

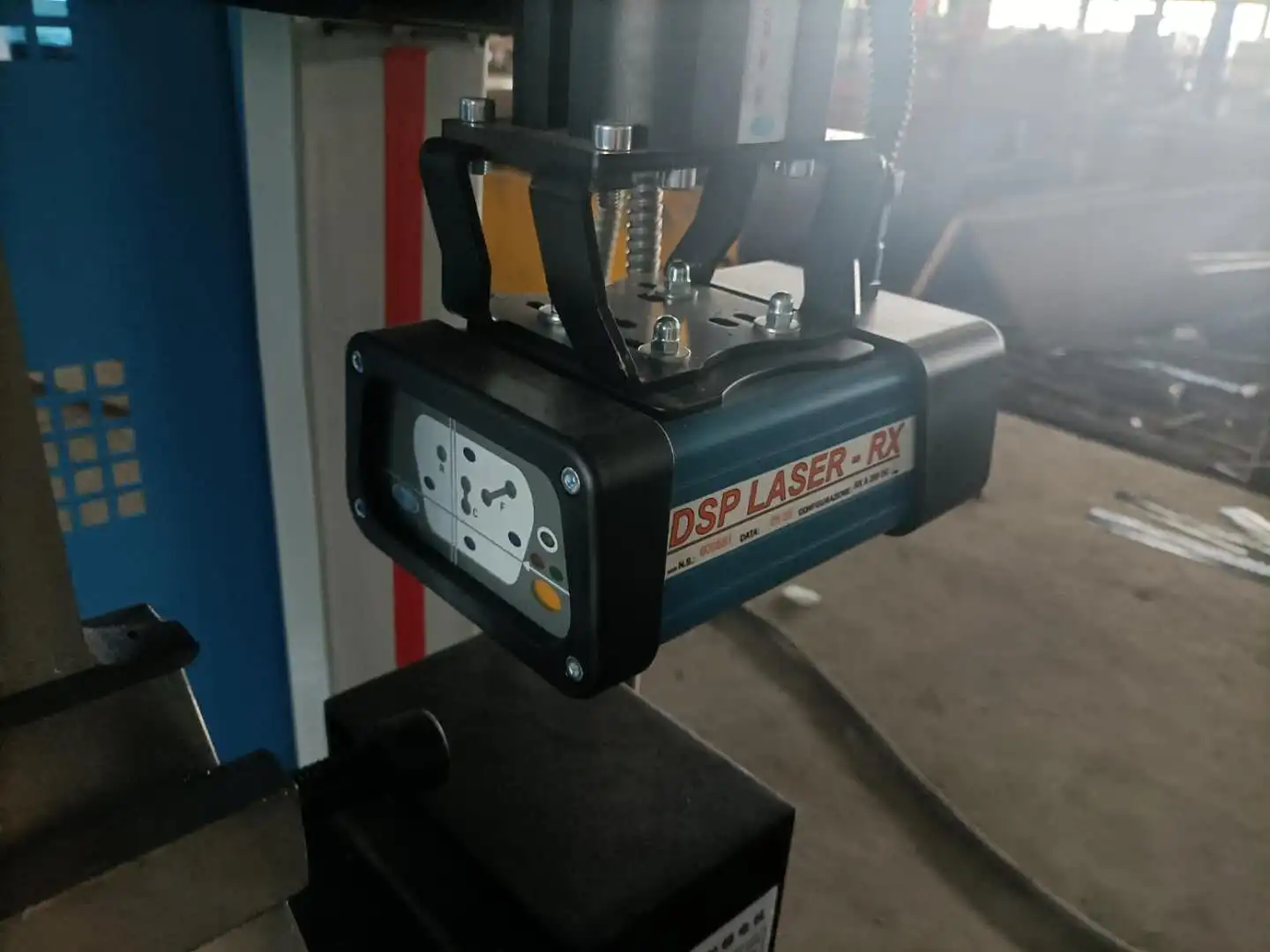

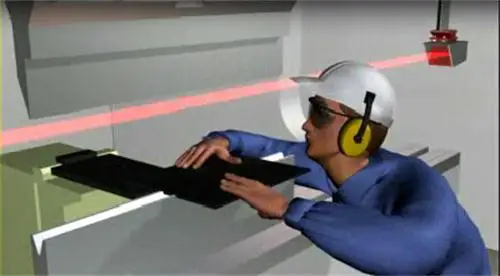

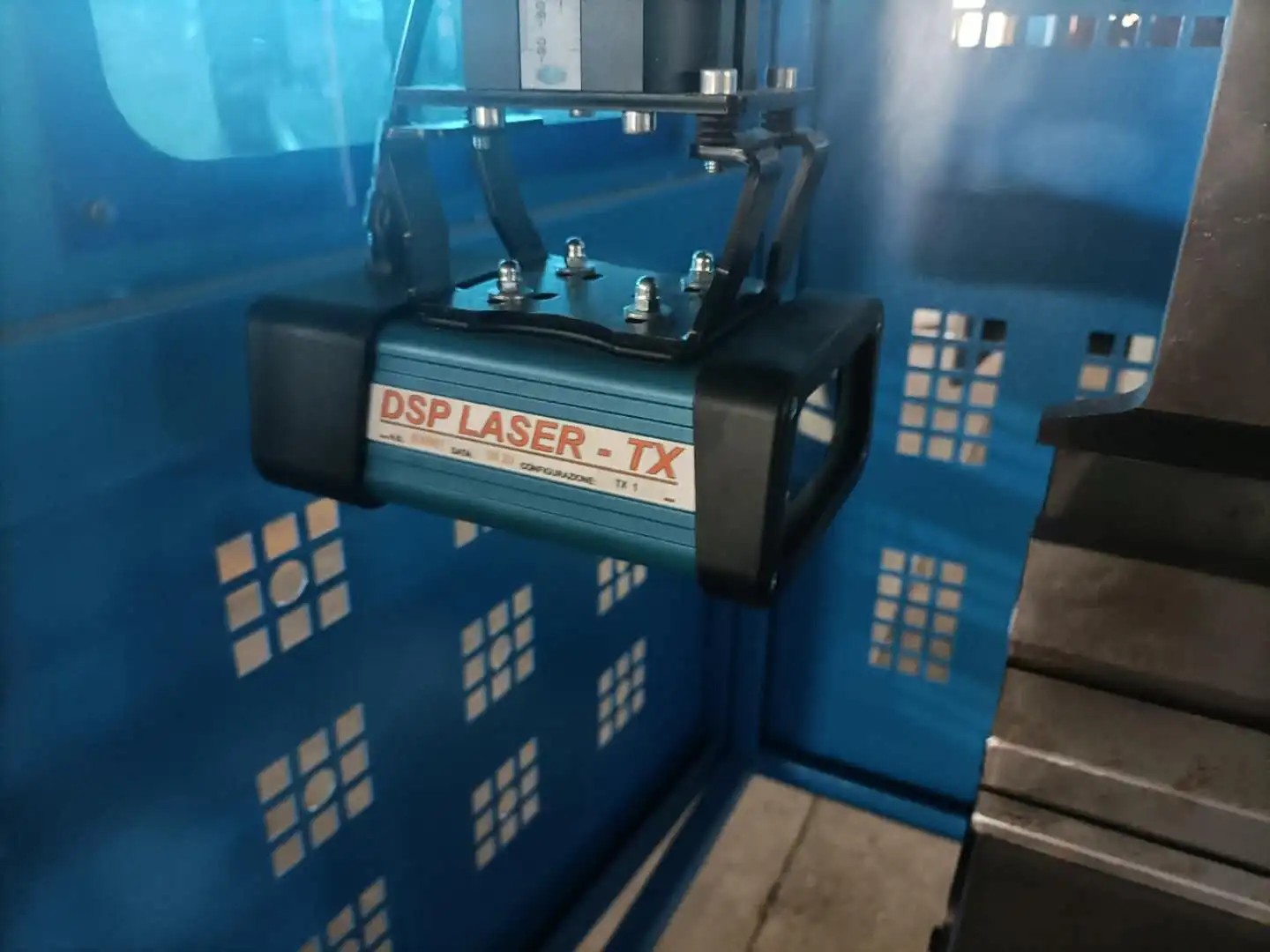

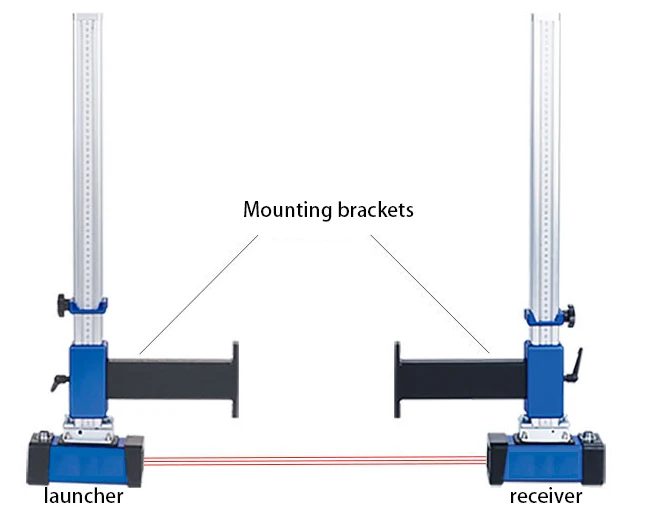

Haas photoelectric safety protection
The Haas photoelectric protection system provides efficient solutions for operator safety and machine production. It meets 4 types of standards and can meet the most demanding requirements in the world, international safety standards.
The Haas photoelectric protection system provides efficient solutions for operator safety and machine production. It meets 4 types of standards and can meet the most demanding requirements in the world, international safety standards.

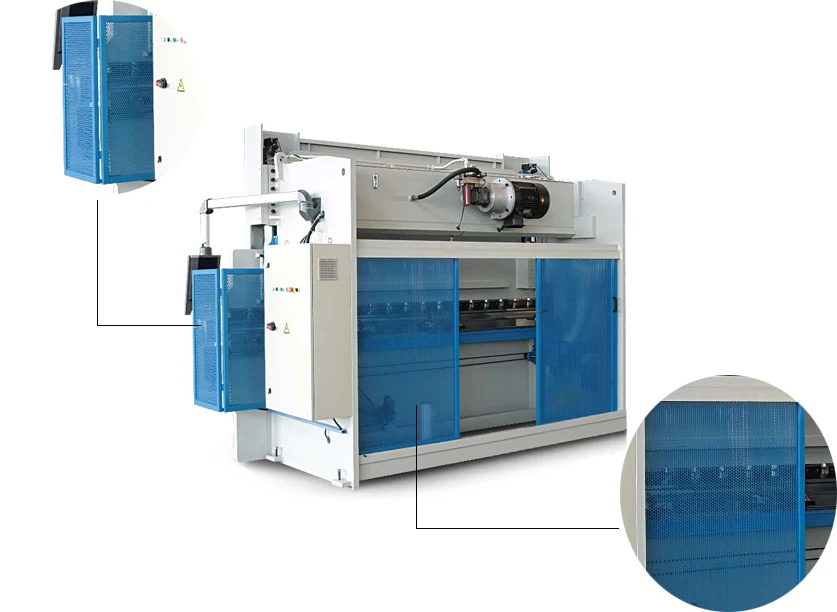

Protective net
The Haas HSK series of bending machines are equipped with protective nets on the front and rear sides to protect the safety of the operator and prevent the safety of other personnel.
The Haas HSK series of bending machines are equipped with protective nets on the front and rear sides to protect the safety of the operator and prevent the safety of other personnel.
