EVERUN ER1220 1.2ton agriculture machinery mini wheel loader with Kubota Euro 5 EPA4 diesel engine
- Category: >>>
- Supplier: Qingdao Everun Machinery Co. Ltd.
Share on (1600149352008):
Product Overview
Description
EVERUN

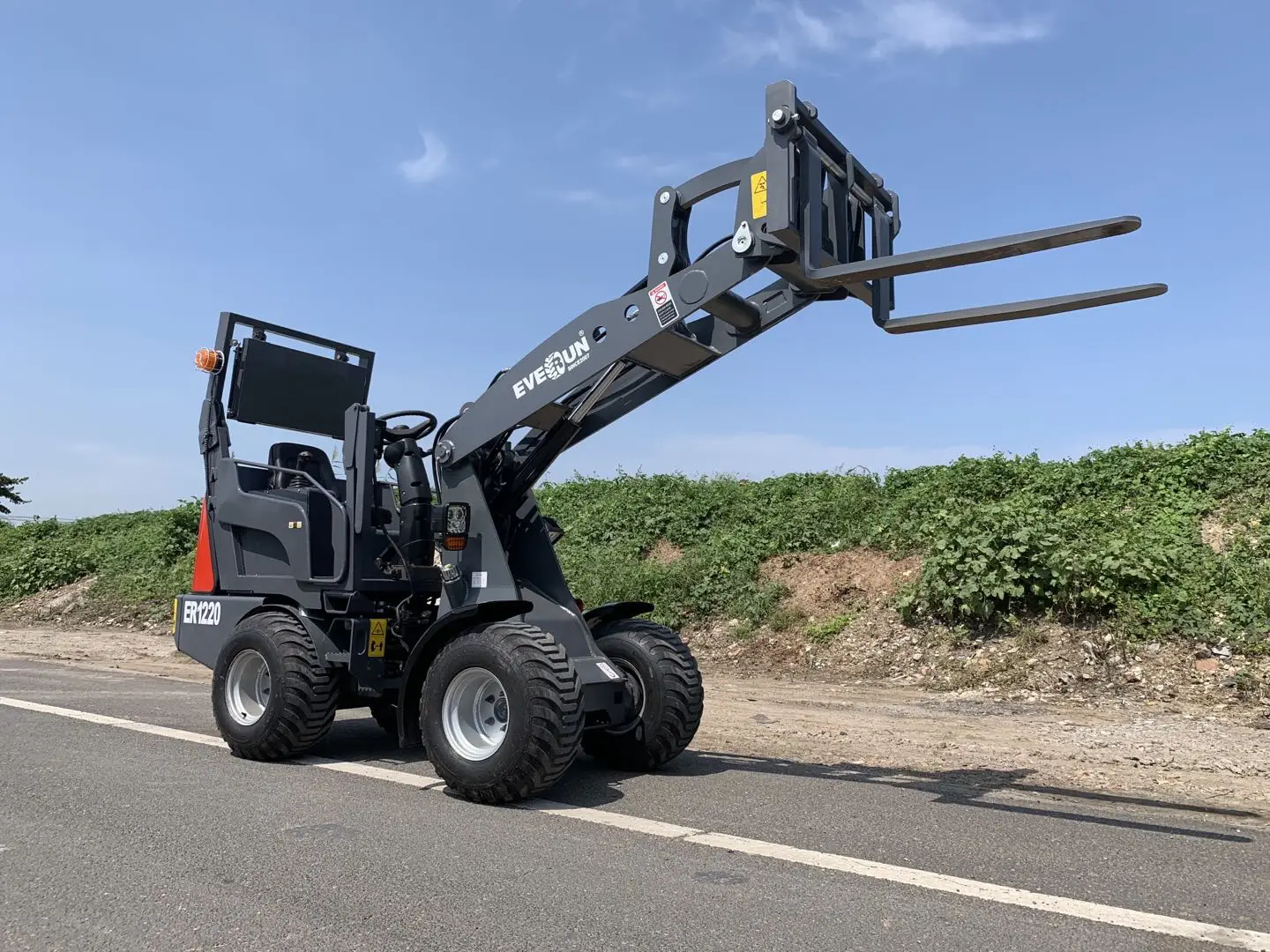

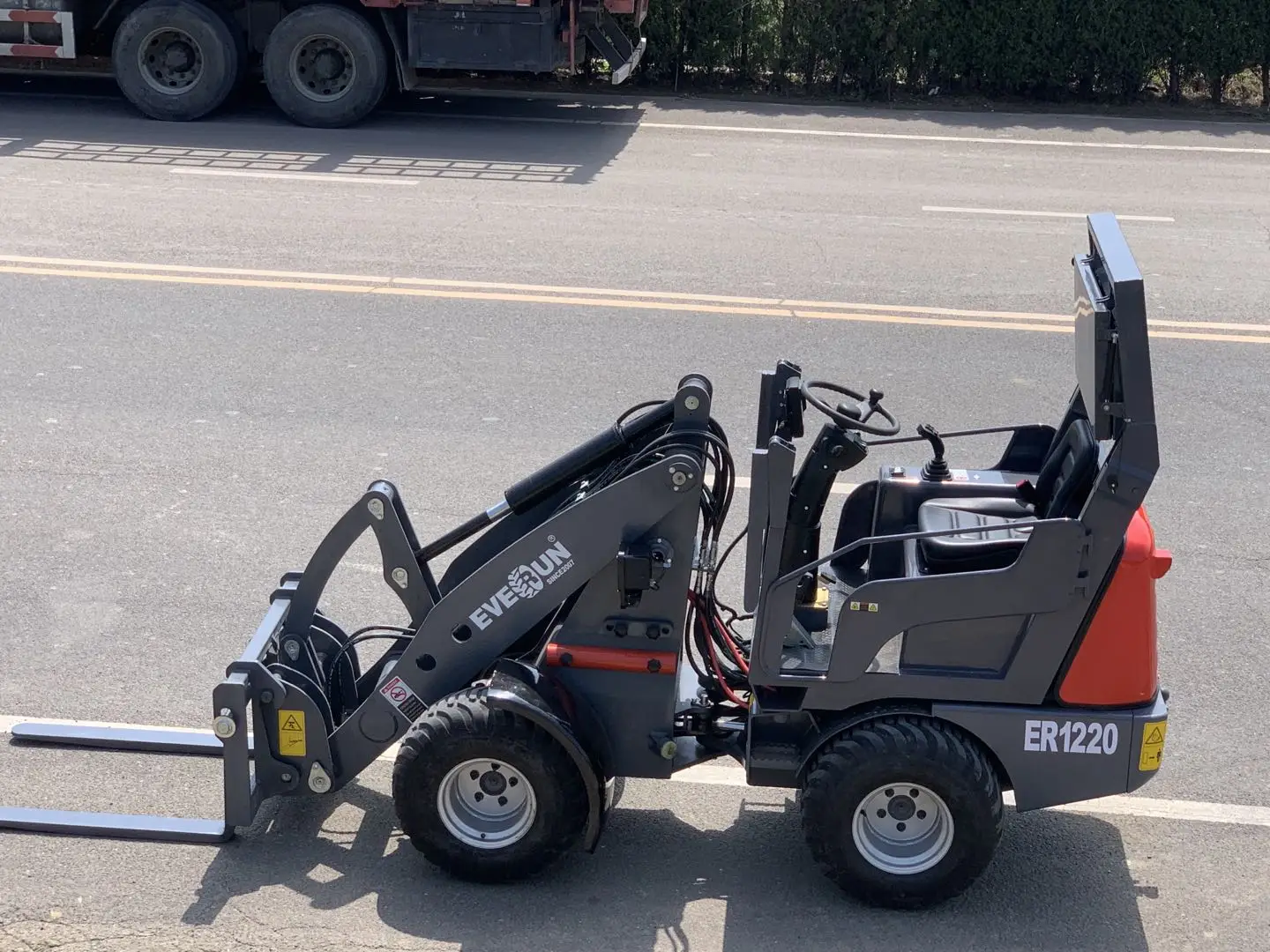

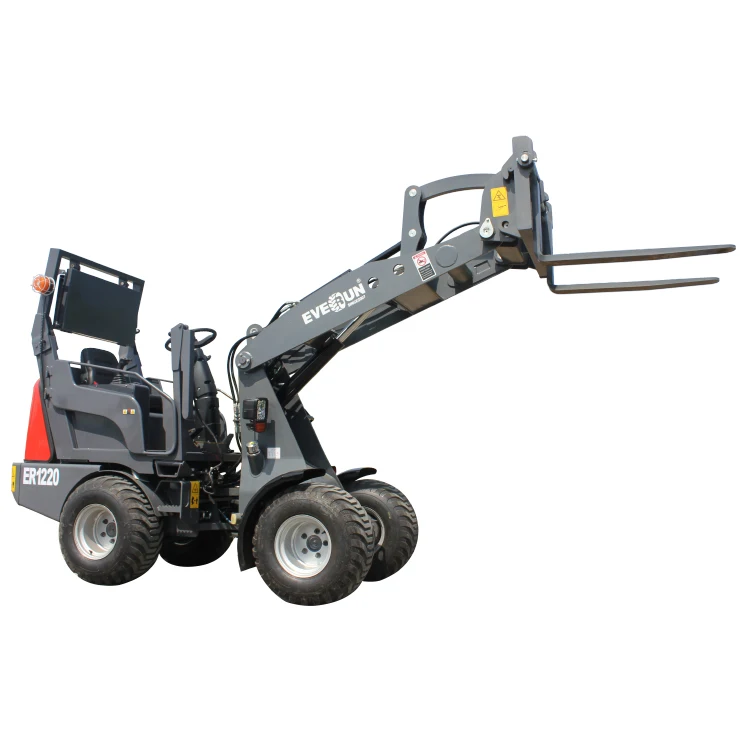

EVERUN ER1220 new design compact mini loader with pallet forks
Product Description
Everun ER1220 Mini Loader
Main configuration:
Ø Kubota EuroV/ EPA4 Engine;
Ø Italy PWG Brand hudrostatic system;
Ø Transmission closed system, working open system;
Ø France Poclain brand 4 wheel driving motor;
Ø Quick hitch;
Ø Electric hand brake, inch function;
Ø Option: Øfront 2 wheel of the driving motor with service brake.
Main configuration:
ØLifting Capacity: 1.2ton;
ØOverall Width: 1160mm;
ØDumping height: 1920mm;
ØHydraulic flow rate: 36L/min;
ØHydraulic Pressure: 19-21Mpa;
ØDriving Speed: L-H, 11km/h ~22km/h
Ø Kubota EuroV/ EPA4 Engine;
Ø Italy PWG Brand hudrostatic system;
Ø Transmission closed system, working open system;
Ø France Poclain brand 4 wheel driving motor;
Ø Quick hitch;
Ø Electric hand brake, inch function;
Ø Option: Øfront 2 wheel of the driving motor with service brake.
Main configuration:
ØLifting Capacity: 1.2ton;
ØOverall Width: 1160mm;
ØDumping height: 1920mm;
ØHydraulic flow rate: 36L/min;
ØHydraulic Pressure: 19-21Mpa;
ØDriving Speed: L-H, 11km/h ~22km/h
Performance | Rated loading (kg) | 1200 |
Overall weight (kg) | 1900 | |
Rated bucket capacity (CBM) | 0.26 | |
Maximum tractive force (kN） | 18 | |
Maximum breakout force (kN） | 15 | |
Maximum grade ability（°） | 21 | |
Maximum dump height（mm） | 1920 | |
Maximum dump reach（mm） | 600 | |
Overall dimension (L×W×H) （mm） | 3600*1200*2170 | |
Minimum turning radius（outside of wheels）（mm） | 2420 | |
Oscillation angle | 8° | |
Engine | Model | KUBOTA D1105 |
Type | lnline water cooled, four stroke | |
No. of cylinder-bore/stroke （mm） | 3—78×78.4 | |
Displacement （L） | 1.123 | |
Rated power（kW） | 18.2 | |
Idel speed (r/min) | 850-900 | |
Rated speed (r/min) | 3000 | |
Maximum torque N.m @speed r/min | 70.4@2200 | |
Transmission system | Type | Closed piston pump |
Gear shift | Electric, Stepless | |
Maximum speed | L0-11 H 0-22 | |
Drive axles | Main reducing mode | Hydrostatic driving |
Wheel base (mm) | ||
Wheel tread(mm) | ||
Ground clearance(mm) | 210 | |
Hydraulic system | System working pressure (Mpa) | 19 |
Boom lifting time (s) | 3.2 | |
Total time (s) | 6.3 | |
Fuel tank capacity (L) | 40 | |
Function of leveling automatically | Yes | |
Service brake | Hydrostatic brake | |
Parking brake | Electronic parking | |
Tyre | Type specification | 26*12.12 |
Front tyre pressure （kPa） | 350 | |
Rear tyre pressure （kPa） | 350 |

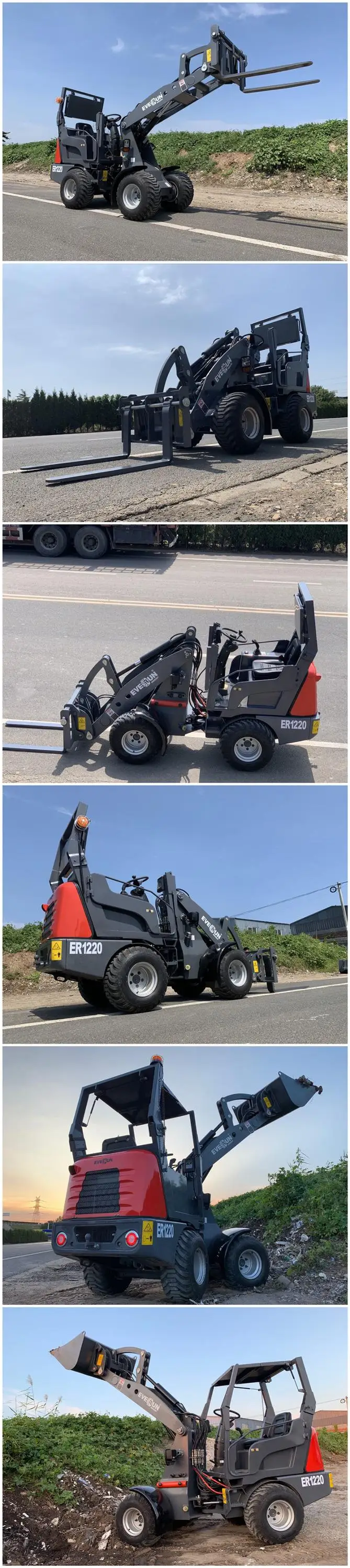

More pictures

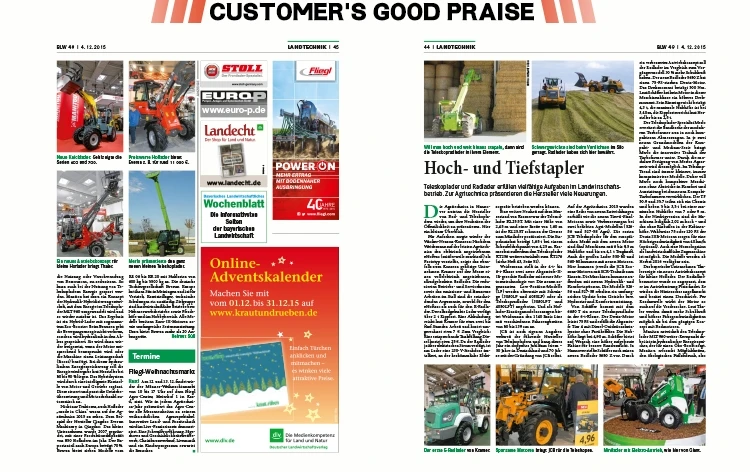

What customer say
Certifications
1. Everun products are CE approved from TÜV,CE number: AM 50257603 0001
2. Everun loader cabin has ROPS&FOPS certification
2. Everun loader cabin has ROPS&FOPS certification
3. Everun has patent of whole appearance
Our Company
Packing & Delivery
FAQ
Q: What is your payment term?
A: L/C, or T/T 30% down payment, balance to be paid against BL copy and loading pictures.
Q: What is your delivery time?
A: Within 35-35days after receving the down payment (for standard configuration).
Q: What is your main market?
A: Europe, North America, South America, Oceania, Southeast Asia, Africa, Eastern Asia and so on, in more than 50 countries.
Q: If products have some quality problem, how would you deal with?
A: There is one year or 1200 working hour warranty, we will gurantee you can receive the light/ small spare parts within 5 working days. In order to make good service for our European and Oceanian customers, we have set up Europen company in Germany and Everun WA in Australia with our partner.
