EN10305 1 E355 SR BKS 1045 1020 Cold rolled Seamless Steel Tube

Product Overview

Description

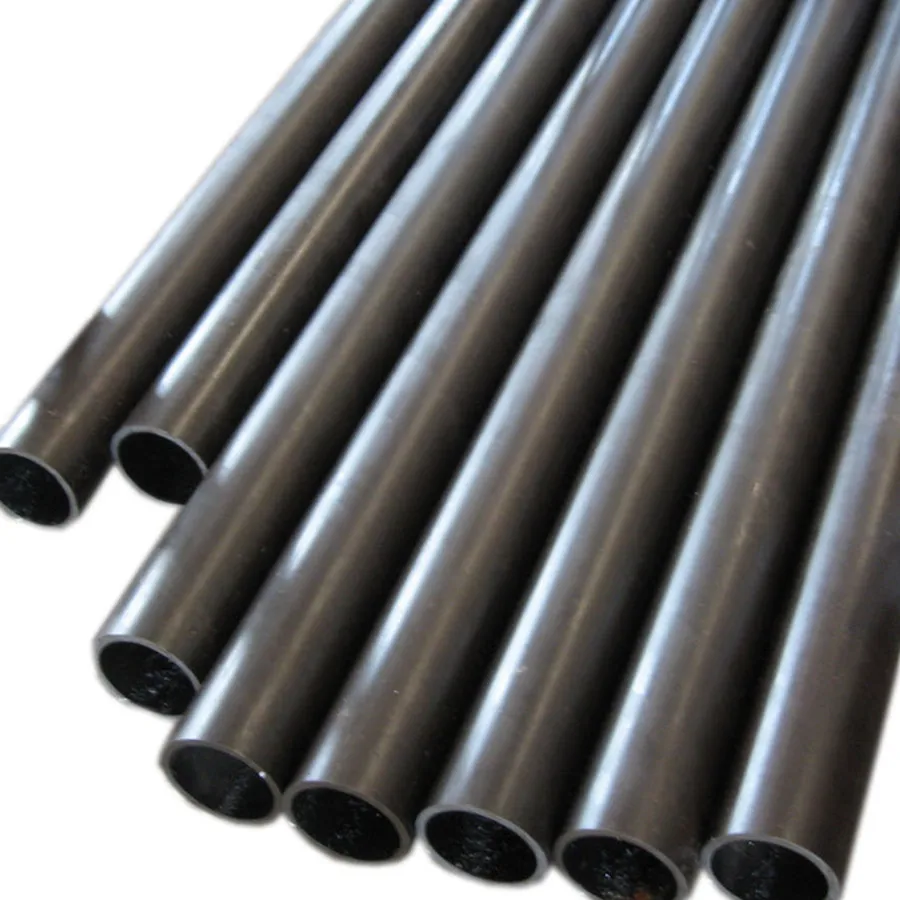

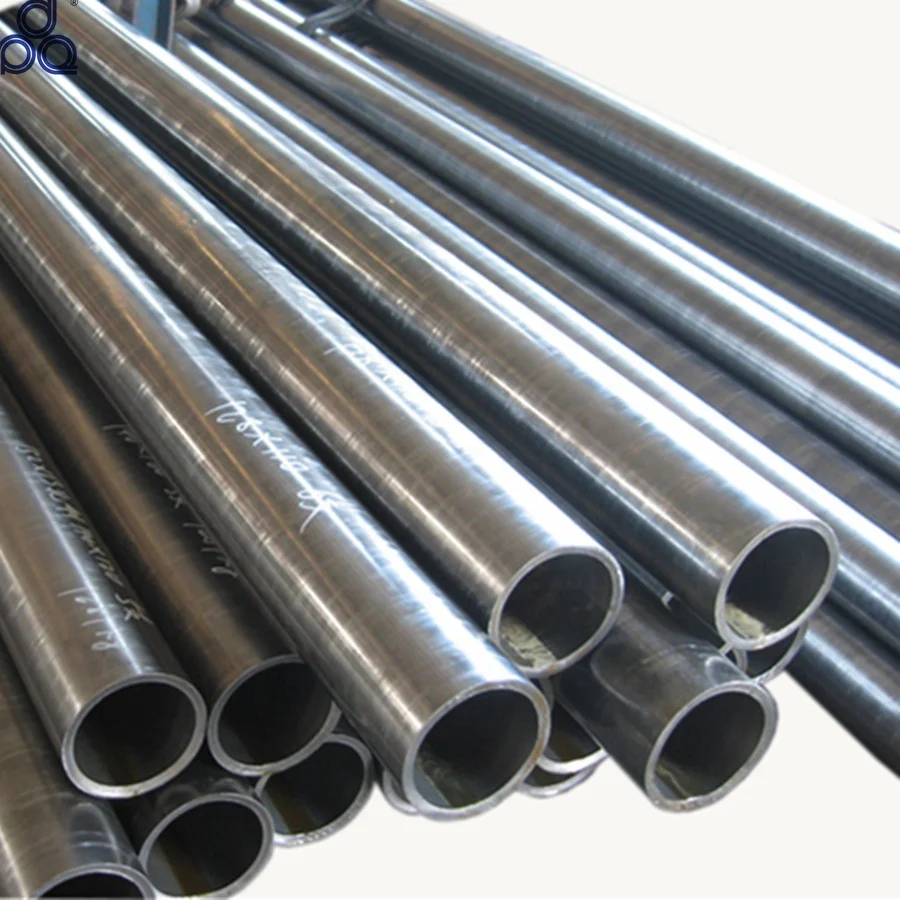

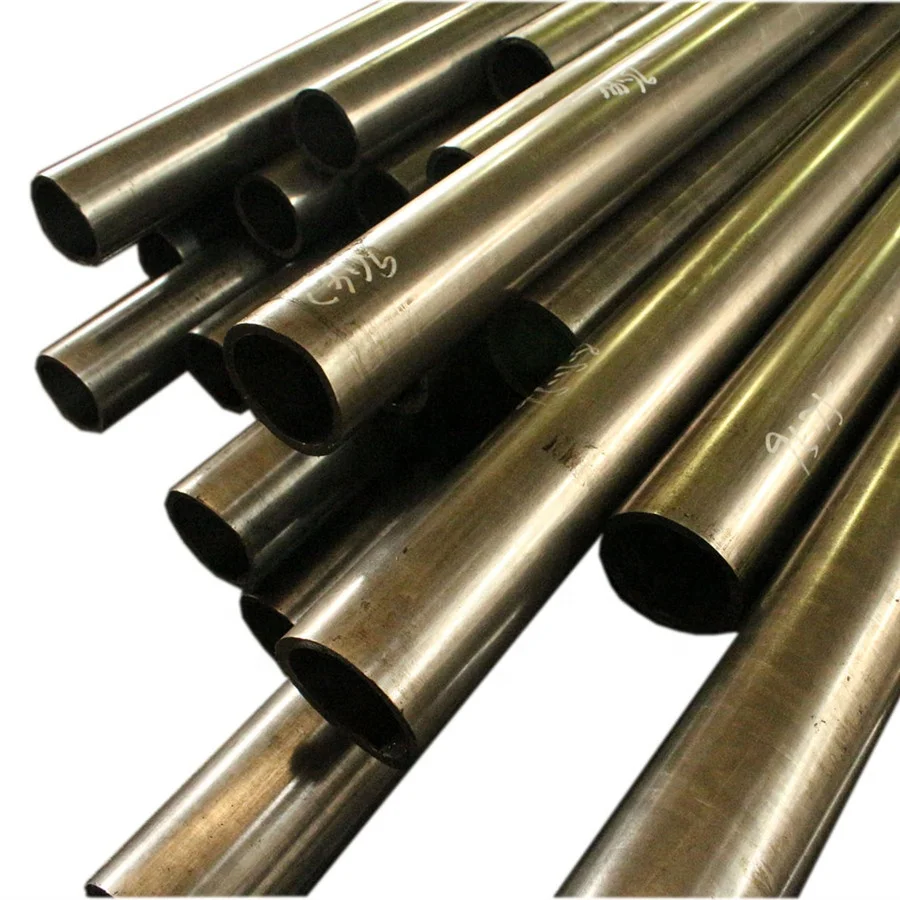

EN10305-1 E355+SR BKS 1045 1020 Cold rolled Seamless Steel Tube

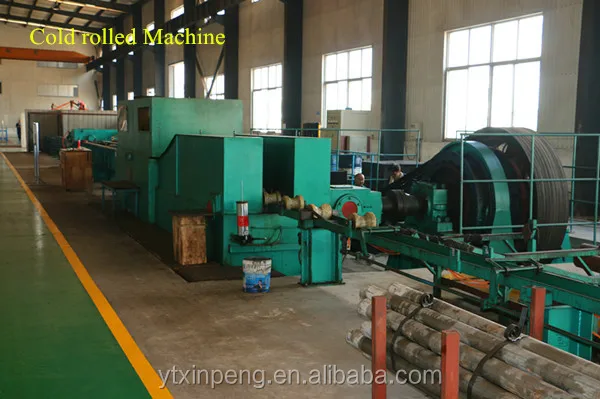

1.cold finished tube(cold drawn pipe, cold rolled pipe)

After pickling, phosphating, our seamless pipe can do deep work such as cold drawn, or cold rolled.

This process can change the size of OD, ID, WT and the mechanical property of the carbon tube.

Also after cold finished, we can do stress relieved(annealed), called them BKS tube, would much better

for bending.

Roughness: ra1.6-3.2

Straightness: 1:1000mm

OD work range: 30-250mm

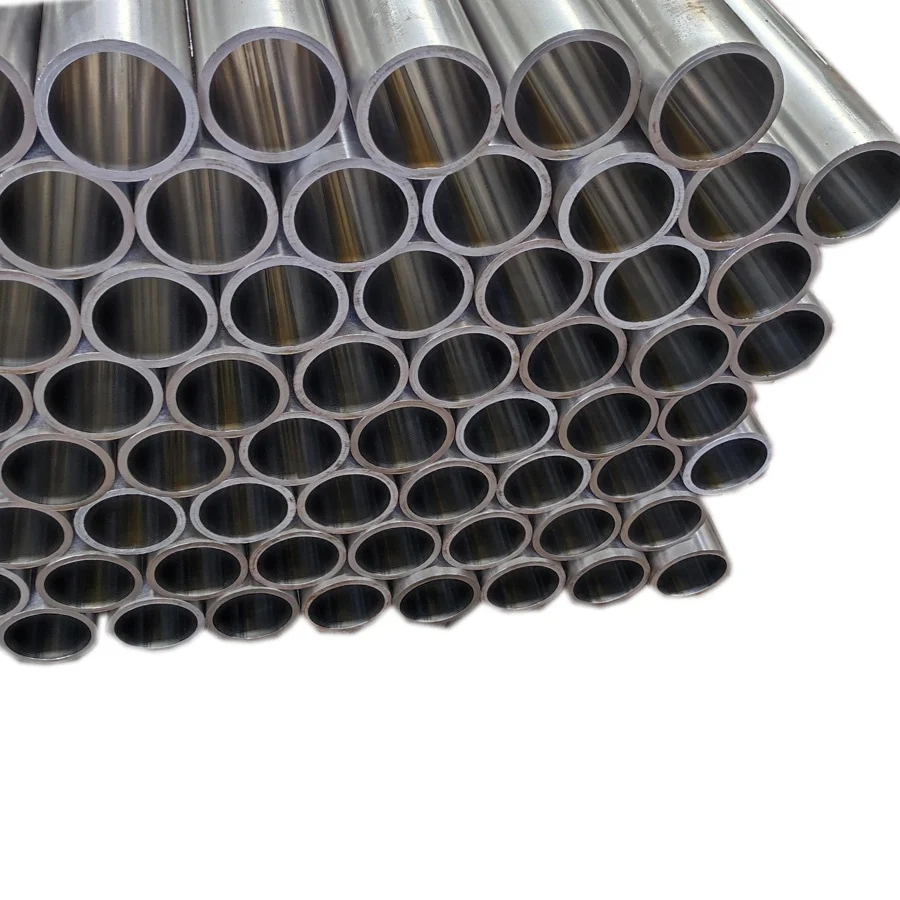

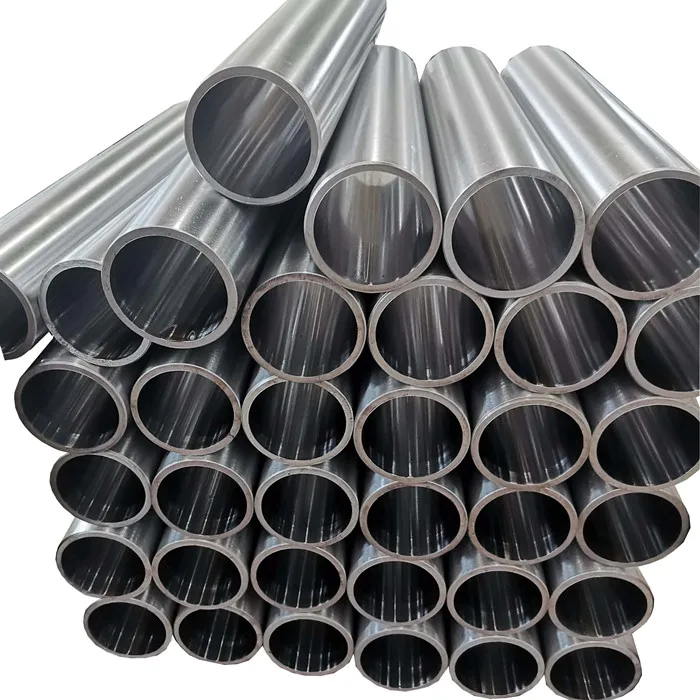

2.honed tube,SRB tube

A:  ID Honed

OD work range: 30-50mm

Length: 2m max

Utilize an abrasive stone,which turns while being moved in and out of the work piece.

The honing process makes :
1)Smooth surface finishes inside bores
2)Hold precise tolerances on bore diameters

ID H8 H9 H10
ID roughness 0.4-0.8μm

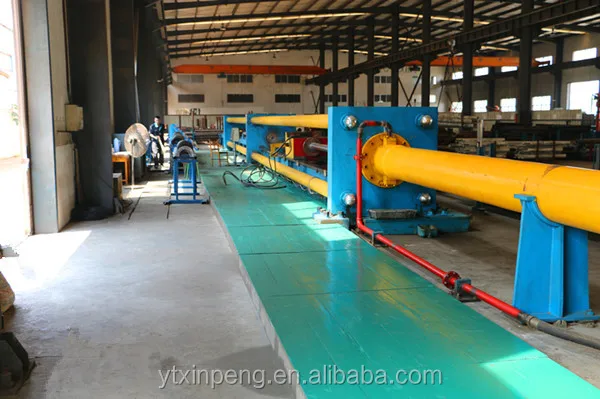

B:  ID Skiving and roller burnishing/ID SRB



Two thin chips are cut at high feed rate while the tool passes through the workpiece,

producing mirror inner,with a bore precise tolerance .

ID H8 H9 H10
ID roughness 0.2-0.8μm
ID max 50-250mm

Length 6m max

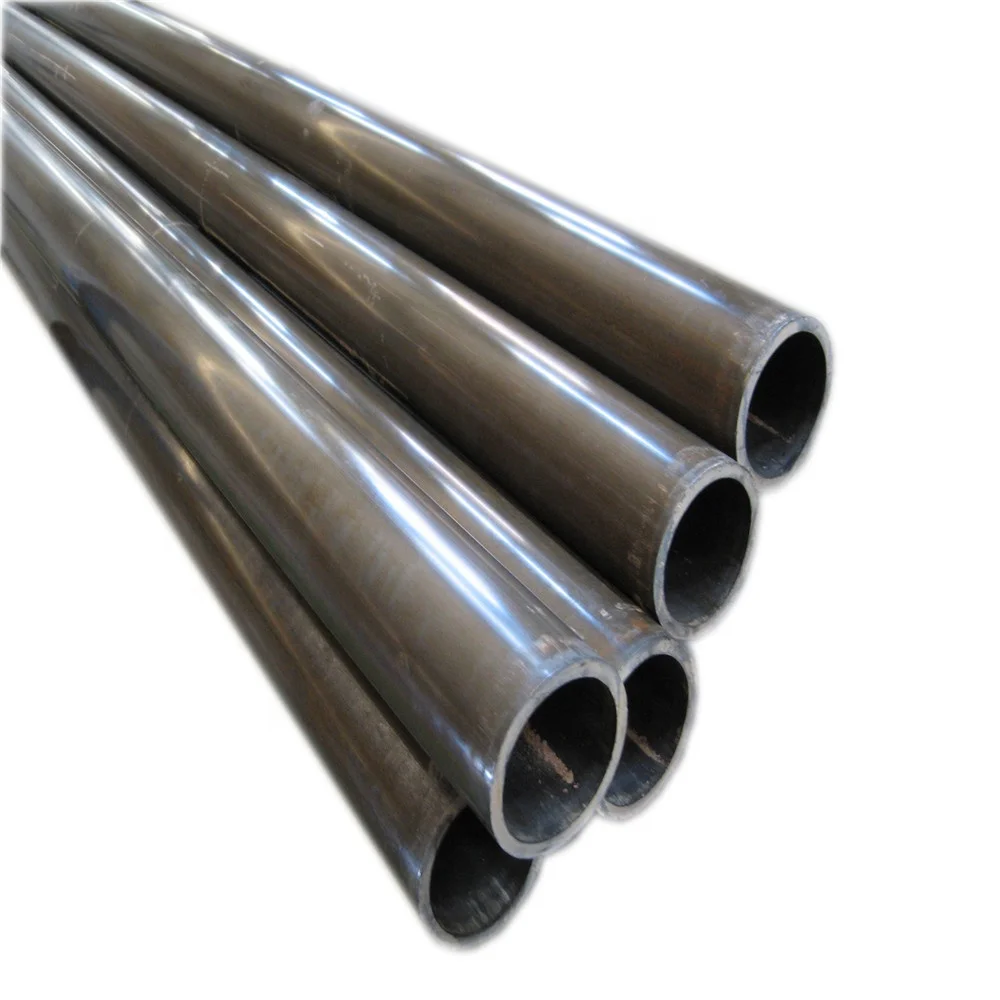

3. polished tube

OD polished, can make the OD surface smooth, Ra can up to 0.4-0.8.

OD polished and ID honed or SRB, the tube can be used for hydraulic cylinder barrel direcly.









Size ID*OD (mm)  length can be fixed  biggest 6M
40*50	90*110	140*170	190*215
40*55	95*110	145*170	190*220
50*60	95*115	150*170	190*225
50*65	100*110	150*175	200*220
55*70	100*114	150*180	200*225
60*70	100*115	155*180	200*230
60*75	100*120	160*175	200*245
60*78	100*125	160*180	200*250
63*73	105*125	160*185	220*250
63*75	110*125	160*190	220*270
63*76	110*130	160*195	225*250
63*78	115*130	165*190	240*273
65*80	115*135	165*205	250*290
70*80	120*140	170*200	250*300
70*82	125*140	180*200	200*213
70*85	125*145	180*205	200*216
70*90	125*150	180*210	250*266
75*90	130*150	180*215
80*92	130*155	180*220
80*95	130*160	185*205

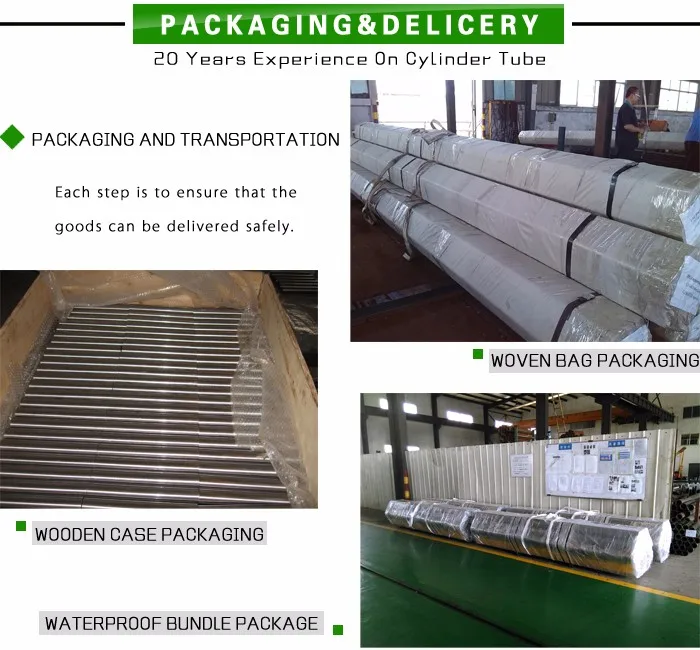

Packing: bundle with strips or wooden cases or as client's request

Shipping: arrange shipment within 30-45 days after receiving prepayment











1.100% quality satisfaction guarantee following with ISO9001 verified

2. professional package which can assure long distance sea transportation

3. delivery in time

4. more than 20 years experience specializing in steel trading line

5.alibaba trade assurance supplier



Other Products

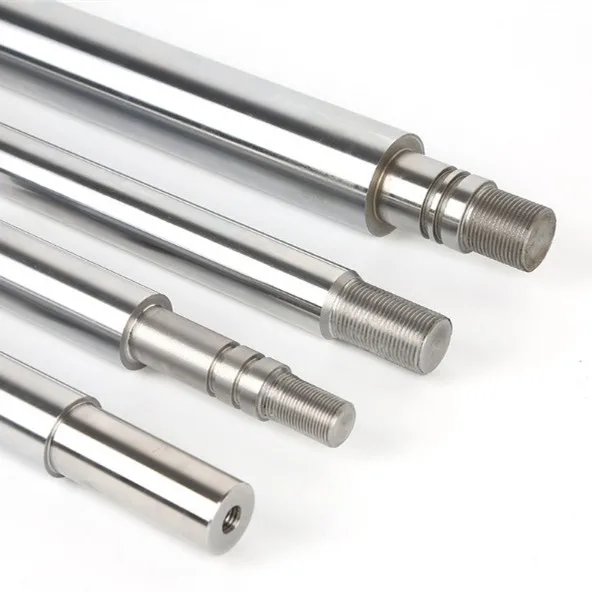

Hard Chromed Steel Bar
