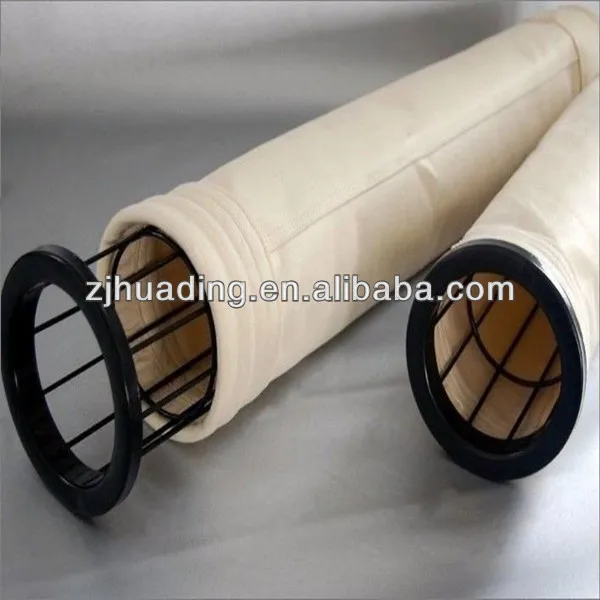

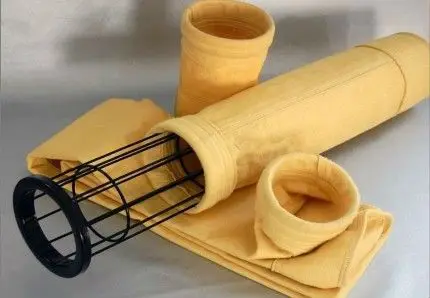

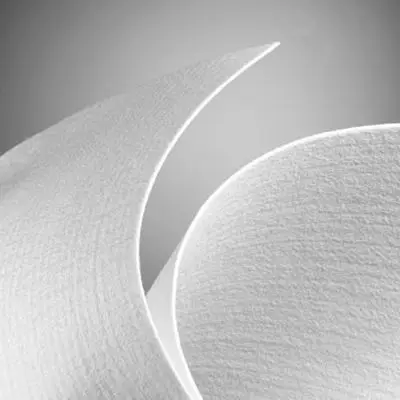

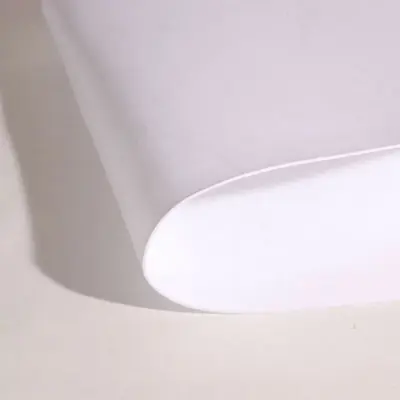

Glassfiber nonwoven needle felt dust filter bag filter cloth

Product Overview

Description

Glass fiber and polyester Dust Collector filter bag



Application



Cement industry      Asphalt industry



Power Plants         Coal industry



Carbon black industry   Chemical industry   Smelting industry



Specification



Material		Polyester Fiber /Polyester scrim
Weight(g/m2)		400	450	500	550	600
Thickness(mm)		1.4	1.6	1.8	2.0	2.2
Air Permeability(m3/m2/min)		21	18	16	13	12
Tensile strength  (n/5 x 20cm)	Warp	>1000	>1000	>1100	>1100	>1150
	Weft	>1350	>1400	>1500	>1550	>1600
Elongation (%)	Warp	< 25	< 25	< 25	< 25	< 25
	Weft	< 45	< 45	< 45	< 45	< 45
Working temperature(°C)	Continues	≤130	≤130	≤130	≤130	≤130
	Instant	150	150	150	150	150
Finishing Treatment		Singeing,Het setting,Calendering





























































Features



Heading Polyester felt can be produced by ordinary staple scrim or high strength filament scrim, due to the customer demands,Weight ranges from 350 g/m2 to 800 g/m2.

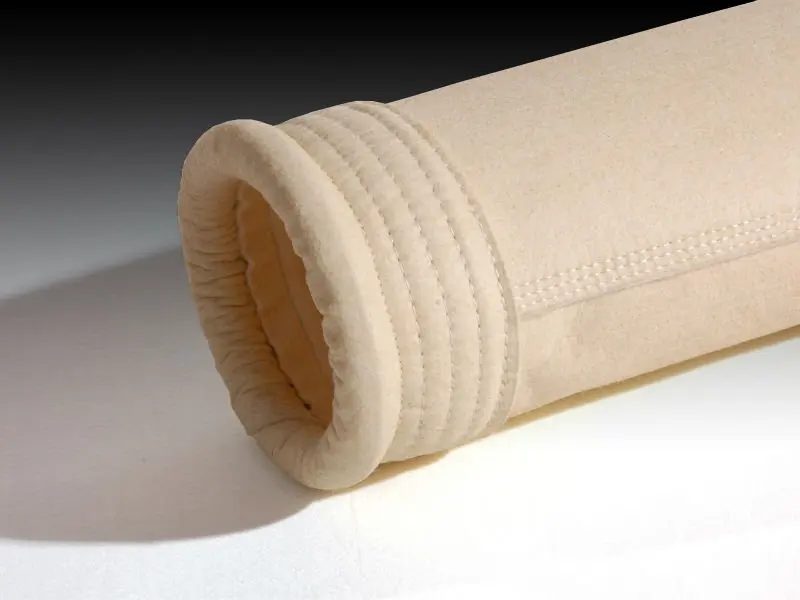

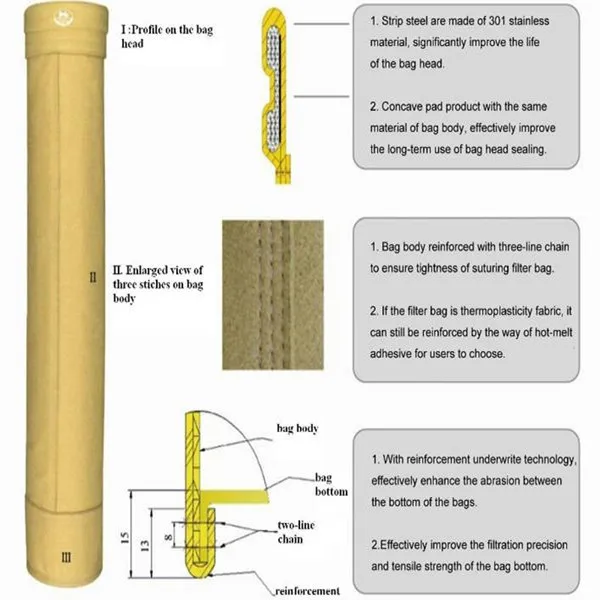

 Filter Bag
