China Wholesale 50X 1000X Digital Microscope Wifi Portable USB Digital Microscope for iOS/ Android
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600149796459):
Product Overview
Description
50X~1000X Mag.
1/4" sensor
Micro/ USB2.0 Interface
Integrated Wifi Function
Product Description

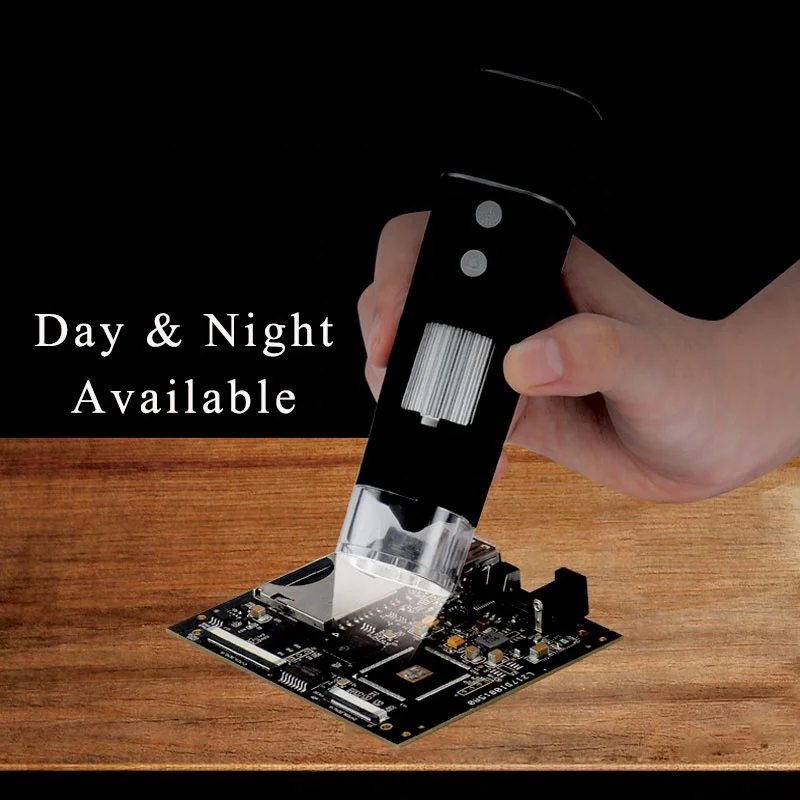

H01 Handheld Digital Microscope is a super portable instrument for gem identification, electron inspection, medical treatment, and teaching demonstration. Its magnification ranges from 50X to 1000X and integrated Wifi function, which offers more convenient operation.
Its 8 LED light is gentle and bright, the external light source can provides not only alleviate the problem of light in complex environment, but also solve the reflection problem of objects under light source.
 |

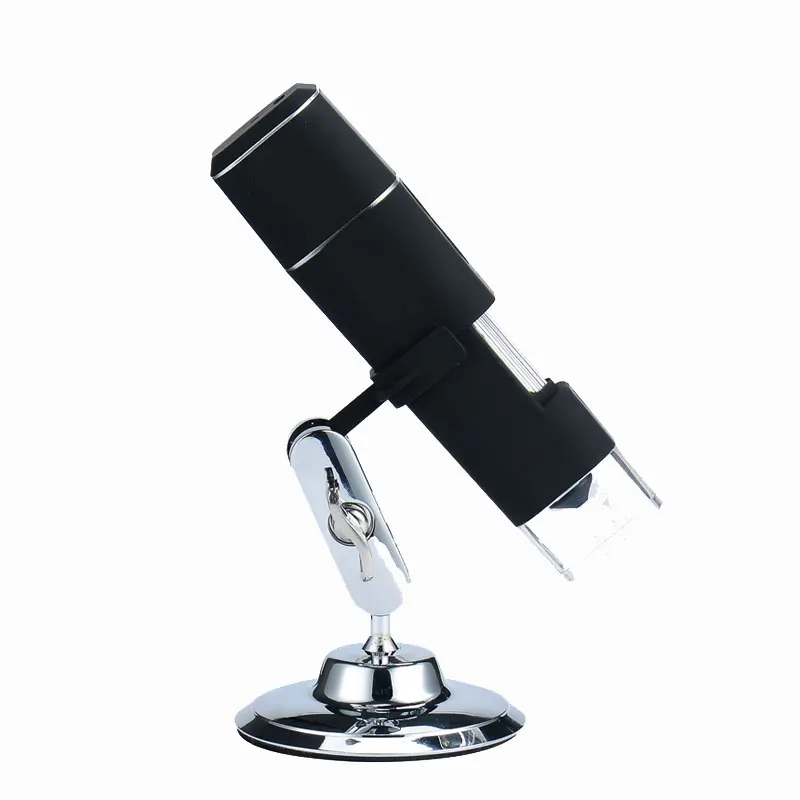

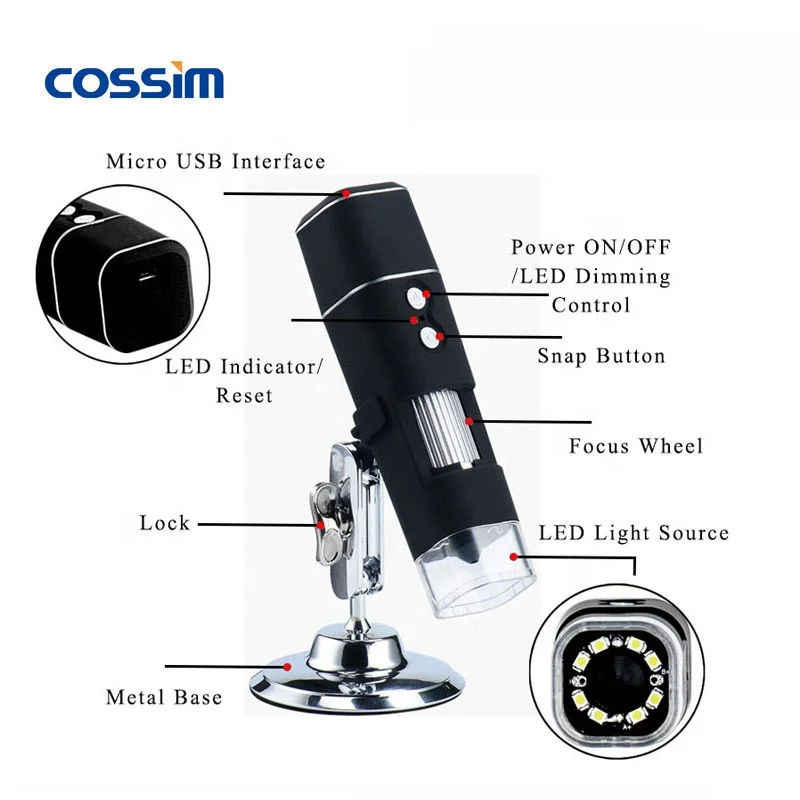

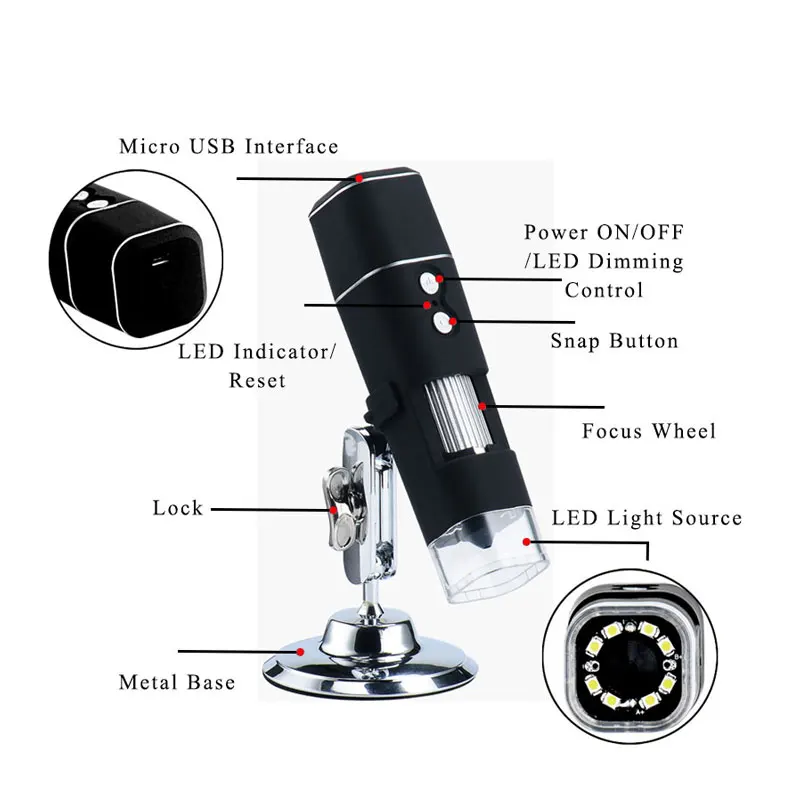

| Structure of H01 Digital Microscope |
 |

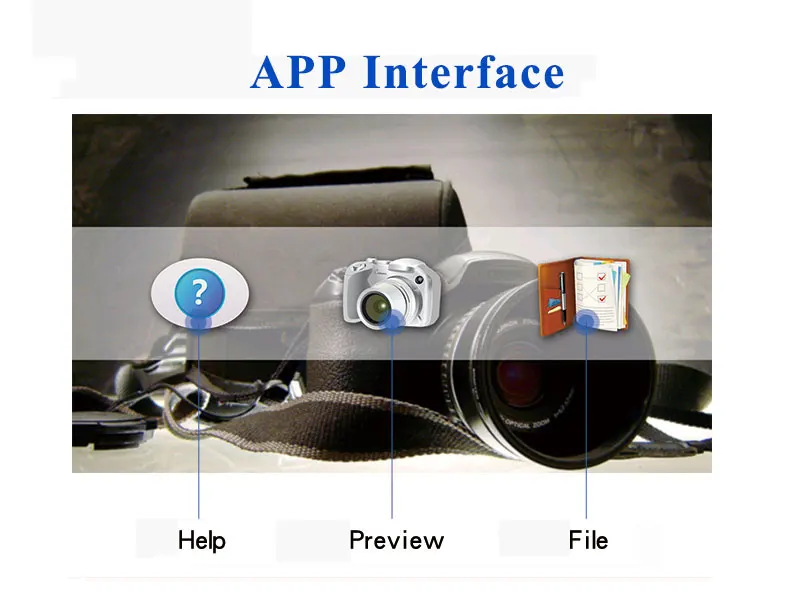

| APP Interface of H01 Digital Microscope |
Specification
Specification for H01 | |
|---|---|
Model | H01 |
Optical Size | 1/4" sensor |
Magnification | 50X-1000X |
Photo Resolution | 640*480 1280*720 1920*1080 |
Video Resolution | 640*480 1280*720 1920*1080 |
Date Mode | JPEG/AVI |
Focusing | Manual, range: 0~40mm |
Stand | Metal Base |
Light Source | 8 LED Light Lamp, brightness adjustable |
Sensitivity | 4300mV/lux-sec |
Maximum Signal-to-noise Ratio | 37dB |
Interface Output | Micro/USB2.0 |
White Balance | Auto |
Exposure | Auto |
Lens Structure | 2G+IR |
View Angle | 16° |
Wifi Operation Environment | Up to Android 4.0; IOS8.0 |
Wifi Operation Demand | Support 2.4Ghz (8201.11b/g /n) wireless data transmission equipment |
Charging Demand | DC-5V~1A |
Charging Mode | 800mah Built-in lithium electricity |
Operation Tem. | -20°C ~ +60°C |
Operation Humi. | 30%~60%Rh |
Operation Current | ~260mA |
PC Operation System | Windows XP, Win7, Win8.1, Win10, Mac OSx10.5 or higher |
Box Dimension | 15cm*12.5cm*4.8cm |
Weight | 255g |
Carton | 50 Boxes in one Carton |
Weight: 13.5KG | |
Dimension:63.5*31.1*26cm |
 |  |

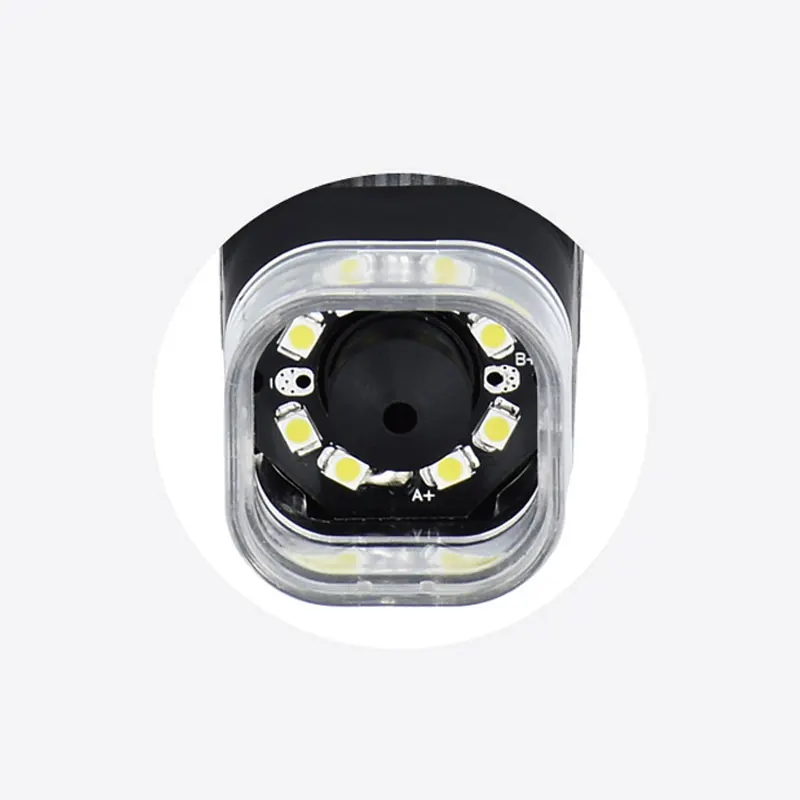

 | LED Light Source 8 LED light source can be adjustable, and the luminance adjustment key to adjust the luminance of the LED light source in four levels cyclically from dark level to bright level till this function is turned off; the default luminance during starting-up is the darkest level. |

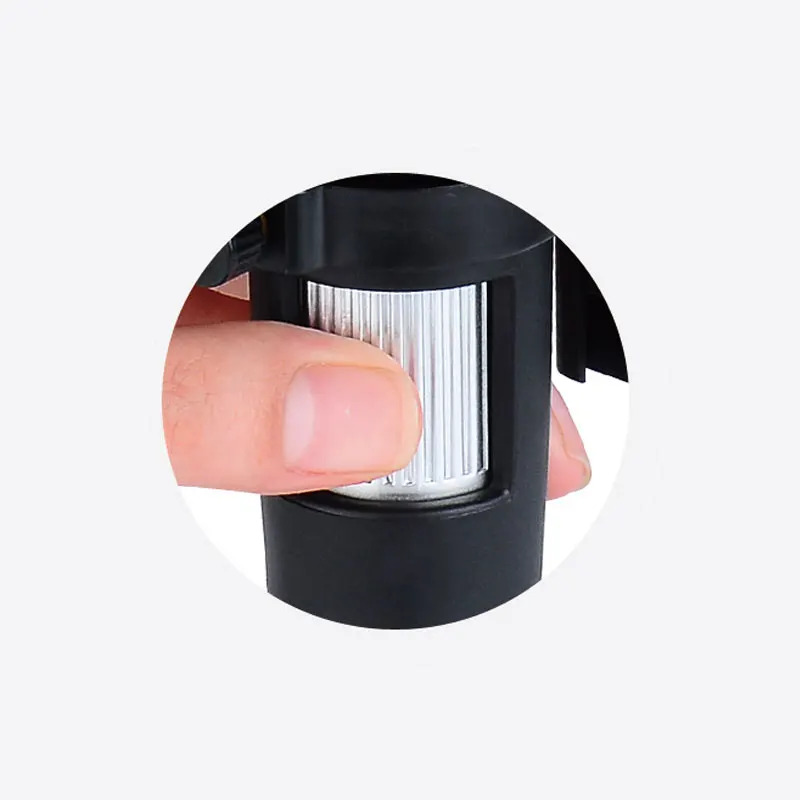

Focusing Wheel Sliver focusing knob, it is convenient for single hand operation. |  |

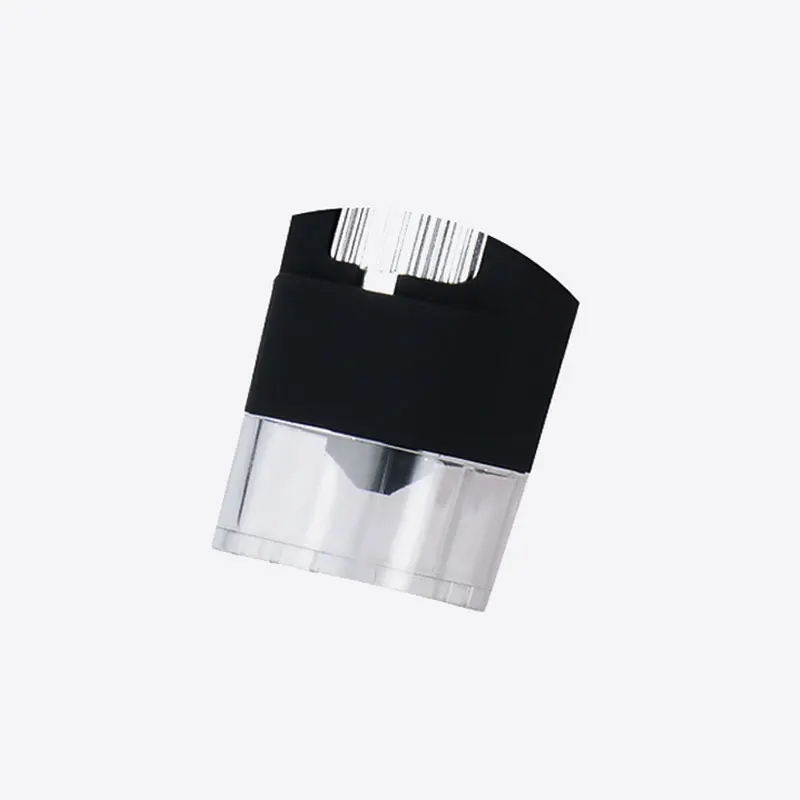

 | Lens Cover Do not remove the cover before using, to avoid damaging the lens |

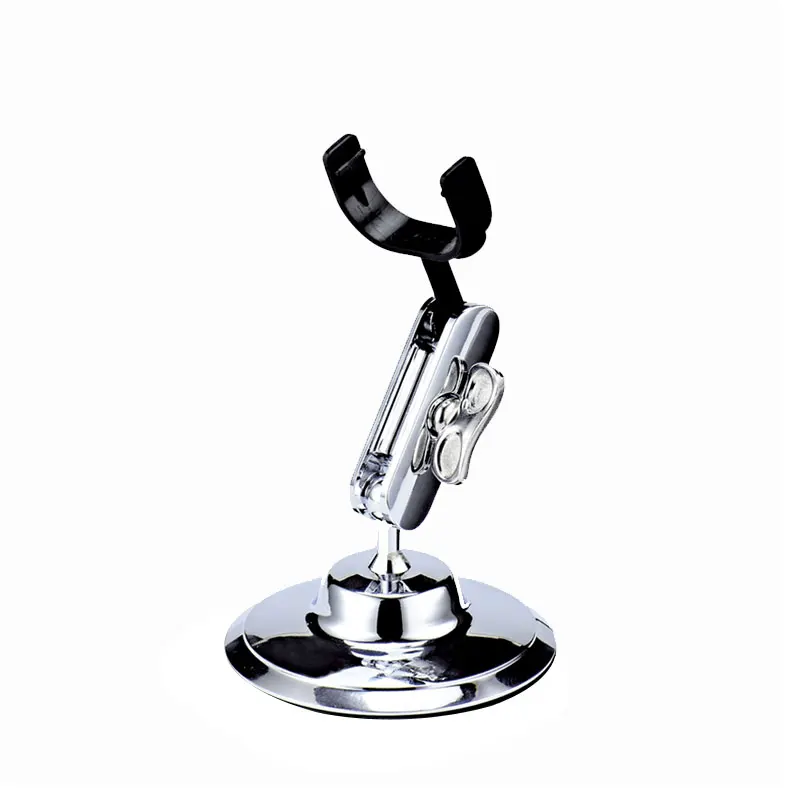

Bracket Stand Metal base, multi-angle adjustable for more easy operation. |  |
Packing List
Standard Packing List | ||
|---|---|---|
No. | Project Name | Quantity |
A | Microscope Main Body | 1 |
B | Stand | 1 |
C | Calibration | 1 |
D | USB Cord | 1 |
E | Operation Manual | 1 |
F | Installation CD (Driver, Measurement, System Components, User Manual) | 1 |
Samples

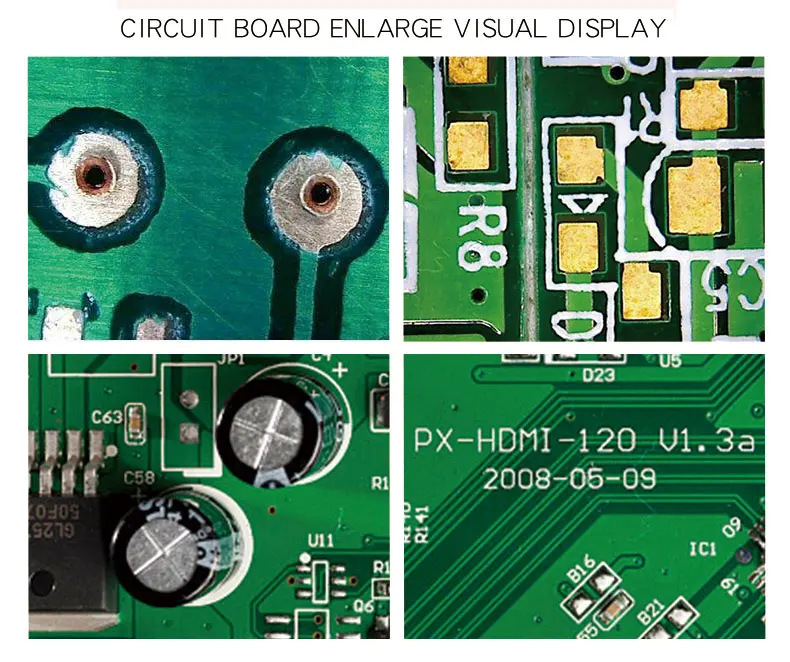

Samples Captured by H01 Digital Microscope
