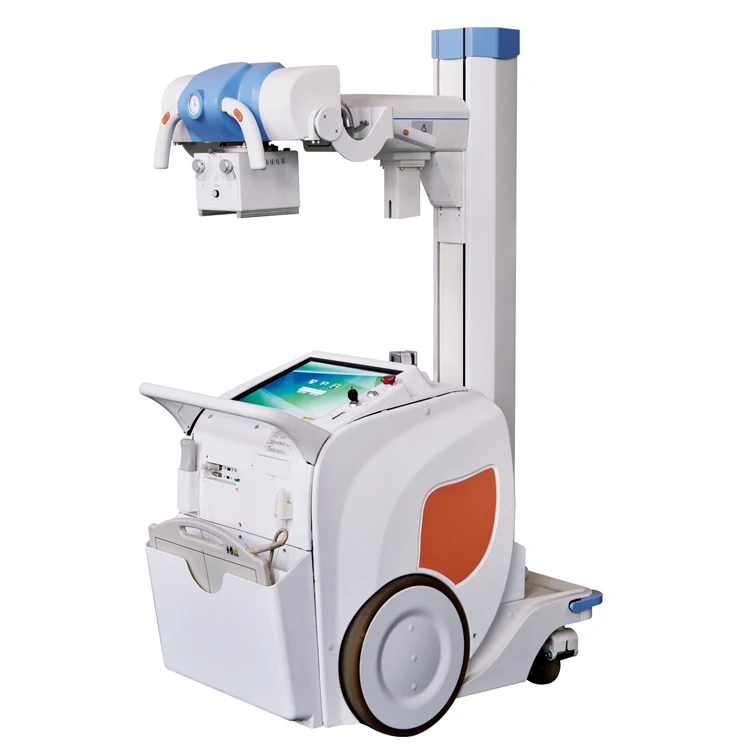

1、Ultra narrow fuselage design, ultra low column support arm stop, wide operation field
2. Design of a new type of stress sensor
3. The movement is easy and easy, and the operation is simple and fast, which can fully meet the needs of doctors with small stature
4. One click unlocking, omni-directional and multi angle positioning, to meet the needs of clinical complex posture shooting
5. 9-inch large touch screen, not only convenient for browsing images and film adjustment operation, but also easy for image adjustment
6. Large capacity battery energy storage exposure, no need to continue to work
7. To meet the needs of full range bedside X-ray examination in hospital
8. Fast image processing is realized to avoid hidden trouble caused by equipment movement
9. Enrich peripheral interface to meet the expansion of various information interfaces
10. High power output, high index digital high voltage generator, abundant APR parameters
Technical Specification
High voltage generator
Independent research and development of 40kW high frequency and high frequency generator Tube voltage range: 40kv-150kv Tube current range: 10ma-400ma Loading time: 1ms-6300ms Current time product: 0.1mas-400mas
