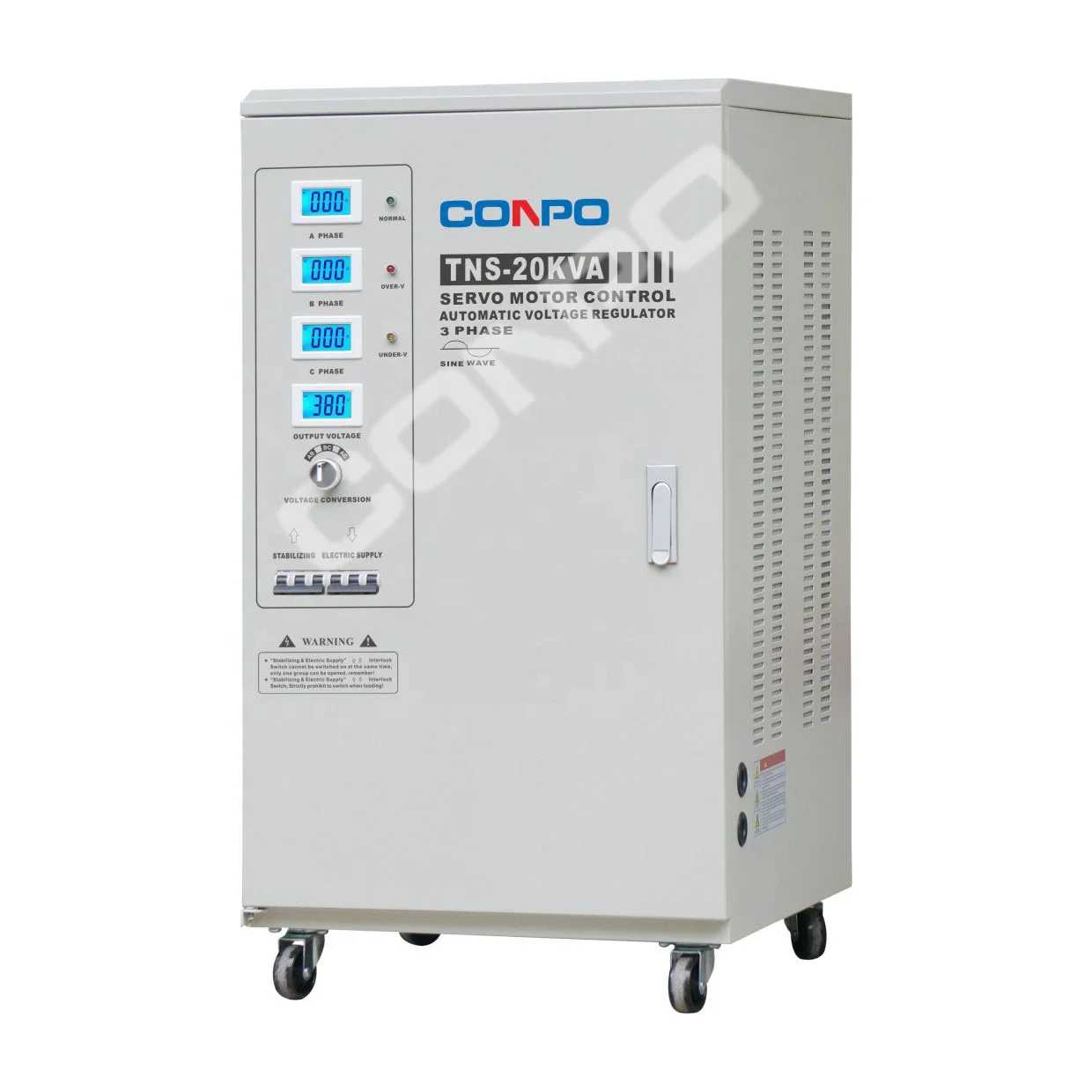

TNS 60KVA Three Phase Servo type Automatic Voltage regulator stabilizer AVR Estabilizador de voltaje 380/400VAC, 220/230VAC

Product Overview

Description

AC Automatic Voltage Regulator Stabilizer AVR 20V/220V/230V/380V/400V/415V Three Phase Servo motor type high accuracy TNS-6000VA/6KVA/9KVA/9000VA/10000VA/10KVA/15KVA/20KVA/30KVA/40KVA/45KVA/50KVA/60KVA/75KVA/80KVA/90KVA/100KVA

1. Features:

The series product is a servo-motor type high accuracy household AC Automatic voltage stabilizer regulator AVR, the low power consumption, reliable work, high accuracy of stabilization, and good for use in regions where the net voltage is much fluctuating. The indispensable voltage stabilizer for factories and enterprises.

2. Application:
Computer, Test equipment, Lighting system, Communication system, Medical equipment, Industrial automatic equipment, Stereo sound equipment and Home or office appliance etc.

3. Specification:
Phase No.: Three phase four wires system

Type:  Servo motor controlled type
Input voltage: 280~430VAC/3Phase
Output voltage: 380V/3Phase
Accuracy of voltage: +/-2.5%
Frequency: 50Hz/60Hz
Efficiency: >90%
Response time: <1.5s against 10% input voltage deviation
Ambient Temperature: -10C~+40C
Insulation resistance: >2MΩ
Waveform distortion: Non additional vaveform distortion
Protection function: Over voltage, over current, overloading and delay etc.

4. Remarks:
Custom-made specifications are acceptable.

5. Models:

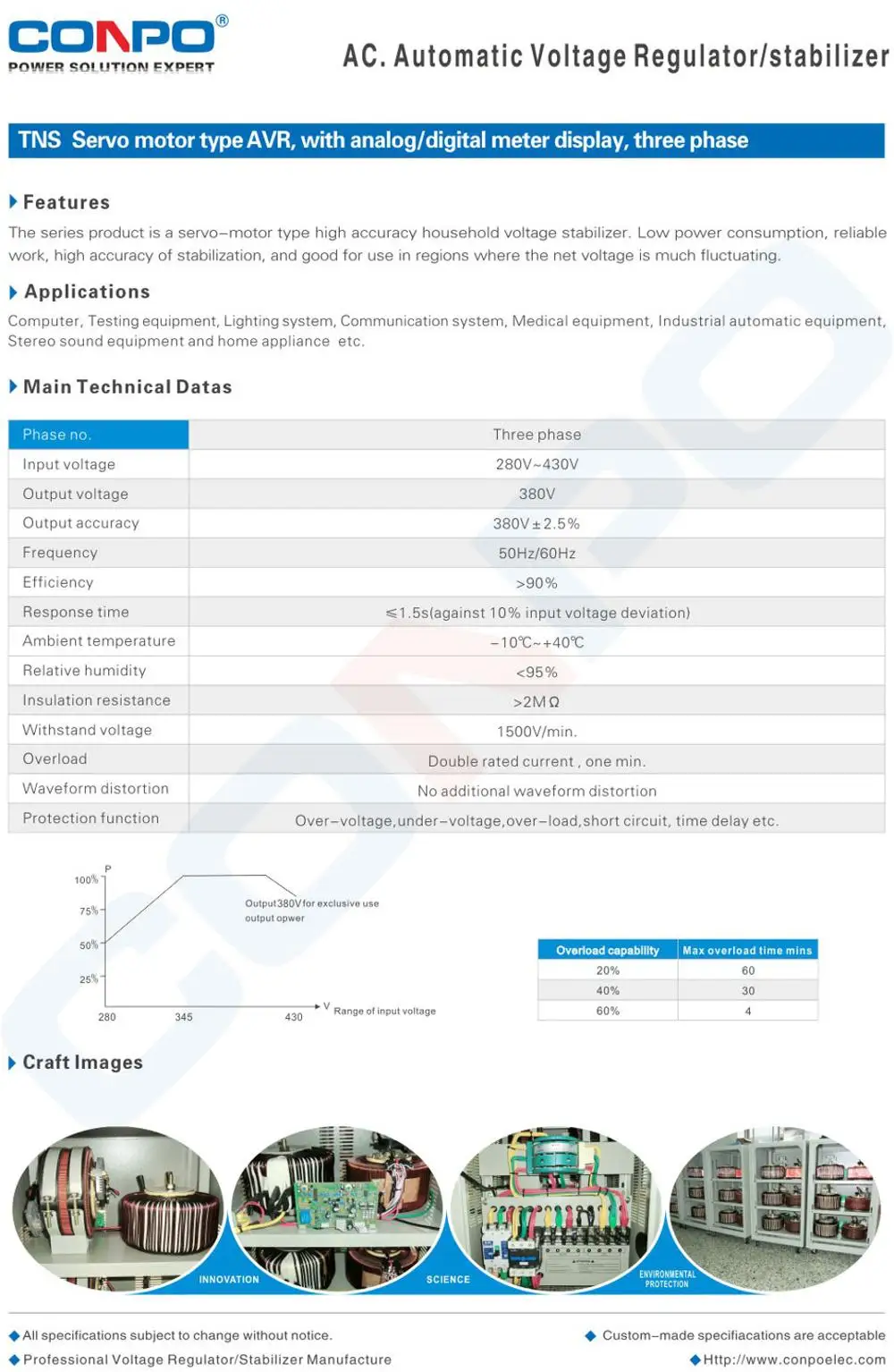

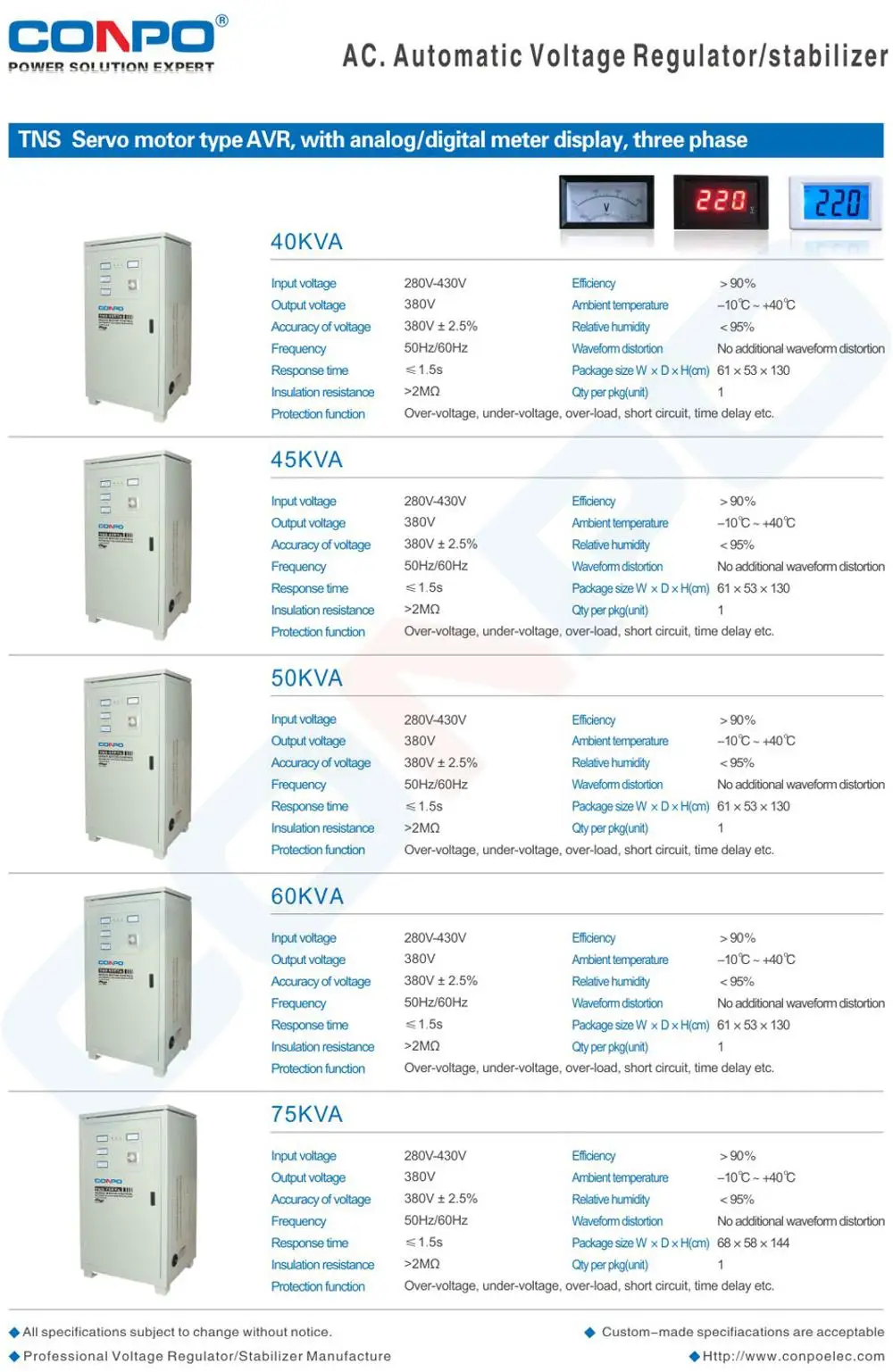

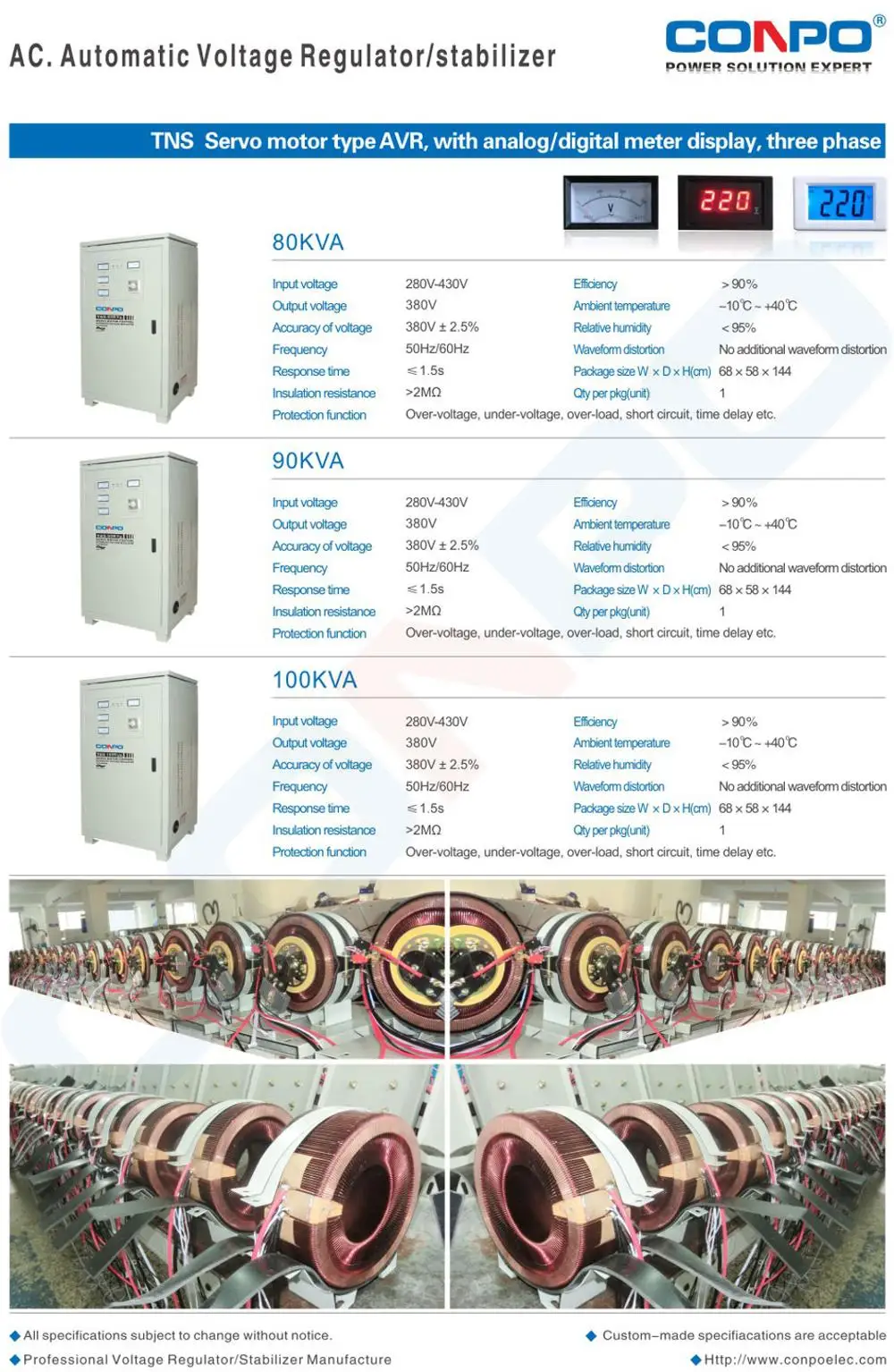

6. Brochures:
