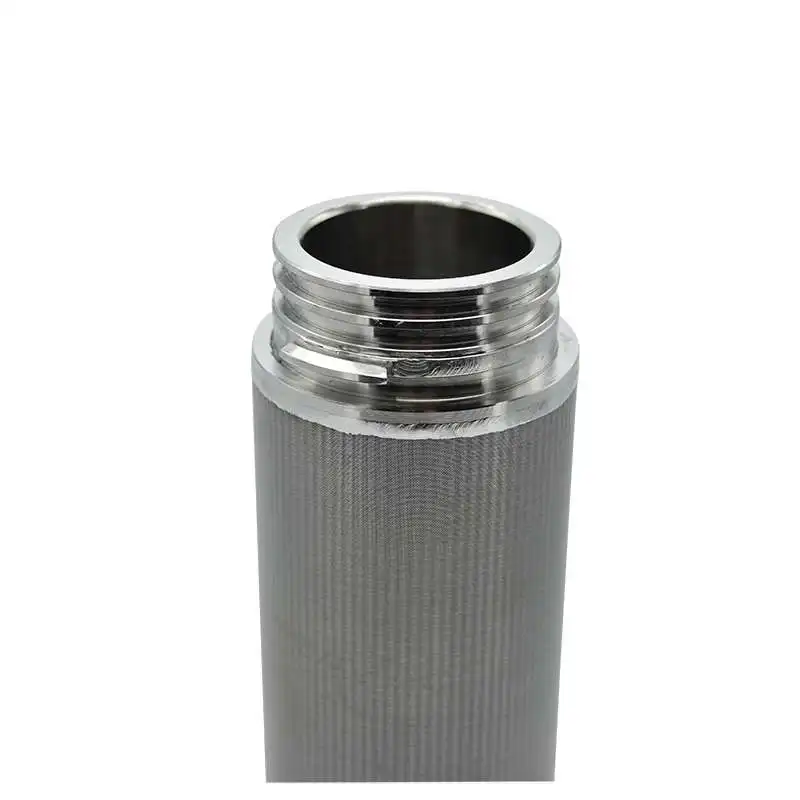

SS micro wire mesh sintered cone filter custom from China factory

SS micro wire mesh sintered cone filter custom from China factory

SS micro wire mesh sintered cone filter custom could be used for several(Fine or deep or sub micron) filtraton applications. For example the pertochemical and chemical industry. pharmacy and water conditioning.

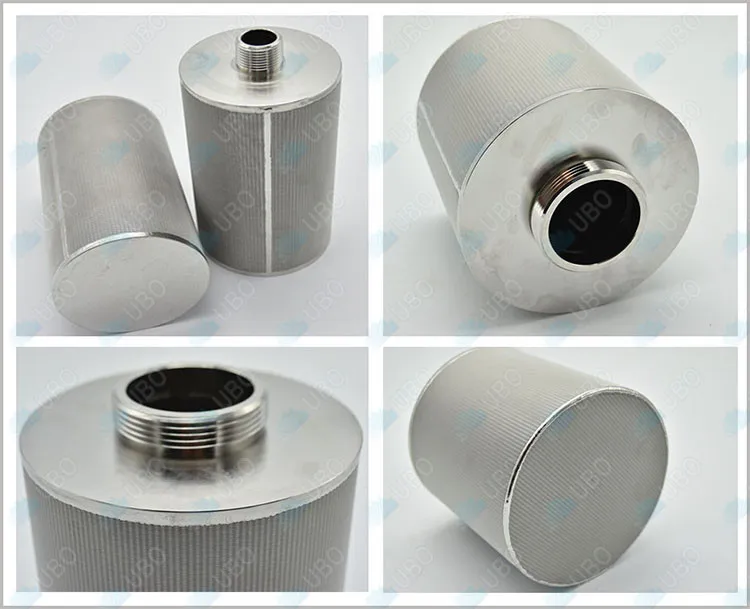

Stainless Steel SIntered Wire Mesh Filter consists of multi-layers of woven wire mesh laminated together by use of sintering. This creates an enormous class of new materials with a very wide variety of mechanical properties . By combing multiple layers of different mesh weavings. It is possible to design materials with specific target thickness. Permeability. Port size, and mechanical strength. Some layers are used for high precision filtration. Others for protecting and reinforcing.

The standard five-layer mesh is composed of protective layer, precision control layer, dispersion layer, two strengthening layers.

1.protection layer

On the control layer for protection and protection in the process of maintaining stability in micro-pore shape and size.

2.control layer

Precise wire mesh as a key work of the sintered filter materials, sintered wire mesh filtration accuracy by its control.

3.dispersion layer

Filter media by sintered mesh control, guide to the filter media stream and keep control of micro-hole shape and dimensional stability.

4.strengthening layer

Wire diameter coarse pores larger wire for support, to improve overall strength and stiffness of the sintered wire mesh.

 • 1.IS YOUBIOU (UBO) Factory or Trading Company?

YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.

 • 2.HOW ABOUT THE MOQ?

MOQ according to different product, sometimes MOQ decided by customer.

 • 3.Cou You supply the sample?

We could offer the sample for free charge but the cost of freight is extra.

 • 4. What payment term do you accept?

T/T ,L/C at sight, Western Union, and other mainstream payment term.

 • 5. How about the delivery time?

Usually within 3-15days after receiving the deposit;

 • 6.Where is your Market?

We have been exporting to more than 120 different countries and regions all over the world.

 • 7.How About your sales service?

Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
