Good price DADI DTM752R DUAL Compensator tilt bubble reflectorless fast measure high configuration durable total station instrum
- Category: >>>
- Supplier: Jiangsu Conwy Optoelectronic Technology Co. Ltd.
Share on (1600150463517):
Product Overview
Description
Product Description

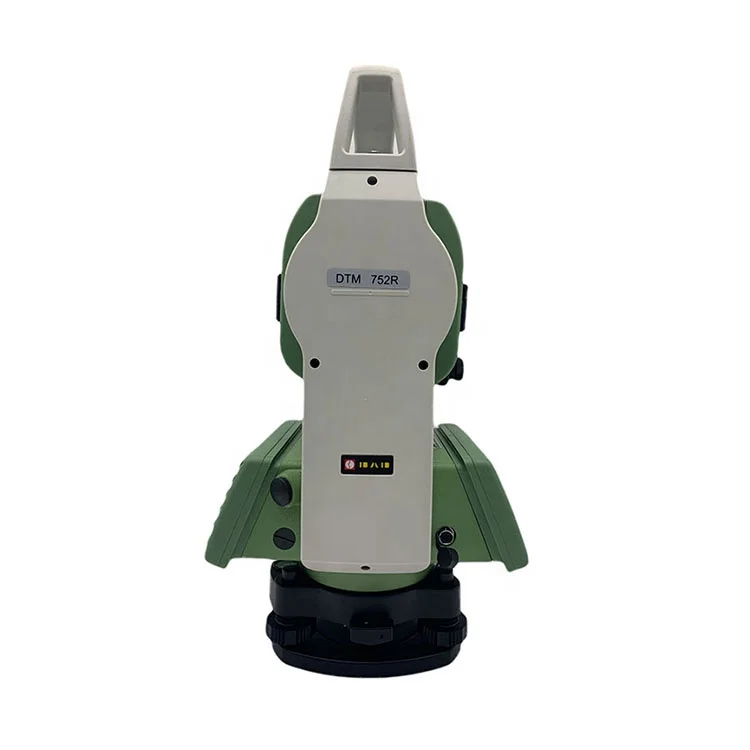

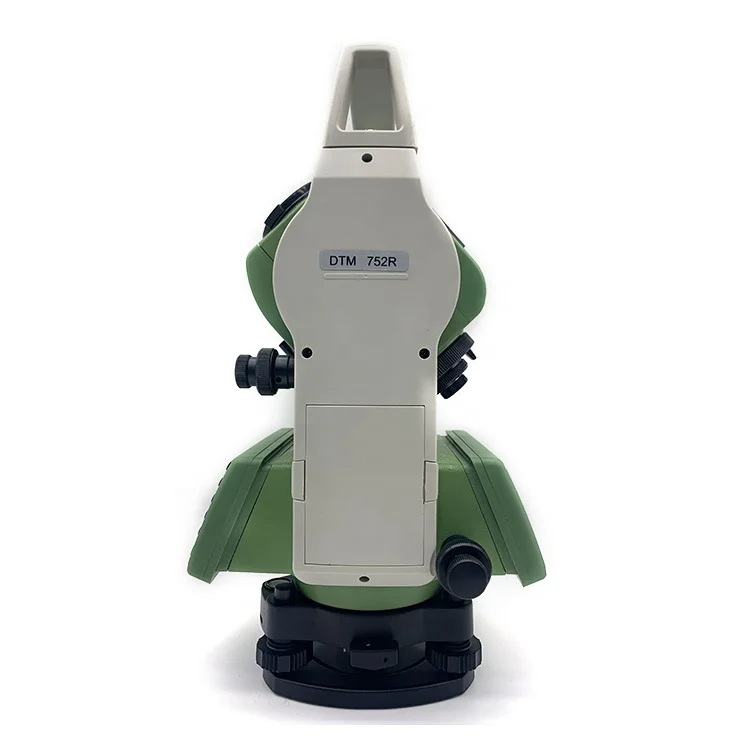

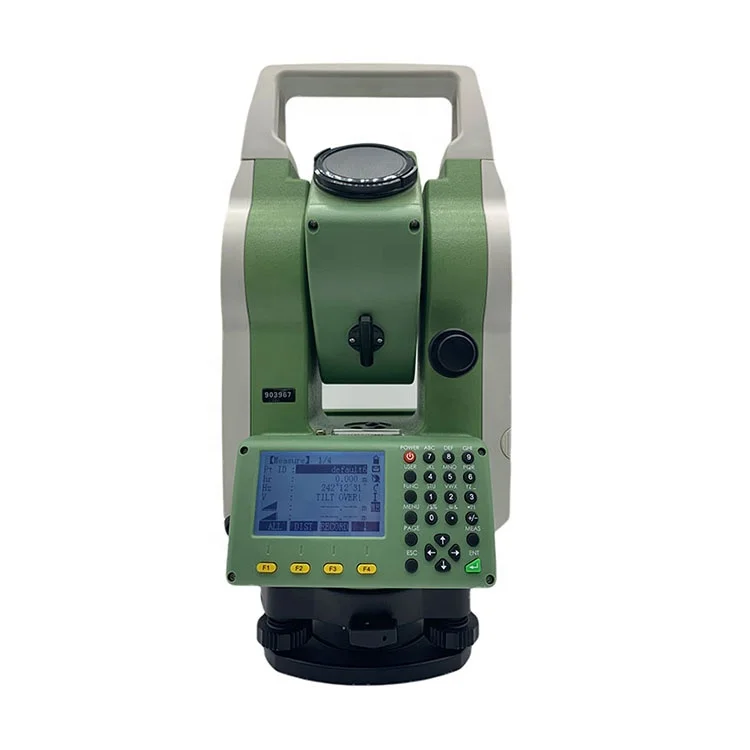

DADI DTM752R/ Leica TS06 total station
DTM752R Total Station use the Leica operating system which is very friendly use for technicials
and engineers.
It has double batteries which can satisfy the long time using.
It use double compensator which can guarantee the accuracy of the measure result.
New improving measure way. More stable and stronger. Reliable function and quality.
Reflectorless 600m measure. Convenient for daily survey job.

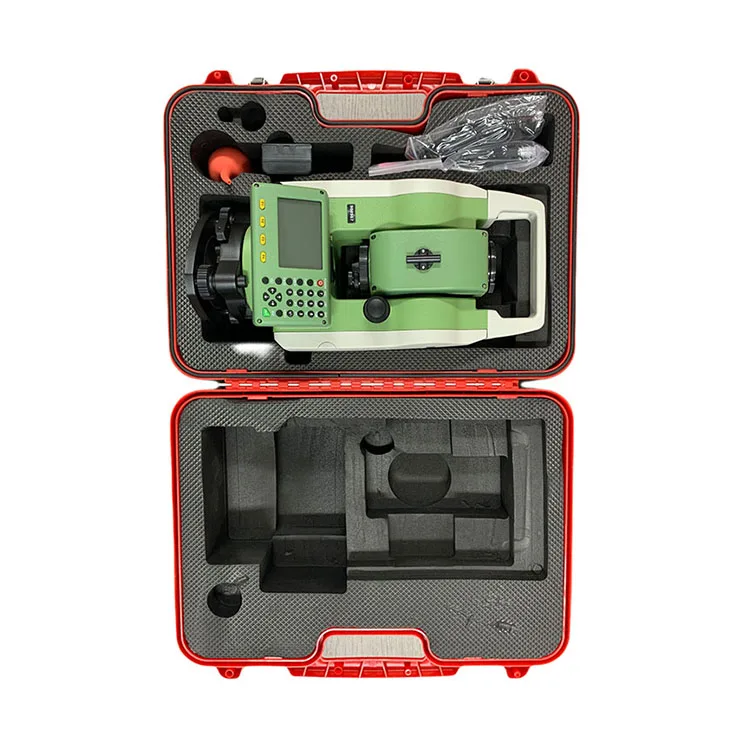

Double strong hardboard outside package which can protect the instruments during the shipping.
Complete programs which can satisfy your daily survey work.
Product Details
Angle measurement
Angle measurement method
Absolute code
Grating disc dia. (horizontal, vertical)
79mm
Min. reading displayed
1″
Detection method
Horizontal circle: 2 sides
Vertical circle: 2 sides
Precision
2″
Angle measurement method
Absolute code
Grating disc dia. (horizontal, vertical)
79mm
Min. reading displayed
1″
Detection method
Horizontal circle: 2 sides
Vertical circle: 2 sides
Precision
2″
Battery
Power supply
rechargeable lithium battery
Volt.
Lithium battery: DC7.6V; Ni-MH battery: DC7.2V
Continuous operation time
8 hours
Size and weight
Size
174×207×383mm
Weight
6.8㎏.
Power supply
rechargeable lithium battery
Volt.
Lithium battery: DC7.6V; Ni-MH battery: DC7.2V
Continuous operation time
8 hours
Size and weight
Size
174×207×383mm
Weight
6.8㎏.
Specification
Distance measurement | ||||
Max distance (in good weather) | Singles prism | 3.0 Km | ||
Three prisms | 5.0Km | |||
No-prism | 600m | |||
Digital display | Max:99999999.9999 mMin.: 0.1 mm | |||
Precision | No-prism 5+3ppm,have-prism 2+2ppm | |||
Unit | m/ft for selection | |||
Time for measuring | Single fine measurement 2 sec. tracking 0.8 sec | |||
Number of measurements | 1~ 99 | |||
Meteorologic correction | Automatic correction of input parameter | |||
Atmospheric refraction and earth curvature correction | Automatic correction of input parameter, K=0.14 | |||
Prism constant correction | Automatic correction of input parameter | |||
Telescope | ||
Imaging | Right reading | |
Barrel length | 170mm | |
Objective lenseffective aperture | 48mm | |
Magnification | 30× | |
Viewing angle | 1°30′ | |
Resolution | 3.5″ | |
Min. focus distance | 1.5m | |
Automatic vertical compensator | ||
System | double axis liquid electronic sensor compensation | |
Work range | ±3′ | |
Precision | ±3 ″ | |
Level | ||
Plate level | 20″/2mm, 30″/2mm | |
Circular level | 8′/2mm | |
Optical plummet | ||
Imaging | Right reading | |
Magnification | 3× | |
Focusing range | 0.5m~∝ | |
Viewing angle | 5° | |
Display | ||
Type | Two sides, graphically | |
Data transmission | ||
Interface | RS-232C | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
