Product Overview

Description

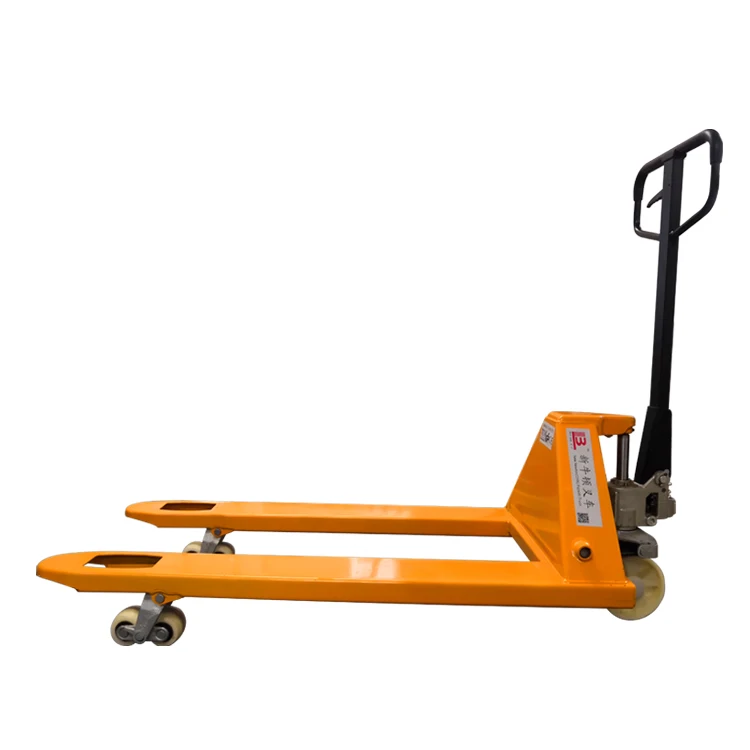

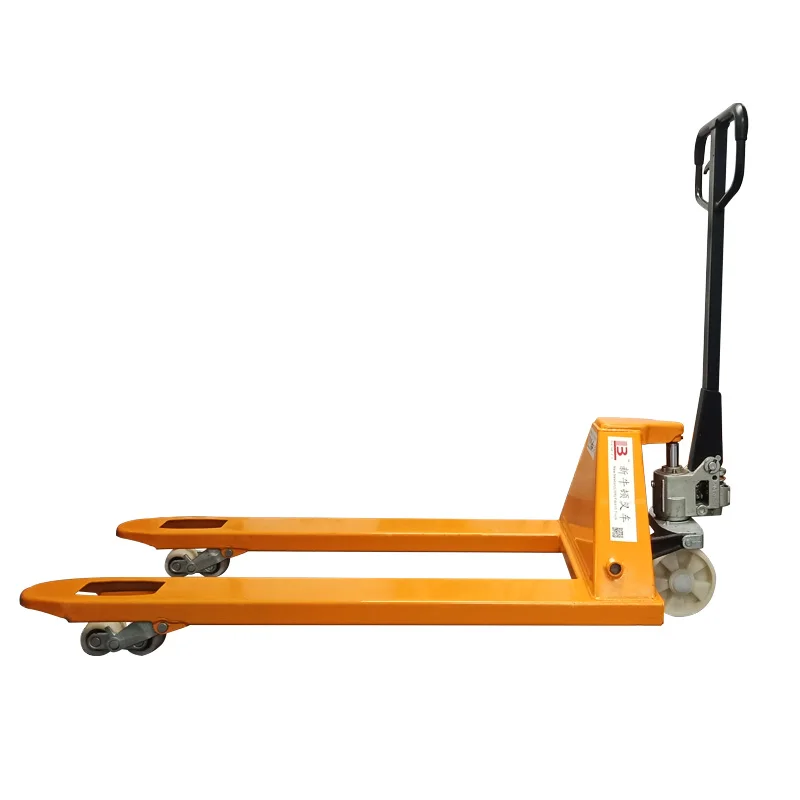

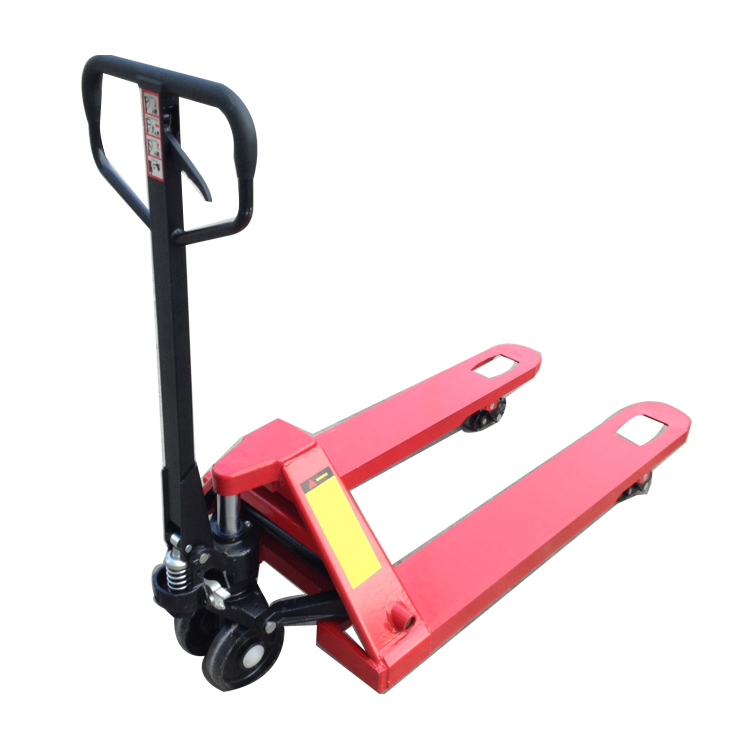

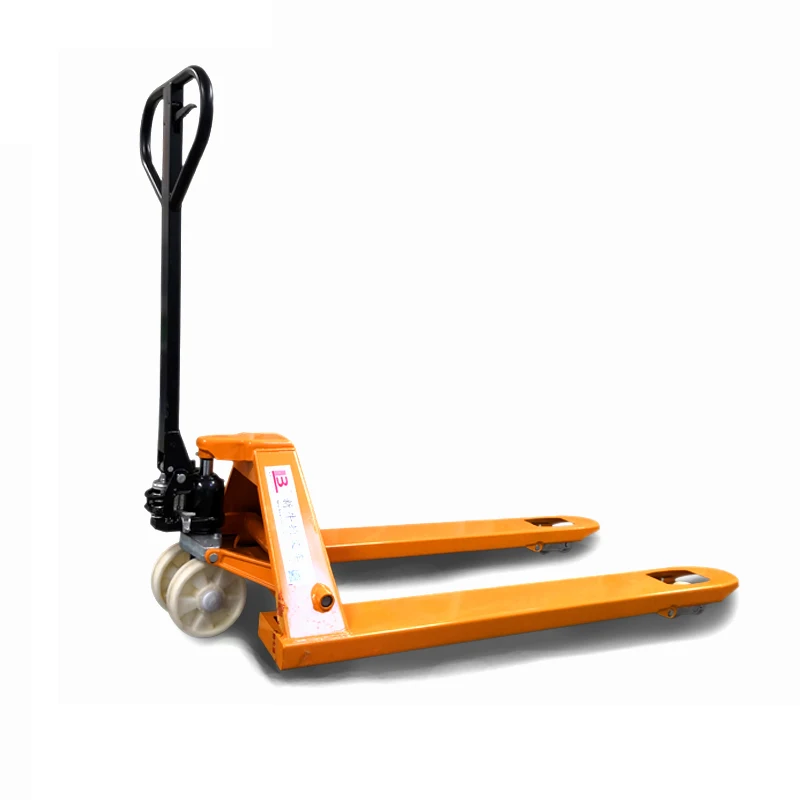

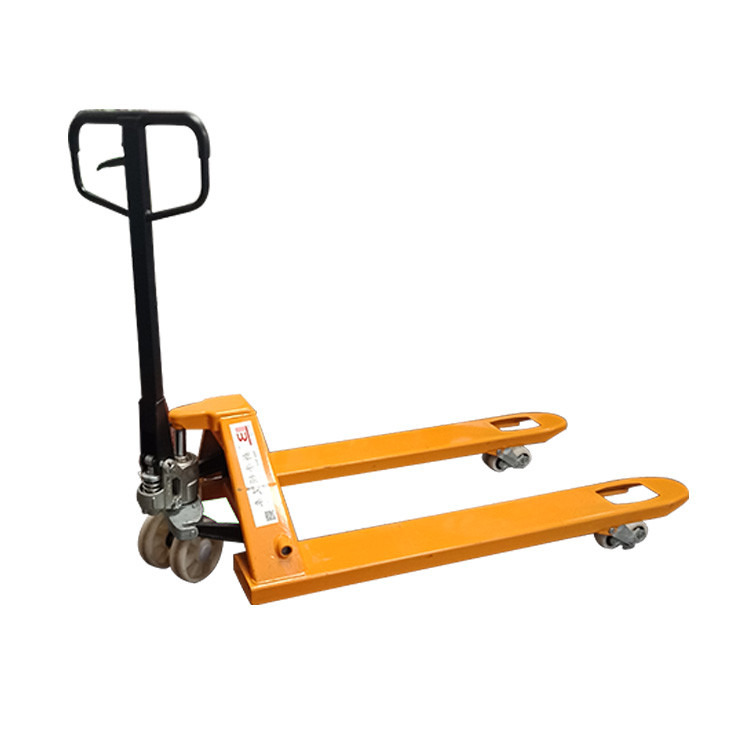

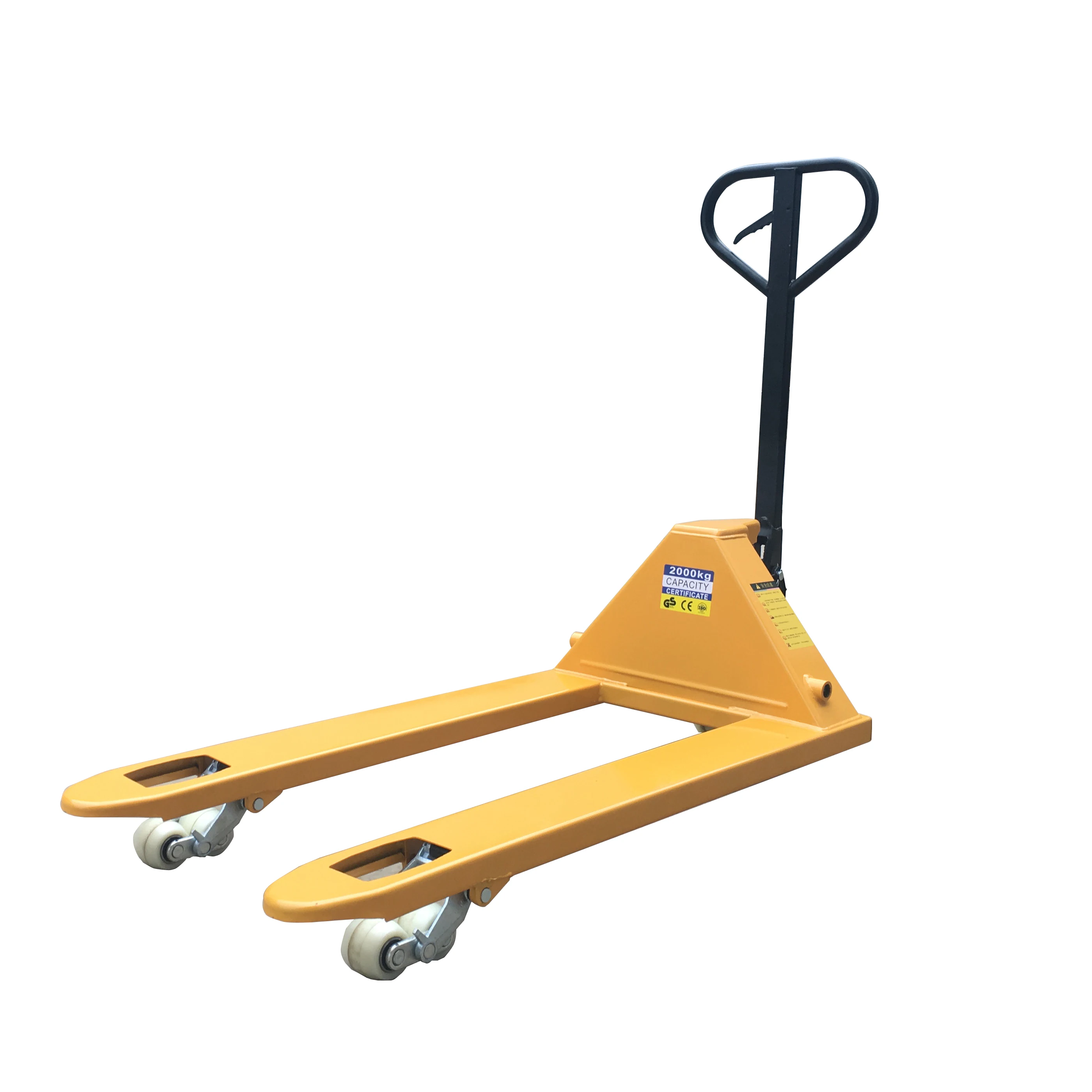

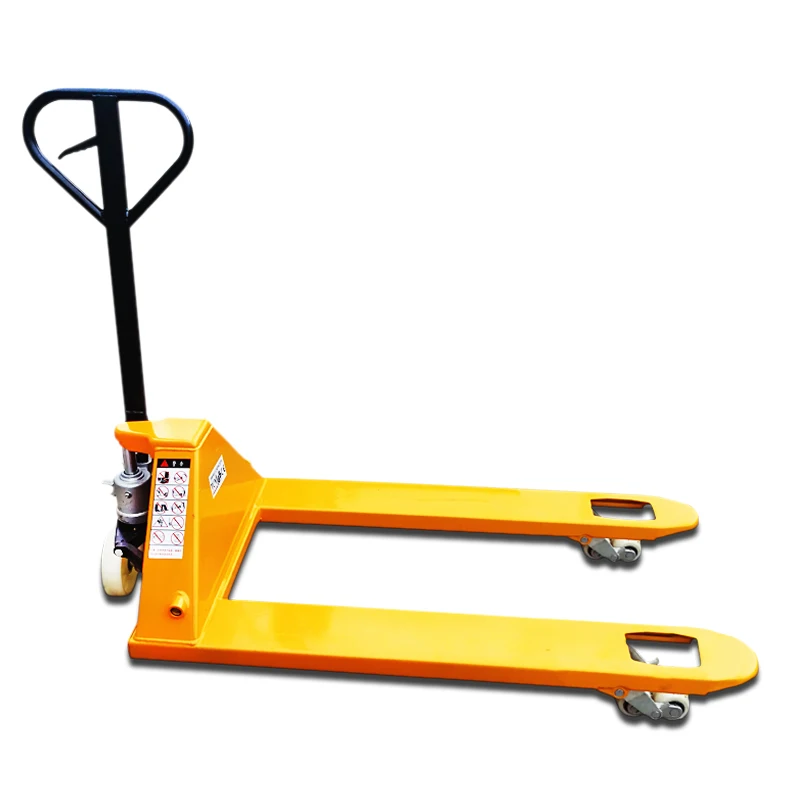

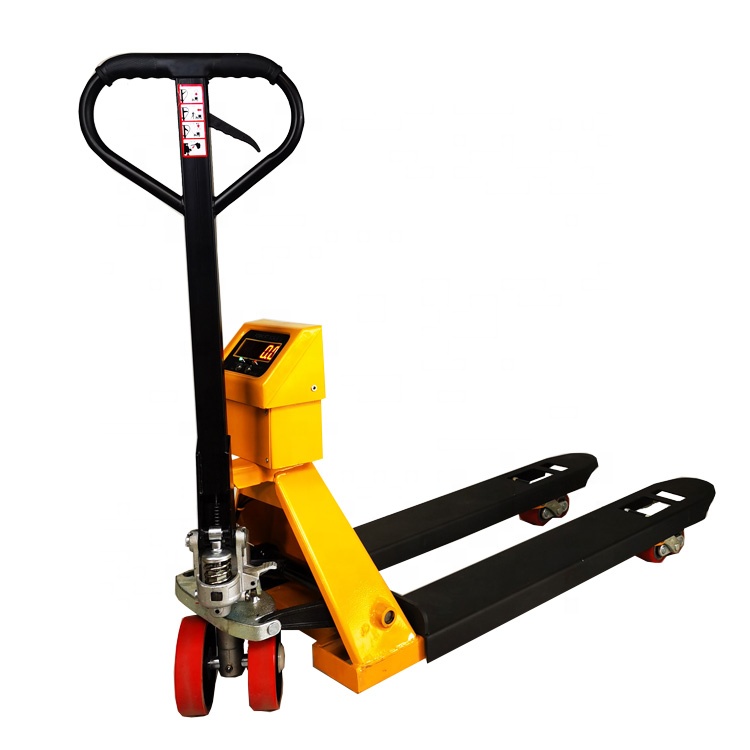

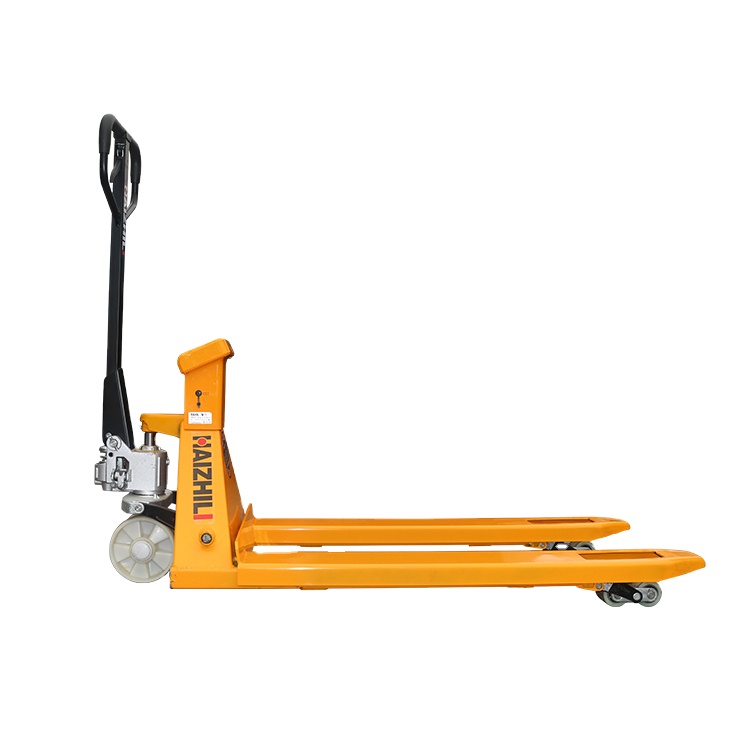

pallet jack hydraulic transpallet manuale depot manual handling equipment 5 tons hand forklift pallet truck

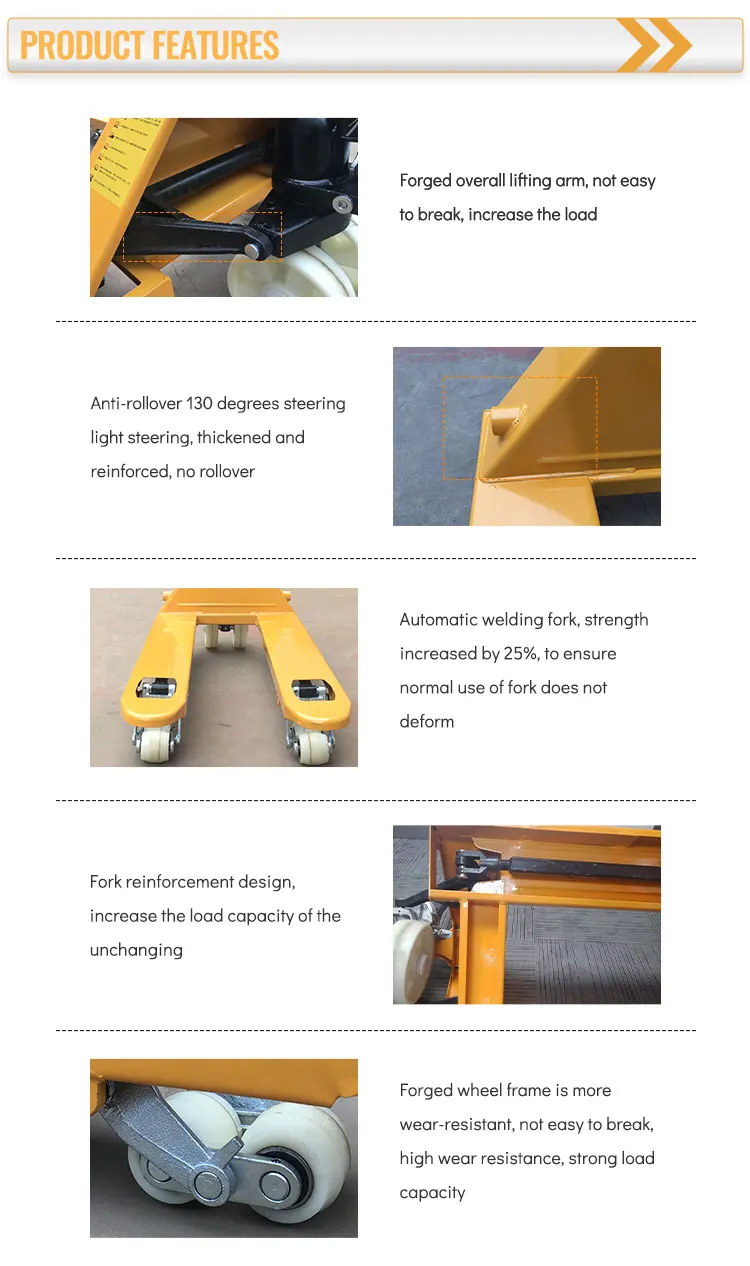

·190 degree corner design, reducing channel demand by 8%

·Use standard outdoor properties epoxy powder coating,prevent paint from falling offanti-corrosion, anti-rust, anti-fading

·Robot automatic weld welding, uniform welding depth, no damage to the steel plate, beautiful and durable

·The whole vehicle parts are made of cast steel, the strength is increased by 40%,not easy crack

·Integral pouring pump without weld seams to prevent oil leakage due to welds

·The fork has added a long rib,Increased strength by 38% on the original basis,not easily deformed

·Rubberized handle to ease operator fatigue

·The oil pump is equipped with an overload protection valve to ensure operator safety.





OEM&ODM

Customize: Color/ Size/  Wheel/ Packaging/ Function

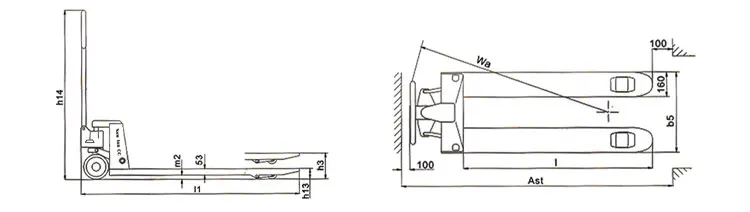

Specifications



Rated load (KG)	2000	3000	5000
Weight (KG)	≈68/70	≈73/75	≈120/125
Big wheel size (mm)	Φ180*50	Φ180*50	Φ200*50
Small wheel size (mm)	Φ80*70	Φ80*70	Φ85*80
Lifting height (mm)	190-200	190-200	190-200
Lower the height of the fork from the ground (mm)	75	75	88
Handle off the ground (mm)	1215	1230	1230
Overall length (mm)	1520	1590	1544/1614
Fork size (mm)	(1100/1220) *160*53	(1100/1220) *160*53	(1150/1220) *160*53
Fork width (mm)	550/685
Distance between shaft  center and ground (mm)	32	32	40
Channel width, tray 1M * 1.2M (mm)	1720/1800
Turning radius (mm)	1265/1335
