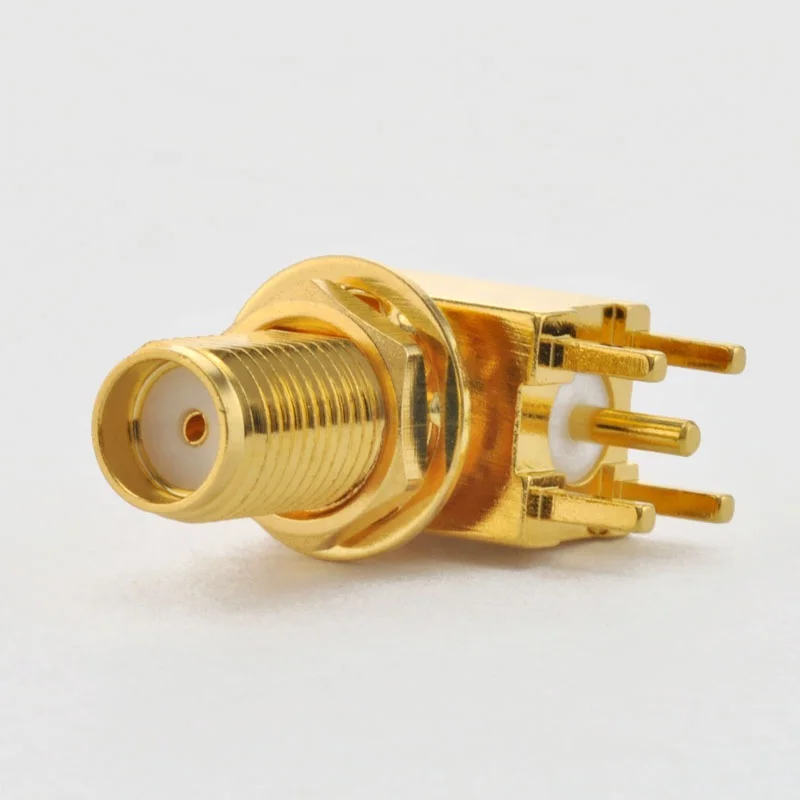

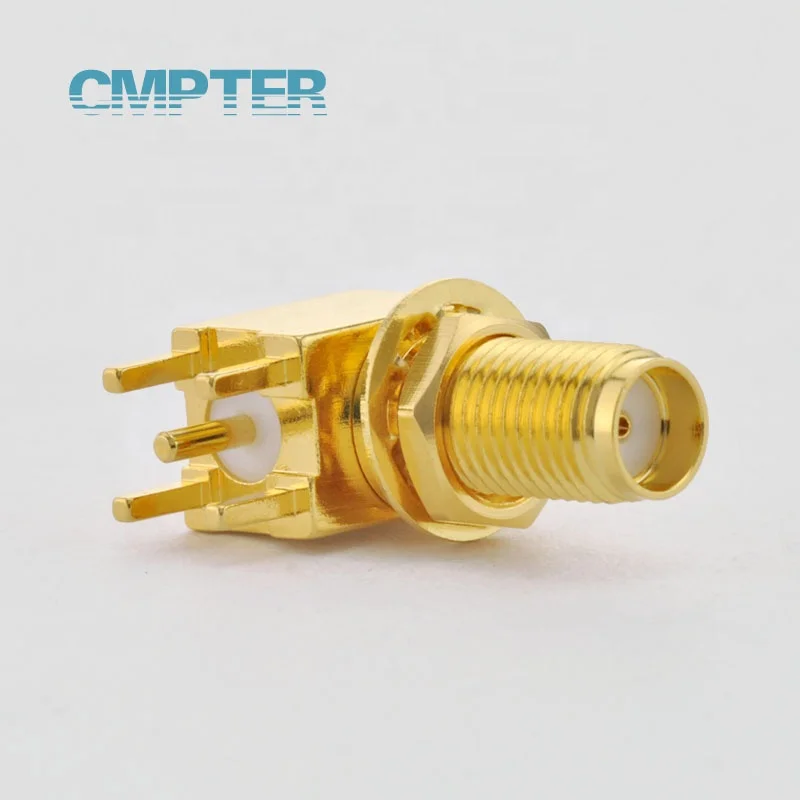

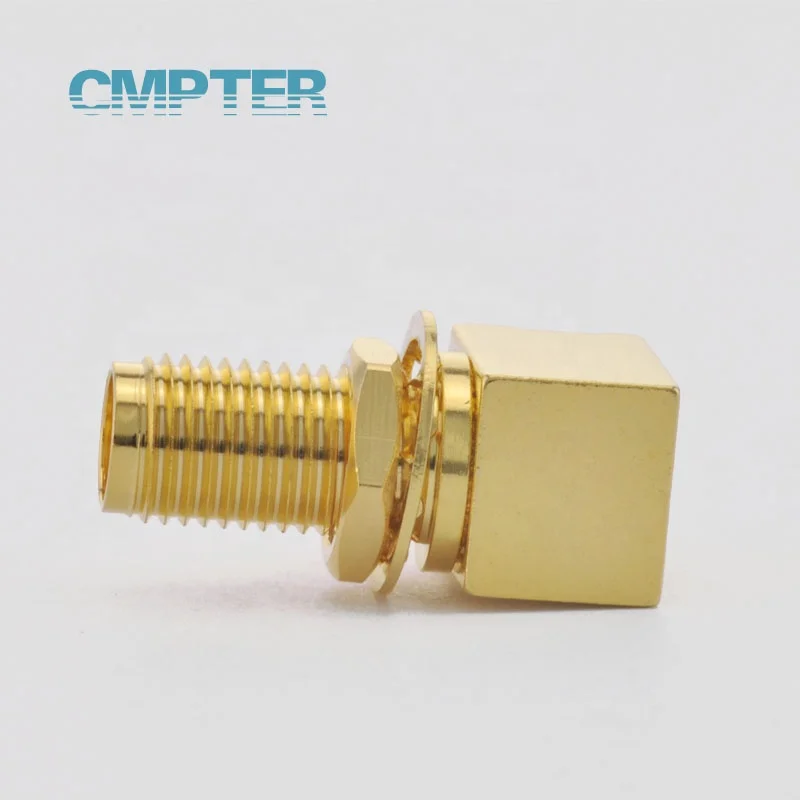

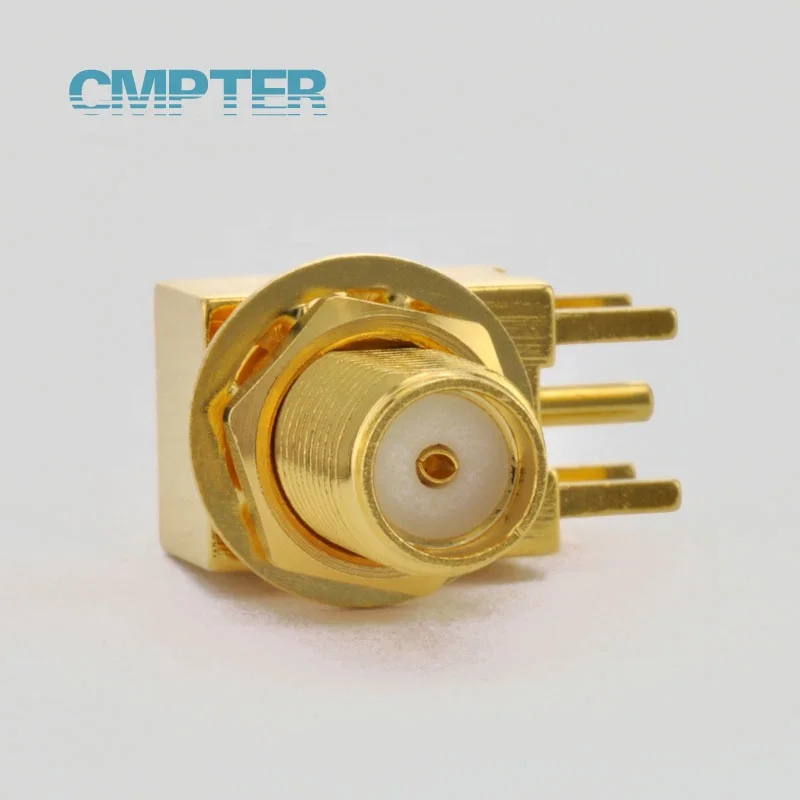

SMA female Right Angle Bulkhead PCB Mount connector, DC to 6GHz
- Category: >>>
- Supplier: Zhenjiang Cmpter Electronics Co. Ltd.
Share on (1600152116286):
Product Overview
Description
Products Description
Product Overview | ||||||||
Interface Type: | SMA Connectors | |||||||
Gender: | SMA right angle female PCB | |||||||
RoHS: | Compliant | |||||||
Interface Standards: | IEC-60169 | |||||||

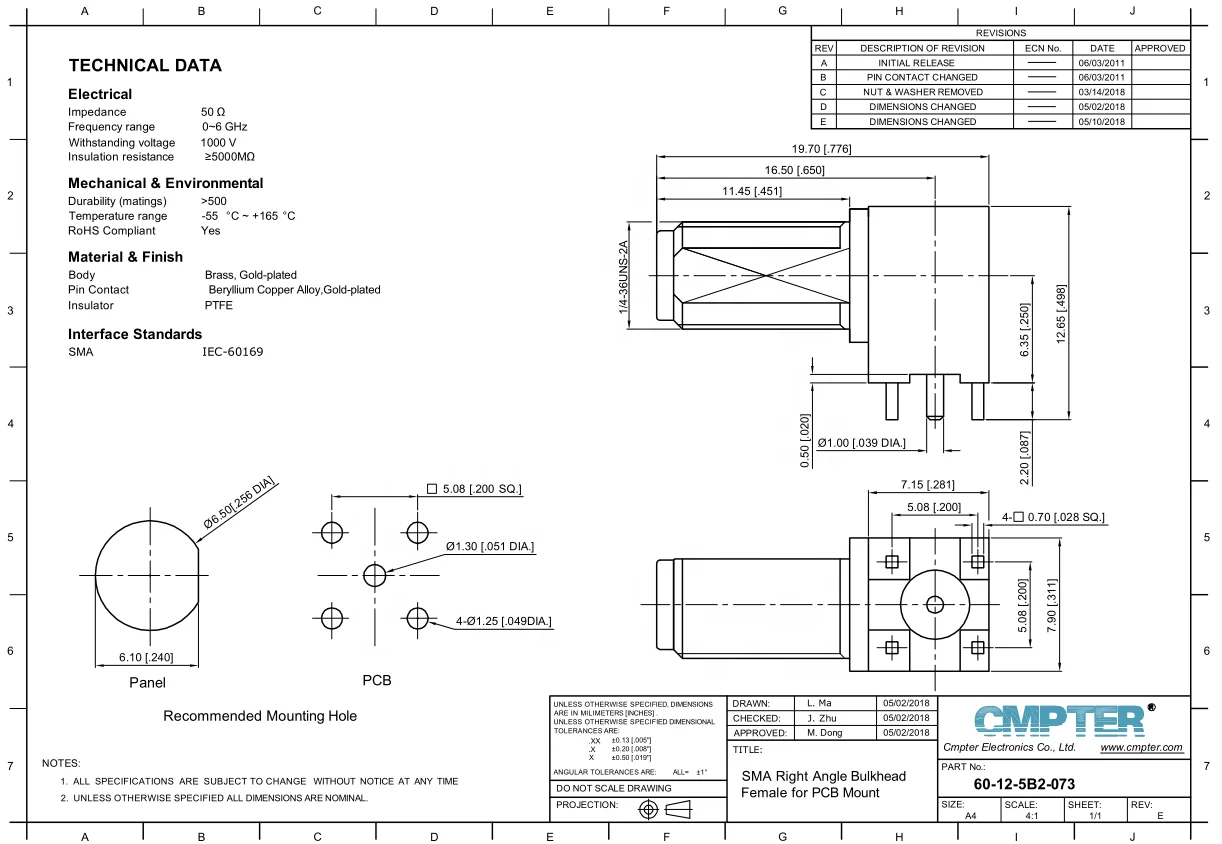

Technical Data | ||||||||
Impedance: | 50Ohm | |||||||
Frequency Range: | 0 ~ 6GHz | |||||||
Temperature Range: | -55 °C ~ +165 °C | |||||||
Weight: | 4g | |||||||
Durability (Matings): | >500 | |||||||
Material Data | ||||||||
Piece Part | Base Material | Plating | ||||||
Center Contact: | Beryllium Copper Alloy | Gold plating (Nickel underplated) | ||||||
Body: | Brass | Nickel Plated | ||||||
Insulator: | PTFE | |||||||
Company Profile
Enhance Your Business with An Expert
In RF coaxial area, customers always need high quality and best cost product, Cmpter focus on this more than 10years and have a professional RD team on new solutions. Competitive solutions, comprehensive technical support and understanding of your requirements, all of this make Cmpter is your first choice.
* 1000+ product which nearly meet customer needs.
* Over 10years experience on new solutions at RF industry
To Be Your Reliable Manufacturer
Cmpter design & manufacturer and test product at ourself work shop. Our lab include many type equipments for insure the
performance, this will increase product reliability and help customer win the market.
performance, this will increase product reliability and help customer win the market.
* Test Report submit to you before the shipment
* Test lab to control from materials to final product, all meet RoHS & REACH
* Trained workers take care your product at every procedure for to control the quality
Winning the Market with Cmpter Support
In the part 10years, Cmpter already establish a sophisticated supply chain to offer a whole product line, now you can focus on
winning in the market with Cmpter
winning in the market with Cmpter
* Quotation and Specs within 4 hours
* Customer design usually within 24hours
* Professional team work for your success
* Most type product we have parts in stock, that's why we can ship them quick
* Short samples lead time
* Short samples lead time
Our Advantages
Cmpter tries to get the satisfaction of all users by providing Premium Quality products and services in the field of
mmwave connectors, mmwave adapter, test cables and high frequency terminations ,and also providing an appropriate combination of price, quality, satisfying services and fast delivery.
Its products are provided based on three fundamental factors:
1) Quality
2) Variety
3) Reliability
All the product we based on:
1）Custom design, HFSS design
2）Component selection
3）Bill of material
4）Testing to guarantee the system
5）Professional packaging and delivery
6）Professional services
Its products are provided based on three fundamental factors:
1) Quality
2) Variety
3) Reliability
All the product we based on:
1）Custom design, HFSS design
2）Component selection
3）Bill of material
4）Testing to guarantee the system
5）Professional packaging and delivery
6）Professional services
FAQ
1.What is the Minimum order quantity?
It is depending on items, it is usually 100 pcs. Samples can be offered. Welcome to inquiry.
2. What is the shipping port?
Normally the shipping port is Shanghai ,but also can as your requirement.
3. What is the delivery time?
The delivery time usually is about 3-5 days after confirm the order.
4. What about the samples?
We can supply samples. But we should charge the sample cost. We will refund the sample charge to you when your company place the
order and order quantity reach mass production.
5.Why choose us?
We have more than 10years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied are
strictly tested by our QC department before shipment.
Company is in complete accordance with ISO9001 international standards, with high-precision testing equipment, as well as QC team,
establishing a strict quality control system.
It is depending on items, it is usually 100 pcs. Samples can be offered. Welcome to inquiry.
2. What is the shipping port?
Normally the shipping port is Shanghai ,but also can as your requirement.
3. What is the delivery time?
The delivery time usually is about 3-5 days after confirm the order.
4. What about the samples?
We can supply samples. But we should charge the sample cost. We will refund the sample charge to you when your company place the
order and order quantity reach mass production.
5.Why choose us?
We have more than 10years’ experience in R&D for RF coaxial connectors and its components, and all products we supplied are
strictly tested by our QC department before shipment.
Company is in complete accordance with ISO9001 international standards, with high-precision testing equipment, as well as QC team,
establishing a strict quality control system.
Packaging & Shipping
Inner package of precision connectors
Precision rf connectors we pack them via tray, or pack them by PE bags each pcs per bag
Test cables package
Every pcs cables with his report pack in one PE plastic bag
Mode of packing: Export standard package or as your detail request.
Delivery time: Stocks product we can ship them immediately after receipt payment, customized type should be 15 work days after receipt of payment
Mode of shipment: By Express like DHL,Fedex,TNT Ups.
Delivery time: Stocks product we can ship them immediately after receipt payment, customized type should be 15 work days after receipt of payment
Mode of shipment: By Express like DHL,Fedex,TNT Ups.
Contact Us
SMA PCB mount connectors SMA rf coaxial connectors SMA female jack PCB connector SMA bulkhead female jack SMA rf connectors. SMA cable connectors SMA bulkhead female jack PCB mount SMA bulkhead connector SMA PCB mount SMA coaxial PCB connectors. SMA Right Angle Bulkhead Female Jack rf coaxial connectors for PCB Mount DC to 6GHz
