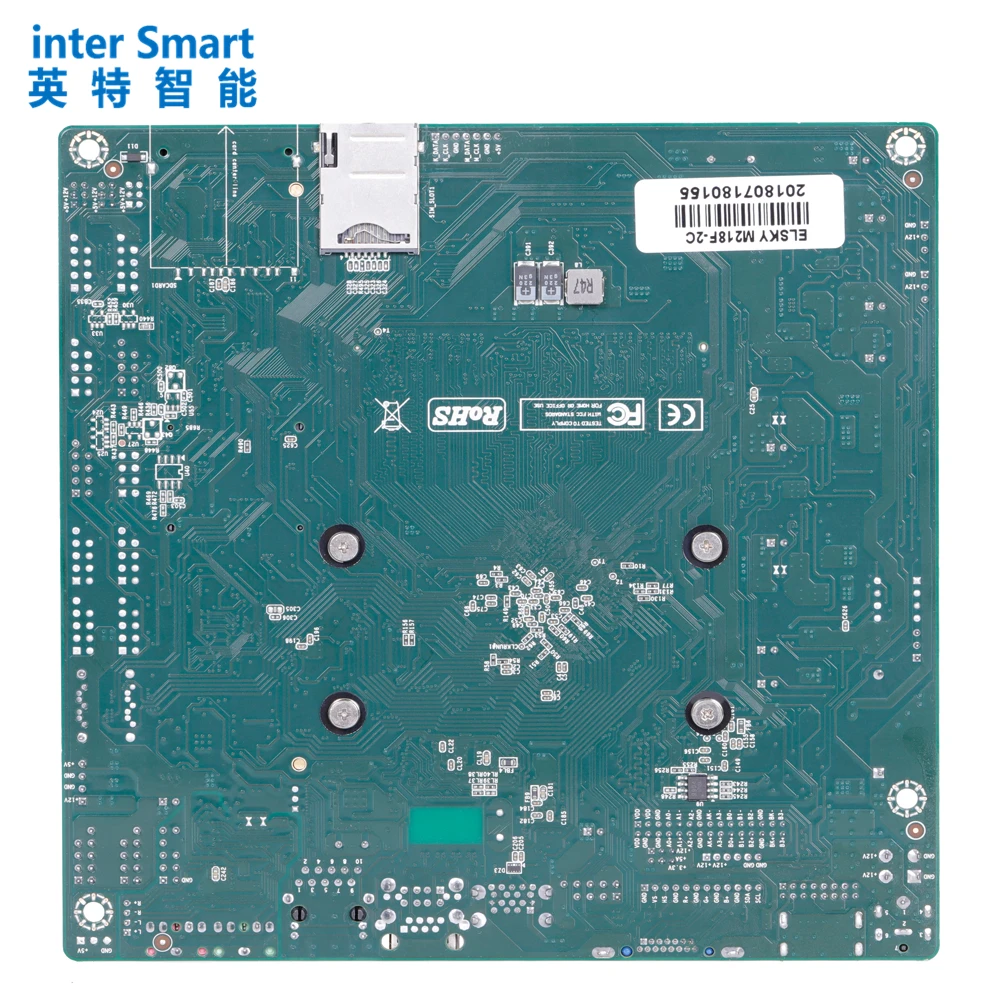

M218F Bay Trail Dual Core J1800 CPU DDR3 8GB 128GB MSATA 2LAN 1HDMI LVDS VGA 3*RS485 COM GPIO PS/2 Mini itx Motherboard
- Category: >>>
- Supplier: Shenzhen Inter Smart Technology Co. Ltd.
Share on (1600152120590):
Product Overview
Description
Product Description
Hi dear friend !
If you are interested in our products, please contact us !
If you need complete product spcification or technical support, please contact us !
Different configurations, different prices. If you want to get better price, please contact us !
If you want to be our distributor, please contact us !
If you want to customized motherboard or PC case, please contact us !
If you have after-sales problems, please contact us !
Thank you for your support !
Applications:
Kiosk,vending machine,HTPC,Soft routing,Thin client,Finance retail,Advertising display machine,Network Security,Firewall Host,Firewall Server,Firewall Computer,Audio Player/Server,Electronic map machine,All-in-One PC,POS cash register,Interactive ordering machine in restaurant,Intelligent transportation,Digital signage,Education touch screen interactive whiteboard),Conference electronic whiteboard,Industrial PC,Industrial computer,Embedded industrial computer,Embedded industrial motherboard,Nano PC,NUC PC,Subway/Metro/MRT/Tube/automatically Entrance&Export gate,Face recognition turnstile gate,Industrial camera,Data collection,Video capture,Automatic welding machine,Industrial robot,Bank ATM and other fields.
Specification:
M218F,M219F,M229F Motherboard Specification: | |
Form Factor | Thin-ITX |
Physical Dimension | 170*170*18MM(L*W*H) |
Architecture | x86 |
Processor | TDP:10W,low power consumption,energy conservation; Support optional Intel ATOM,Celeron11 J1800,J1900,Pentium J2900 CPU. |
Chipset | Integrated chipset in CPU. |
Memory | 1*DDR3 1333/1600MHz Memory slot,Max. 8GB Capacity. |
Storage | 1*Serial ATA(SATA)2.0 port; 1*Mini SATA2.0 slot(SATA signal). |
Display Controller | Integrated Intel HD Graphics in CPU. |
Processor Graphics | Support 2K resolution;1080P,HD/FHD,H.265. |
Multiple Display | Single/Dual;Single display in DOS. |
Display Port | 1*VGA port:Support Max.resolution 1920*1200@60Hz; 1HDMI port:Support Max.resolution 1920*1080@60Hz ; 1*LVDS pin:Support Max.resolution 1920*1080@60Hz. |
Expansion Bus | 1*Mini PCIE slot for MSATA hard disk; 1*Mini PCIE slot for WIFI/Bluetooth/3G/4G/GPS module. |
Audio Codec | Realtek ALC662, 6 channel High Definition Audio, Line-out, Mic-in. |

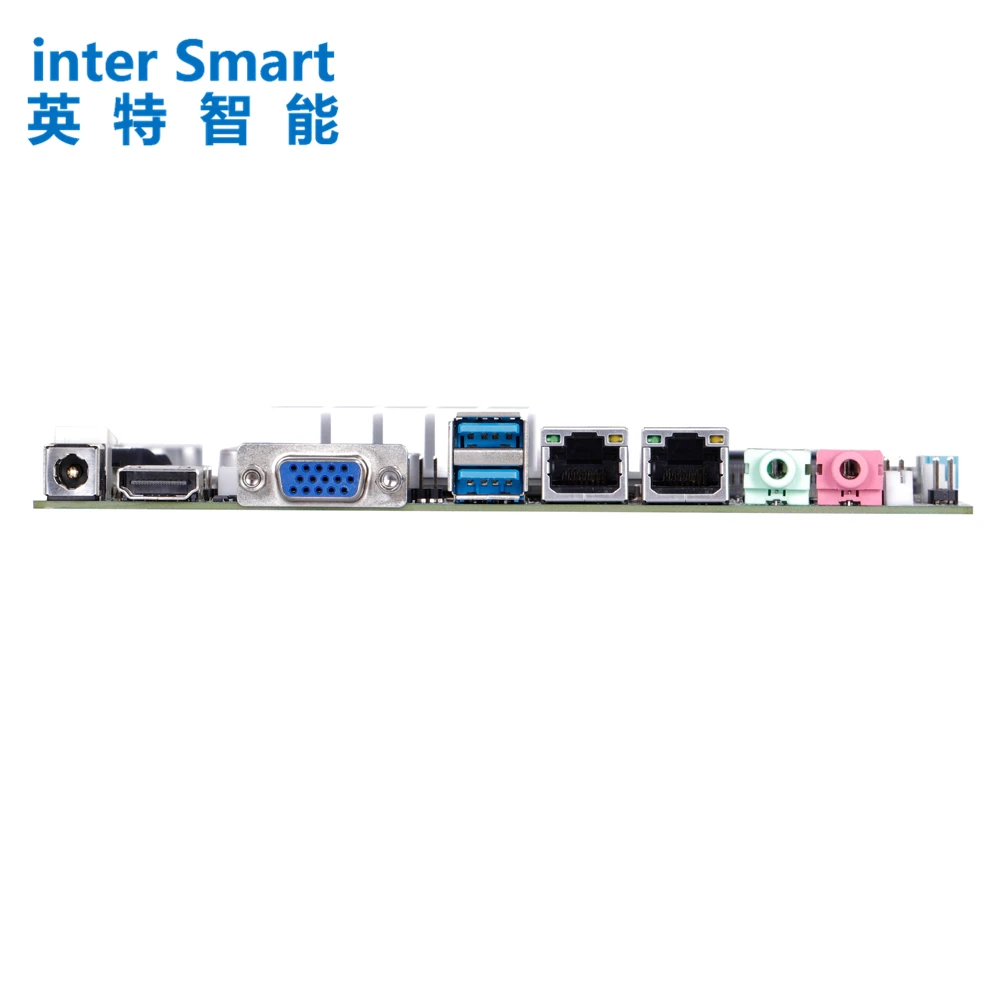

Ethernet Controller | 1*Realtek 8111E Network controller RJ45 LAN port; Support 10/100/1000 Mbps Ethernet Speed; Support wake-on-LAN and PXE diskless boot function; Optional dual Ethernet Lan. |

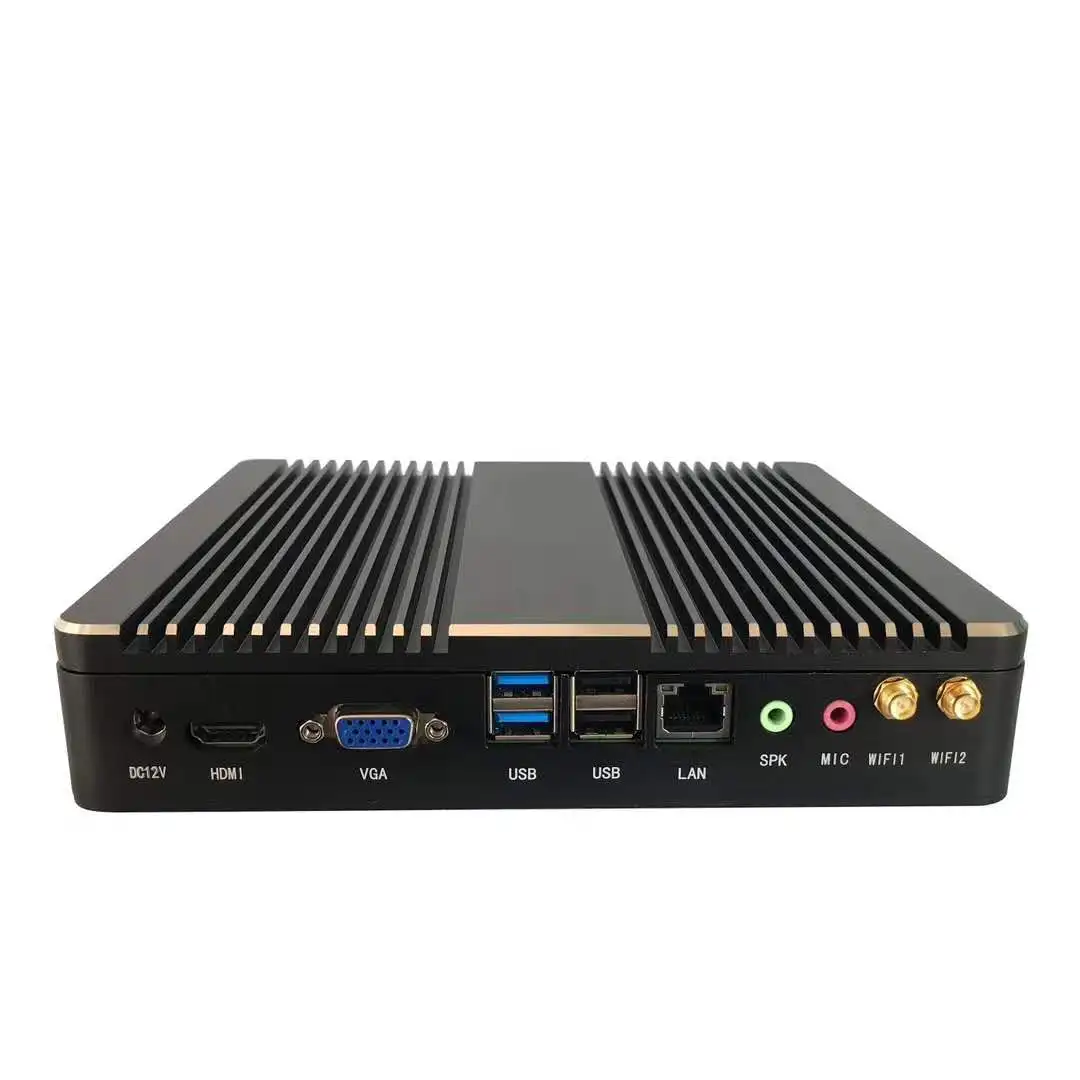

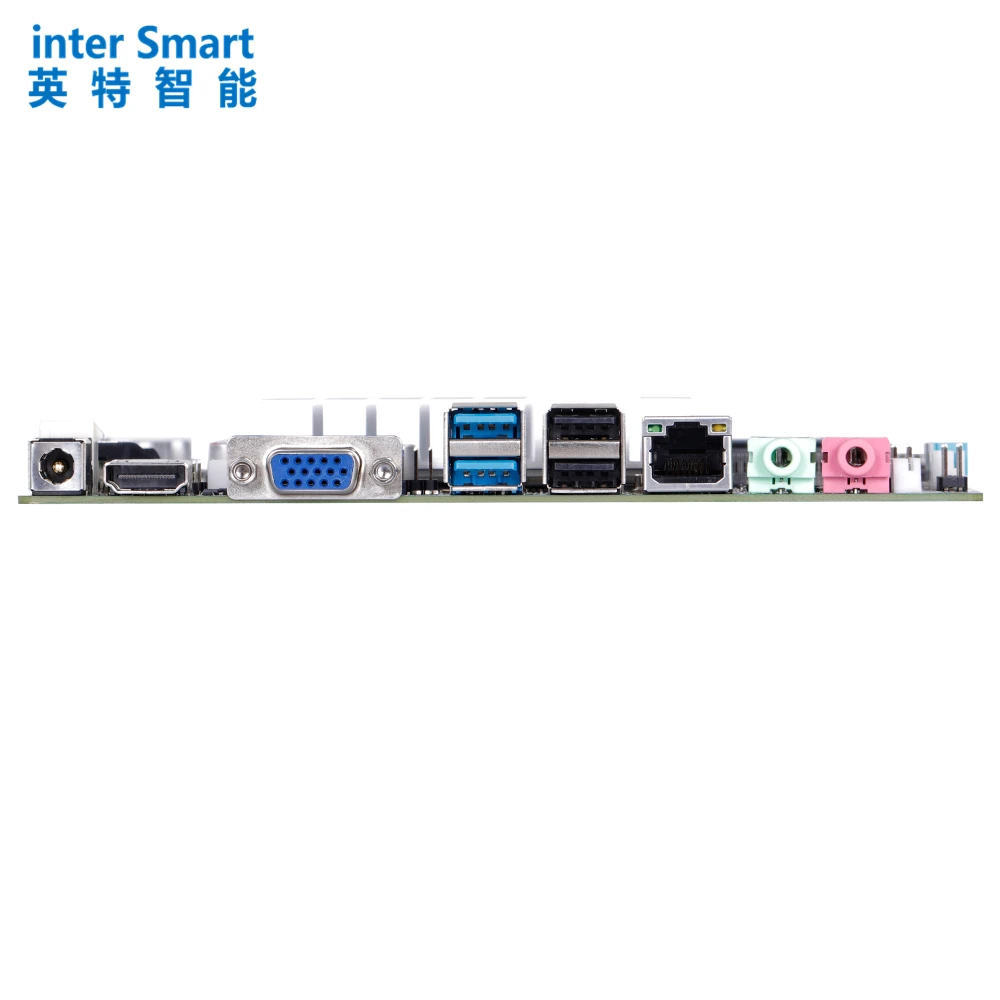

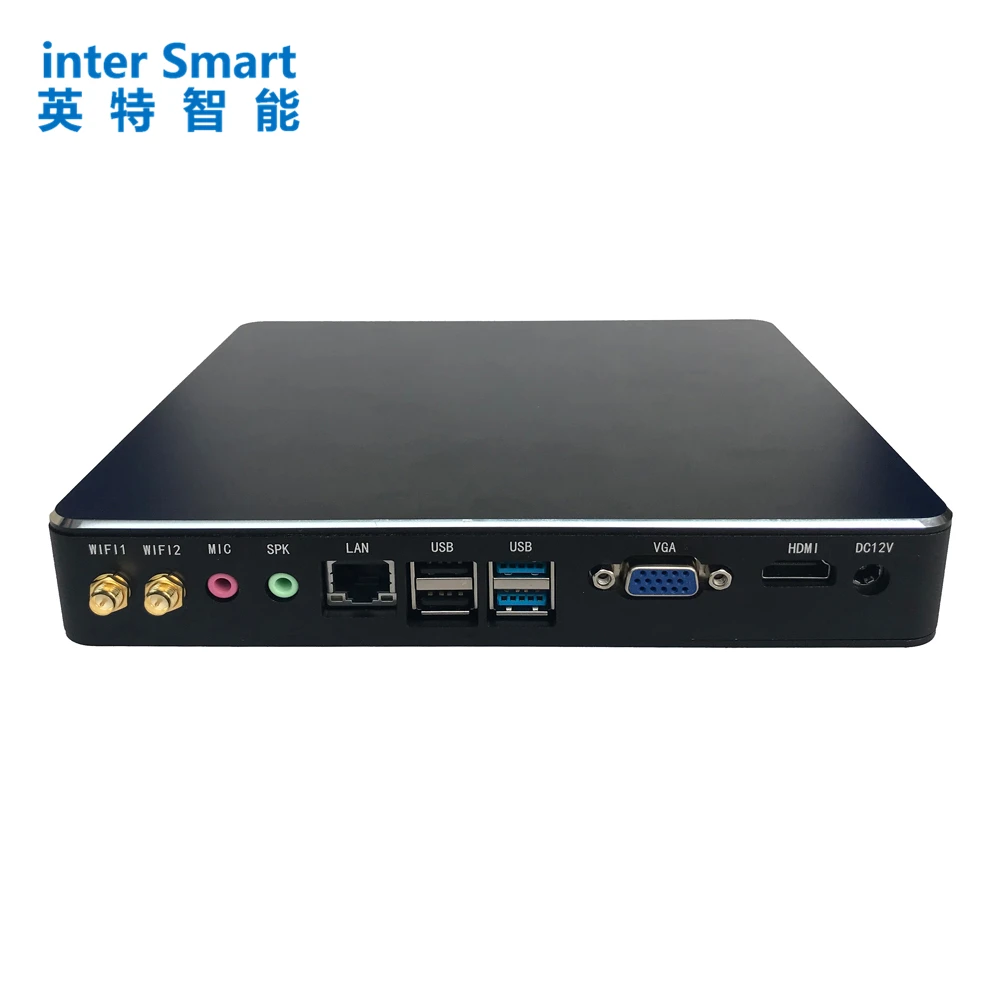

I/O Interfaces | 1*VGA, 1HDMI, 1*Line-out, 1*Mic-in, 1*USB3.0, 1*RJ45 LAN, 3*USB2.0, 1*DC port. |
Internal Pin/Connector | SIM card slot,CLR_CMOS,PU_FAN,GPIO,F_PANEL,VGA,1HDMI,EDP,AUTO_SW,LPT,PS/2,etc. |
Cooling | Fanless |
Power Supply | Support DC12V;DC port:5.5*2.5mm; Recommend 12V 5A/7A/10A; 4PIN ATX port. |
CMOS Battery | 3V CR2032 button Battery |
COM(Serial port) | 2*COM ,6*COM,10*COM; COM3,COM4,COM6 support RS232/RS422/RS485 |
Working Temperature | -10℃~60℃ |
Storage Temperature | 0~75℃ |
Relative Humidity | (Working)5%~95% Relative humidity, no condensation. |
BIOS | AMI BIOS;Support power on,timing switch,remote switch,intelligently identify devices. |
Watch Dog | Watch Dog programming supports hardware reset function (256 levels, 0~255 seconds). |
Operating System | Support Win10,Win8,Win7,Linux Ubuntu,etc. |
Option Cases | HD4000,HD4001,HD4003,HD4009,IPC6000,IPC7000A |
Price Explanation
Quoted price:
Trade term:EXW
Configuration:Motherboard+CPU:
M218F-2C motherboard with 1*LAN,2*COM,J1800 CPU:400CNY/piece
MOQ:1 piece
Notice:The prices will vary with exchange rates and material costs.All prices are subject to change without notice.
If you need license operating system,Memory,SSD,HDD,WIFI&Bluetooth,power adapter,please contact us to get the price.
Option J1900,J2900 CPU,different prices.
Thank you for your support!
Packaging & Shipping
Packing:
Before delivery,we guarantee that every item will be tested and carefully packed with individual Anti-static bubble bag and separated by stiff cardboards in carton boxes.
Total weight:
1 piece motherboard about 0.4~0.5KG;
20pcs motherboards about 8.5KG;
100pcs motherboards about 40~45KG;
200pcs motherboards about 80~85KG.
Different products have different weights.
Please contact us for detailed weight.
Carton size:
20*20*7cm carton For 1~2pcs motherboards;
30.3*27*23.5 carton For 3~5pcs motherboards;
47*30.3*23.5cm carton For 10pcs motherboards;
50*49*20cm carton For 20~30pcs motherboards.
Shipping:
1~3 working days after received full payment(In stock).
Express:DHL,Fedex,UPS,TNT,CDEK,EMS,Aramex,Epacket,etc.
