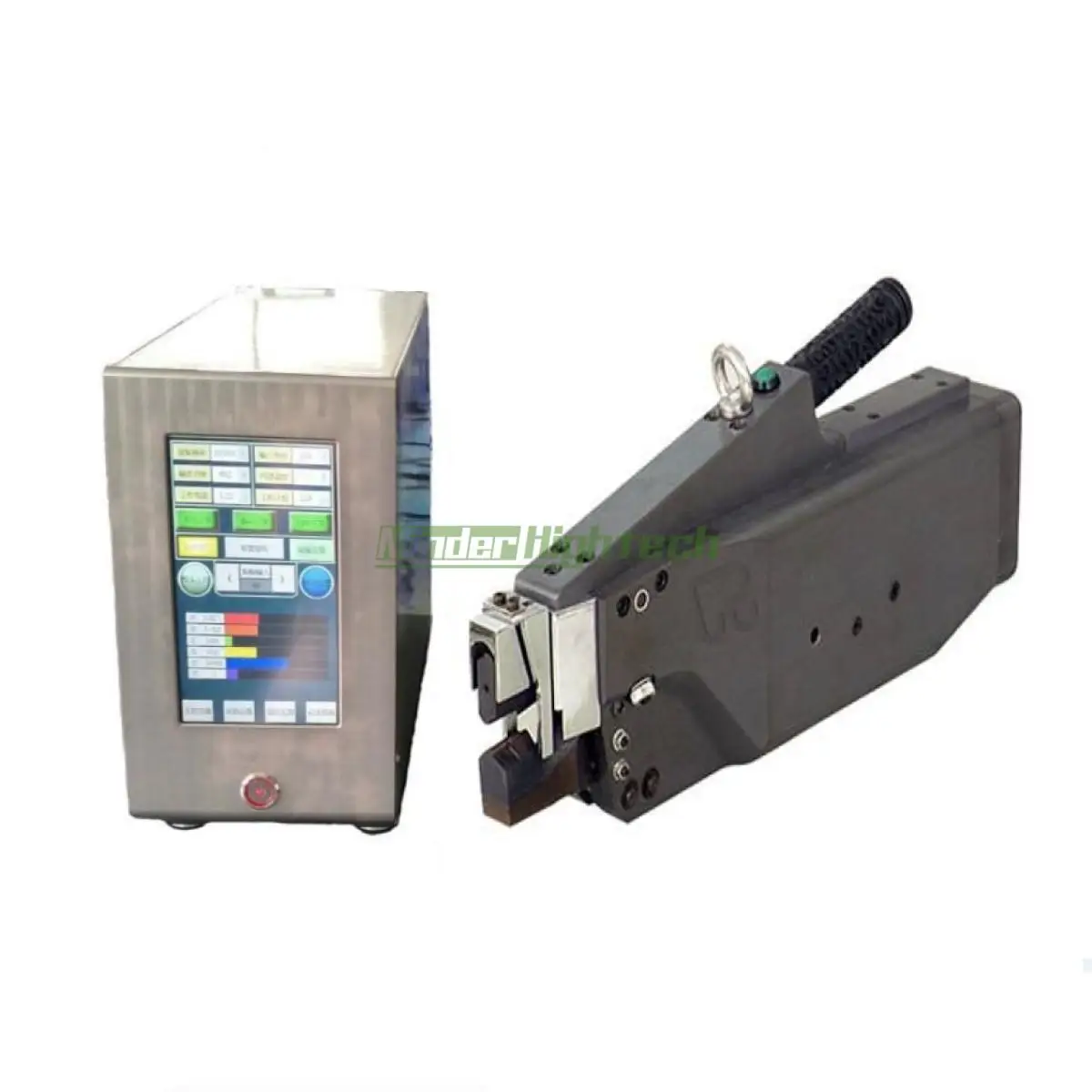

Professional Digital Ultrasonic Metal Tube Welding Machine For Cutting And Sealer Copper Tube Ultrasonic Spot Welder
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600152149476):
Product Overview
Description
Product principle:
The principle of ultrasonic metal welding is a special method of using the mechanical vibration energy of ultrasonic frequency to connect the same or different metals. When metal is welded by ultrasonic, it neither delivers current to the workpiece nor applies high temperature heat source to the workpiece, just only under static pressure, the wire frame vibration energy is transformed into friction work, deformation energy and limited temperature rise between the workpieces. The metallurgical bonding between the joints is a solid state welding that is realized without the base material melting. Therefore, it effectively overcomes the spatter and oxidation caused by resistance welding. Ultrasonic metal welding machine can perform single-point welding, multi-point welding and short strip welding on thin wire or sheet materials of non-ferrous metals such as copper, silver, aluminum, and nickel. It can be widely used in the welding of SCR leads , fuse pieces , electrical leads , lithium battery pole pieces , and tabs.
Advantages
Advantages of ultrasonic metal welding
1、The welding material does not melt, and the metal is not fragile
2、The conductivity is good after welding, and the resistivity is extremely low or almost zero.
3、Low requirements on the surface of the weld metal, both oxidation and electroplating can be welded.
4、The soldering time is short, without any flux, gas, or solder.
5、Welding without sparks, environmental protection and safety.
2、The conductivity is good after welding, and the resistivity is extremely low or almost zero.
3、Low requirements on the surface of the weld metal, both oxidation and electroplating can be welded.
4、The soldering time is short, without any flux, gas, or solder.
5、Welding without sparks, environmental protection and safety.
Equipped with high-performance ultrasonic metal spot welding power supply, automatically tracking the frequency of the transducer, with two control modes of time and energy;
Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
The welding material does not need to be melted, does not change the material characteristics, and has no pollution;
It can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is
suitable for welding of conductive materials.
The welding time is short, without any flux, shielding gas and filler.
Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
The welding material does not need to be melted, does not change the material characteristics, and has no pollution;
It can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is
suitable for welding of conductive materials.
The welding time is short, without any flux, shielding gas and filler.
Detail
Specifications
Model | MD-P2050 |
Ultrasonic frequency | 20KHz |
Voltage | AC220V/50Hz |
Ultrasonic power | 5000W |

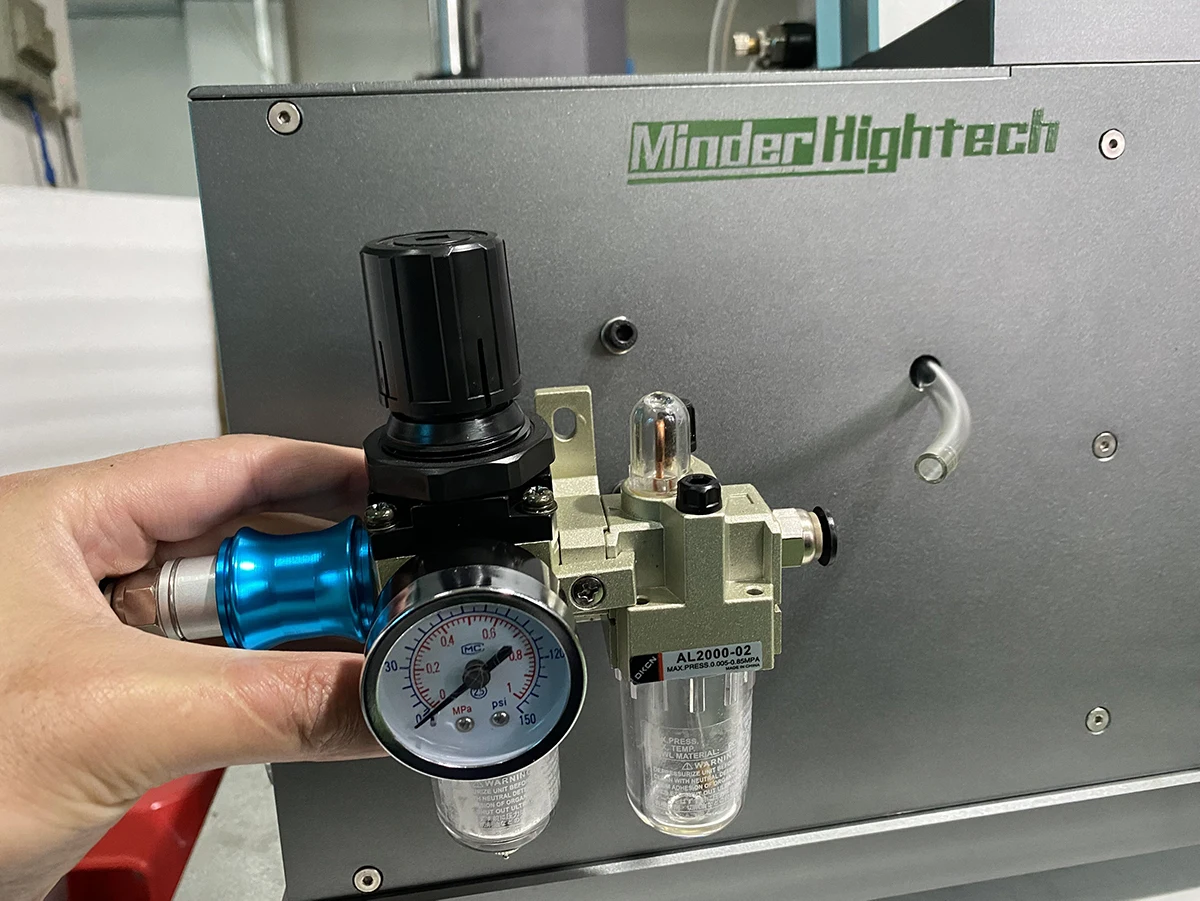

Air pressure | 0.4MPa~0.6MPa |
Control mode | time/energy |
stroke | 30mm |
Head | 440*230*400mm |
Generator | 450*435*140mm |
weight | 70kg |

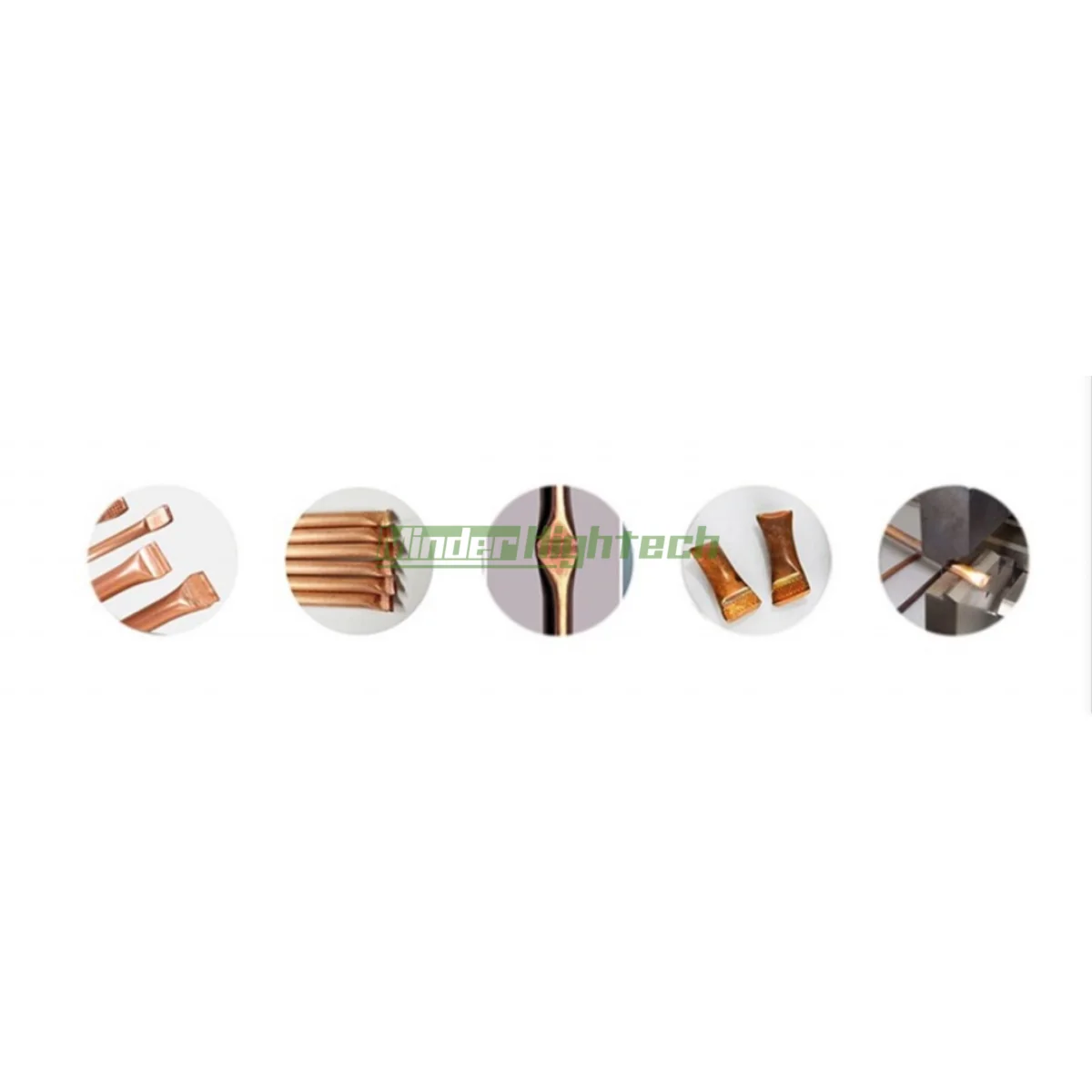

Application
Tube

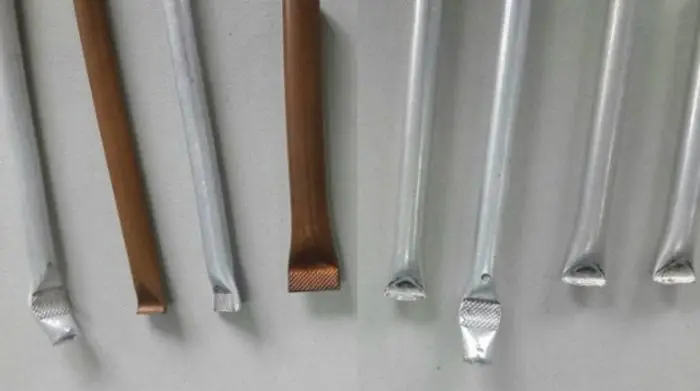

Sample

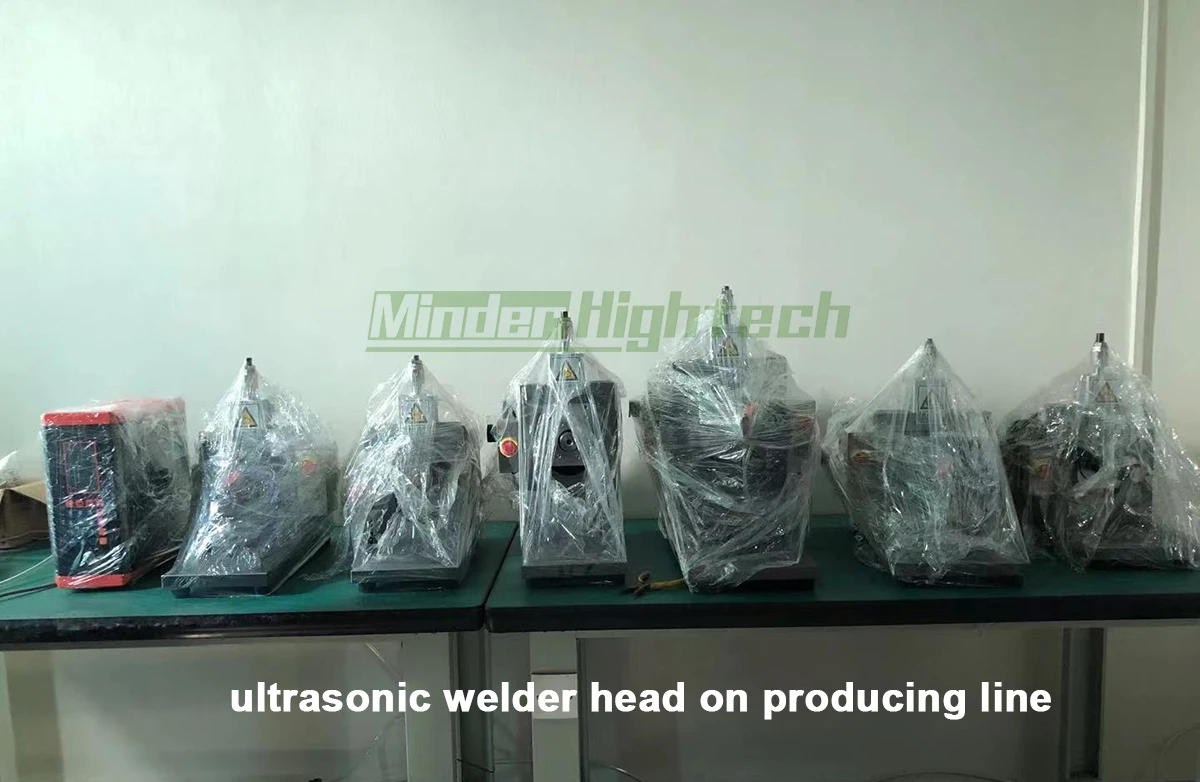

Our Factory
