Factory directly sale BS 712N metal cutting band saw machine
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (1600152201282):
Product Overview
Description

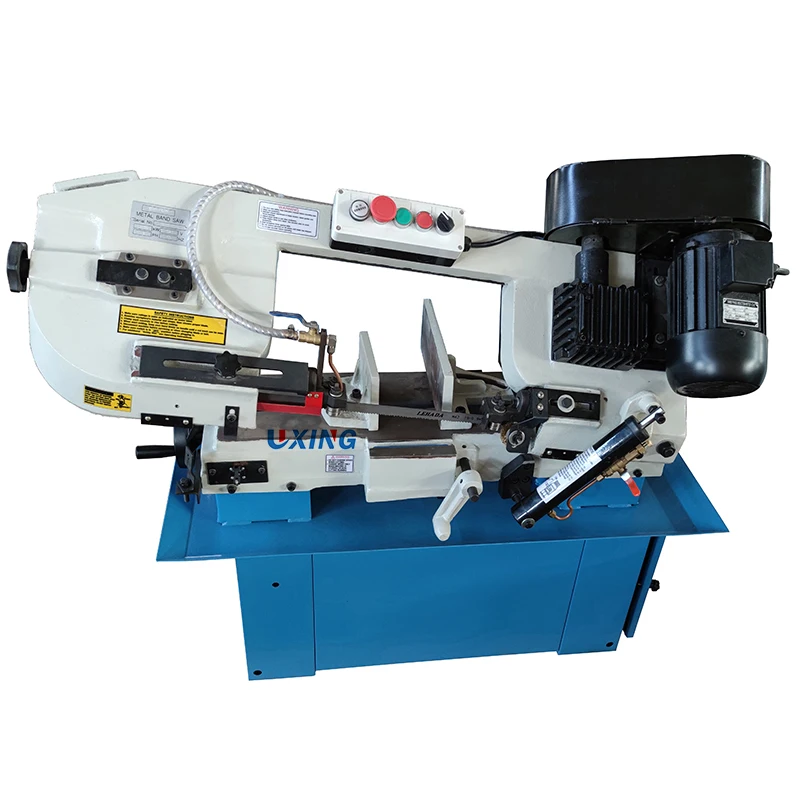

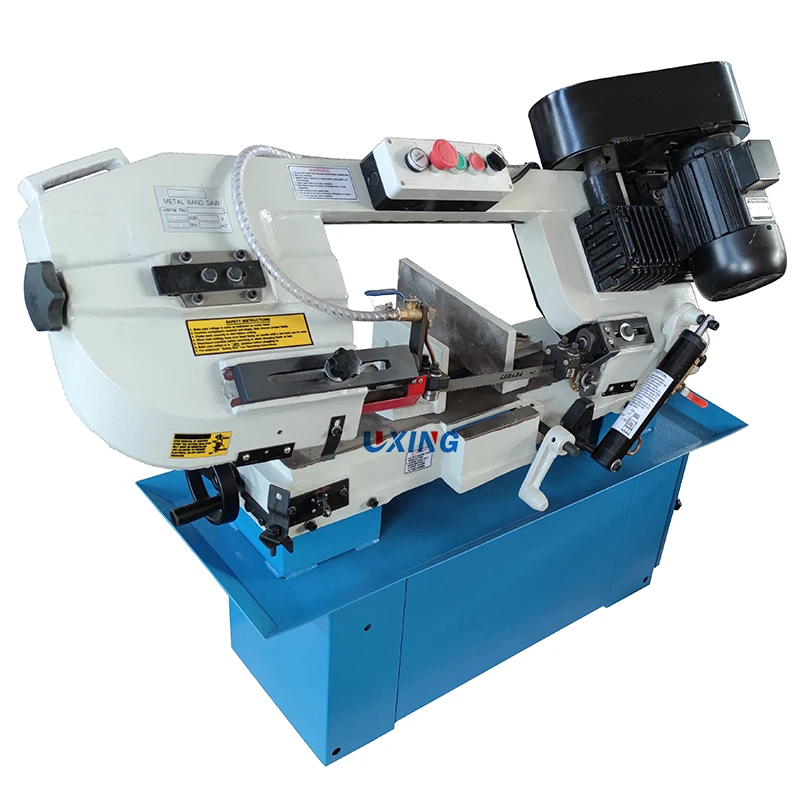

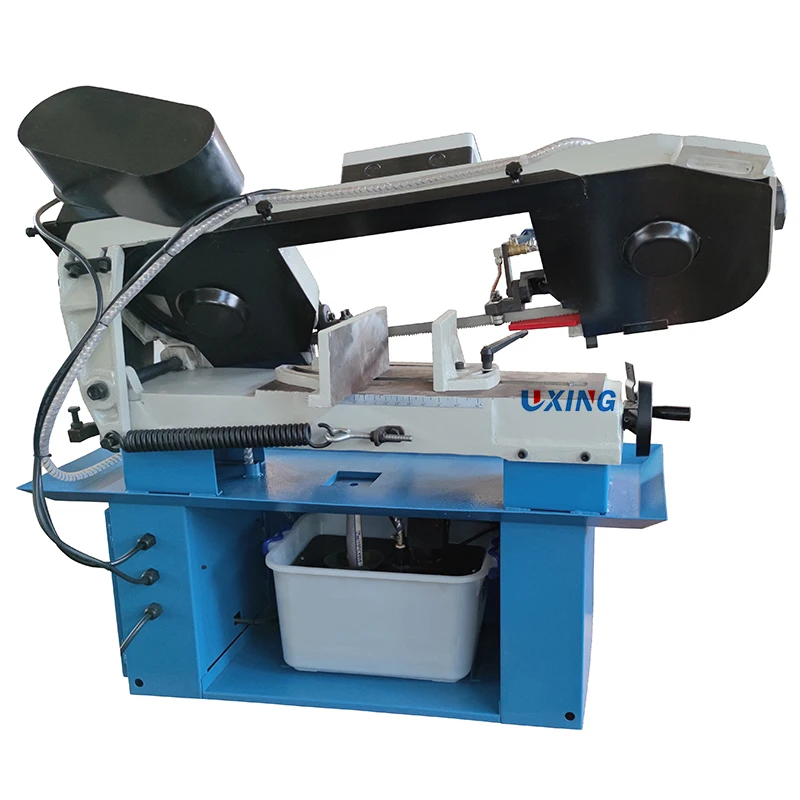

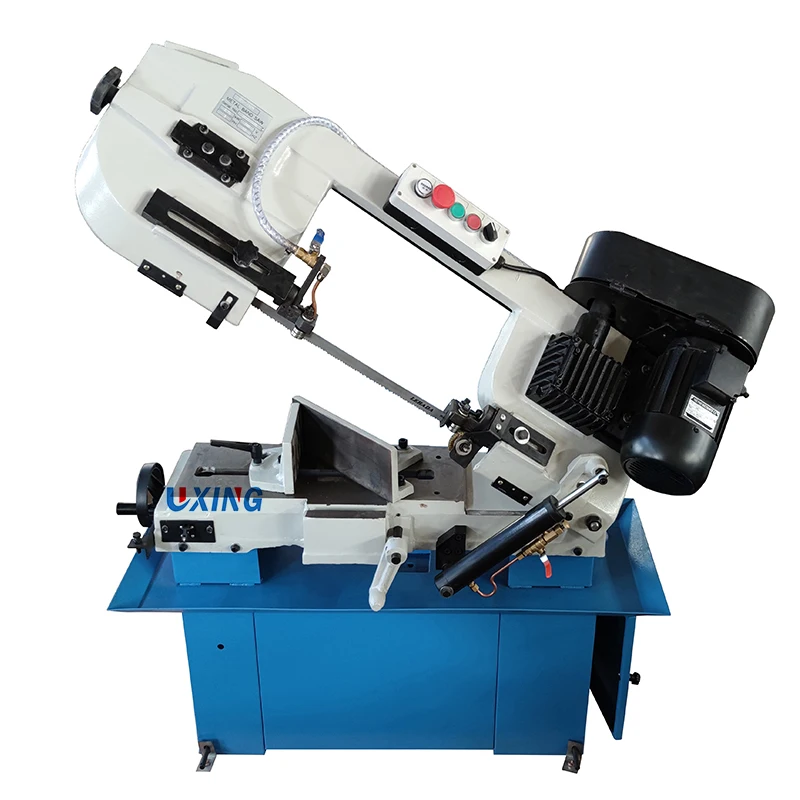

Factory directly sale BS-712N metal cutting band saw machine
The main performance characteristics:
1. The maximum processing capability of BAND SAW BS-712 series is 7" (178 mm) .
2. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
3. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712R);
4. Vertical force controlled through hydraulic cylinder.
5. Belt driven, with four cutting speed.
6. Can be used both vertically and horizontally.
7. Electric coolant system for extending the life of blade and improve the precision of work piece.
8. High-capacity due to controlled by motor.

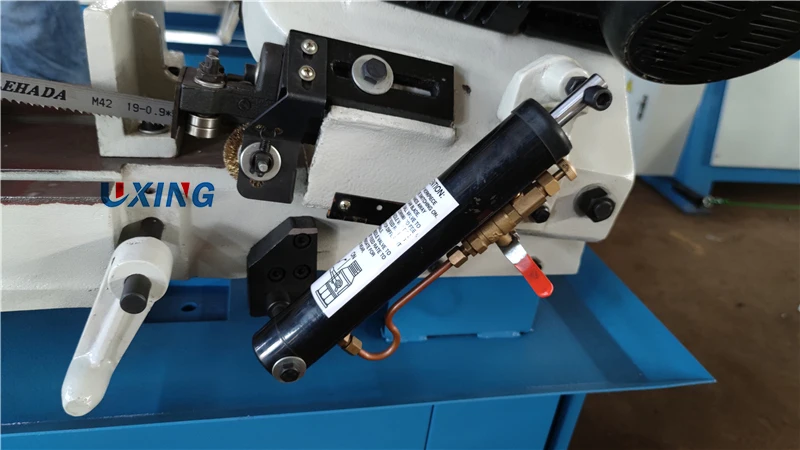

9. The falling speed of saw bow is controlled by hydraulic cylinder.
10. With a sizing device, machine will stop automatically after sawing materials.
11. With power break protection device, machine will power off automatically when the rear protective cover is opened.
2. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
3. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712R);
4. Vertical force controlled through hydraulic cylinder.
5. Belt driven, with four cutting speed.
6. Can be used both vertically and horizontally.
7. Electric coolant system for extending the life of blade and improve the precision of work piece.
8. High-capacity due to controlled by motor.
9. The falling speed of saw bow is controlled by hydraulic cylinder.
10. With a sizing device, machine will stop automatically after sawing materials.
11. With power break protection device, machine will power off automatically when the rear protective cover is opened.
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and workshops, use is very extensive.
Product main technical parameters:
Model | BS-712N | BS-712R | |||
Capicity | Circular @90° | 178mm(7") | 178mm(7") | ||
Rectangular @90 ° | 178x305mm(7"x12") | 178x210mm(7"x8.25") | |||
Circular @45° | 127mm(5") | 127mm(5") | |||
Rectangular @45 ° | 120x125mm(4.75"x4.88") | 85x140mm(3.33"x5.5") | |||
Blade speed | @ 60HZ | 27,41,59,78 MPM | 27,41,59,78MPM | ||
@ 50HZ | 22,34,49,64 MPM | 22,34,49,64 MPM | |||
Blade size(MM) | 19x0.9x2362mm | 19x0.9x2362mm | |||
Motor power | 750W 1HP(3PH), 1.1KW 1.5HP(1PH) | ||||
Dirve | V-belt | ||||
Packing size(cm) | 125x45x115 | 129x73x115 | |||
N.W./G.W.(kg) | 145/178 | 170/192 | |||

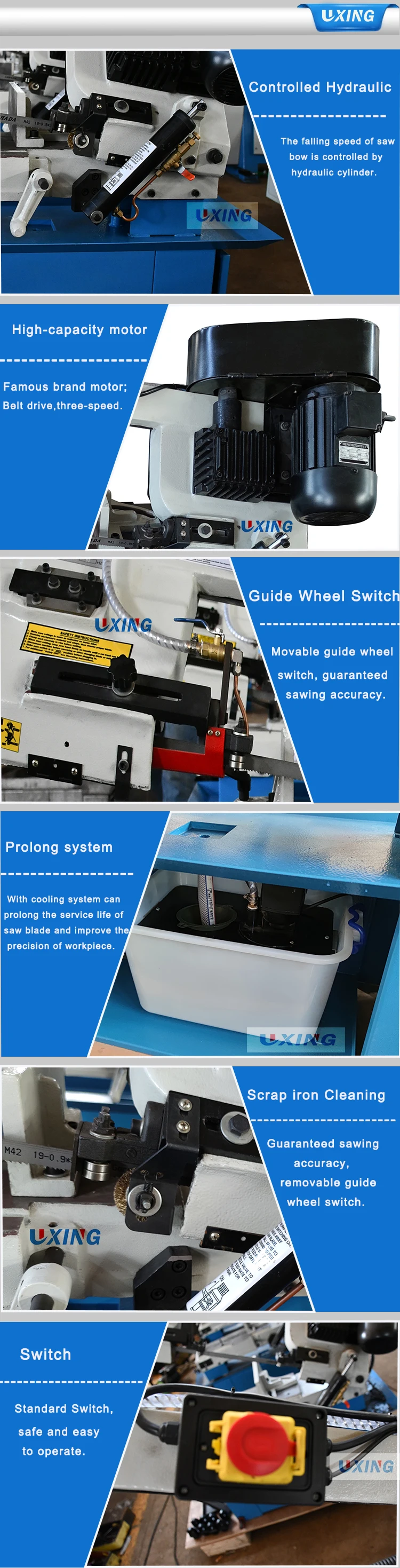

Details:
Recommed products:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
