Product Overview
Description

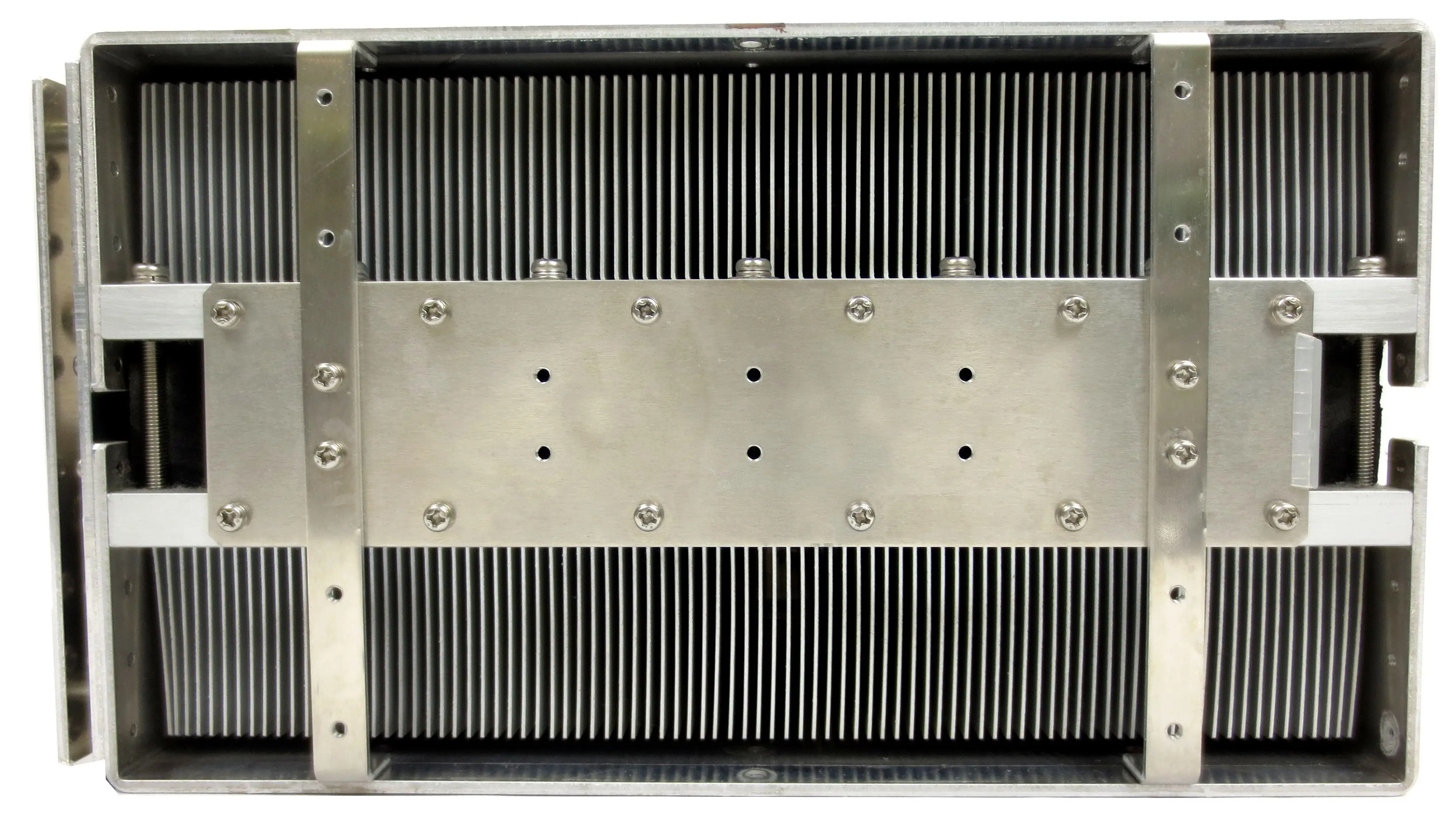

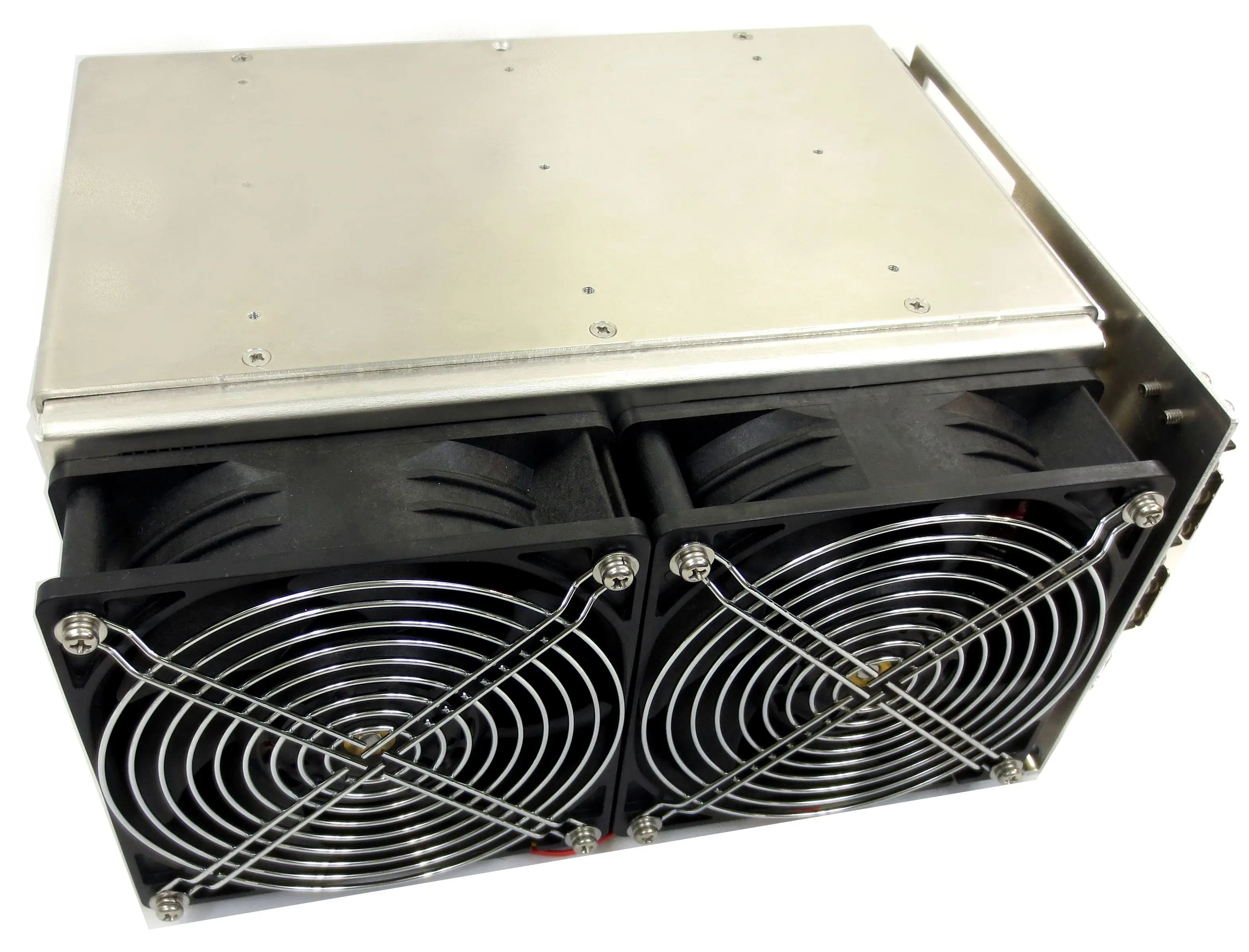

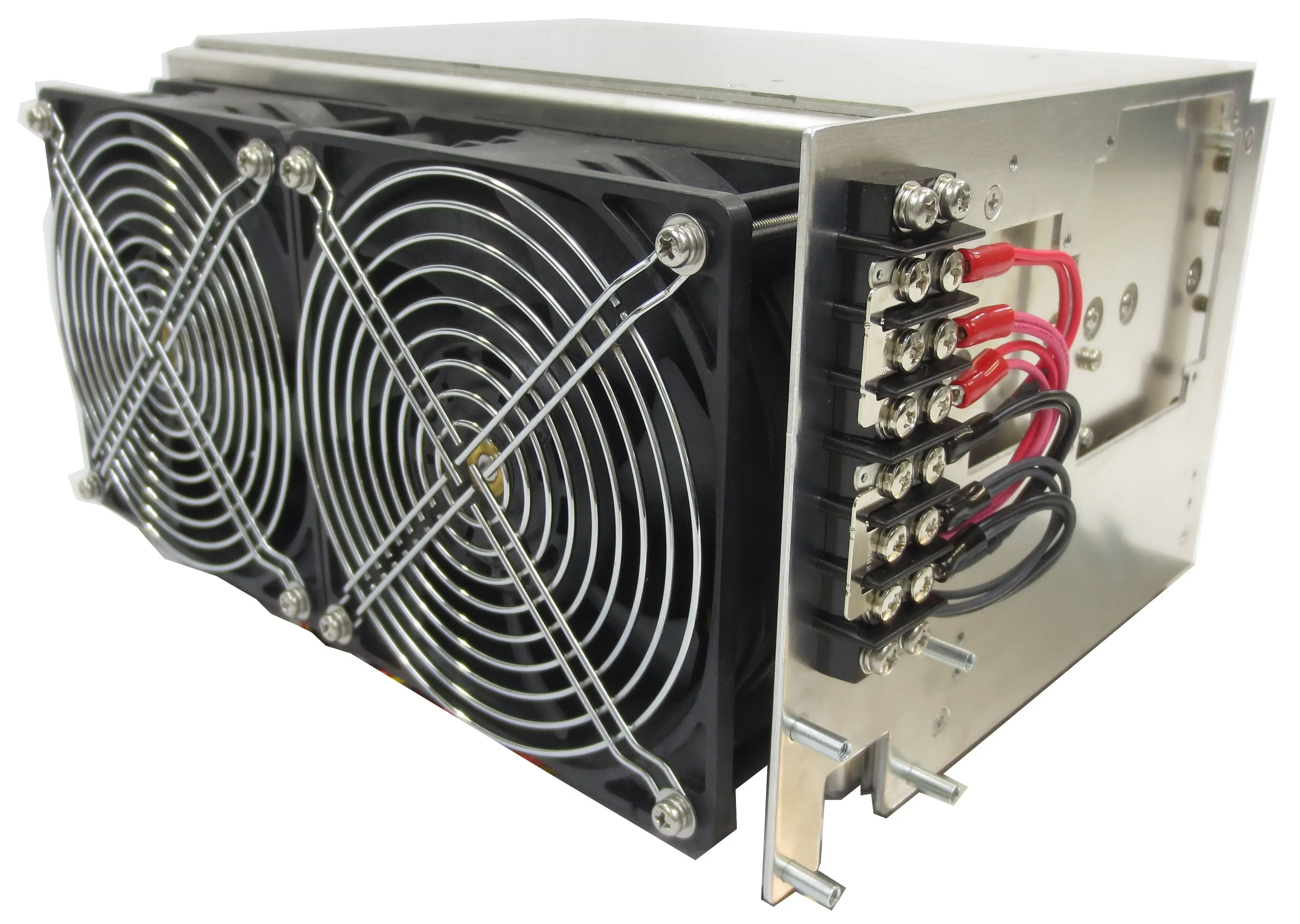

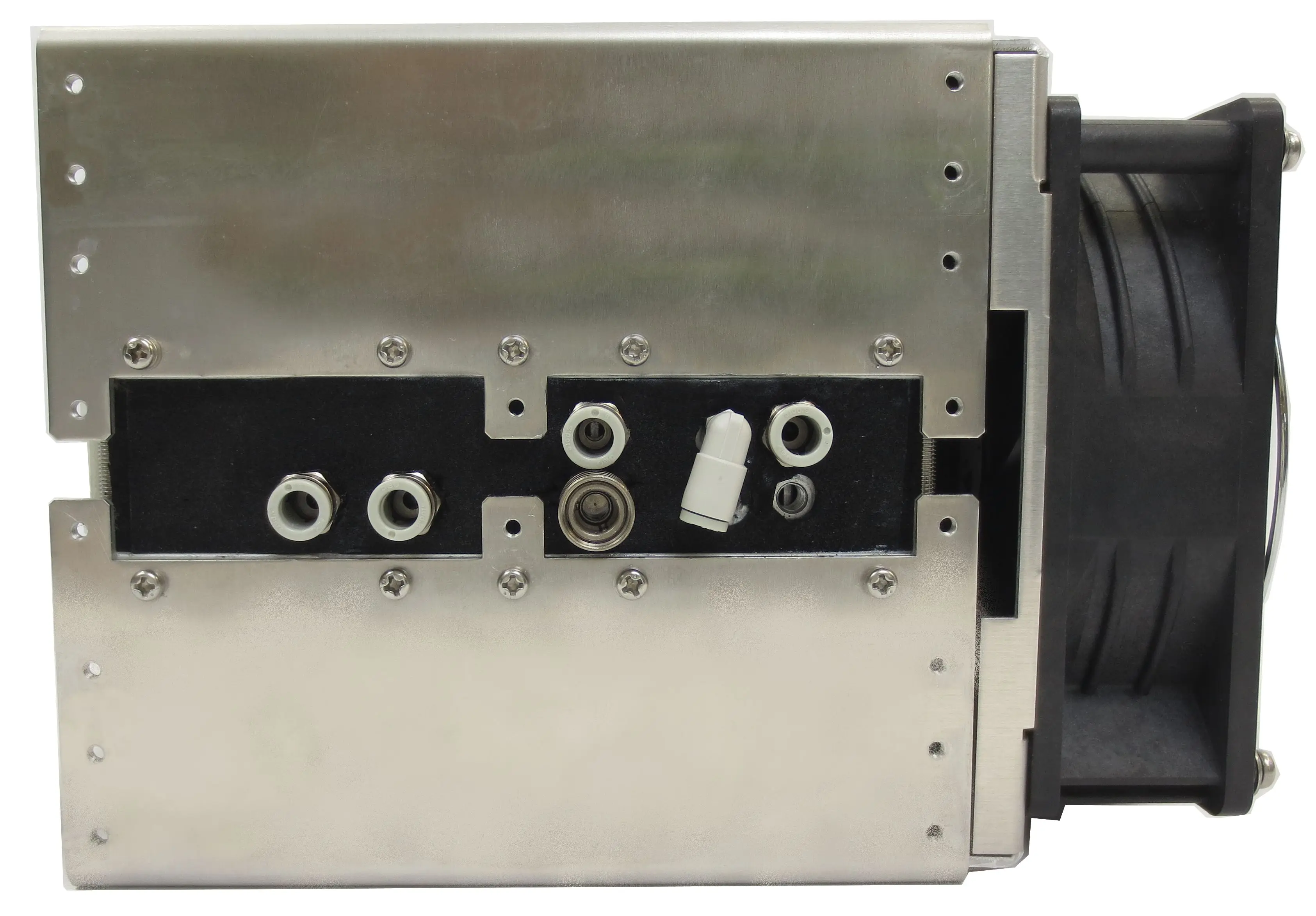

☆ Cooling capacity 450Watt Fan-cooled Fluid Cooling type electronic cooler MPR-C450WI ☆\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
【Features】\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Cooling capacity 450Watt\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Electronic cooler with a Peltier module.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ A lineup of cooling capacities of 70W, 150W, and 450W, Can be selected according to the desired application.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Highly endothermic, compact and lightweight so that this is ideal to install into equipment.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ Highly accurate temperature control is possible with system expansion (optional).\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
・ It can be used for any purpose, such as cooling laser modules and CPUs.\t
Product name | MPR-C450WI Cooling capacity 450W Fan-cooled Fluid Cooling type electronic cooler | ||
Brand Name | Micro Edge Process | ||
Place of Origin | Japan | ||
Features | Environment of use | Indoor | |
Cooling method | Peltier device | ||
Heat dissipation | Air cooling | ||
Type of cooling | Fluid cooling | ||
Specifications | Model | MPR-C450WI | |

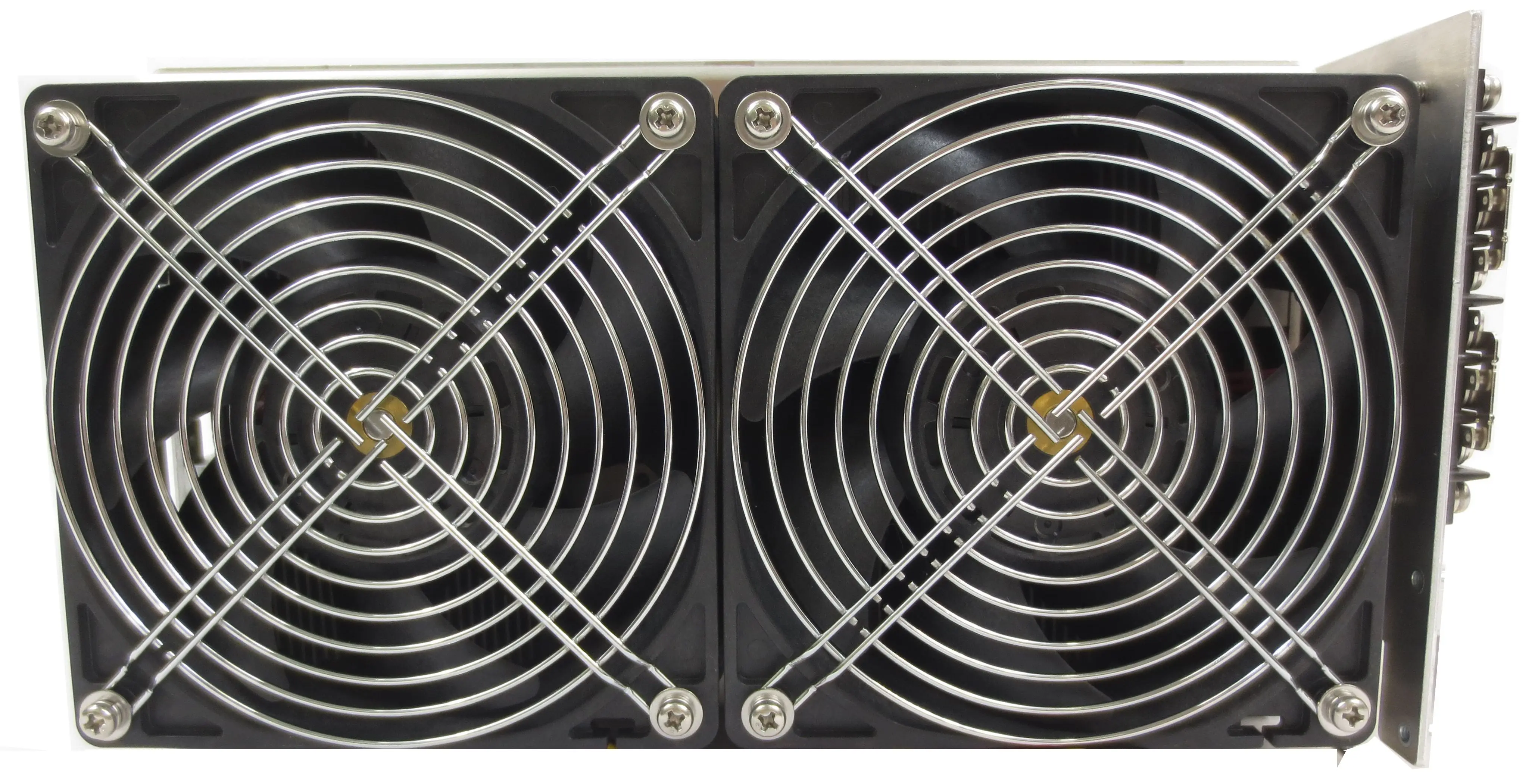

Cooling method | Fan-cooled Fluid cooling type | ||
Cooling capacity *1 | 450W | ||
Rated voltage (Fan/Peltier) | DC24V ±5% | ||
Current consumption *2 | 42A or less | ||
Starting current *3 | 44A | ||
Working temperature*4 | 0 to +50℃ | ||
Working humidity | Max. 80％RH, free from condensation | ||
Liquid temperature *5 | Max. +50℃, ice-free | ||
Noise | 75dB(A) | ||
Max. allowable temp. for Cooling jacket | +80℃ | ||
Max. allowable temp. for Dissipation fin base | +80℃ | ||
Circulation fluid | Purified water, tap water, etc. | ||
Fluid contact part | Aluminum | ||
Pressure resitance in piping | 0.5MPa | ||
Outer diameter of pipe connection port | Ø6×4(in2/out2) | ||
Dimensions (mm)*6 | W268×H142×D207 | ||
Weight | 8kg | ||
*1 Nominal value at 30℃ ambient temp.\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*2 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature.)\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*3 Value at 30℃ ambient temp. (The value varies depending on temperature.)\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*4 Pay attention to prevent circulation liquid from freezing.\t
*2 Rated value when the unit runs cooling operation at 30℃ ambient temp. (The value varies depending on temperature.)\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*3 Value at 30℃ ambient temp. (The value varies depending on temperature.)\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t\t
*4 Pay attention to prevent circulation liquid from freezing.\t
