Factory Direct Sale 16 Port 100Mbps Multi mode Network Switch Ethernet
- Category: Network Switches >>>
- Supplier: Shenzhen Puhuixin Technology Co. Ltd.
Share on (1600152298545):
Product Overview
Description
Product Description

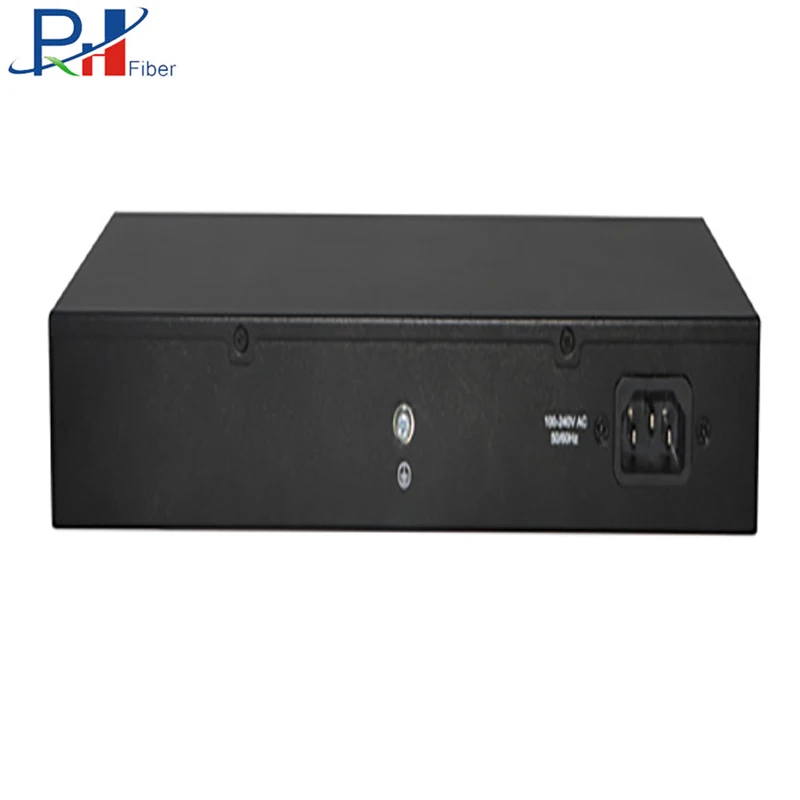

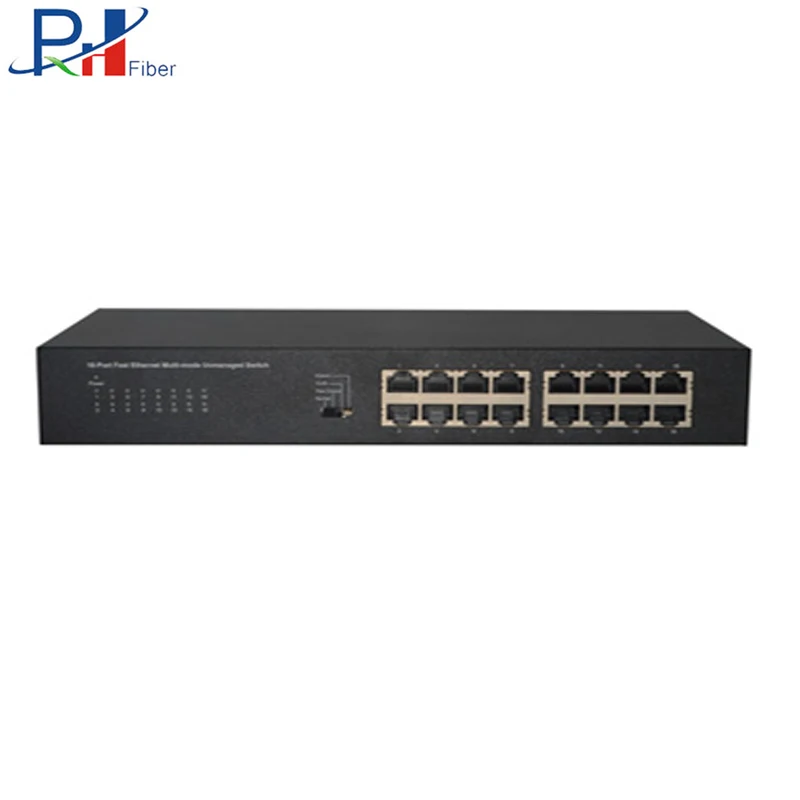

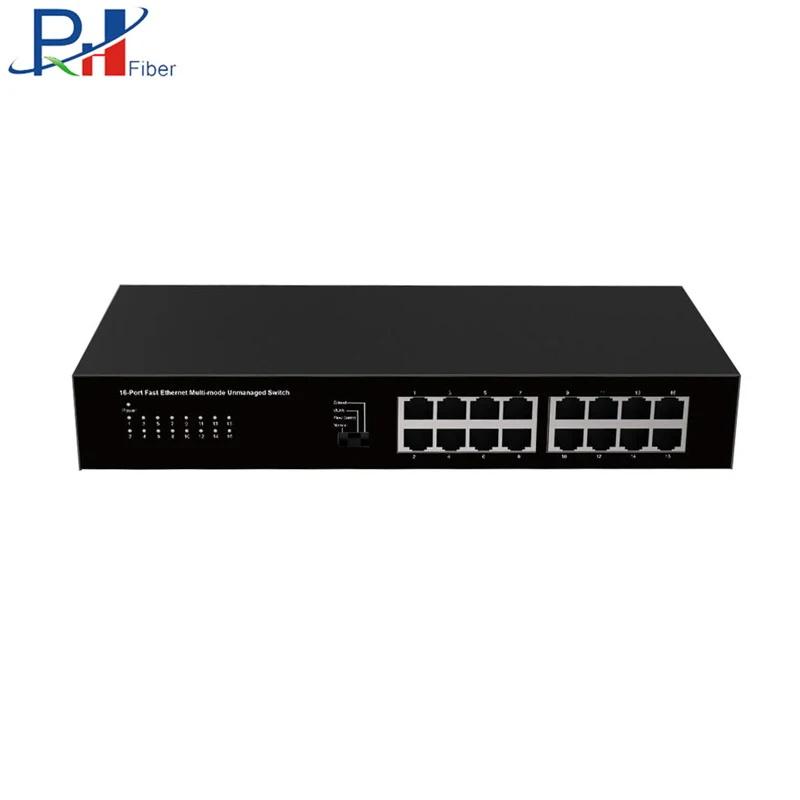

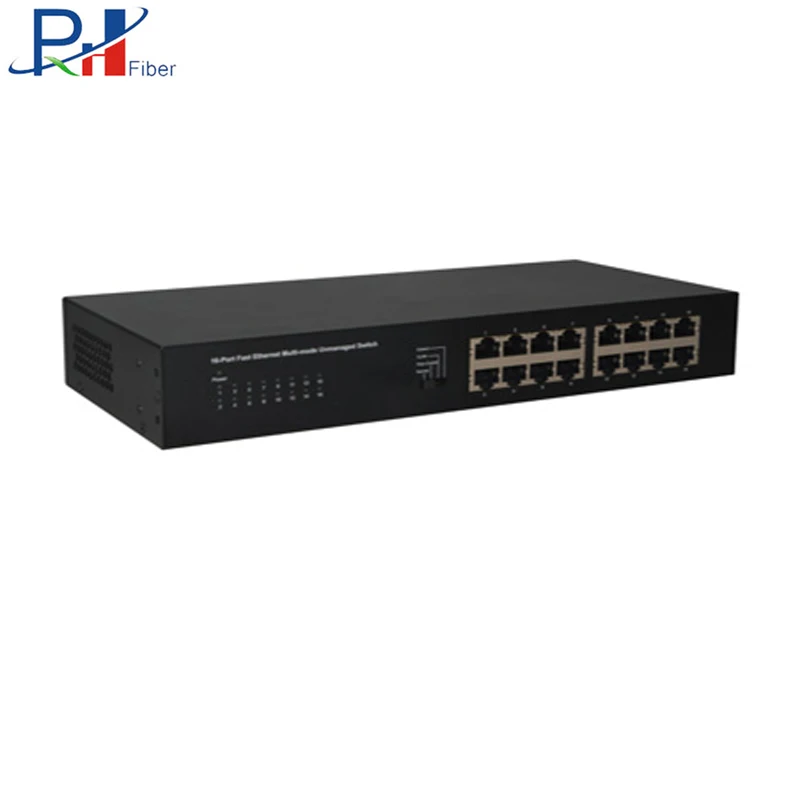

Factory Direct Sale 16 Port 100Mbps Multi-mode Network Switch Ethernet
FR-S1016D-E 16-port 100M multi-mode Ethernet switch
*Wire-speed forwarding, intelligent identification
*High performance, lasting stability
*Use store-and-forward mode
*Up to 3.2Gbps switching capacity
*Support four modes
*Wire-speed forwarding, intelligent identification
*High performance, lasting stability
*Use store-and-forward mode
*Up to 3.2Gbps switching capacity
*Support four modes
Product Parameters
Model | FR-S1016D-E |
Chip | RTL8316E |
Network Protocol | IEEE 802.3i，IEEE 802.3u，IEEE802.3x，IEEE802.3az |
Port | 16 10/100Mbps adaptive RJ45 ports (Auto MDI/MDIX) |
Network Medium | 10base-t: 3,4 class unshielded twisted pair (≤100 m) 100Base-TX: class 5, 5E unshielded twisted pair wire (≤100 m)" |
4 Working Mode | Normal mode: All ports can communicate with each other |
Streaming off: The streaming function is off and all ports can communicate with each other | |
Port isolation mode: 1~14 ports cannot communicate with each other, and only 15~16 ports can communicate with each other | |
250m transmission mode: the rate of 1-8 ports is reduced to 10Mbps, the longest transmission distance is up to 250m, and all ports can communicate with each other | |
Transfer Method | Store and forward |
MAC Address Table | 8K |
Exchange Capacity | 3.2Gbps |
Packet Forwarding Rate | 2.38Gpps |
Packet Cache | 2Mbits |
Jumbo Frame | 2KBytes |
LED Indication | Each port: Link/Act(Connect/work) : green |
Each set: Power: green | |
Power Supply | 3.3V/1.5A |
Power Dissipation | 2.75W(220V/50HZ) |
Dimensions (LxWxH) | 280*126*44mm |
Working Environment | Working temperature: 0 ℃ ~45 ℃ Storage temperature: -40℃～70℃ Working humidity: 10%~90%RH without condensation Storage humidity: 5%~90%RH without condensation |
Company Introduction
Shenzhen Puhuixin Technology Co.,Ltd.
Shenzhen Puhuixin Technology Co.,Ltd was established in 2006 and headquartered in Shenzhen,China.is a high-tech enterprise founded by senior professionals in optical communication industry, specializing in the research and development, production and marketing of optical passive components. The company has a strong R&D and production technology, gathered a number of senior optical fiber communication research and development personnel, with rich product research and development experience and strong technical innovation ability.
The company mainly produces fiber optical splitter , fiber optical isolator, wavelength division multiplexer, fiber optical circulator, optical switch, polarization protection device, high power and other products. The company formulates the enterprise product standard according to the international advanced level, has the consummation quality assurance system. Adhering to the business philosophy of "sincere cooperation, realistic and innovative", PHX has the advantages of specialization and scale, and more innovative exploration and pragmatic spirit to provide customers with high-quality products, advanced technical solutions and perfect after-sales service.
Our high quality products and outstanding service win the customer from all the world, PHX fiber optic is looking forward tocooperate with you.
Exhibition & Certificate
Why Choose Us
A.Technology:
The company specializes in the development and manufacture of optical fiber passive components and communication instruments. With
strong R & D capabilities and advanced production technology, is a rich product R & D experience and strong technical innovation
ability of the enterprise.
B.High quality:
The company formulates the enterprise product standard according to the international advanced level, has the perfect quality
assurance system. Our company has passed ISO9001 quality management system certification, all products are in accordance with
Telcordia 1209/1221 and RoHS.
C.Enterprise scale:
The PHX team has 20 years of experience in the optical fiber industry, including senior engineers and technicians, and more than
20 years of experience in passive device manufacturing. The factory covers an area of more than 5000 square meters, has a number
of production lines, using the most advanced imported precision processing equipment and testing instruments, a complete quality
management system, strictly ensure the quality of each product.
D.Service capacity:
PHX adheres to the business philosophy of "sincere cooperation, realistic innovation" and the spirit of pragmatic innovation and
exploration, and is committed to providing customers with high-quality products, advanced technical solutions and perfect
after-sales service. Welcome OEM and ODM. PHX fiber looks forward to cooperating with you.
The company specializes in the development and manufacture of optical fiber passive components and communication instruments. With
strong R & D capabilities and advanced production technology, is a rich product R & D experience and strong technical innovation
ability of the enterprise.
B.High quality:
The company formulates the enterprise product standard according to the international advanced level, has the perfect quality
assurance system. Our company has passed ISO9001 quality management system certification, all products are in accordance with
Telcordia 1209/1221 and RoHS.
C.Enterprise scale:
The PHX team has 20 years of experience in the optical fiber industry, including senior engineers and technicians, and more than
20 years of experience in passive device manufacturing. The factory covers an area of more than 5000 square meters, has a number
of production lines, using the most advanced imported precision processing equipment and testing instruments, a complete quality
management system, strictly ensure the quality of each product.
D.Service capacity:
PHX adheres to the business philosophy of "sincere cooperation, realistic innovation" and the spirit of pragmatic innovation and
exploration, and is committed to providing customers with high-quality products, advanced technical solutions and perfect
after-sales service. Welcome OEM and ODM. PHX fiber looks forward to cooperating with you.
Packaging & transportion
FAQ
1.Can you supply OEM product under my brand?
Yes,we can supply OEM product under your band.
2.What is you product warranty?
Our warranty is usually one year.We can fix or replace product during warranty period.
3.Do you provide free samples?
We provide free samples for some product, not all product.
4.What is your lead time?
Usually 7 working days, depends on order quantity.
5.What shall I do if I have a problem with the product purchased from you?
Please contact us without delaying, and do not try to detach or fix the product.
Yes,we can supply OEM product under your band.
2.What is you product warranty?
Our warranty is usually one year.We can fix or replace product during warranty period.
3.Do you provide free samples?
We provide free samples for some product, not all product.
4.What is your lead time?
Usually 7 working days, depends on order quantity.
5.What shall I do if I have a problem with the product purchased from you?
Please contact us without delaying, and do not try to detach or fix the product.
