Good quality hydraulic guillotine shearing machine qc11y 8x3200 for stainless steel,guillotine shears 4mm SS
- Category: >>>
- Supplier: Changzhou Fangbang Machinery Technology Co. Ltd.
Share on (1600153159277):
Product Overview
Description
Products Description
Features
1.Welded steel plate structure,with excellent rigidity and stability;
2.Assisting blade pedestal on worktable is convenient for micro adjustment;
3.Support ball is provided on worktable convenient operating for rolling plate;
4.Advanced hydraulic integrated system to ensure the system reliability and safety;

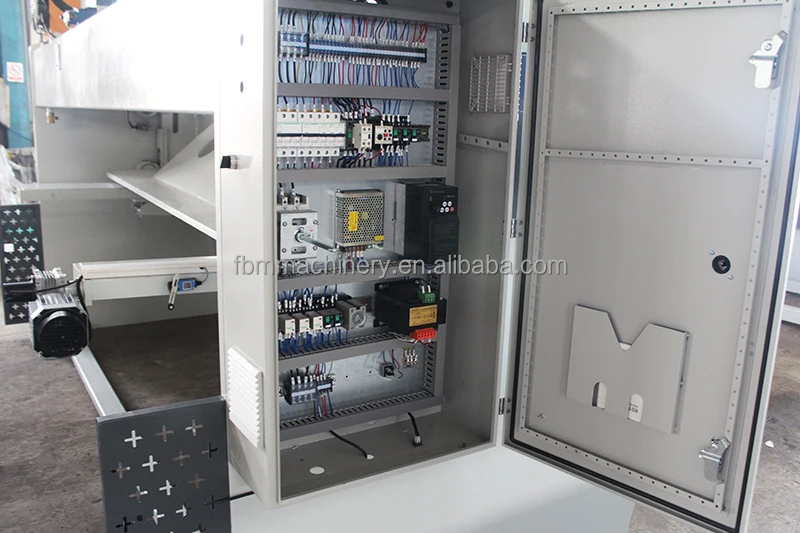

5.International standard electric and switch;
6.Shearing in sections,shadow-line shearing;
7.Top blade and bottom blade with four cutting edges;
8.Shearing angle adjustment by CNC Controller;
9.Front arms support wit rules fixed on worktable;

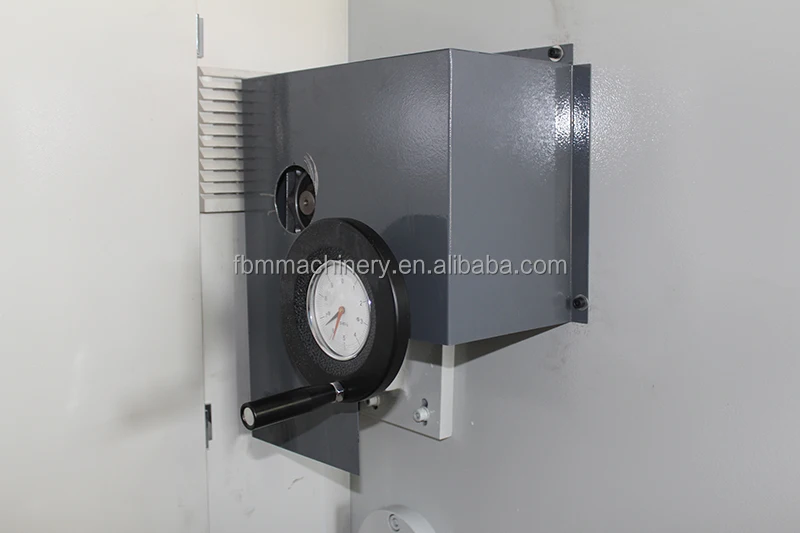

10.Blade gap adjustment by hand wheel ;

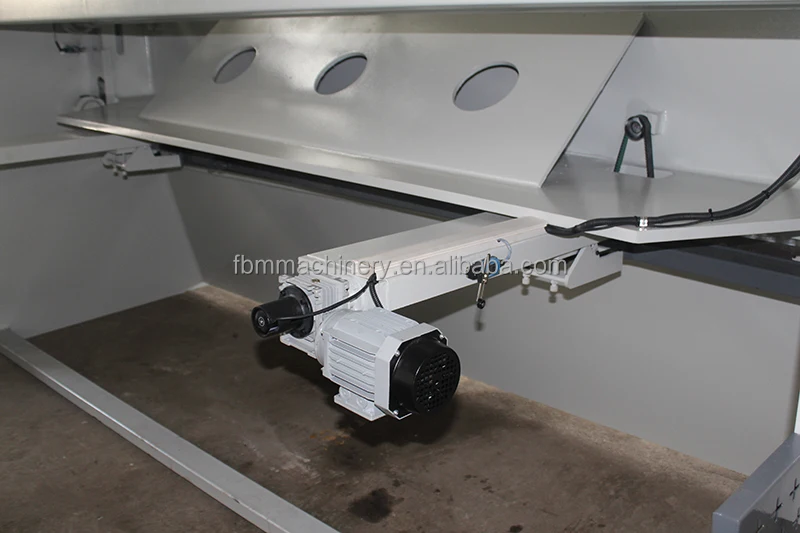

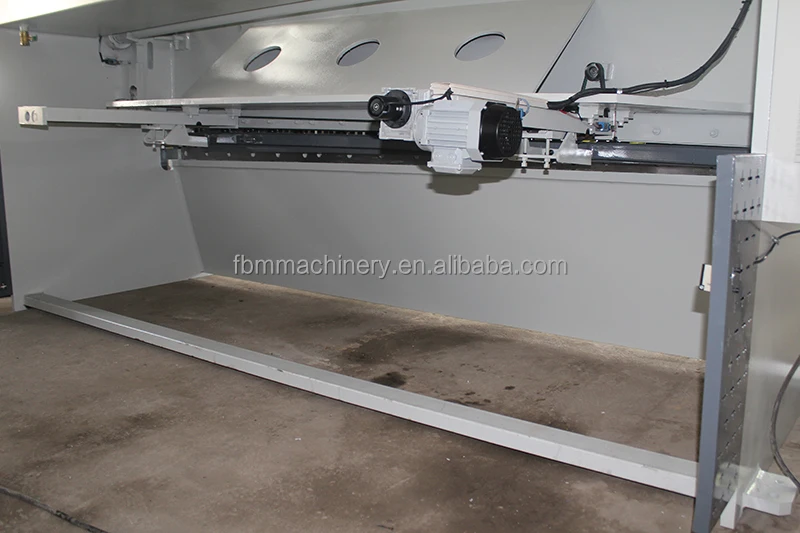

11.Motorized back gauge reduce speed through gear.
12.Pneumatic support will support to shearing thin sheet metal;(optional)
13.Adjust back gauge go up device to cut more than 1000mm long. (optional)
Product Paramenters
Specification | QC11Y- 8x3200 | |||||
Max shearing thickness | 8mm, Material strength ≤450 KN/cm | mm | ||||
Max Shearing Length | 3200 | mm | ||||
Blade(knife) length | 3300 | mm | ||||
Worktable Height | 800 | mm | ||||
shearing angle | 0.5~2.5 | ° | ||||
Back gauge(X axis) travel range | 600 | mm | ||||
Throat Depth | 100 | mm | ||||
Stroke Times | ≥8 | times/min | ||||
Main Motor Power | 7.5 | KW | ||||
No.& Length of Supporting Arm | 3 * 800mm | |||||
Dimension (L x W x H) | 3850x 1600 x 2170 | mm | ||||
