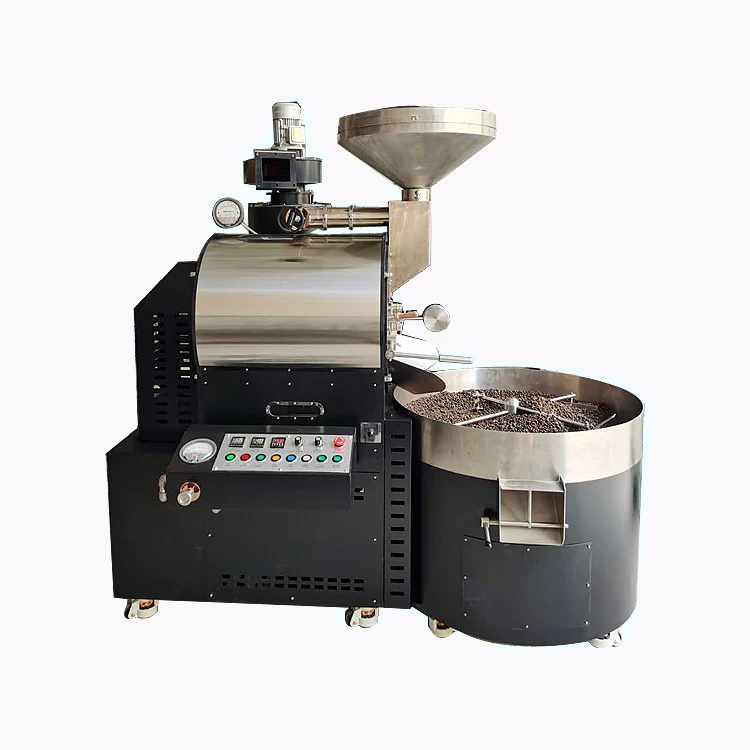

coffee roaster industrial roasting machine

Product Description

coffee roaster industrial roasting machine



 Model  commercial 15kg coffee roaster machine
 Heating source

 Gas

 Bath capacity 1kg-15kg
 Average Roasting time 15-20minutes
 Production 40-60kg/hr(88.2lb/hr)
 Voltage

 220V,50/60Hz

 Roaster Power 2000W
 Roaster Dimensions 2015*1320*1920mm
 Roaster Weight   850kg
 Package Dimensions 1 2300*1360*1900mm
 Package Weight  950kg
 Data Logger Record roasting curve, USB or Bluetooth



15kg coffee roaster is very suitable for manufacturer or shop. The whole machine adopts laser cutting technology. Using welding process to fix the whole frame. It is more solid and stable than using ordinary screw to fix,and not easy to loose parts or structural deformation. This roaster also can connect with computer. It can work well with Artisan software and display the roasting curve on your laptop.



coffee roaster industrial roasting machinecoffee roaster industrial roasting machine

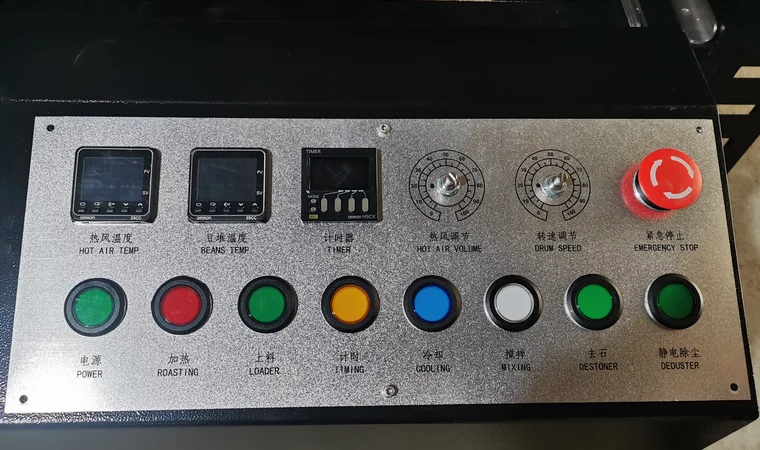

Using OMRON temperature controller. It is sensitive and display very accurate temperature.
♦ Equipped with an OMRON timer, easy to check roasting time.
♦ New designed manual dial damper to adjust the hot air volume.
♦ LED colorful stainless steel buttons,service life of up to 50000 times. Not only beautiful and more easy to operate.
♦ Large flame observation window, so you can observe the burner room clearly.
♦ The sampling handle using the finest rosewood, with artificial mechanical design, make your grip more comfortable.

coffee roaster industrial roasting machinecoffee roaster industrial roasting machine
Everywhere beans are touched all adopt 304 food-grade stainless steel materials,can ensure food safety.
♦ The front panel equipped with beans observation window, can observe the beans color easily.
♦ Humanized design of cooling plate is easily to operate.
♦ Powerful cooling fan motor with the stirring arms,can quickly cool the roasted beans very quickly.
♦ Customized hinge with high quality stainless steel, it is more stable and has a long life than the normal purchased one.
♦ Germany bearing to hold the drum.
coffee roaster industrial roasting machine

Drum motor speed is adjustable,the range is 0~100 rpm. You can adjust a proper speed for yourself, different speeds make different tastes.
♦ The roaster is installed with USB interface, can work well with the Artisan software and display roasting curve on your laptop.
♦ The housing cover color has three options: Rose gold, titanium and stainless steel, you can choose one to match your workshop.
♦ The electrical box is equipped with powerful cooling fan, can speed-up the heat dissipation and protect the electrical components.
coffee roaster industrial roasting machine
Roasting drum: using the standard food grade stainless steel, to make sure the pure taste of roasted.
♦ With the independent design of the stirring blades, the beans will be roasted more uniform in the drum.
♦ Thermocouples: Equipped with two thermocouples, the beans temperature and hot air temperature are directly measured and transferred.
♦ Burner: using high efficiency energy--saving furnace head,the fire is more powerful,and more economical to use. Maximum heating rate is 20 degrees/min, to meet the changing needs of the roasting.
♦ Insulation layer: There is a 30mm thick insulation layer to reduce temperature loss.

 Color

 coffee roaster industrial roasting machine





[New-Technology advantages]



1. All bean contact body are made of High temperature resistant stainless steel.

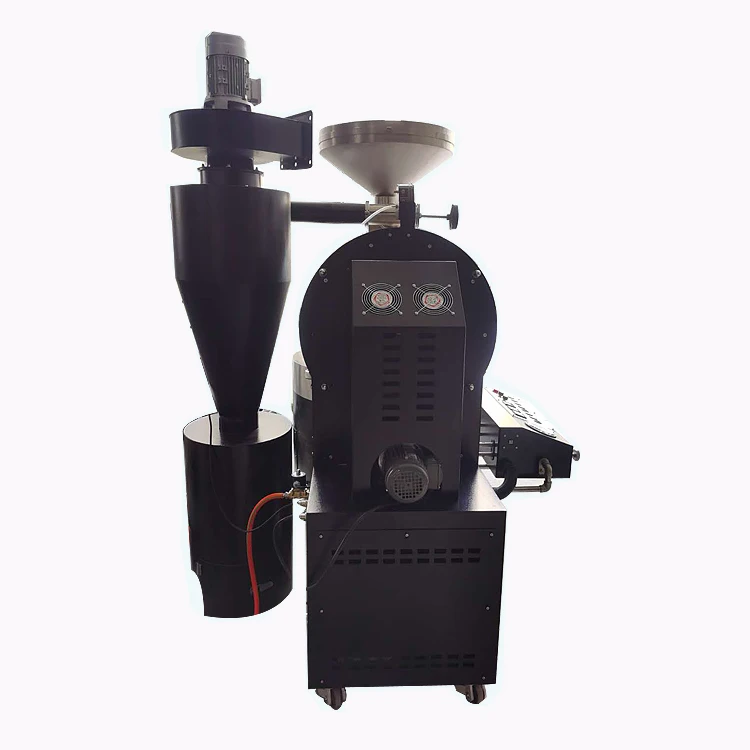

2. Including cyclone dust collector and exhaust pipe.



3. Flexible, user-friendly drum roasting technology for great coffee flavor.

4. 55pcs Fully variable burner,Electric ignitor.

5. These two parts can be separated, roasting and cooling can work at the same time.
    Large independent stirring plate, cooling rapidly (1-2minutes), continuous roasting.



6. Omron PID Double Temperature instrument. precise and long using life.



7. Hot air regulation system. you can adjust hot-wind speed.



8. 304 stainless steel made gas valve regulator you can adjust fire volume precise.



9. ADDKA Japan motor. Equipped with infinitely adjustable-speed system


10. Data logger. The computer via USB or Bluetooth direct connection, to realize synchronous transmission operation curve.



11. Fuse and leakage protector on application



12. LED deluxe Lamp.



13. CE, ROHS, ISO9001

14.The roasting solution for small to medium-sized operations.
Related Products

15kg coffee roaster related equipments

coffee roaster industrial roasting machinecoffee roaster industrial roasting machinecoffee roaster industrial roasting machinecoffee roaster industrial roasting machine
   600g coffee roaster    1kg coffee roaster   6kg coffee roaster    30kg coffee roaster

 coffee roaster industrial roasting machine

Packaging & Shipping



Fixed in Standard export Plywood carton
Machine surface protection, plastic fastening
Manufacturer logo printed on the outside of package
30% deposit when placing order, 70% balance paid before shipment.
7 days after receipt of balance payment

coffee roaster industrial roasting machinecoffee roaster industrial roasting machine

Company Information

 Henan Chuang Qin Mechanical Equipment Co., Ltd. is  a professional coffee roaster manufacturer, we can provide you 300g, 600g, 1kg, 2kg, 3kg, 5kg, 6kg, 10kg, 15kg, 30kg coffee roaster. Our company has passed ISO9001 ,ROHS and CE international quality system certification. Our company has two industrial plants of 5,000 square meters . We specialize in supplying superior quality commercial coffee roasting machine, Electrostatic Smoke Filter, coffee grinder, coffee package machine and coffee accessories with reliable quality and competitive price and fast delivery time in order to meet your particular business requirements. Our engineers with rich experiences to support you to be success in coffee field. We much concern about our customers and only provide the highest level of service, quality products and professional advice. We pursue honest, and long business relationship with customers, deserve your trust!

coffee roaster industrial roasting machine

FAQ



1. Are you the manufacture factory or trading company?

We are the manufacturer wimm professional produce experlence on roastingmachine many years. we own both at domestic and international.



2. How can we visit your factory?

Our factory is located in Henan Province, China, you can take airplane to Zhengzhou airport.  We will pick you up from airport.



3. What is your main products?
Ours main products inciuded: 300g-3kg small commercial roaster/ 5kg-30kg industrials automatic coffee roasting machine/ coffee grinder/ packing machine.

After-Sales Service

Guarantee And After-sale Service



•Installation video helping customer assembly



24 hours technical support by mobile or email



•Two years free warranty period
