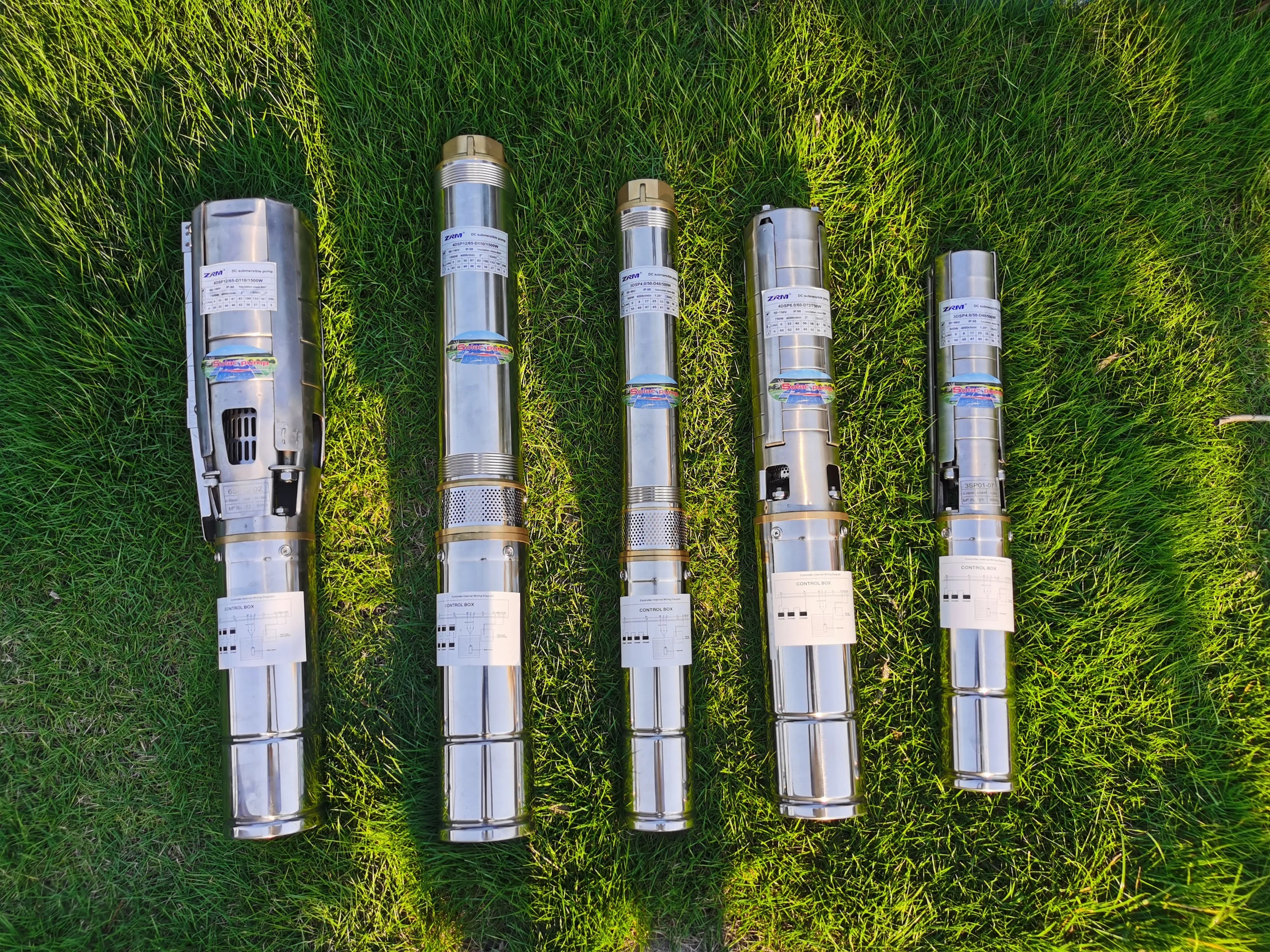

Kepeida 3Inch DC 72V Borehole Solar Submersible Deep Well Water Pump

Product Overview

Description

1. Products Introduction

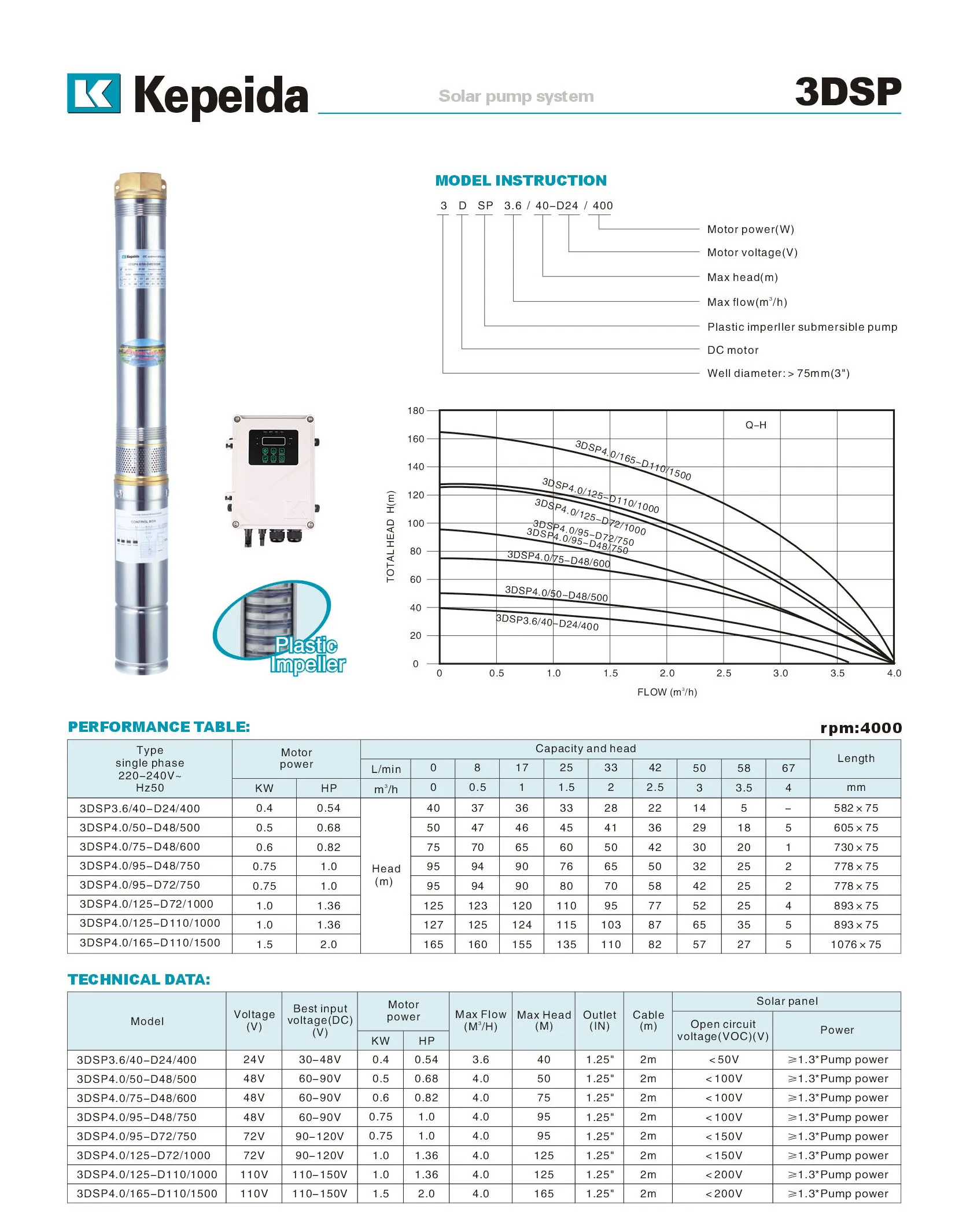

Model	Motor Power		Capacity and Head
			L/Min	0	8	17	25	33	42	50	58	67	Length
	KW	HP	m3/h	0	0.5	1	1.5	2	2.5	3	3.5	4	mm
3DSP3.6/40-D24/400	0.4	0.54	Head(m)	40	37	36	33	28	22	14	5	_	582×75
3DSP4.0/50-D48/500	0.5	0.68		50	47	46	45	41	36	29	18	5	605×75
3DSP4.0/95-D48/750	0.75	1.0		95	94	65	60	50	42	30	20	1	730×75
3DSP4.0/125-D72/1000	1	1.36		125	123	120	110	95	77	52	25	4	778×75

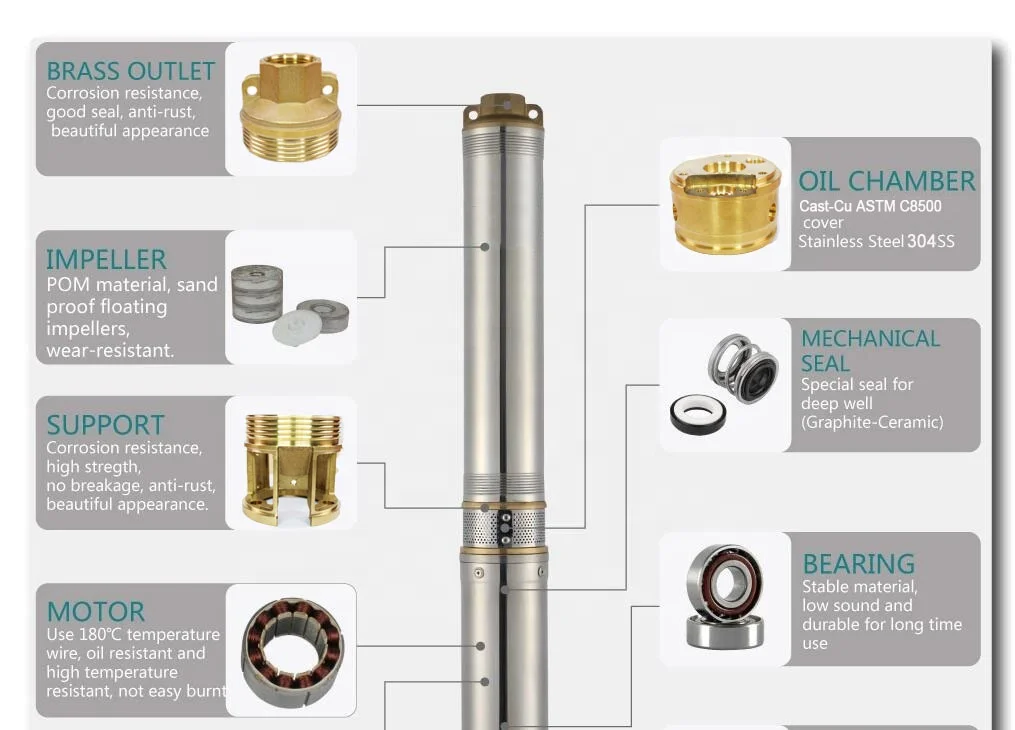

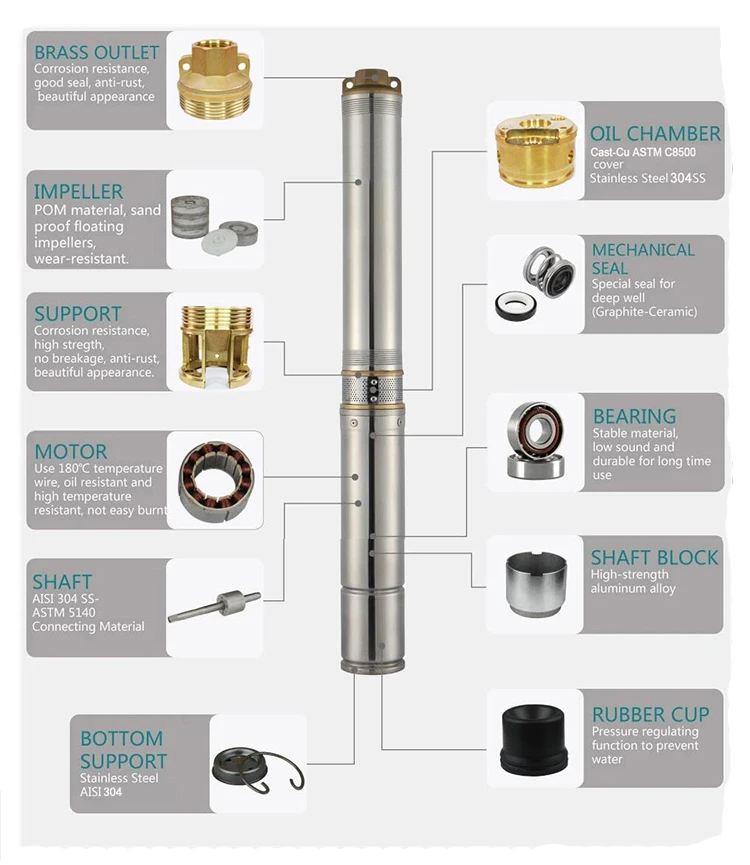

Feature

The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
2. Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.

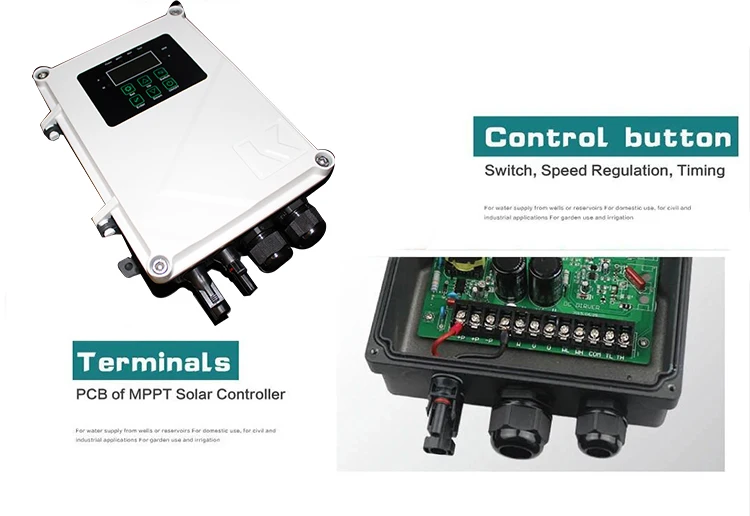

3. High technique products adopting MPPT and DSP chip technique.
4. 100% copper wire, cold-rolled silicon steel sheet.
5. Stainless steel 304 shaft , motor body, screw.

Company Profile



Zhejiang Kepeida Pump Industry Co.,Ltd  established in  2018  , is a professional engaged in the research, development, sale and service of  water pump With 200 employees,and more than 56000 square meters and advance equipments(CNC&ICST).Annual sales quantity is 700 thousand sets.We are located in Taizhou City,Zhejiang Province  with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In addition, we have obtained  International Quality Management System certification CE&ISO9001 . Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as  The eastern Europe,Western Europe,Middle East,Southeast Asia,South America and Africa . We also welcome   OEM/ODM  orders. KPD with its own ICST AND R&D center ,and warmly welcomeold and new ,domestic and overseas customers cooperate and visit,we will be dedicated reliable quality and first class service in return.

Production Line

Exhibition

Our Services

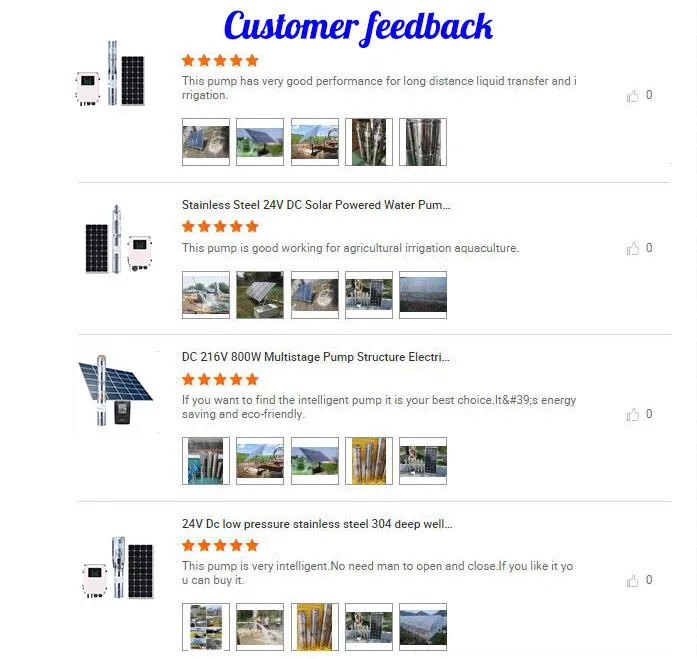

Customers Review
