GS-HD-155T Thesolar marine lantern uses six groups of low illumination and high efficiency solar panels to charge the battery.
Advanced power management system will be used to charge the power in a comprehensive protection.In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum,this material has the specific of light weight and corrosion resistance,which can reduce the weight of light equipment,it is very convenient for installation and transportation.
Lampshade adopt with PC material,which can resist corrosion,anti-UV,anti-shock an so on.
Product Details
Name
Parameter
Name
Parameter
Type
GS-HD-155T
Light Source Life
>100000 hours
Power Provider
Solar panel
Optional Emitting Light Colors
Red, Amber Yellow, Green, Blue, White
Battery Capacity
12.8V10AH
Battery Type
Replaceable lithium iron phosphate battery
Solar panel power
3W
Solar panel voltage
12.8V
Light Intensity
Accord with IALA
Vertical Divergence
>8°
Visual Range
1~5 NM
Horizontal Out-put
360°
Light Source
LED
Overall Size(mm)
D303x315mm
Working temperature
-40℃~70℃
Installation Size(mm)
175~205mm×M16×4/3pcs
Storage temperature
-40℃~70℃
Wind-speed Ability
80m/s
Sun Switch Illumination Threshold
300LUX±100LUX
Working mode
Customer specified light characteristics
Continuous Burning Time in rainy days
>30 days (12 hours a day)
IP Protection
IP68
Weight
3.6kg
Light Characteristics
IALA standard 350 lights Characteristics adjustable
Function & Features
Function & Features
l Continuous working time in rainy day can reach more than 30 days (12 hours a day).
l Photocell can switch ON/OFF the light in rainy days or at night automatically.
l Standardizationof optical design, high photoelectric conversion efficiency.
l Special LED chipsfor aviation obstruction lights, conversion efficiency is much higher than other general LED.
l Provide ability of lightning protection, light fastness, resist snow and rain.
l Built-in replaceable lithium iron phosphate battery, service life up to more than 5 years.
l 350 light characteristics, user can adjust according to require.
l Bird spike against bird drop.
l No radio frequency (RF), no electromagnetic interference.
l Working stable and low cost.

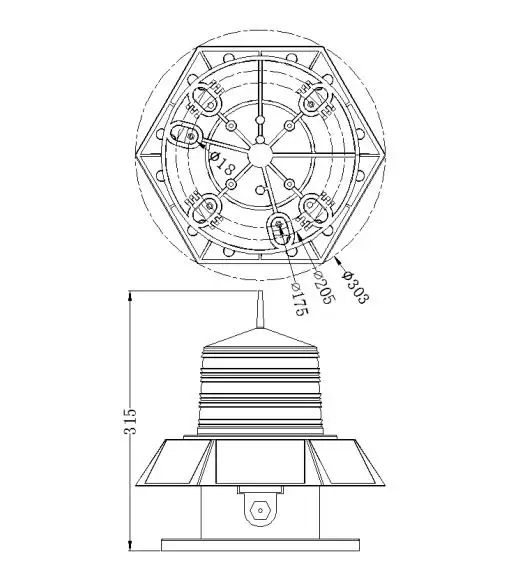

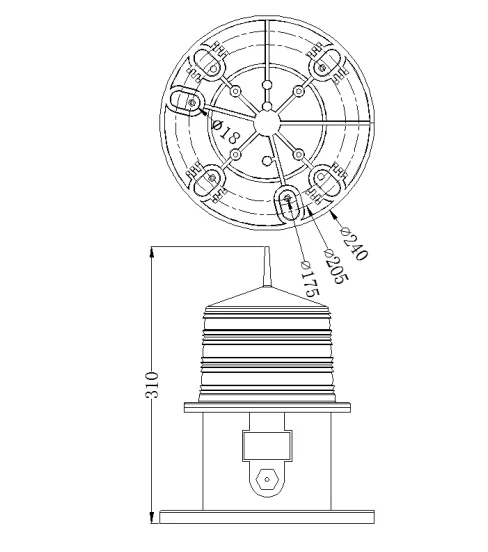

Dimension Drawing
Dimension Drawing
