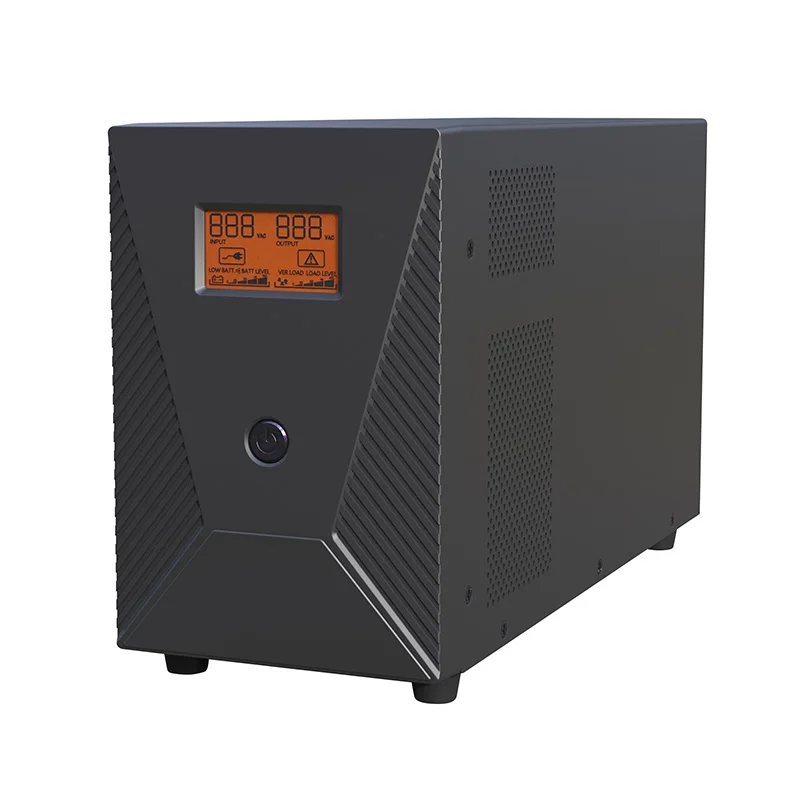

SKE Input 220VAC/230VAC UPS 3000VA Rolling Door Motor UPS Computer Simulated Sine Wave 60% of Rated Power 220v Single Phase 2A
- Category: >>>
- Supplier: Shenzhen Smartkey Power Co. Ltd.
Share on (1600153449465):
Product Overview
Description
SKE Input 220VAC/230VAC UPS 3000VA Rolling Door Motor UPS
| MODEL | GS3000 |
| CAPACITY | 3000va/1800W |
| INPUT | |
| Voltage | 220VAC/230VAC |

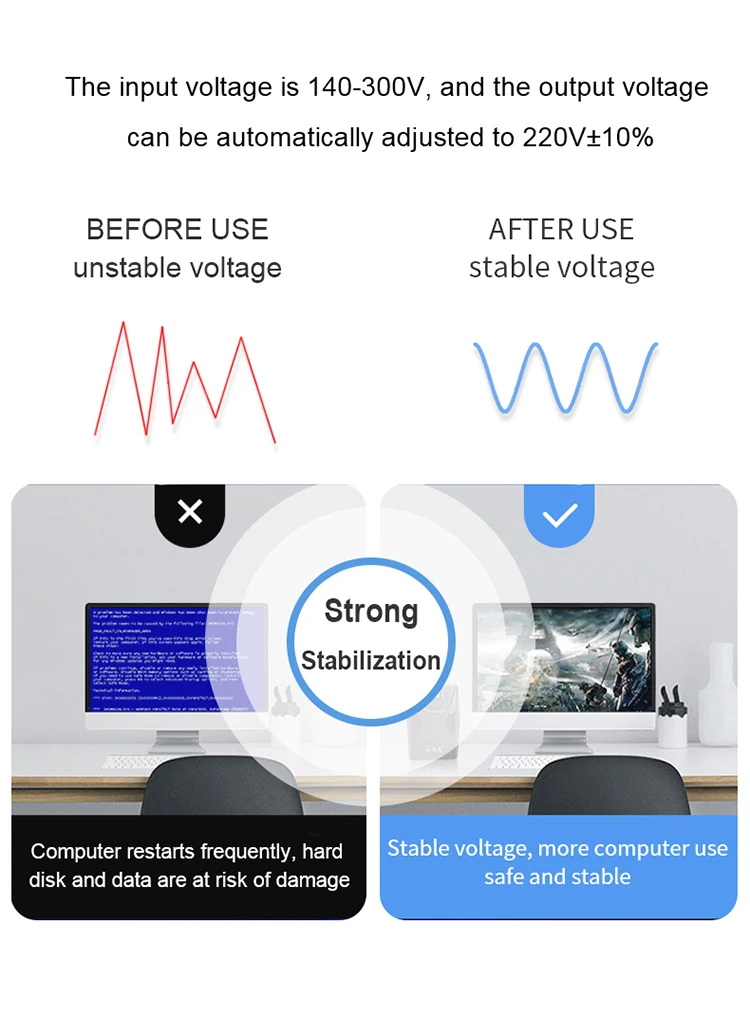

| Voltage Range | 140-290 VAC/140-300 VAC |
| Frequency Range | ≥40 Hz (auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 220VAC/230VAC±10% |
| Frequency Range (Batt. Mode) | 50Hz ±1Hz or 60Hz±1Hz |
| Transfer Time | Typical 4-8 ms, 13ms max |
| Waveform (AC. Mode) | Sine Wave |
| Waveform (Batt. Mode) | Simulated Sine Wave |
| BATTERY | |
| Battery Type & Number | 12v9ah*4 |
| Maximum Charge Current | 2.0A |
| Typical Recharge Time | 6-8 hours up to 90% capacity |
| INDICATORS | |
| LCD Display |  |
| ALARM | |
| Battery Mode | Sounding every 10 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding every 0.5 second |
| Fault | Continuously sounding |
| PROTECTION | |
| Full Protection | Short circuit, Overload, overcharge and over discharge protection |
| PHYSICAL | |
| Dimension | 345 x 148 x 230 |
| Net Weight (kgs) | 20 |
| ENVIRONMENT | |
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 45dB(1m spacing) |
| MANAGEMENT | |
| Communication Port | For cholce(USB&RJ45) |
| * Product specifications are subject to change without further notice | |
Our Services
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.

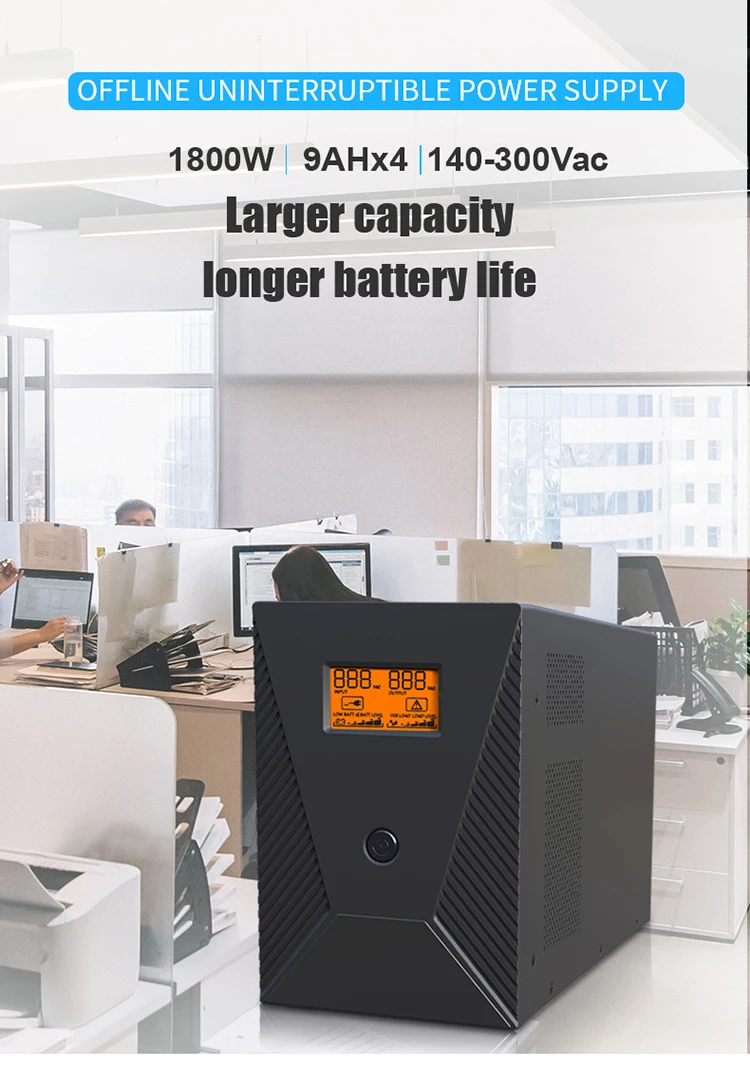

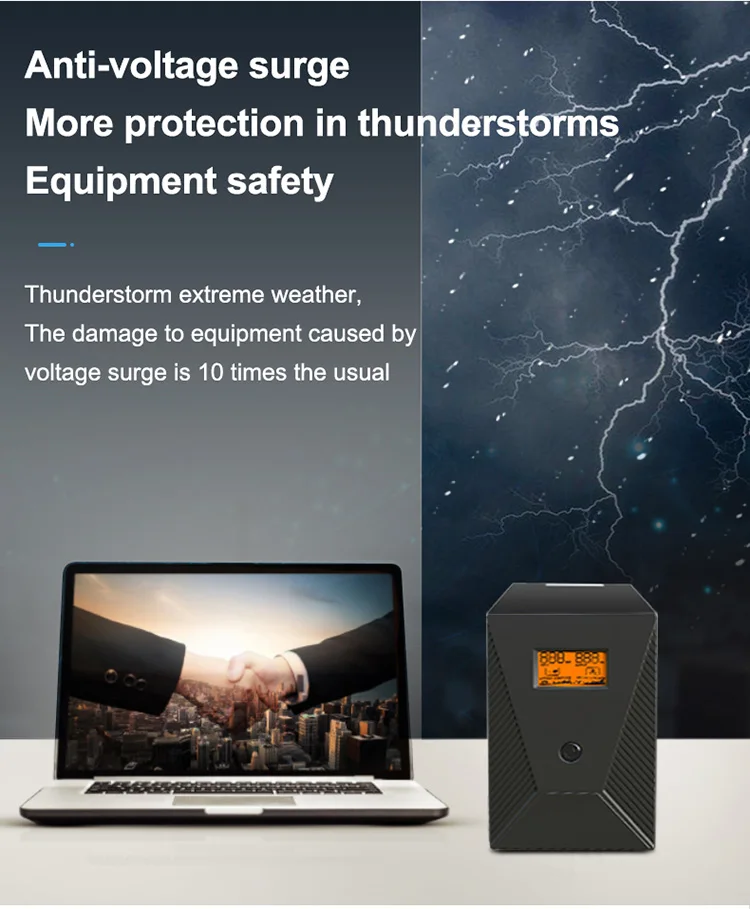

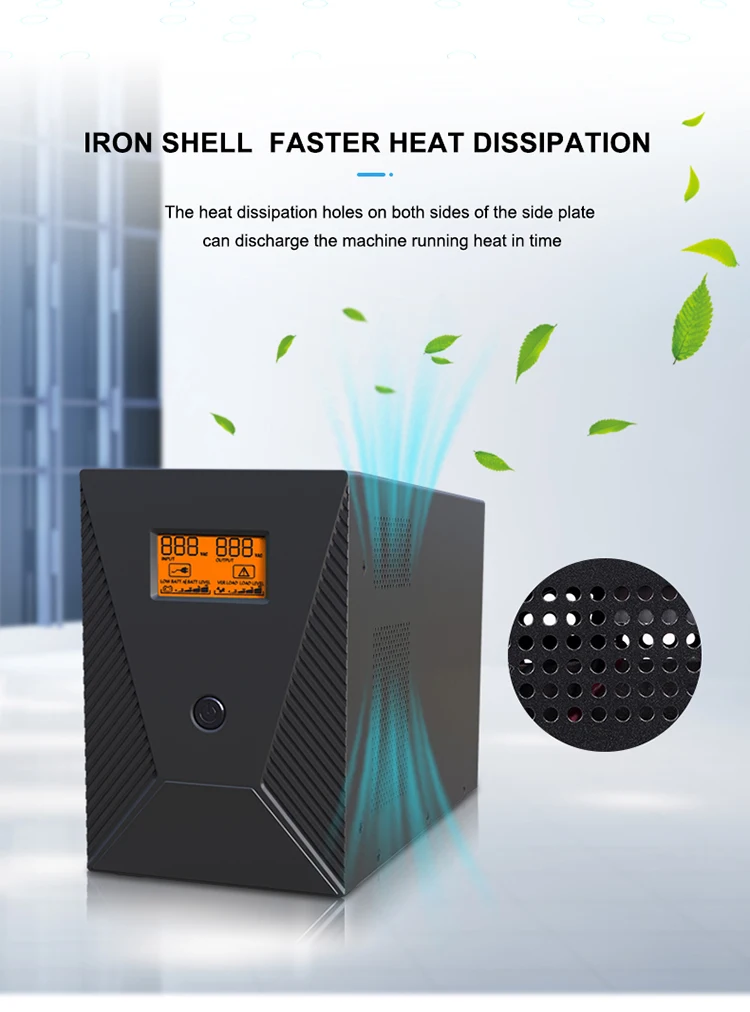

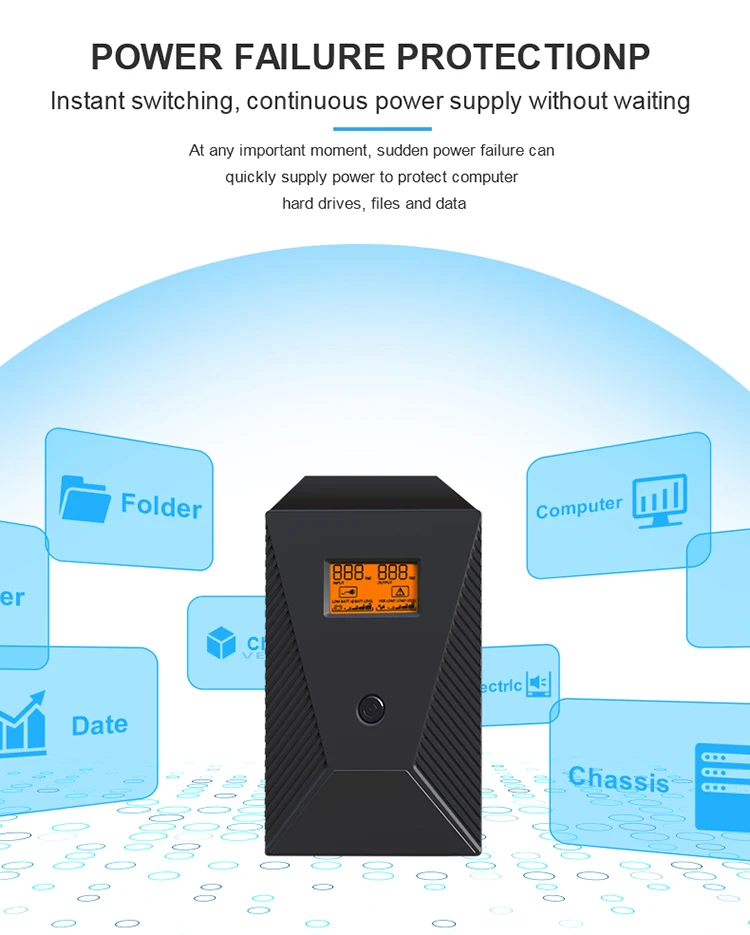

Detailed Images
Exhibitions
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,and so on
Our products could pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 10-30days.
Note:Actual freight is subject to order, Please contact us before payment.
