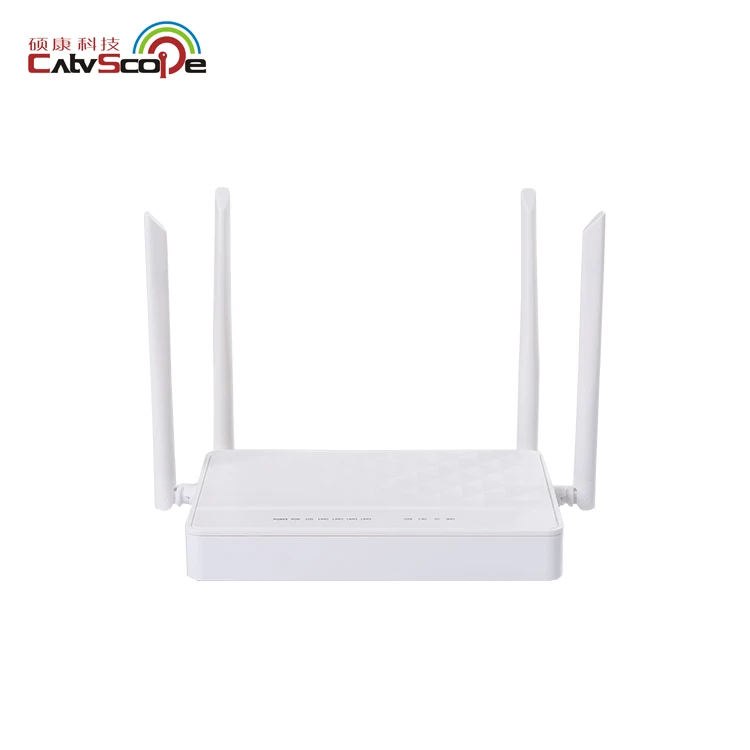

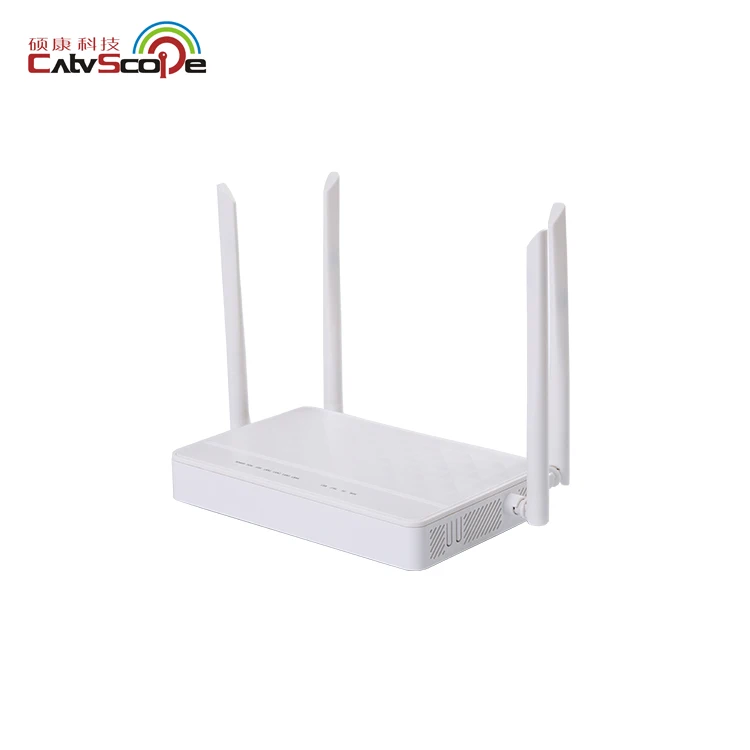

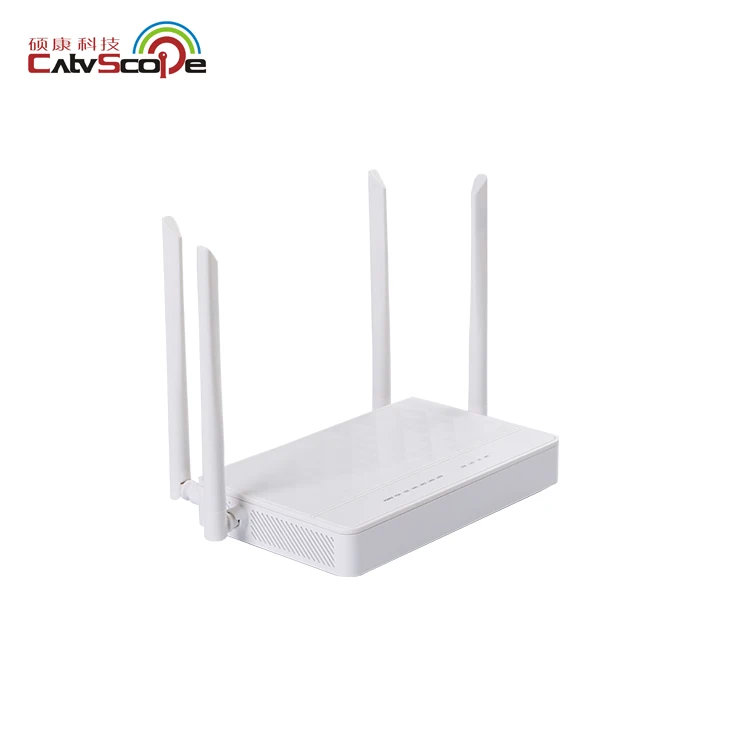

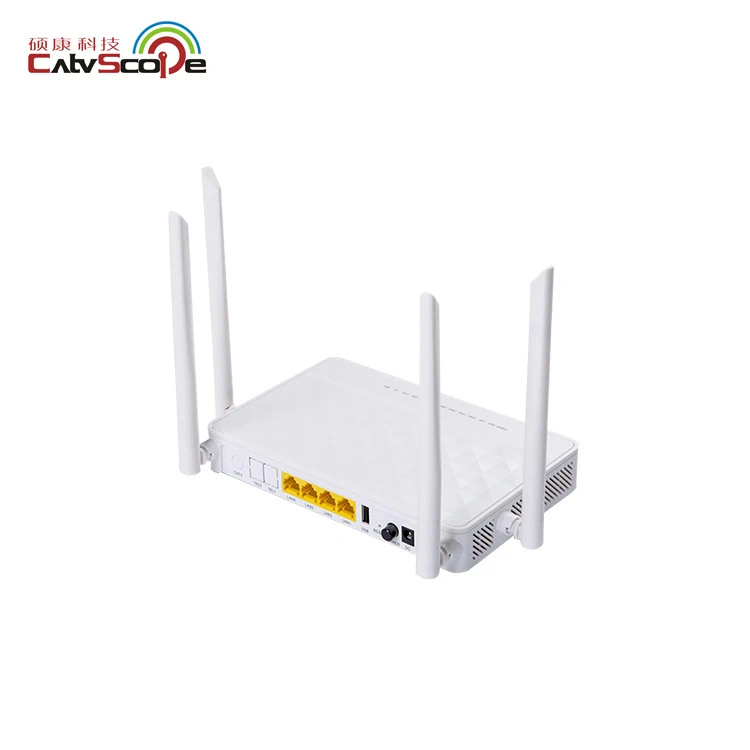

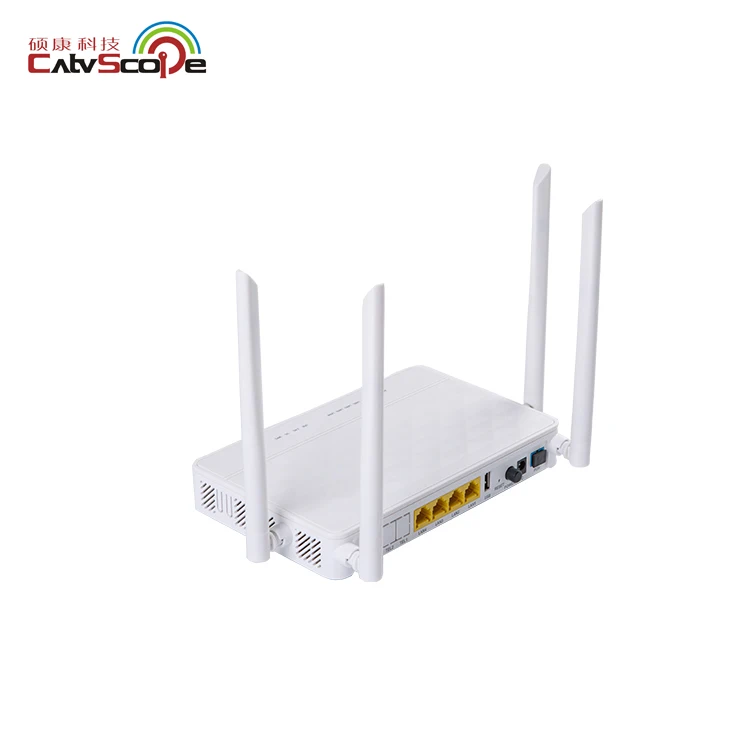

Dual Band gpon wifi router gepon customized ports 5dBi 4 antennas onu ac ftth xpon wifi router xpon gepon onu
- Category: >>>
- Supplier: HANGZHOU SCOPE TECHNOLOGY CO. LTD.
Share on (1600153596243):
Product Overview
Description
HOT SALE
Product Description

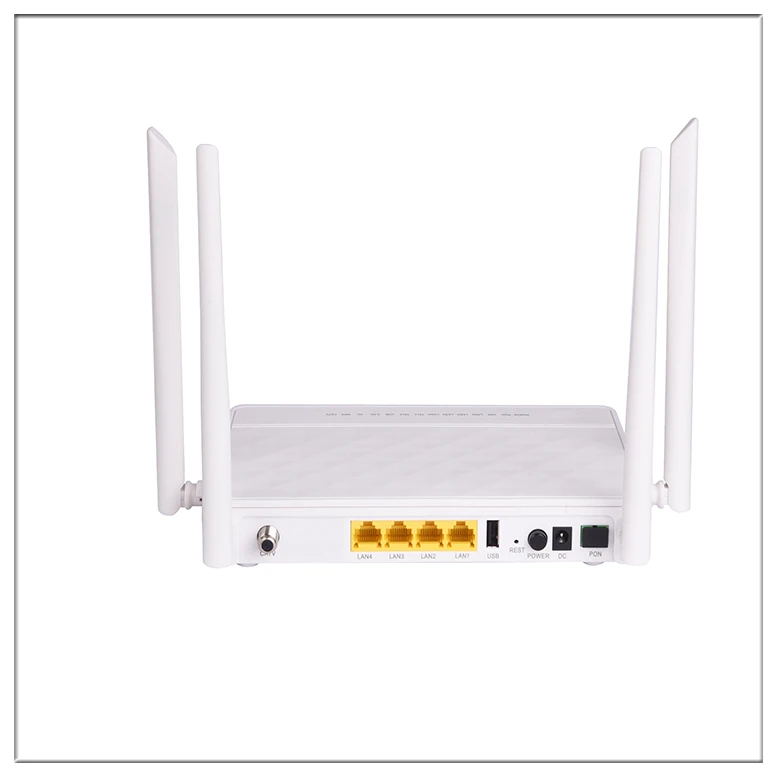

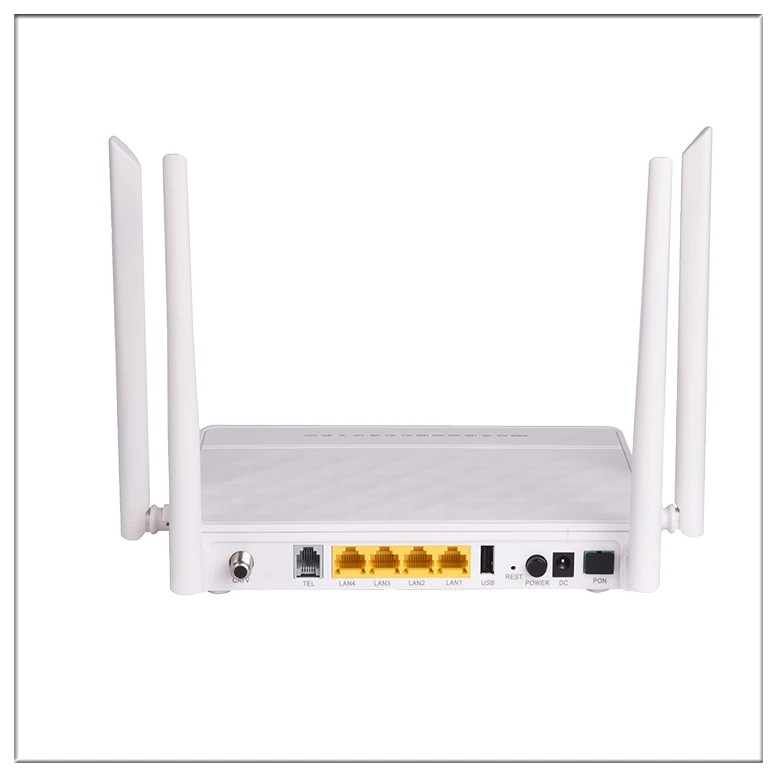

CSP-4411XW-5Gmodel ONU is a user terminal device independently developed by CATVSCOPE in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.CSP-4411XW-5G is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.
Features
* Support EPON/GPON mode and switch mode automatically
* GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
* GPON:8 T-CONTs,32 GEM Ports
* Integrate OMCI(GPON)/OAM(EPON)and TR-069 remote configuration and maintenance
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP
* Bi-directional FEC
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling
* Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 8GHz Wireless interface，,2T2Rexternal antenna,
support multiple SSID Settings
* SupportDDSN, ALG, DMZ and UPNP
* Support CATV interface for Video Service，support to turn off CATV functionality
* GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
* GPON:8 T-CONTs,32 GEM Ports
* Integrate OMCI(GPON)/OAM(EPON)and TR-069 remote configuration and maintenance
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP
* Bi-directional FEC
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling
* Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 8GHz Wireless interface，,2T2Rexternal antenna,
support multiple SSID Settings
* SupportDDSN, ALG, DMZ and UPNP
* Support CATV interface for Video Service，support to turn off CATV functionality
Specification
Hardware Specifications | ||
Size（L*W*H） | mm (L) *mm (W) *mm (H) | |
Optical signal access | 1*GPON/EPON | |
User interface | 4GE+2.4G/5.8G WLAN+1USB | |
Indicator light | POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、USB、2.4G、5G、WPS | |
Button | Power switch Button, Reset Button, WLAN Button, WPS Button | |
Weight | 300g | |
Power adapter input | 100V～240V AC，50Hz～60Hz | |
PowerSupply requirement | 12V DC，1.5A | |
Power consumption | <10w | |
Working temperature | -10°C ~ +45°C | |
Environment humidity | 5% ~ 95% (Non-condensing) | |
PON Interface | ||
Module type | SC/UPC | |
Working wavelength | PON：up 1310nm，down 1490nm | |
TX Optical power value | 0.5～4dBm | |
RX Optical power value | Receiver sensitivity：-27dBm | |
Transmission distance | 0～20km | |
Transmission rate | GPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps | |
Ethernet interface | ||
Interface type | 4*RJ45 | |
Interface parameters | 4*10/100/1000Mbps auto adaptive Ethernet interfaces | |
Wireless | ||
Working mode | IEEE 802.11 b/g/n/AC | |
Antenna pattern | External 2*2T2R External antenna | |
Antenna gain | 5dBi | |
Wireless bandwidth | Support 20MHz/40MHz/80MHz | |
Interface rate | 2.4G WLAN：Maximum rate 300Mbps 5.8G WLAN：Maximum rate 866Mbps | |
SSID | Up to 4 SSID broadcasts are supported | |
POTS interface | ||
Interface type | 2* RJ11 | |
Voice agreement | SIP | |
Codecs | G.711/G.723/G.726/G.729 | |
Integrated circuit protocol | Gr-909 protocol is applicable | |
CATV Interface | ||
Optical receiving wavelength | 1550±10nm | |
Optical reflection loss | ≥45dBm | |
RF, WDM, optical power | +2~-15dBm | |
RF frequency range | 47~1000MHz, RF output impedance: 75Ω | |
RF output level | 78dBuV | |
AGC range | 0~-12dBm | |
MER | ≥32dB@-15dBm | |
