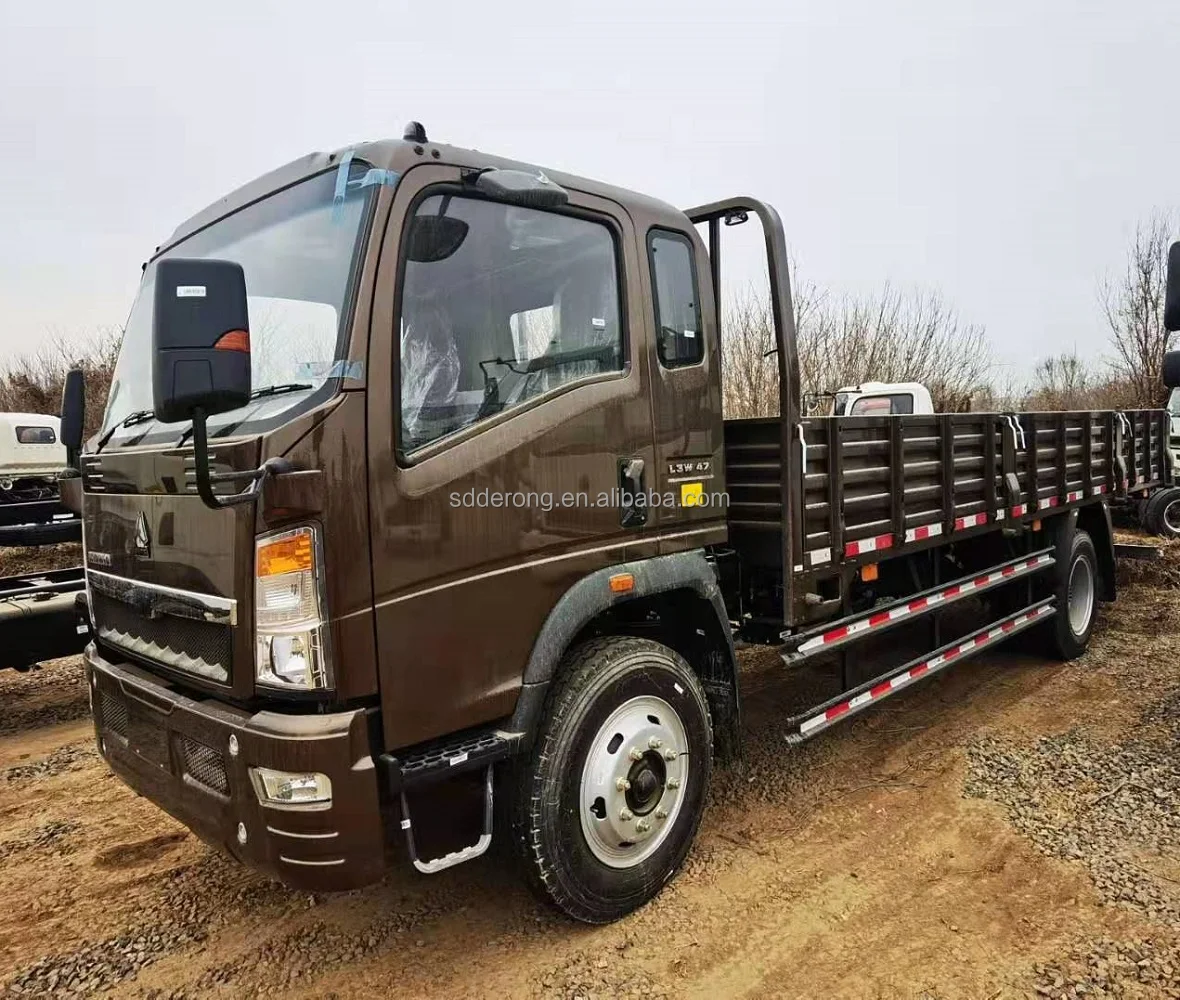

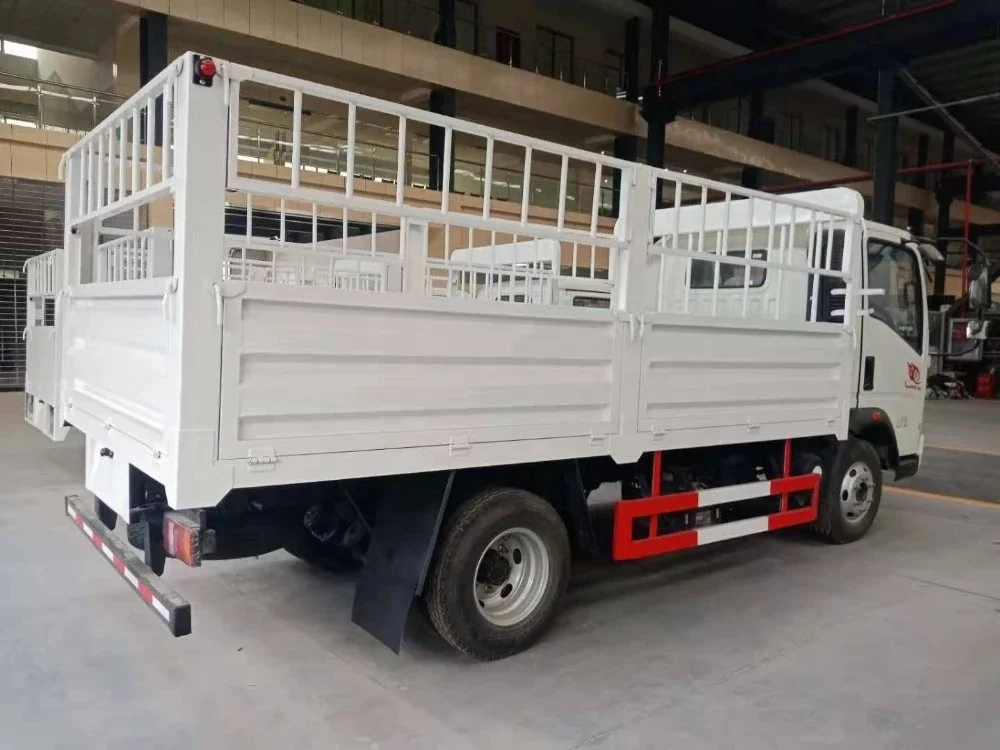

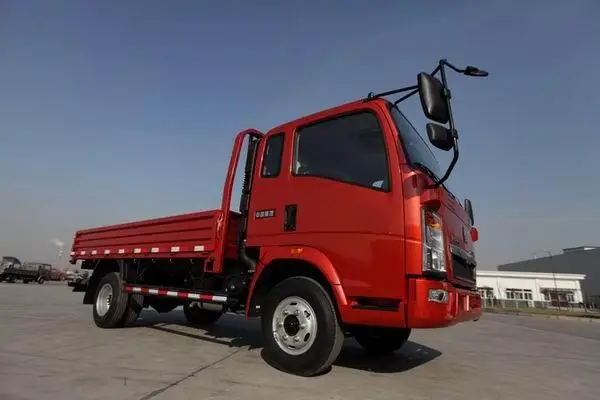

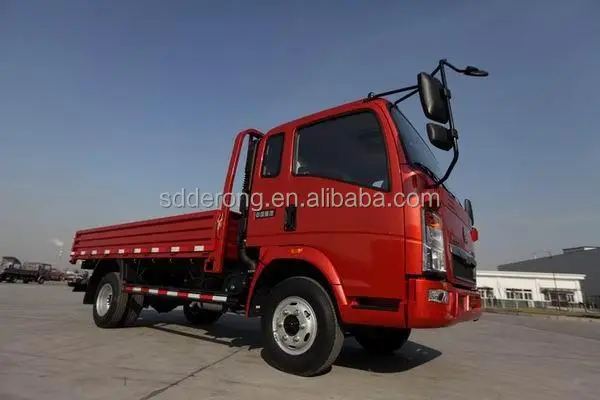

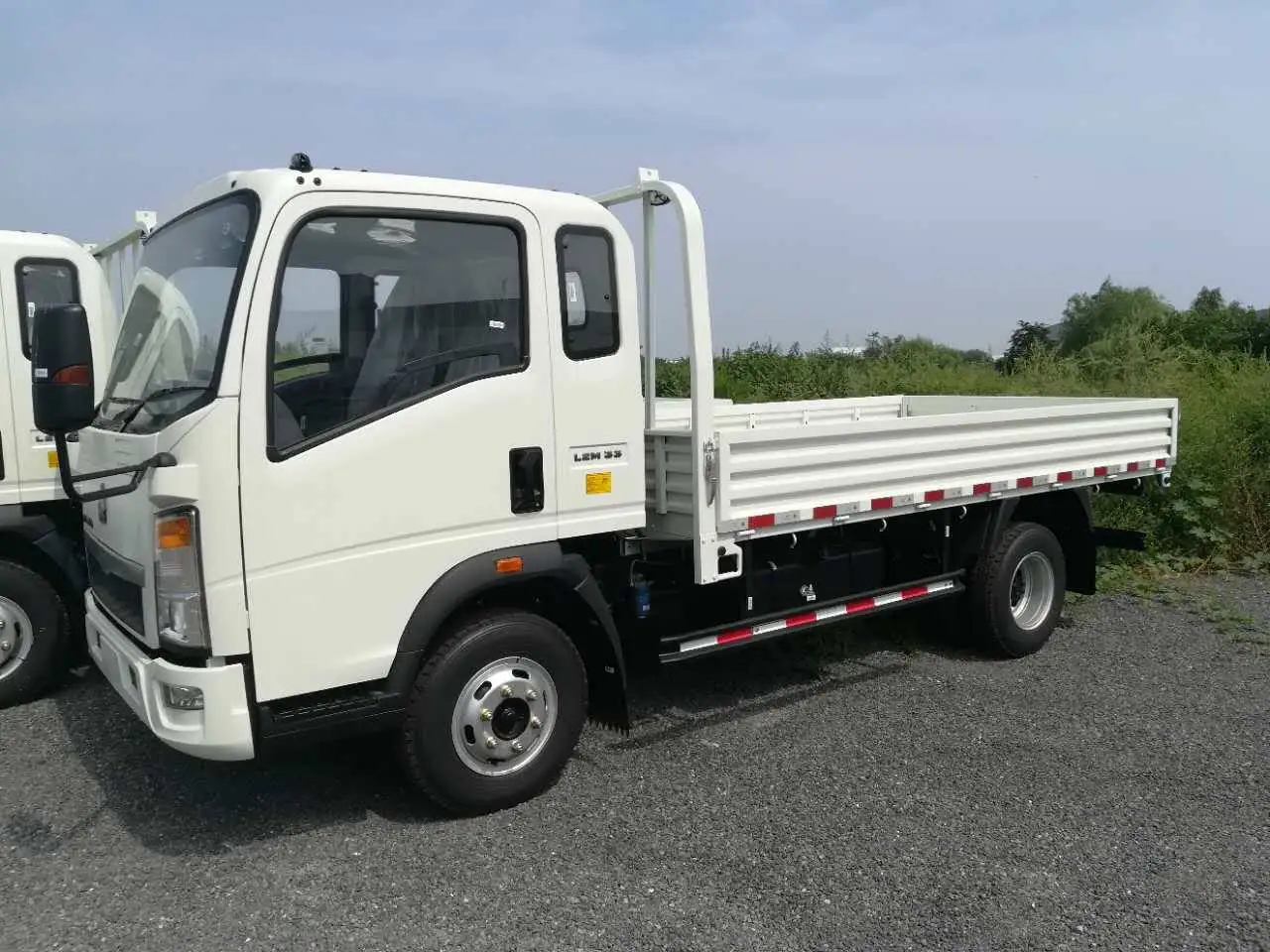

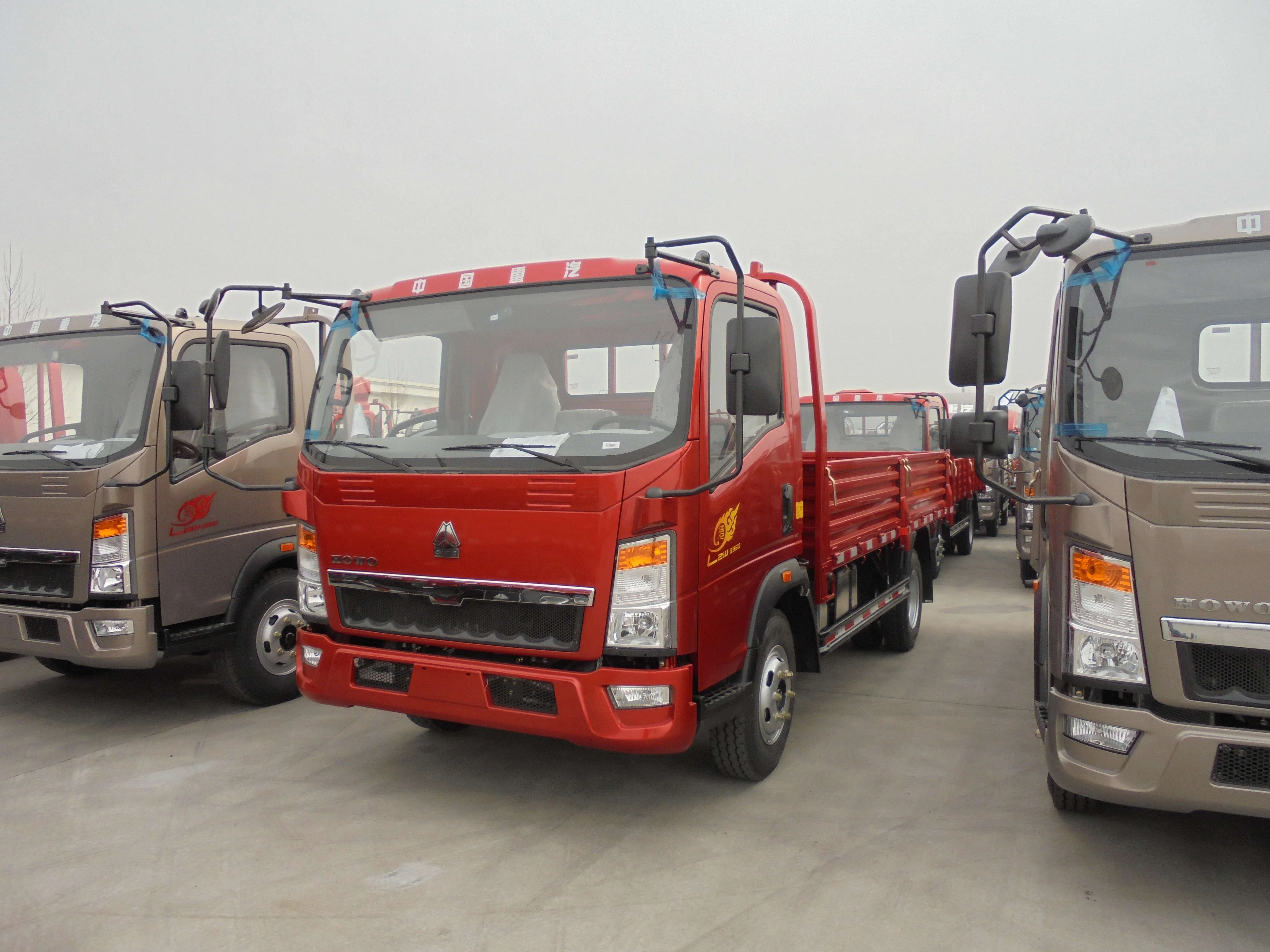

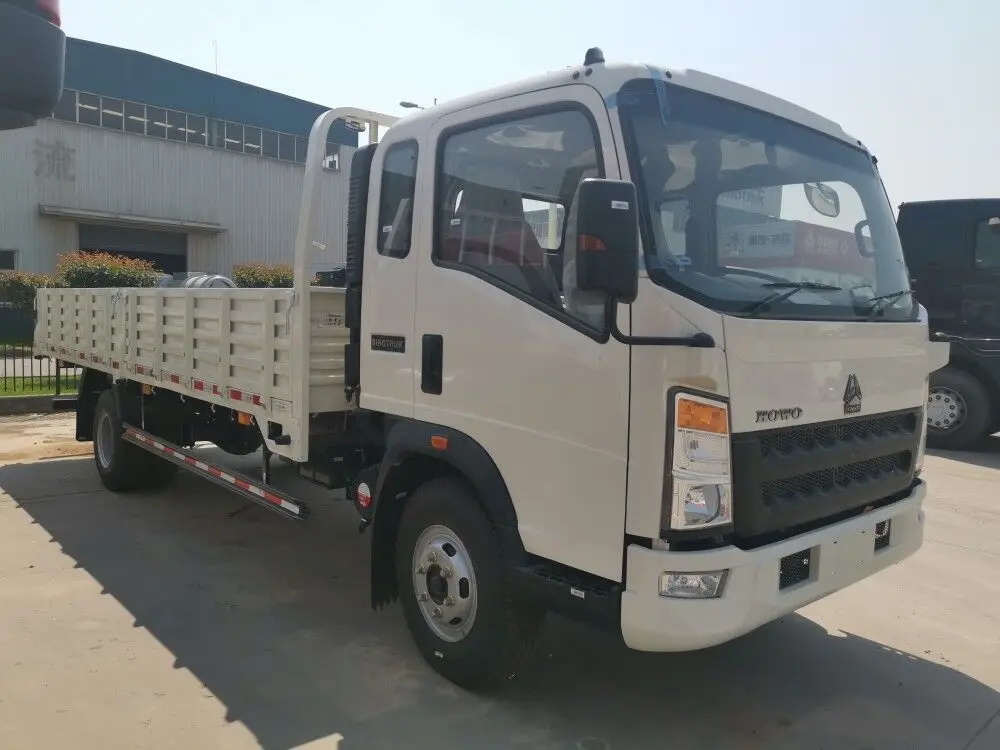

10 15 ton Sinotruk HOWO 160HP 4x2 Fence cargo truck for sale
- Category: >>>
- Supplier: Shandong Derong Auto Sales Company Limited
Share on (1600154015608):
Product Overview
Description
Products Description

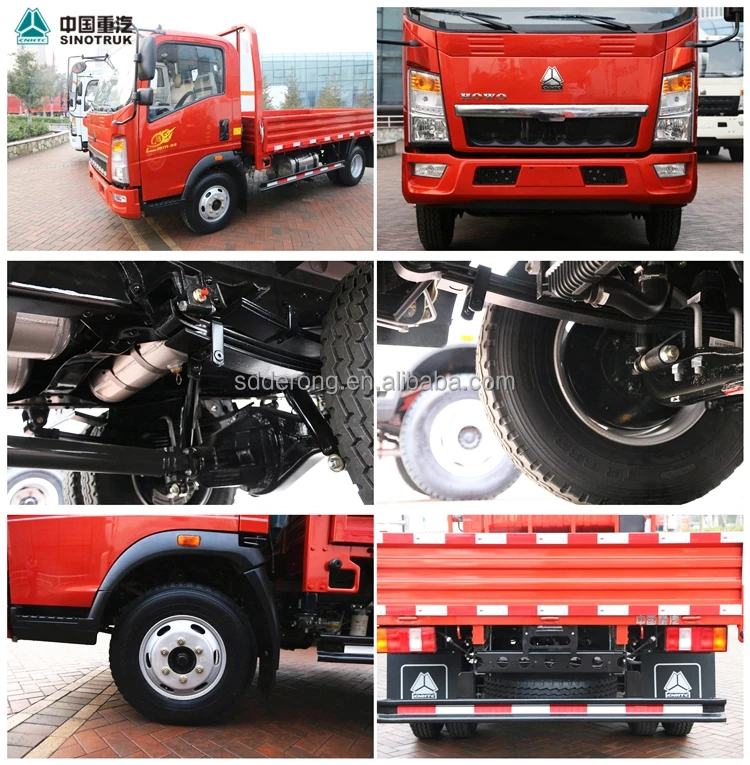

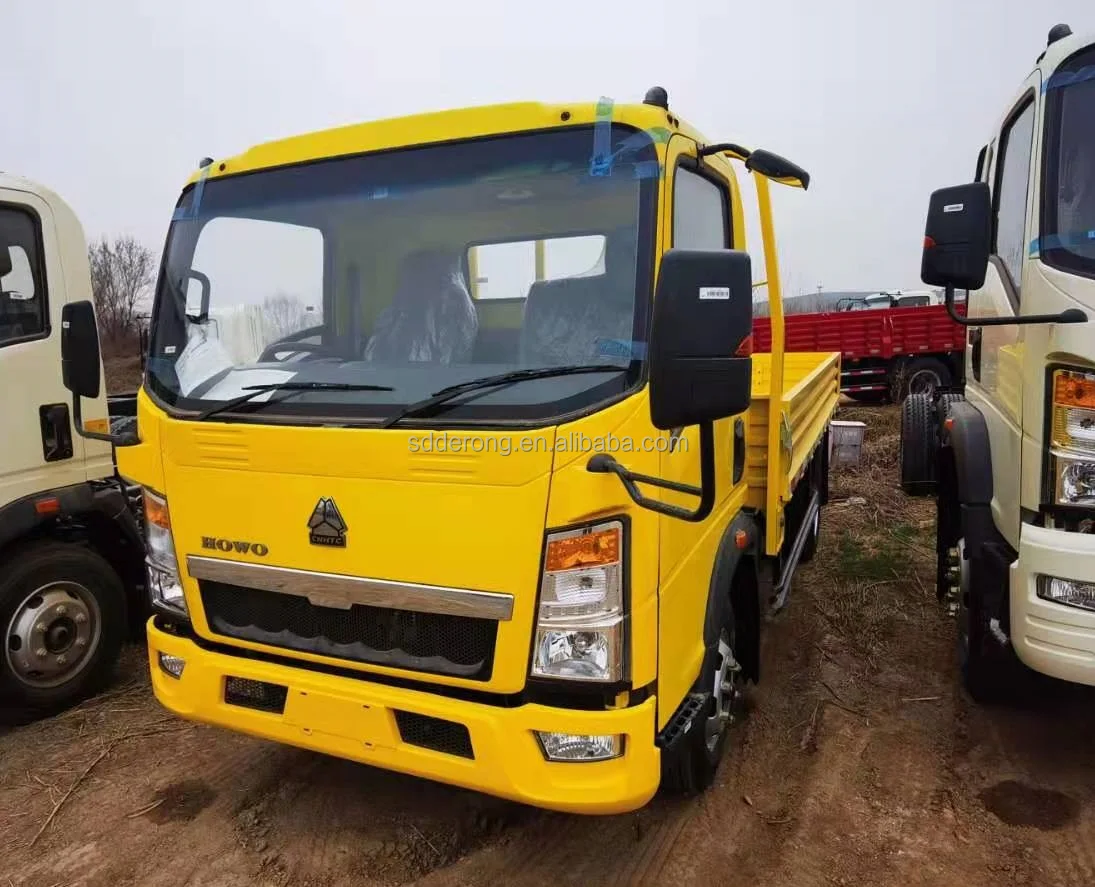

Sinotruk HOWO 10-15ton 160HP 4x2 Cargo Truck
Sinotruk Howo Products Advantages:
1. Found in 1956, China’s first heavy duty truck manufacturer
2. With national-level corporate R&D technology centers
3. With Chinese biggest manufacturing base of trucks
4. Export volume ranks first place for 15 years
5. Cooperate with world well-known truck companies: German Man, Sweden Volvo, Austria Steyr,
6. Cooperate with 10+ world famous parts suppliers: German ZF, Bosch, Voith, US WABCO, BorgWarner, France Valeo, Janpan Denso, etc
1. Found in 1956, China’s first heavy duty truck manufacturer
2. With national-level corporate R&D technology centers
3. With Chinese biggest manufacturing base of trucks
4. Export volume ranks first place for 15 years
5. Cooperate with world well-known truck companies: German Man, Sweden Volvo, Austria Steyr,
6. Cooperate with 10+ world famous parts suppliers: German ZF, Bosch, Voith, US WABCO, BorgWarner, France Valeo, Janpan Denso, etc

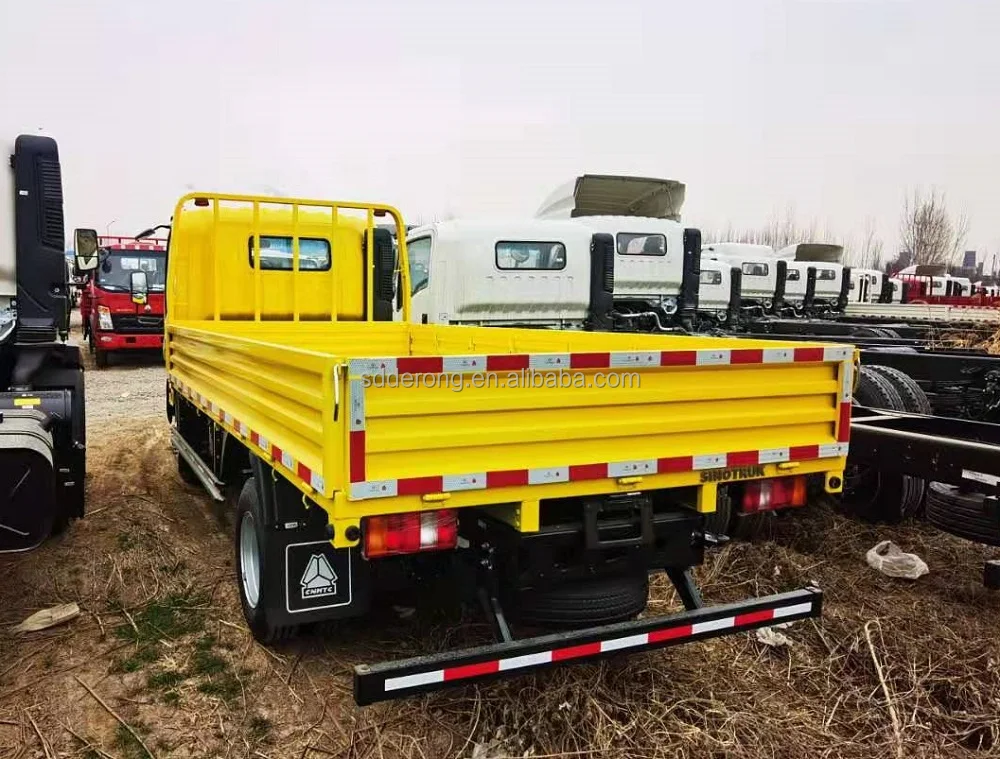

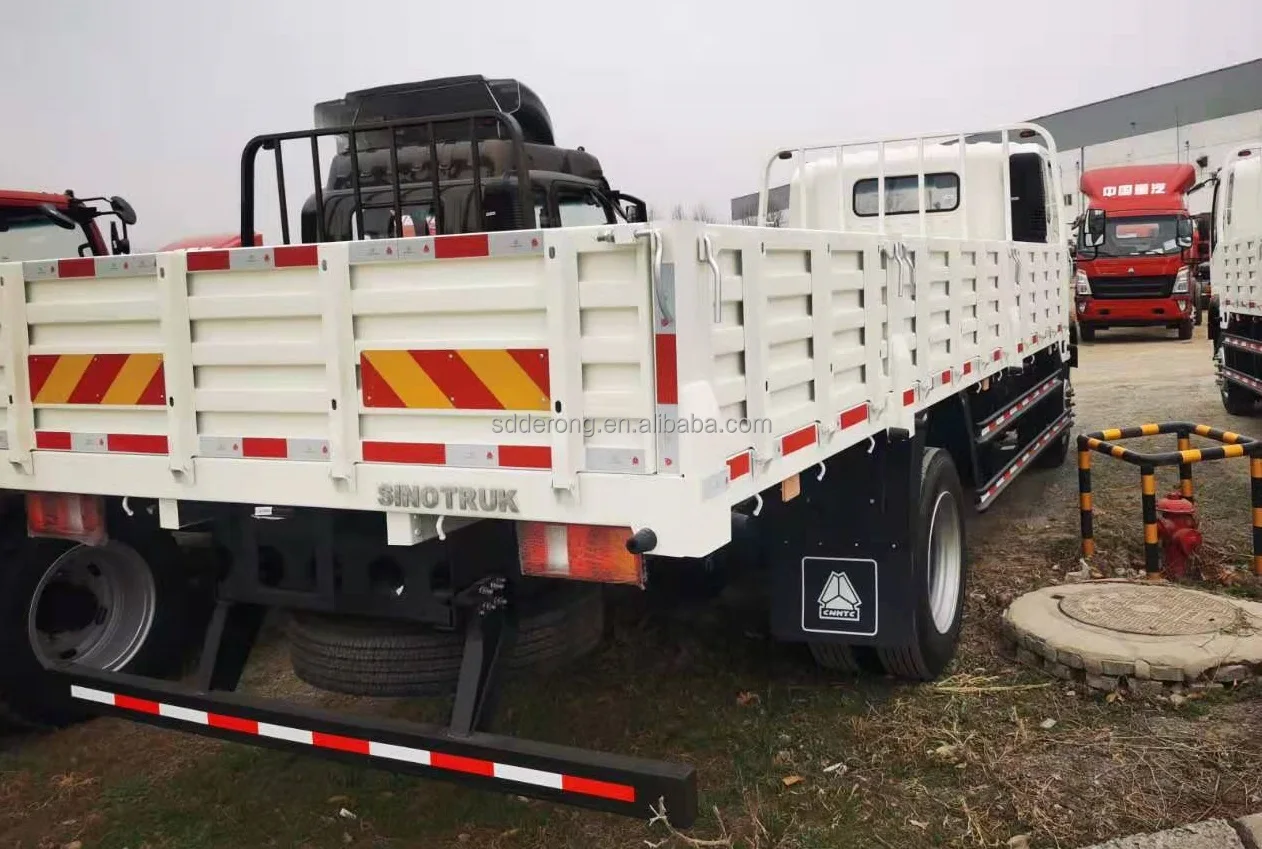

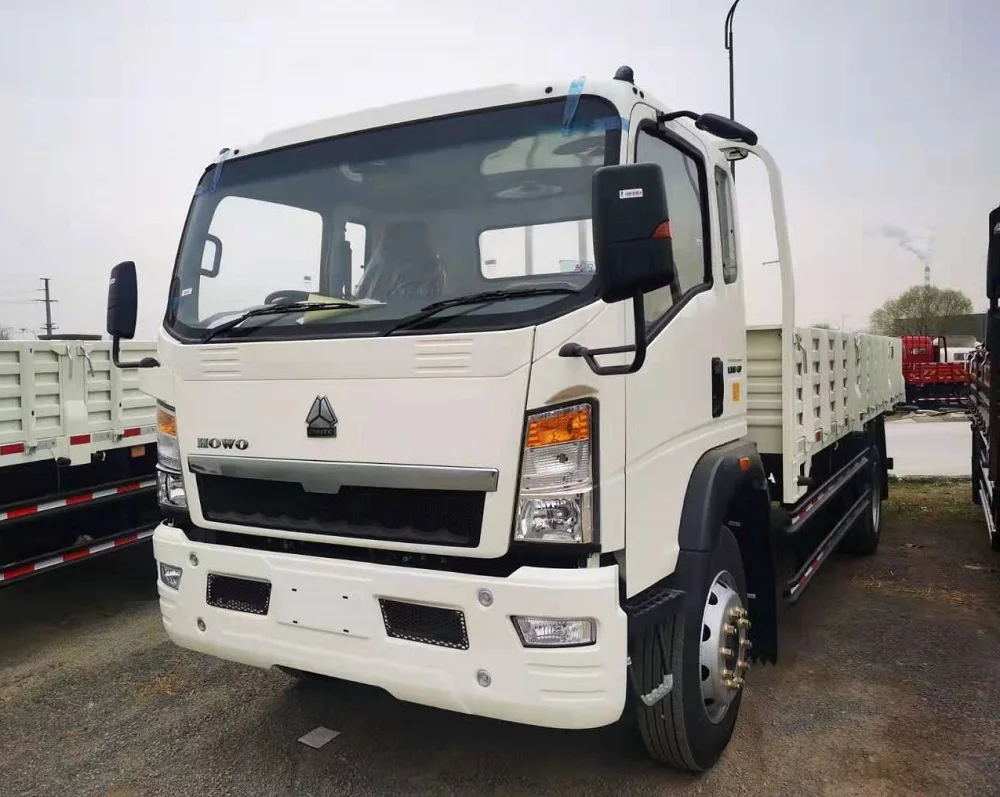

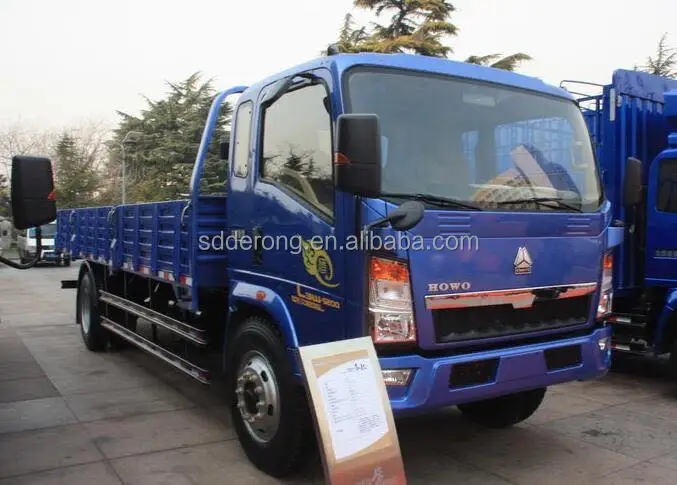

HOWO Light-duty Cargo Truck
Types:
Different box---Van, Fence, Stake, Cage, Wing open, etc
Horse Power---102HP, 110HP, 141HP, 154HP, 160HP
Wheelbase---- 2800, 3360, 3800, 4200, 4500, 4700, 5200
Loading Capacity---- 4-16ton
Drive: 4x2, 4x4
(Regarding of Heavy-duty truck, 6x4, 8x4, contact me for detailers)
Different box---Van, Fence, Stake, Cage, Wing open, etc
Horse Power---102HP, 110HP, 141HP, 154HP, 160HP
Wheelbase---- 2800, 3360, 3800, 4200, 4500, 4700, 5200
Loading Capacity---- 4-16ton
Drive: 4x2, 4x4
(Regarding of Heavy-duty truck, 6x4, 8x4, contact me for detailers)
Specification Of Howo Light-duty Cargo Truck
One model, Just for reference. For all cargo truck models

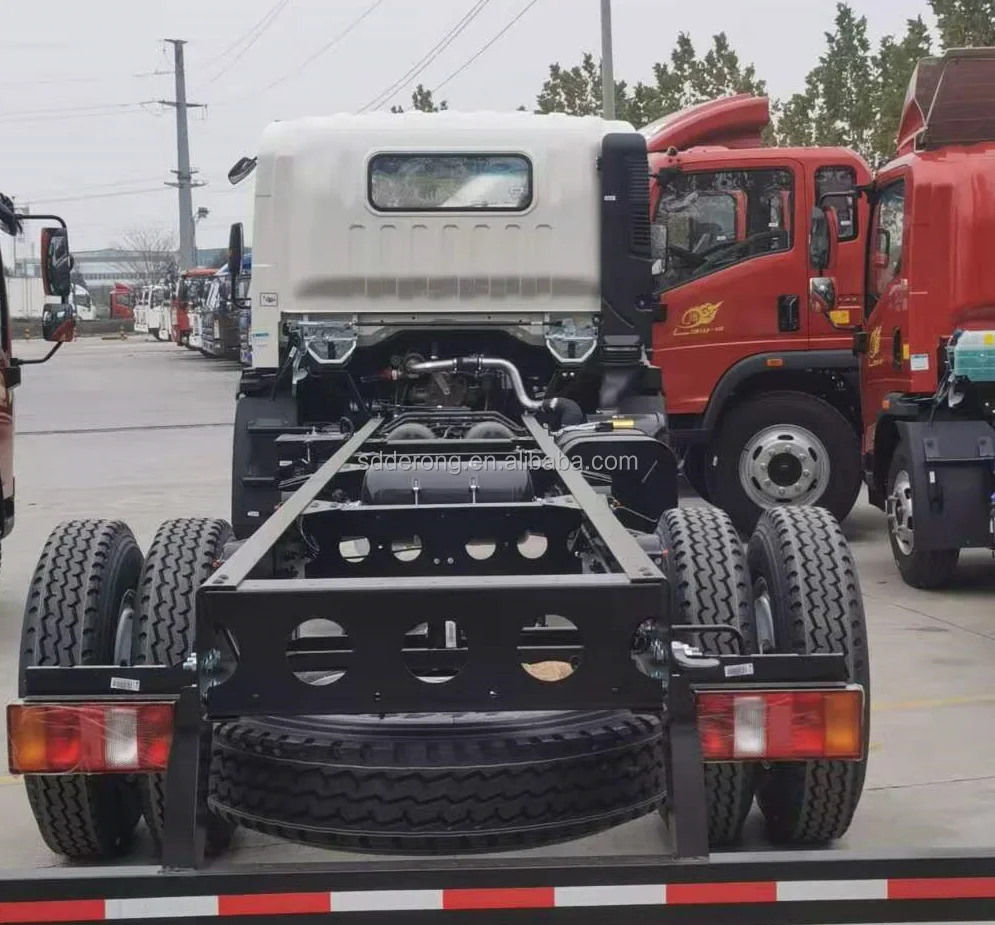

Chassis Model | ZZ1127G4715C1 | ZZ1127G5215C1 | |
Driving Type | 4x2, LHD or RHD | ||

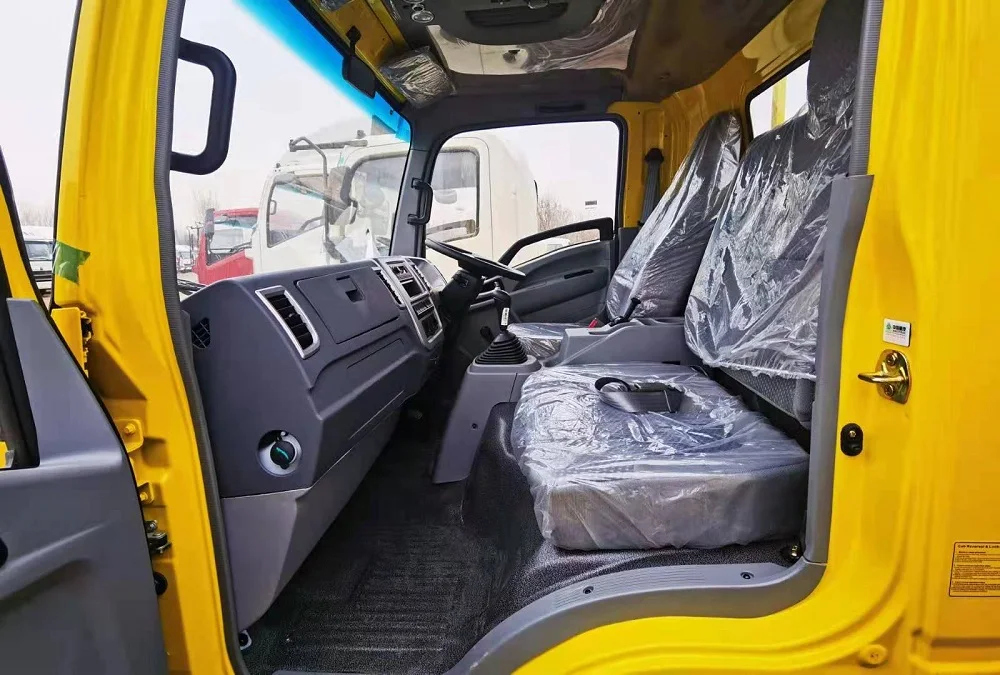

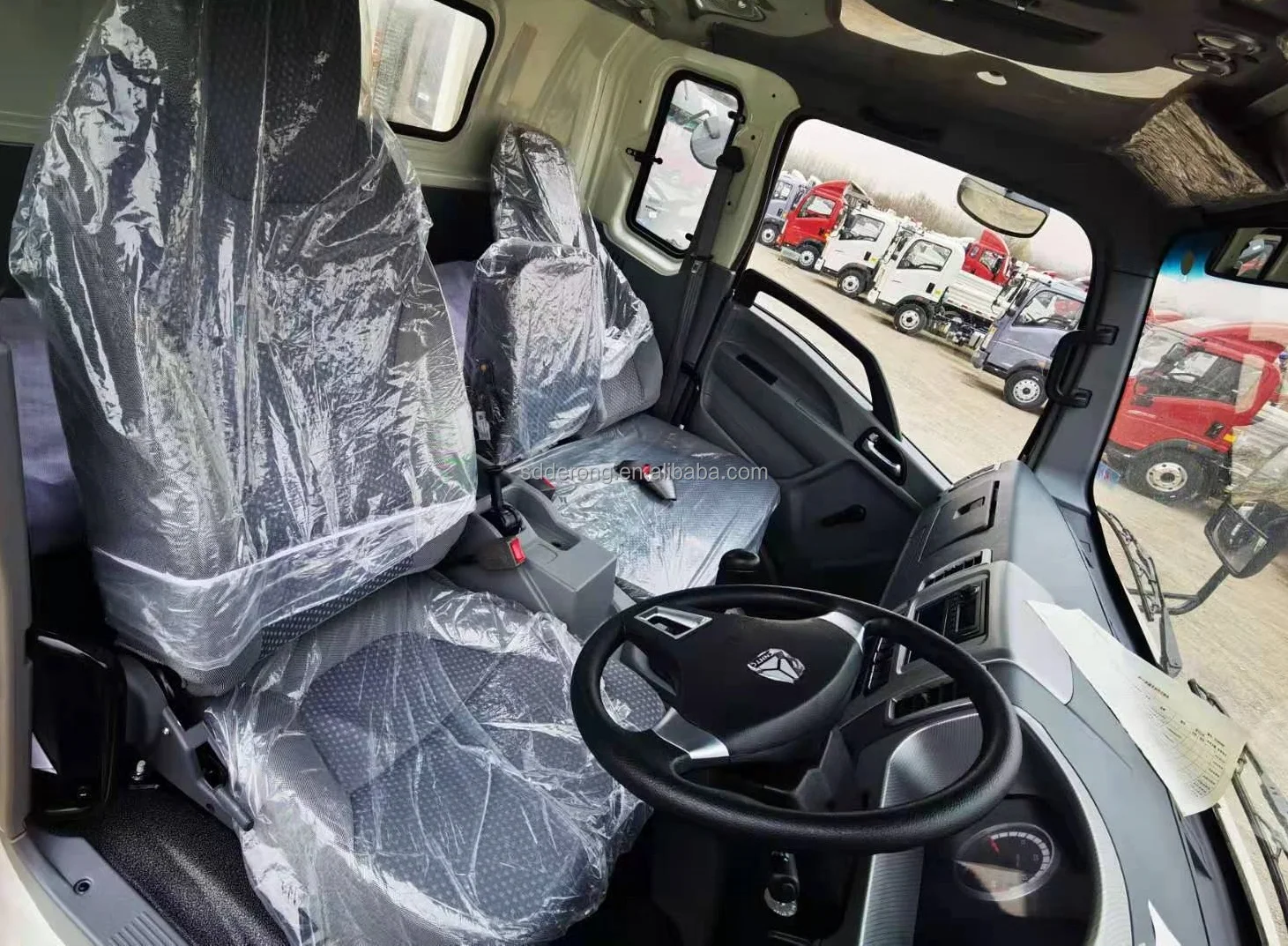

Cabin | 2080, with one berth, two seats and A/C | ||

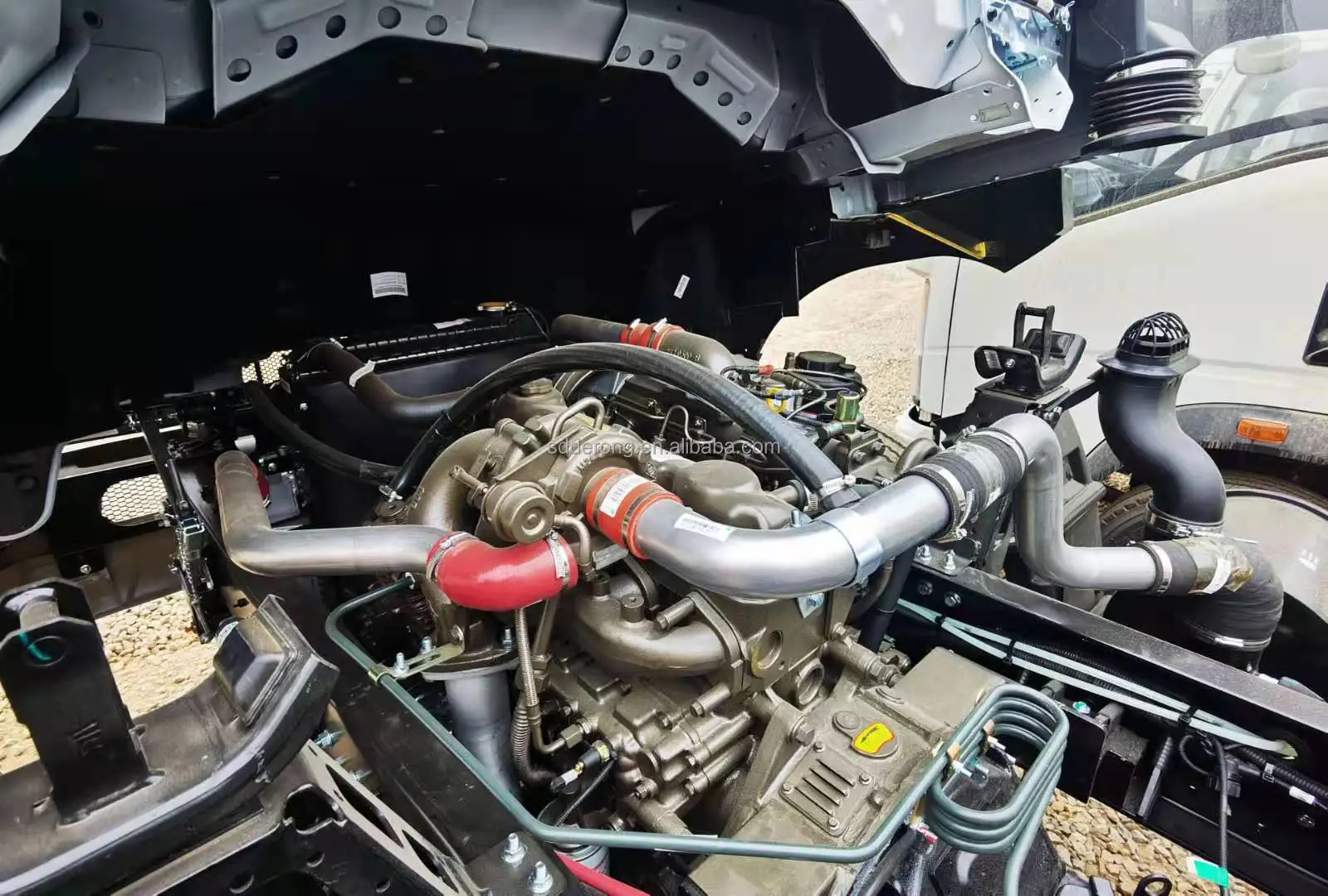

Maker | YC4110, 140HP/160HP, 4.257L | ||
Type | 4 Cylinders inline,4 Strokes direct Injection diesel water colling, Intercooler turbocharged with PM inline pump | ||
Emission | Euro II | ||
Max Output | 160hp(118Kw) @2600 rpm | ||
Maximum torque: | 520Nm @ 1300~1700 rpm | ||
Displacement: | 4.257 L | ||
Compression ratio: | 17.5:1 | ||
Specific fuel consumption: | 210g/kWh | ||
Engine oil filling quantity: | 12L（CF-4 15W-40） | ||
Model | DC6J65TC, 6 forward and 1 reverse | ||
Ratio: | 6.719-4.031-2.303-1.443-1-0.74; 6.122(R) | ||
Transmission oil filling quantity: | 7.5L（GL-4 85W/90） | ||
Propeller Shaft | Double universal joint propeller shaft | ||
Front Axle | 3600KGS, drum | 3600 KGS | |
Rear Axle | 8000KGS/10500KGS, drum, Ration:6.5 | 8200 KGS | |
Suspension | 9/12+9 | ||
Oil Tanker | 220L fuel tank with locking fuel cap | ||
Rims | 7.00T-20, 10 hole-steel, | ||
Tyres | 8.00R20, 9.00R20, 10.00R20 | ||
Wheelbase | 4700 | ||
Front Overhang | 1240 | ||
Rear Overhang | 2505 | ||
Approach/Departure Angle(°) | 27/16 | ||
Cargo Body Size | 6250×2300×550(mm) | ||
Overall Dimention | 8445×2330×2650(mm) | ||
Design loading capacity on chassis | 7490 | ||
Curb | 4355 | ||
GVW | 11845 | ||
Maximum driving speed(km/h) | 95 | ||
Maximum gradeablility (%) | 23 | ||
Minimum ground clearance(mm) | 240 | ||
Minimum turning circle(m) | 11 | ||
Why Choose Us

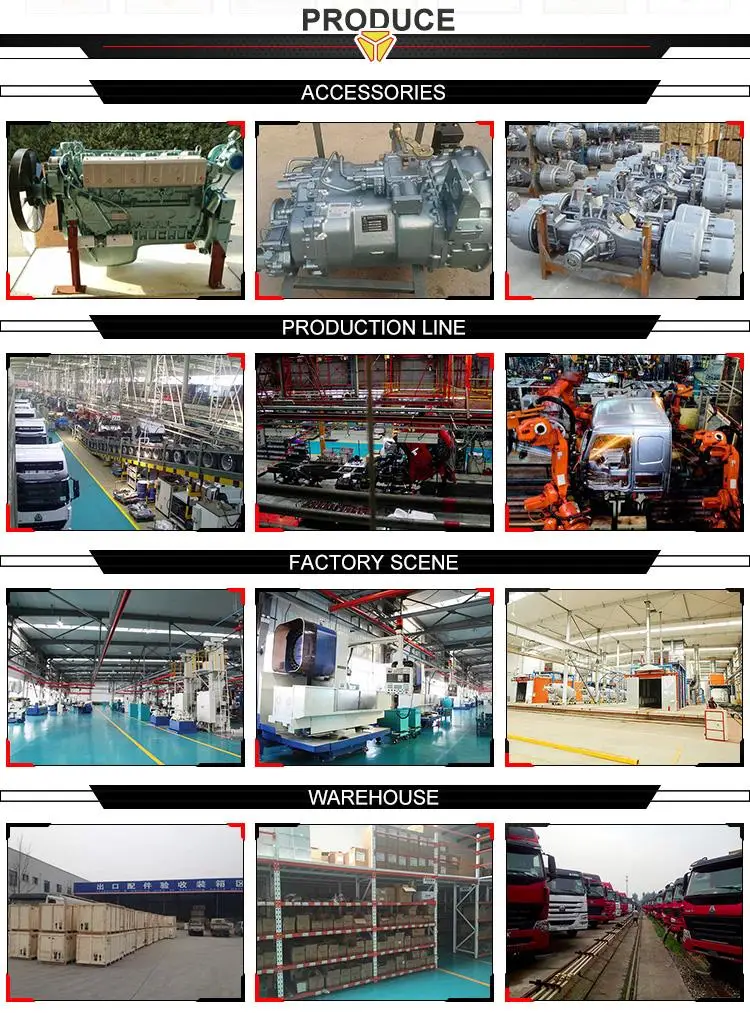

Factory Advantages

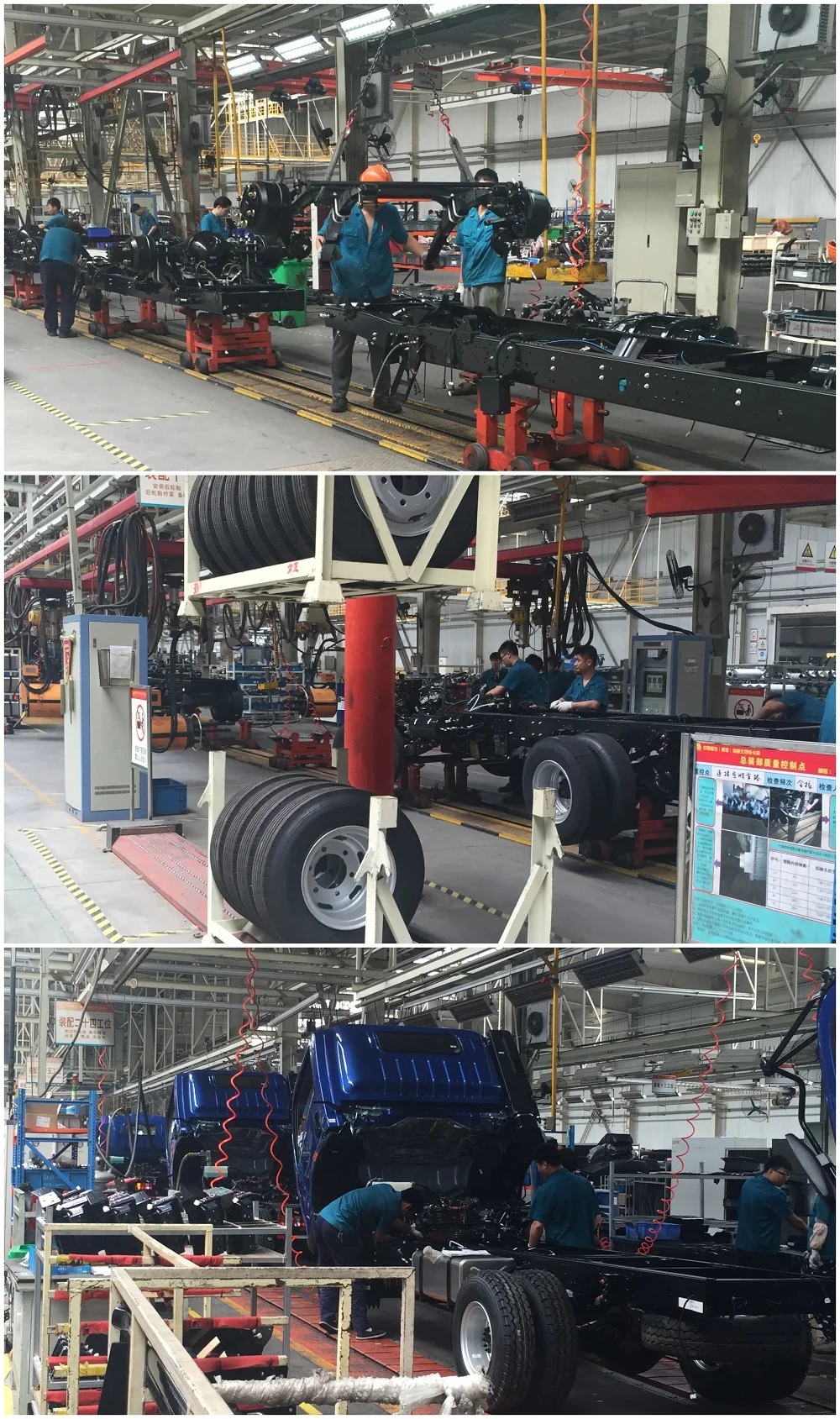

1. Largest manufacturing base, Complete production line, China exclusive National Level heavy-duty research center and quality
2. supervision&inspection center
3. Products cover heavy trucks, medium trucks, light trucks, special trucks and military trucks.
4. Cooperated with world well-known truck companies: Steyr, Volvo and Man.
2. supervision&inspection center
3. Products cover heavy trucks, medium trucks, light trucks, special trucks and military trucks.
4. Cooperated with world well-known truck companies: Steyr, Volvo and Man.

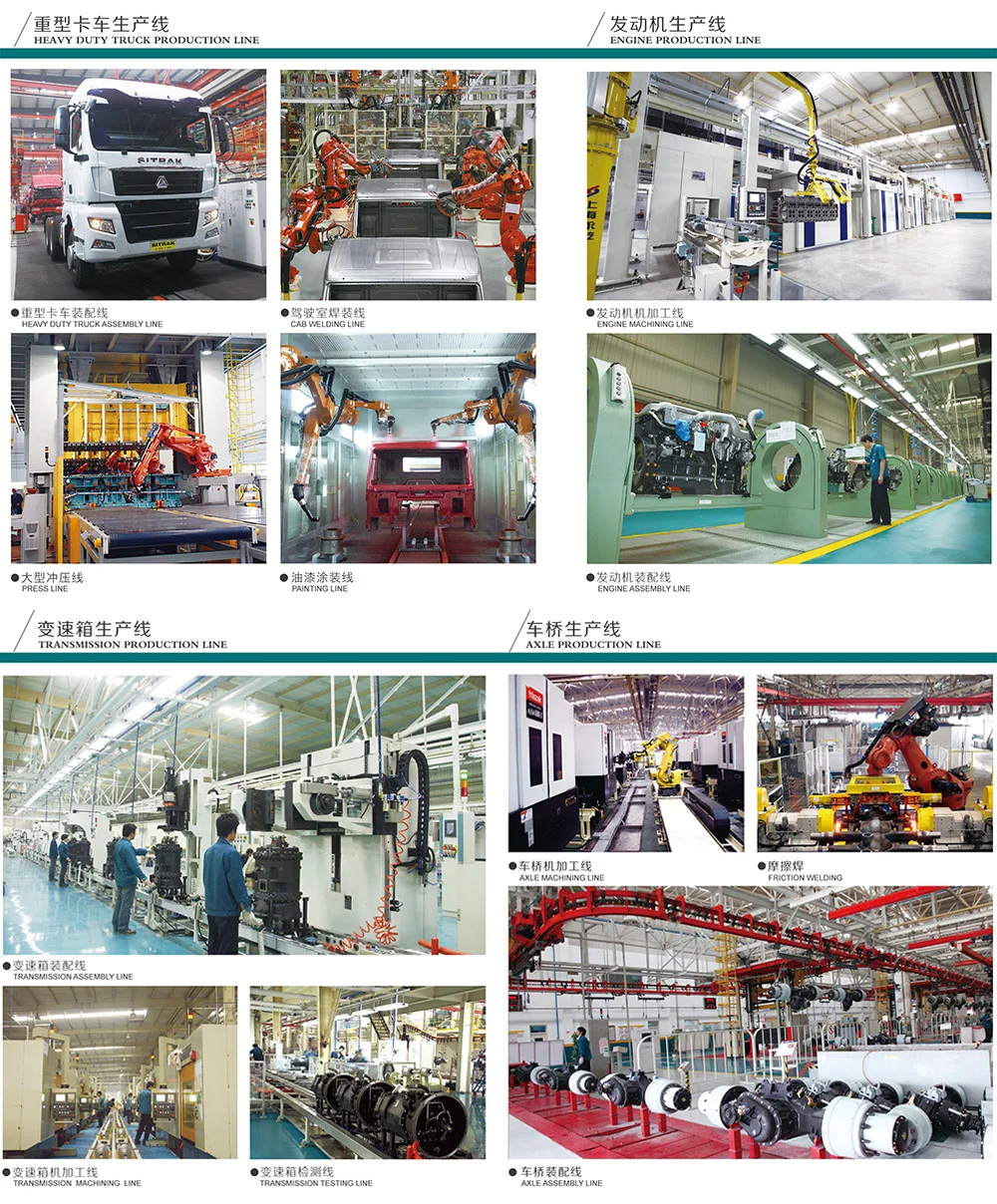

Complete, reliable, and stable supply chain
SINOTRUK's subsidiaries located in more than 10 provinces, with 4 heavy truck subsidiaries, its own 2 engine manufacturing factories, 2 transmission manufacturing subsidiaries, 1 axle manufacturing subsidiary, 6 special vehicle manufacturing
subsidiaries, and spare parts warehouse & logistics
subsidiaries, and spare parts warehouse & logistics
All satisfied service for customers
1. Customers from more than 110 countries, enjoying satisfied after-sale service, like training from guidance on site or online.
2. Visit customers every quarter or each year.
2. Visit customers every quarter or each year.
3. 230 distributors from 78 countries. 18 KD factories overseas.
Exhibitions Worldwidely
We participates many many fairs all over the world.
Certifications

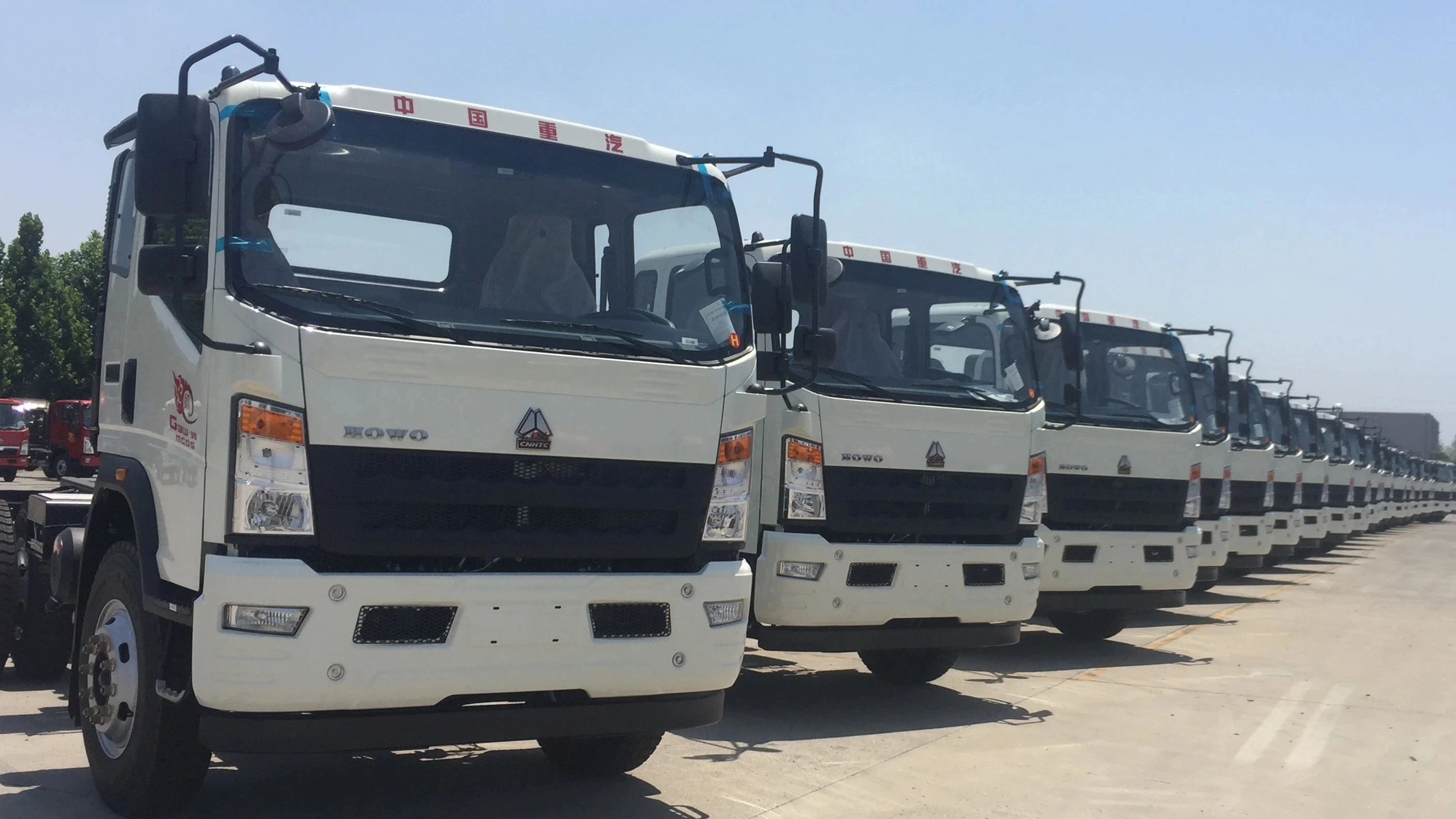

Delivery
Our hot selling SINOTRUK HOWO brand cargo truck, dump truck/tipper, tractor/towing truck have been exported to East Europe, Middle East, Africa, South America.
Shipping Method: Bulk cargo vessel; FR container; RORO; 40 foot Container
FAQ
Q. What is your terms of shipment?
A: Generally, we ship our truck by ro-ro ship, and bulk cargo vessel.
A: Generally, we ship our truck by ro-ro ship, and bulk cargo vessel.
A: Yes. But we need take apart the truck.You should reinstall in your country.
Q: How do you guarantee the product quality?
A: Our Factory is standard production workshop, with ISO CCC BV Certification, all workers are well trained and experienced. Each product undergoes a serious inspection process to ensure of 100% test before delivery.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
We can also supply other customized design anccording to requirement.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary, our experienced engineer can go abroad to your place for technical support.
Q: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade assurance, and the deposit will given to Alibaba.If we don’t delivery products on time, the deposit will return to you.
Q: What others we can do ?
A: Just contact me, let me know your demand, much suitable solution will be offered quickly.
Contact Us
Ms.Jennifer
Email: jennifer.z@cnhtc.biz
Mobile/Whatsapp/Wechat: +86 15069170913
Address: Panwang Road, Zhangqiu District, Jinan City, Shandong Province, China
