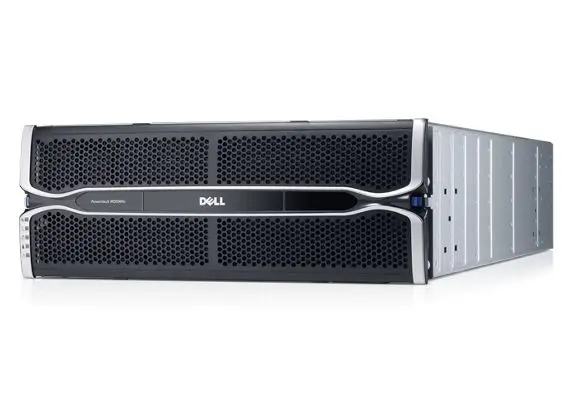

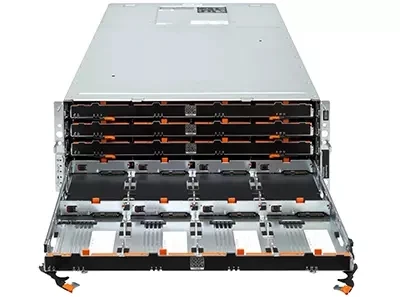

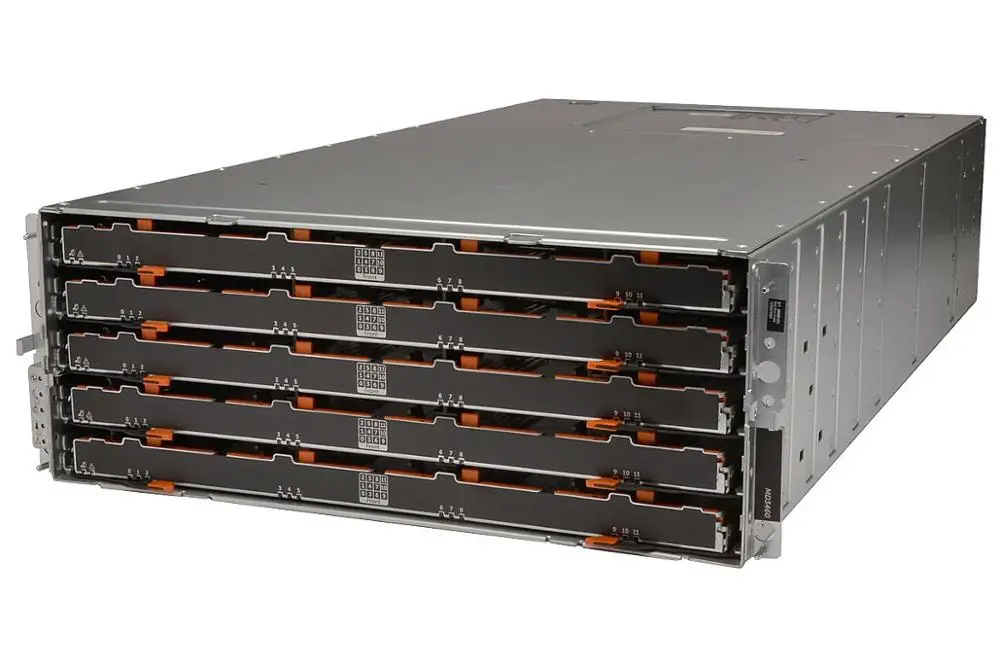

Brand new Dual Enclosure Management Modules Dell MD3060e Dense Storage

Drives

60

Controllers

Dual Enclosure Management Modules (EMMs)

HBA

Requires a two port host bus adapter (HBA).

Scalability

Expansion capabilities

Up to 4 dense enclosures behind a single server (240 HDDs)

Performance

Drive type

3.5" and 2.5" SAS, NL-SAS, SSD, SED

Maximum HA host

2

Maximum Usable Capacity

3.5”drive capacity

7.2K RPM NL-SAS: 500GB, 1TB, 2TB, 3TB, 4TB1, 6TB, 8TB, 10TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU);
800GB, 1.6TB (RI) (available with 3.5” HDD carriers)

2.5”drive capacity

15K RPM SAS: 146GB*, 300GB*, 600GB*
10K RPM SAS: 146GB, 300GB*, 600GB*, 900GB*, 1.2TB*, 1.8TB
7.2K RPM NL-SAS: 500GB*, 1TB*, 2TB
SSD: 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)
3.5” 10K and 15K HDDs are not supported on the dense model

Connectivity

6Gb SAS

Server Compatibility

Dell PowerEdge R630, R730 and the R730xd servers

Chassis

Form factor

4U rack enclosure

Physical dimensions

(height x width x depth)177.8mm (7.0”) x 482.6mm (19.0”) x 825.5mm (32.5”)

Maximum weight

105.20 kg (232.0 lb)

Power

AC: 1755W

Management

Server controller dependent

Environmental

Heat dissipation (max)

5988 BTU/hr

Voltage

220V AC, auto ranging
Frequency range 50/60Hz

Temperature

Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour

Altitude

Operating: -30.5m to 3000m (-100 ft to 9,840 ft)

NOTE: For altitudes above 2950 ft, the maximum operating temperature is derated 1.8°F/1000 ft.

Regulatory

Regulatory Models E08J
