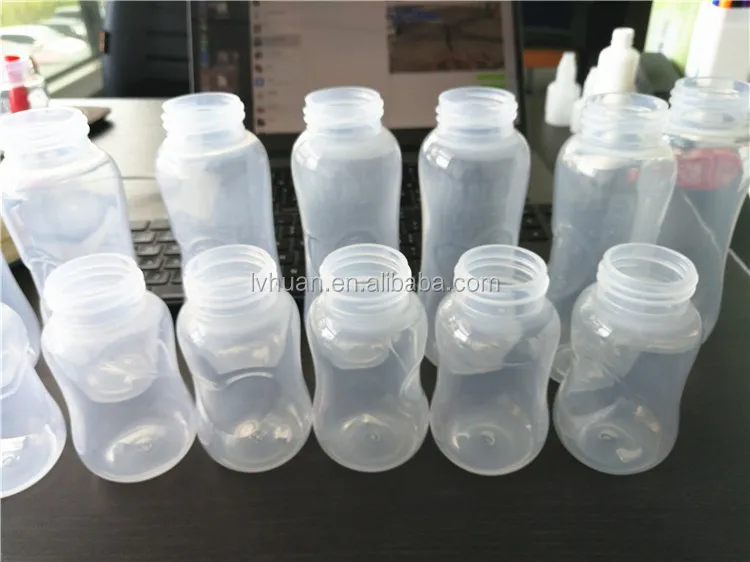

Automatic Injection Blow Moulding Machine for PPSU PC PP Baby Feeding Bottle

Product Overview

Description

Automatic Injection Blow Moulding Machine for PPSU PC PP Baby Feeding Bottle

Our ISB50 equipment has excellent performance. Its structure is very similar to Japan ASB equipment. It can be used for automatic forming of PET, PETG, PP, PPSU, PC, etc. The bottle has high transparency, no color difference, uniform wall thickness and low investment cost. It can be used Japan ASB mould in our machine well. It is an ideal investment choice for customers at china and abroad to change equipment, expand production, and invest in new products.



Product advantages

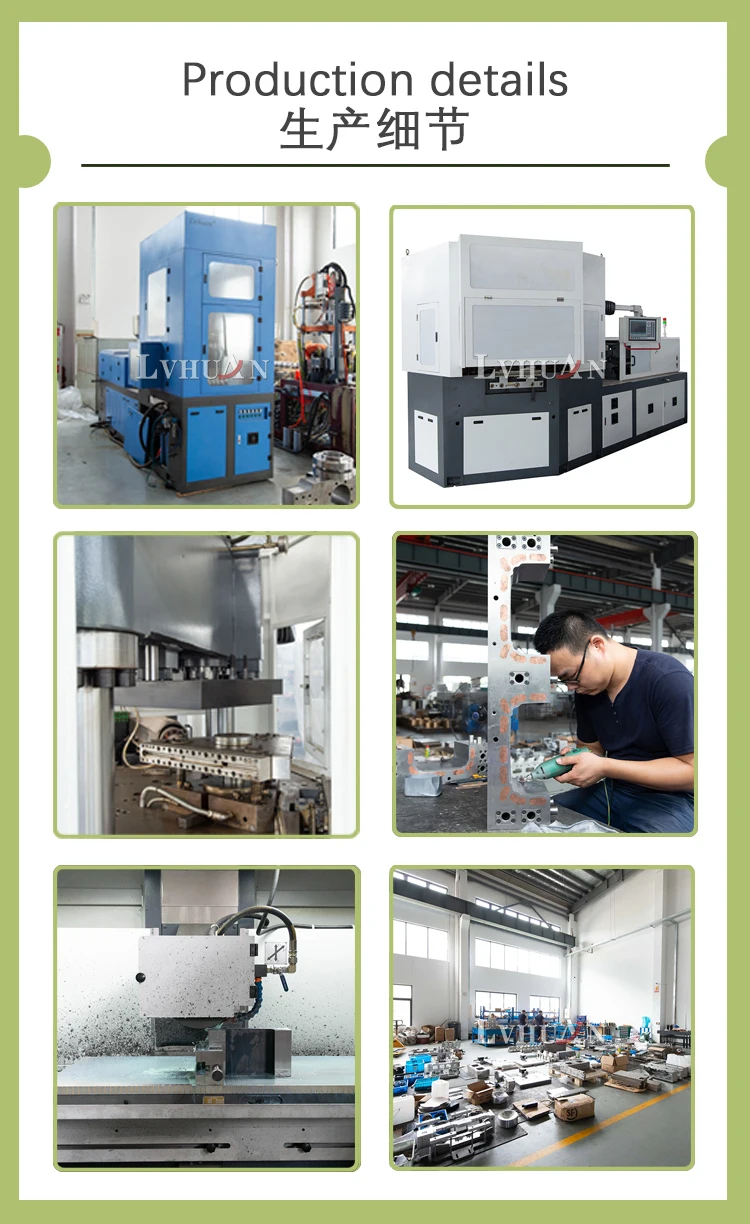

1. our engineers come from Japan ASB previous shanghai factory ) Excellent molds Design and Manufacture, High Quality Processing and Material Selection, to ensure that your products are perfect!

2. High cost-effective Performer Tail-cutting mechanism, suitable for the perfect treatment of small bottle injection tail!

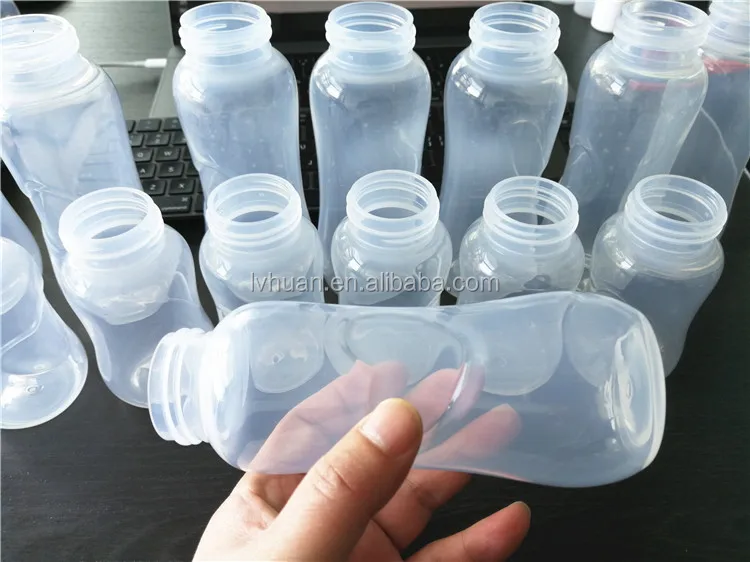

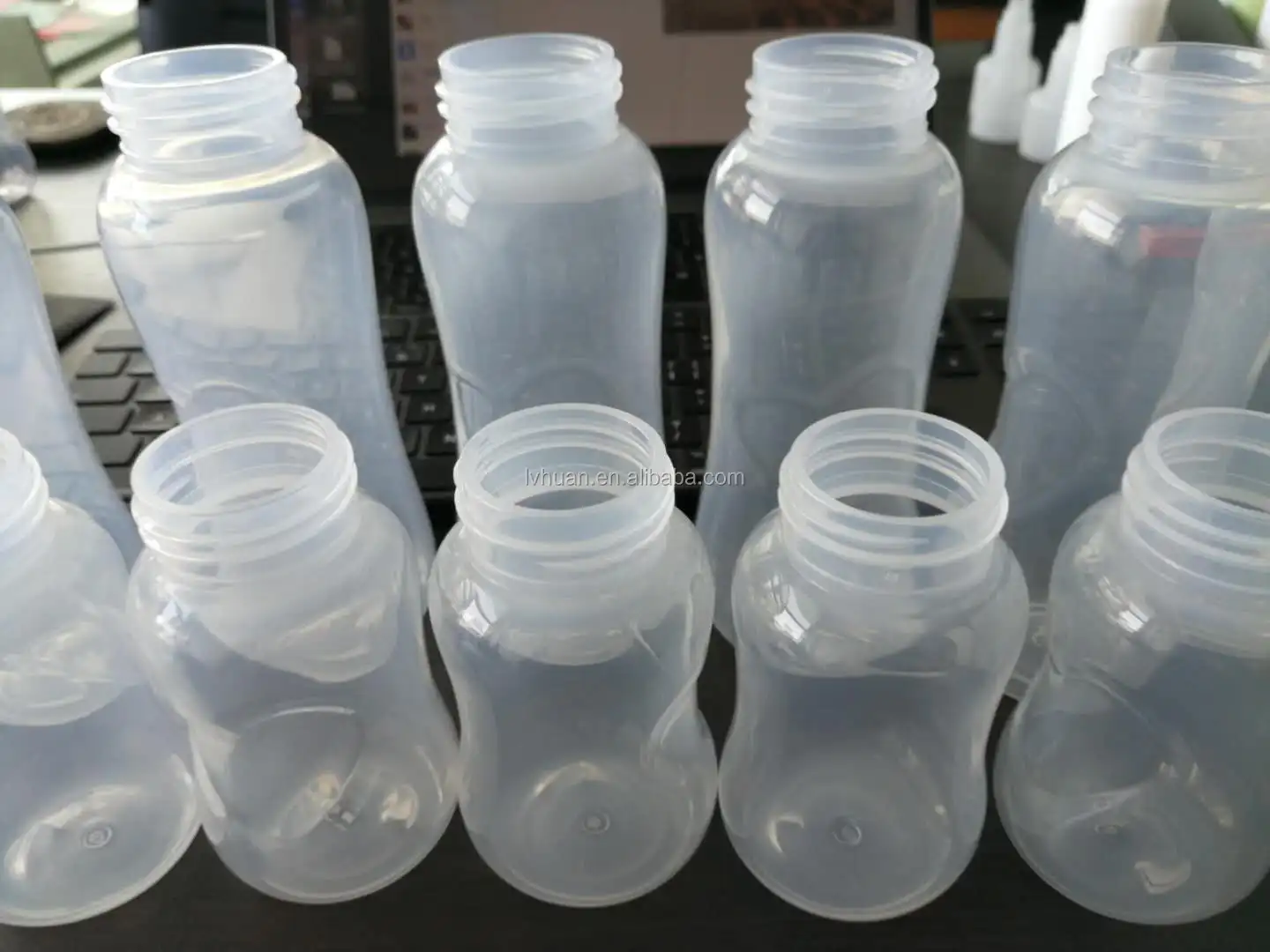

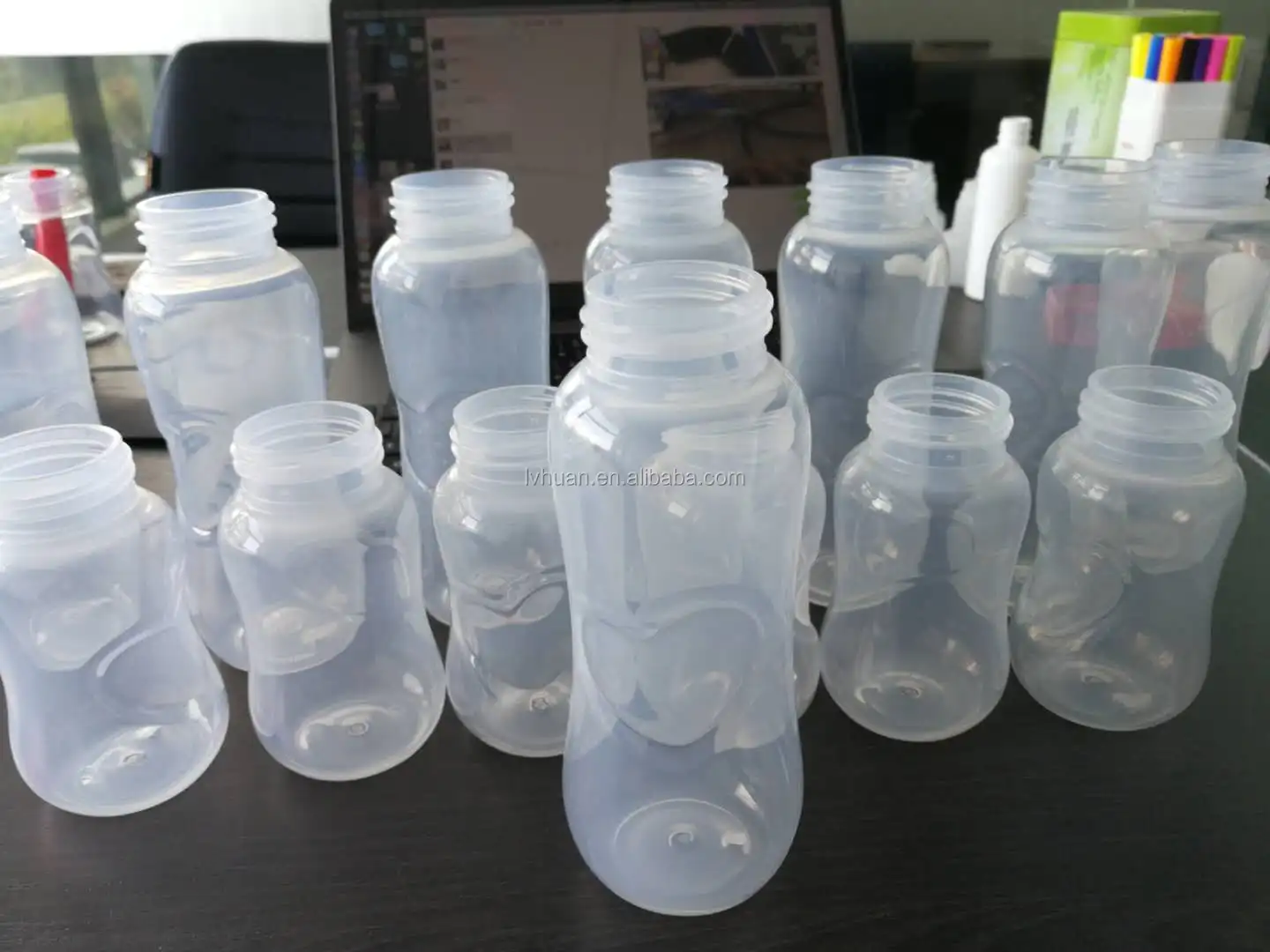

3. Very transparent ordinary PP bottles, low cost materials, high quality transparent bottles!

Product introduction

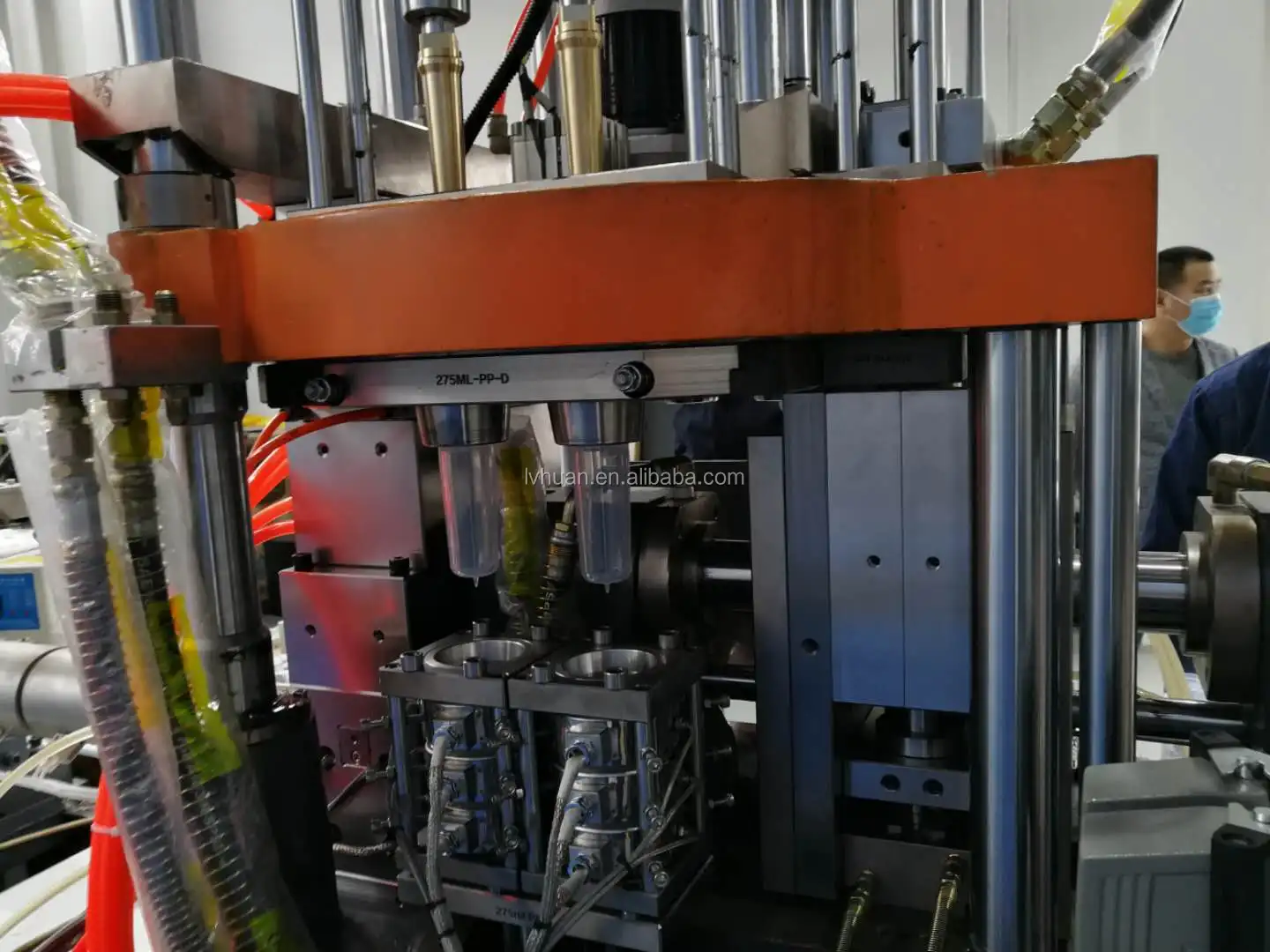

More than a mold cavity, fast The molding.No burrs and waste,Fully automatic production line.
Precision of the threaded neck collar,Excellent machine performance,Tight suture,The qualification
rate of close to perfect.Pharmaceutical packaging food packaging containers The best partner!

Brand:LVHUAN	Model:ISB50	Material:Stainless steel	Place of Origin:Zhangjiagang
Name:Injection blow molding machines





Product characteristics

1). It produces more finished bottles per cycle per hour without deflashing and trimming.
2). It has been designed to make plastic bottle containers with exacting weight,size,volume tolerance and quality.
3). The weight of the product can be pre-set. Excellent mechanical strength, impact –resisting and non-cracking.
4). There is no joint seam at the bottom, and the bottle strength is improved accordingly.
5). The joint seam on the bottle body is smooth.

Product parameters

No.	Item	Data	No.	Item	Data
1	Injection Station High	470mm	22	Eject stroke	125mm
2	Blow Station High	415mm	23	System pressure	14MPa
3	Standard number of cavity	1~6	24	Tank capacity	300L
4	Screw diameter	40mm	25	Operation air pressure	1MPa
5	Max. theoretical capacity	180 cm3/s	26	Operation air consumption	0.45m3/min
6	Screw length/diameter rate	150mm	27	Blow air pressure	2.45MPa
7	Screw speed	10~245 r/min	28	Blow air consumption	0.45 m3/min
8	Upper mold clamping force	60KN	29	Hydraulic pump motor	18.5KW
9	Lower mold clamping force	250mm	30	Servo motor	0.75KW
10	Upper mold clamping stroke	60KN	31	Total heater capacity	14KW
11	Lower mold clamping stroke	200mm	32	Total power capacity	34.2KW
12	Conditioning core stroke	270mm	33	Multi pin Connector	3 Units
13	Conditioning pot stroke	170mm	34	No. of zones for machine	4
14	Blow mold clamping force	78KN	35	No. of zones for mold	17
15	Blow mold clamping stroke	150mm	36	Cooling tower water	5T/h
16	Stretch force	1.9KN	37	Cooling tower water pressure	0.3~0.5MPa
17	Stretch stroke	200mm	38	Chiller water	40 L/min
18	Blow core clamping force	7.6KN	39	Chiller water pressure	0.3~0.5MPa
19	Blow core stroke	250mm	40	Chiller water temperature	10~15℃
20	Bottom mold force (optional)	22KN	41	Machine size	3750× 1150 × 2800 mm
21	Bottom mold stroke (optional)	10mm	42	Machine weigh	3.5t



About US

Over the past 20 years, LVHUAN has always been the benevolent choice of bottle making equipment for medical packaging. We have been making continuous efforts, from obscurity to familiarity; from single product injection blowing equipment to the whole series of injection blowing machines,injection stretch blow moulding machine, extrusion blow moulding machine etc.,we are working tirelessly for high-quality container packaging. Hope that on the way to the future, you can witness our efforts and walk hand in hand.

illustrate in detail

Operation platform
1. Fully automatic operation save time and effort
Electric cabinet
2. Excellent electrical system which guarantees the reliable operation of the equipment

High-Speed tie bar patent
3. Leading high speed rod structure Faster production cycle

The fuselage
4. Up to the standard of medical stainless steel exquisite cover design

5. Excellent injection molding system and temperature protection

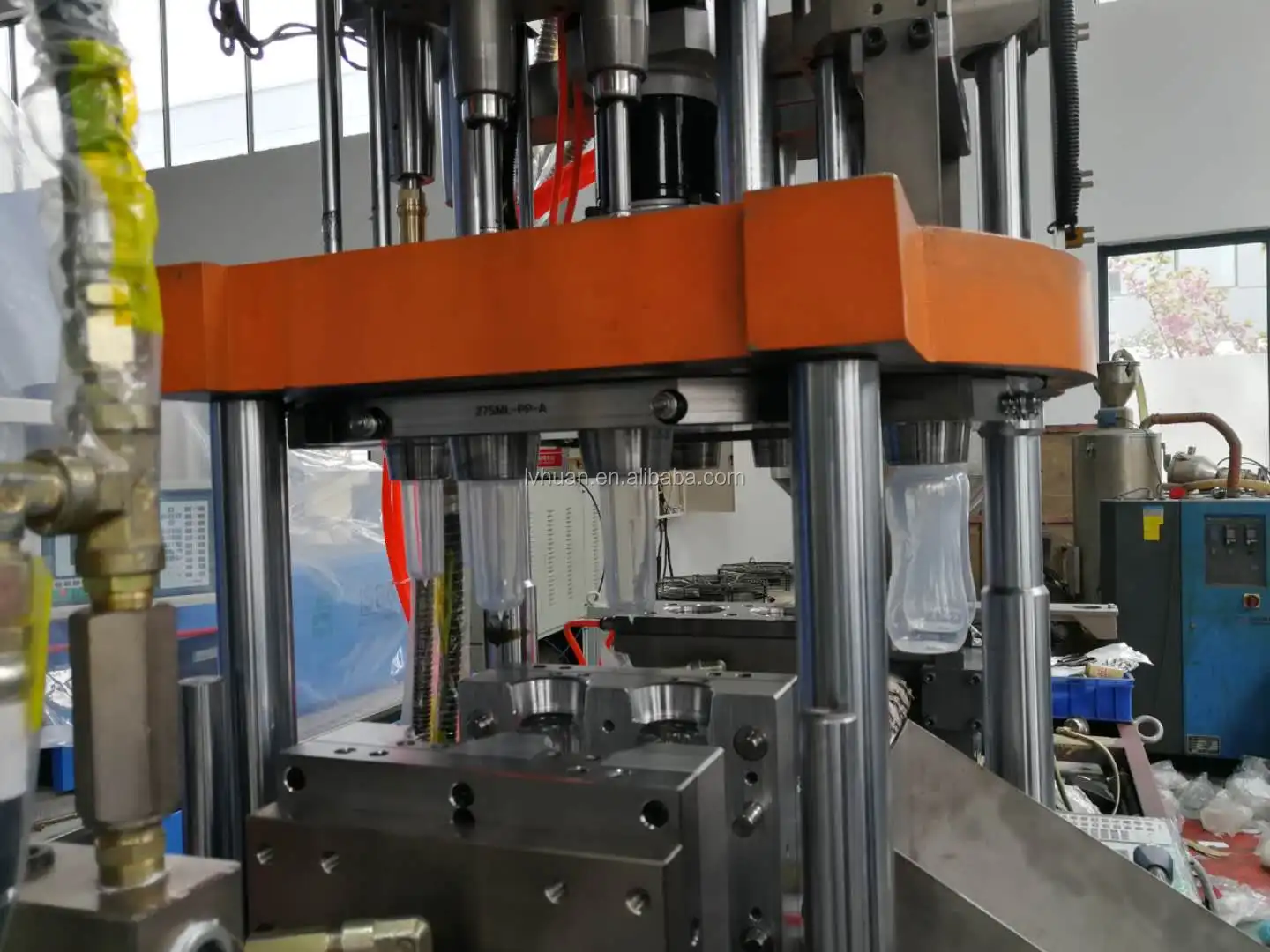

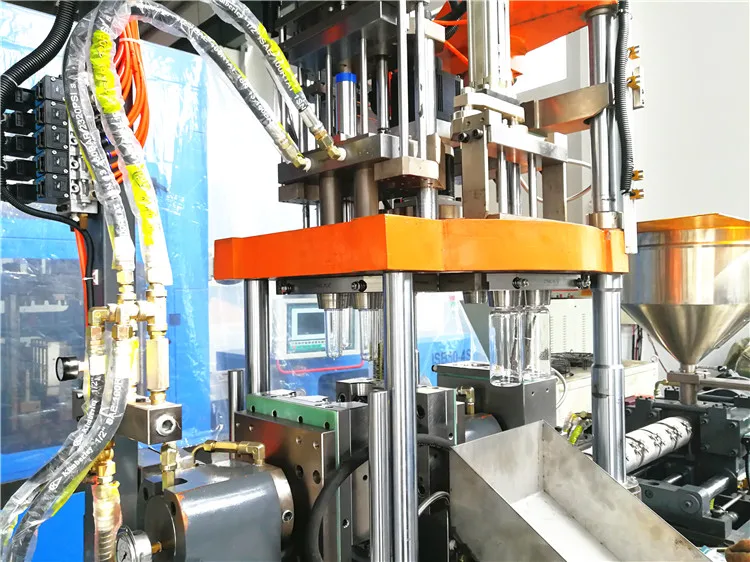

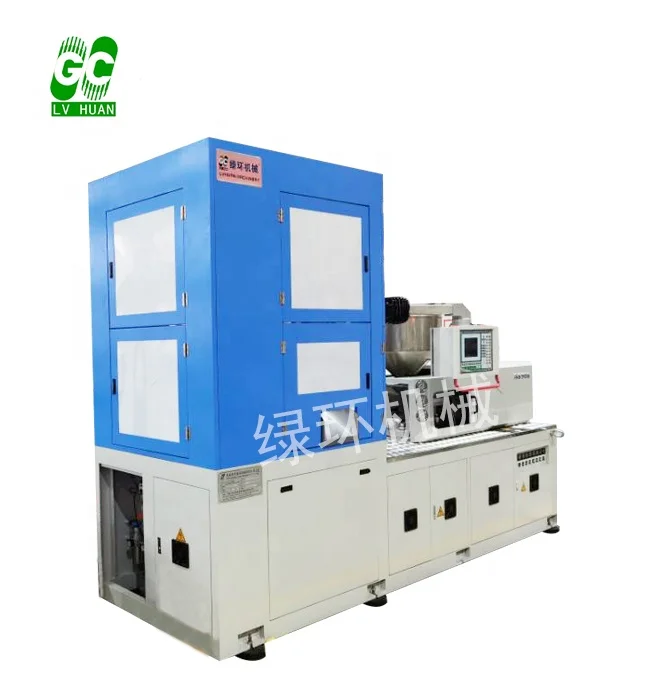

ISB50 injection blow molding machine:
