BLE5.2 Programmable Wireless Waterproof Ultra Thin Ble ibeacon Card NFC Beacon Card Label Tag
- Category: >>>
- Supplier: Shenzhen Deasino Technology Co. Ltd.
Share on (1600154204593):
Product Overview
Description
Products Description

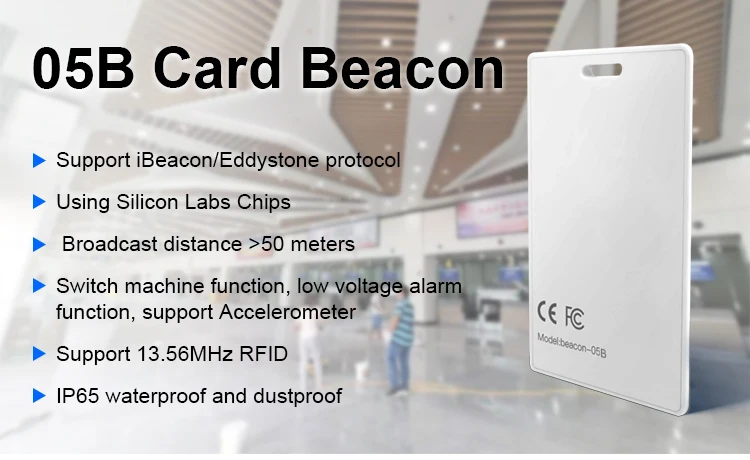

DS-Beacon-05B
Bluetooth Low Energy 5.2 Chipset

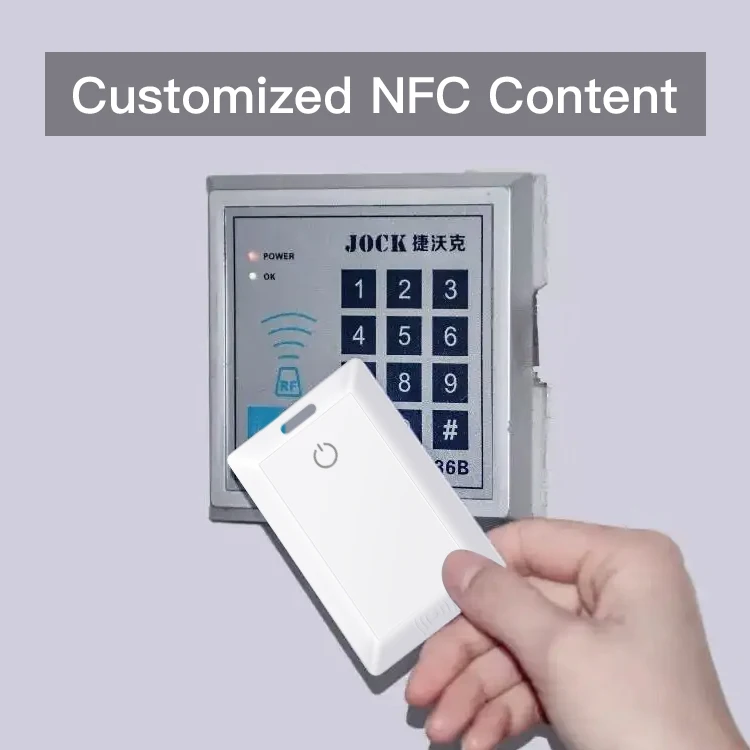

# Support 13.56MHz NFC

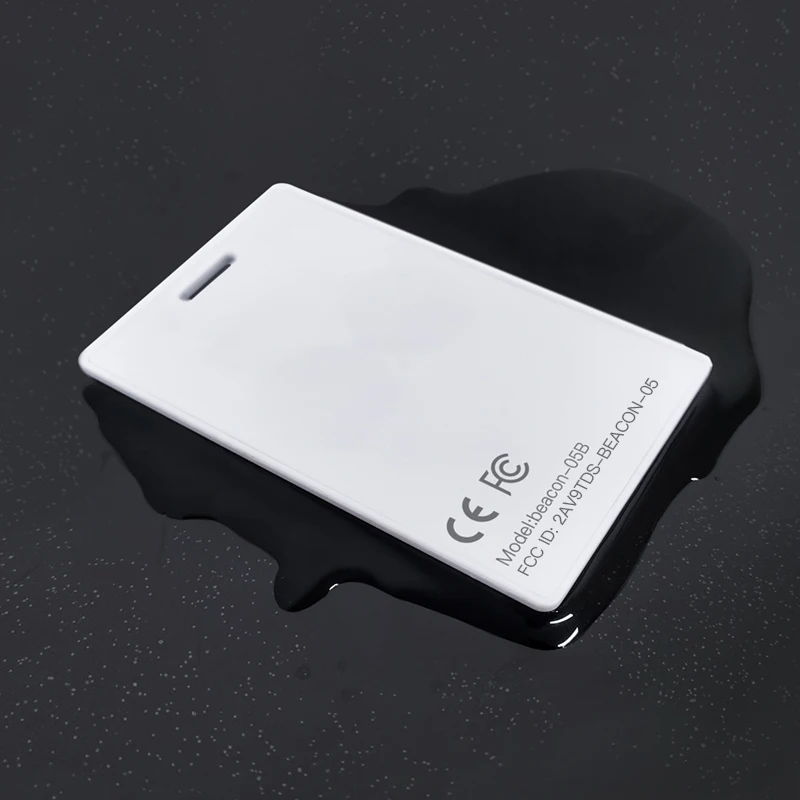

# Waterproof & Dustproof
# Basic 3 years Battery Life
# Long Transmission Distance : ≥50m
# Waterproof & Dustproof
# Basic 3 years Battery Life
# Long Transmission Distance : ≥50m
# Certificate: CE FCC

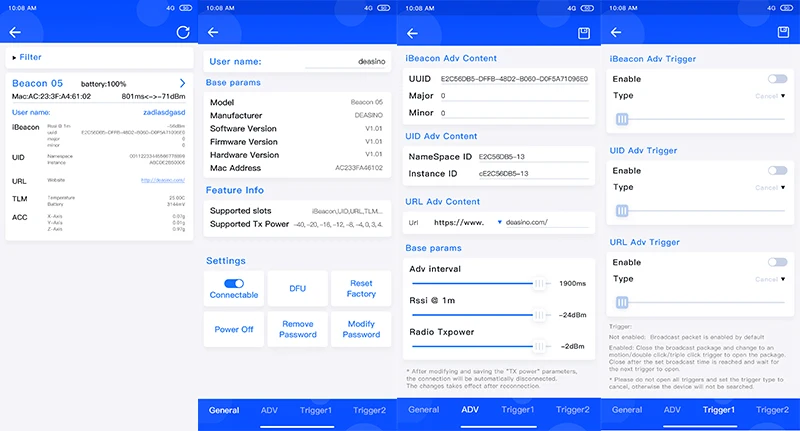

# APP Tool: Deasino in App store
# Firmware update over the air
# Custom -- Button/Logo/Function
# Set Device User Name
DS-Beacon-05B | DS-Beacon-05A | |
Size ( L* W * H) | 86*56*6mm | |
Feature | 13.56 MHz NFC | |
Battery | Non-replaceable; CR2025*4 | |
Product Weight | 24g | |
Operating Temperature | -20°C ~+60°C | |
Housing Material | ABS Plastic + Easy to print logo | |
Bluetooth Stack | Bluetooth Low Energy 5.2 | |
Broadcasting Power | -40 +4dBm, Default 0 dBm | |
Broadcast Frequency | 20ms~20s, Default 1000ms | |
Transmission Distance | ≥50M in open environment | |
APP Tool | Deasino in app store, google play | |
Sensor | Acceleration sensor | |
Application

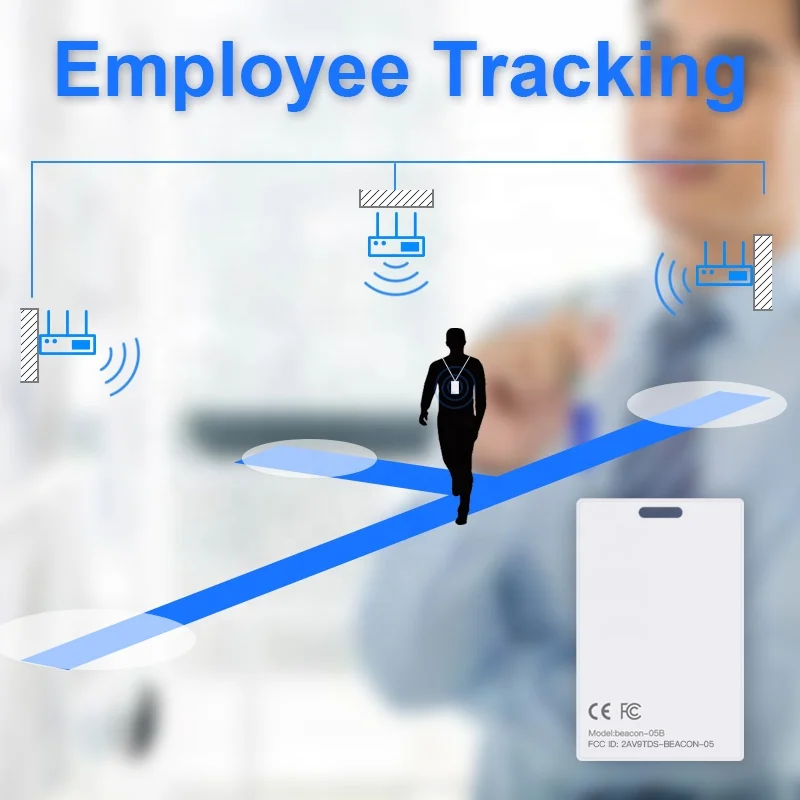

Indoor Positioning: Indoor positioning of shopping malls, airports and other large public places
Asset Tracking: Location based real-time message push, such as live information, conference process sharing, etc.,
Data Transfer: Online explanation of tourist attractions, museums, etc.,
*The above functions require the customer to independently develop an app or platform for use. Beacon only provides basic Bluetooth broadcast packet broadcast information.
How to Use
On/off function:
Open: Long press for 3 seconds.
Close: Under the power on state, hold down for 3s and the blue light will flash five times. During the blue light flashing, click the button, the light will be on for 1s and the power off will be successful.
Connected to Bluetooth successfully, LED flash twice; Disconnect Bluetooth and the LED light will flash three times.
Function:
1.You can set the User Name of Device.
1.You can set the User Name of Device.
2.Beacon-05 can set some parameters,like UID, URL, Major,Minor, OTA, Password.etc.

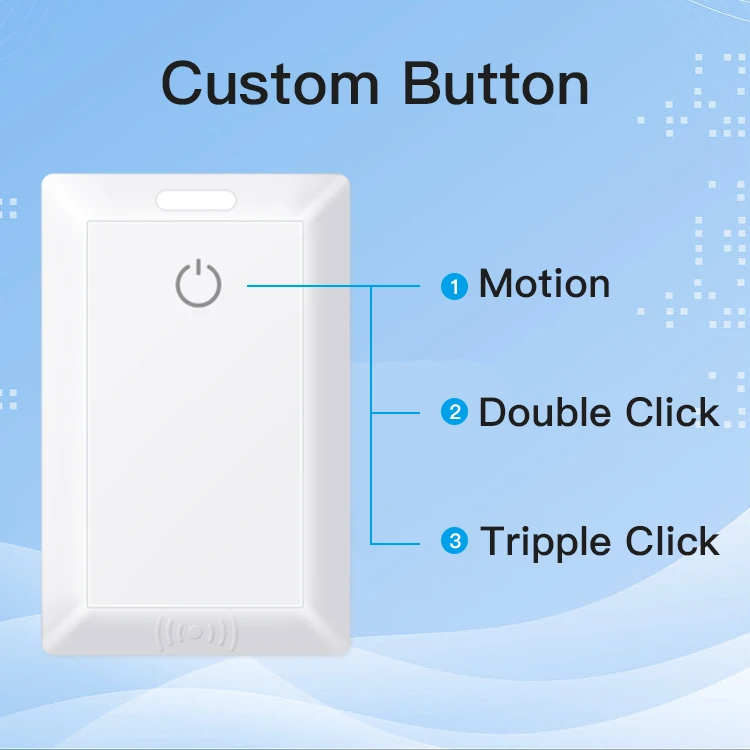

3.Customized Button： one click， double click， tripple click.
4.OTA Function is avaliable.
5.Unique MAC Address with QR Code
3.Customized Button： one click， double click， tripple click.
4.OTA Function is avaliable.
5.Unique MAC Address with QR Code
Company Profile
Deasino Technology is a enterprise "based in Shenzhen and facing the world". with more than 50 employees. In the 14 years of rapid development of the company,Deasino has gradually developed into a high-tech enterprise with more than ten national intellectual property patents, utility model patents and software copyrights in six major industries.
FAQ
Q1.What documents will you provide after I buy your samples?
A1.1.Configuration App 2.Instruction 3.User Manual/ app protocol/specification.
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL,FedEx, EMS, UPS, Special Line. we have profession assistance track for you until delivery.
Q3. Can I change some parameters,like password, User Name, URL, Minor, Major?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the source code?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
A1.1.Configuration App 2.Instruction 3.User Manual/ app protocol/specification.
Q2. How to ship ?
A2.We have forwarder in China, can shipping to Any countrys. You can chose DHL,FedEx, EMS, UPS, Special Line. we have profession assistance track for you until delivery.
Q3. Can I change some parameters,like password, User Name, URL, Minor, Major?
A3:Yes,you can change what you want to set.
Q4. Do you have SDK or the source code?
A4: We can provide the Standard SDK and the protocol of our beacon to help you develop your own APP and platform.
Q5. How long will the order shipping?
A5:for samples,we will shipping within 1-2days after received the payment.
for bulk order,like 1000-5000pcs,the leadtime is 3-4weeks
For more questions, Welcome to contact us.
