Control board, three-axis drive Dual Y-axis, full-featured. Support for offline laser output 2P/3P supports PWM TTL function. Black injection molded parts, mold opening to create durable injection molded parts, high precision, long life.
Laser Can Not Engrave:
Metal/Glass/PCB/Reflective Material/Transparent Material
15W Laser Can cut:
About 3mm wooden materials
Cutters can engrave:
plastic, wood, acrylic, pvc, pcb, wood or the like material
Summary:
Plastic body with a profile, small size, light weight, USB interface, GRBL control systems, learn to use the preferred entry. Either by inscribing, and can be carved with lasers.
Control Software: GrblController:
Description: Some components and core components have been assembled, simply hand assembled according to the installation instructions, you can use the rack.

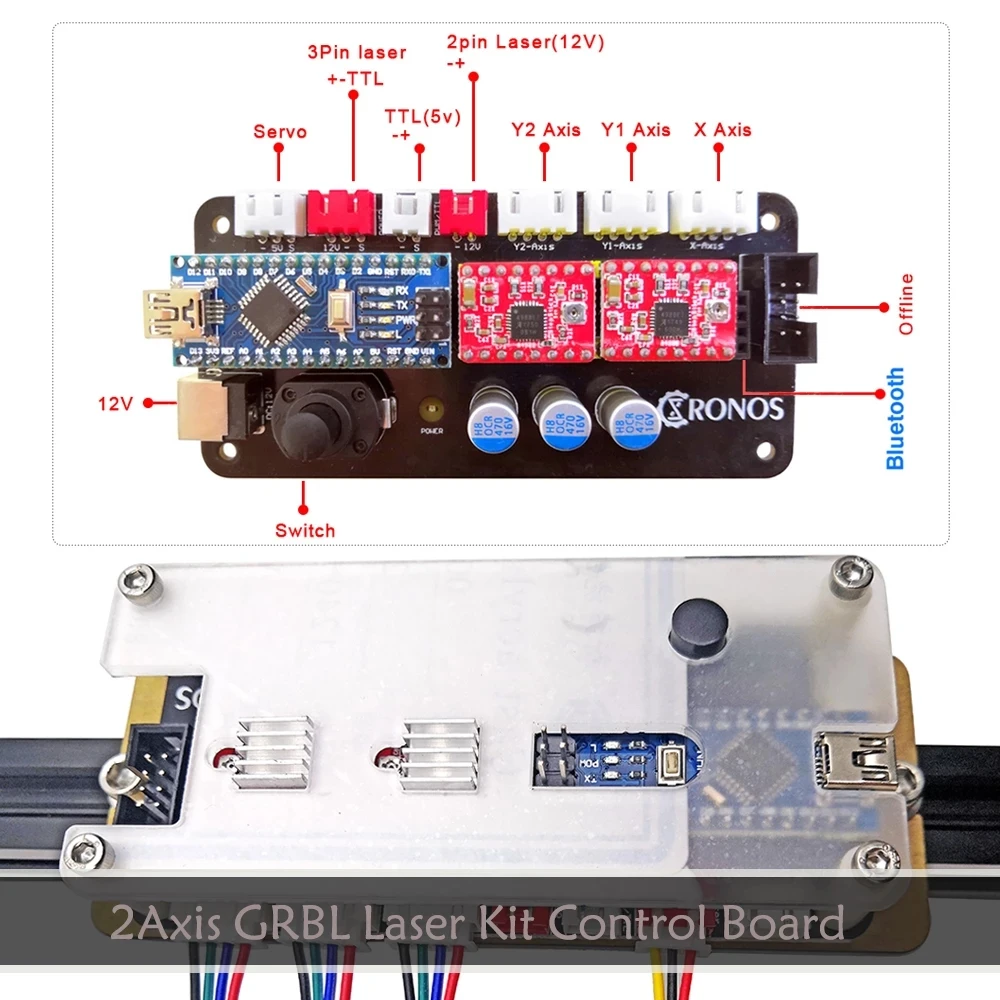

New upgrade of the control panel!
1. Grbl1.1f firmware, stable performance;
2. Offline carving in the whole process (offline module is selected), offline knife setting and carving;
3. Supporting 2P/3P laser, PWM/TTL signal control; power 0-100% adjustable;
4. The spindle supports 0-100% adjustable PWM power;
5. Stepper motor overcurrent protection avoids damage; upgrade DRV8825 drive performs far better than A4988;
6. Laser directly imported into the picture engraving, no programming, no design, simple and convenient!
Control software
GRBL control
Construction
Aluminum + Plastic
Working area
400mm*500mm
Frame size
Spindle
775 spindle motor 24V: 10000r/min
Step motor
1.3A 0.25N.m
Power supply
DC 12V 5A
Supported system
Win7, win8, win10/MAC
Laser (options)
5.5W/15W 12V 450nm
(7.5W Can engrave on stainless steel)
Direction for use
1. All the laser cannot work on any metal and the laser cannot cut plywood.
2. The diameters of both spindle and ER11 are correct, but ER11 is minus tolerance to spindle which means you cannot mount ER11 directly. ER11 needs shrink fitting. Contact us for more details if you are not familiar with shrink fitting or expansion fitting.
Description of application effect
1. Please use the tool correctly (different tools correspond to different effects) .
2. The laser head recommends cleaning the surface of the engraving during work.
3. Fix the corresponding engraving object (make sure to be relatively stationary).
Related Products
Packing&Shipping
1. Separate packaging for parts, requiring customers to assemble themselves.
2. The application software is located in the package CD.
3. Only one set of ER11 heads is included, please purchase separately.
