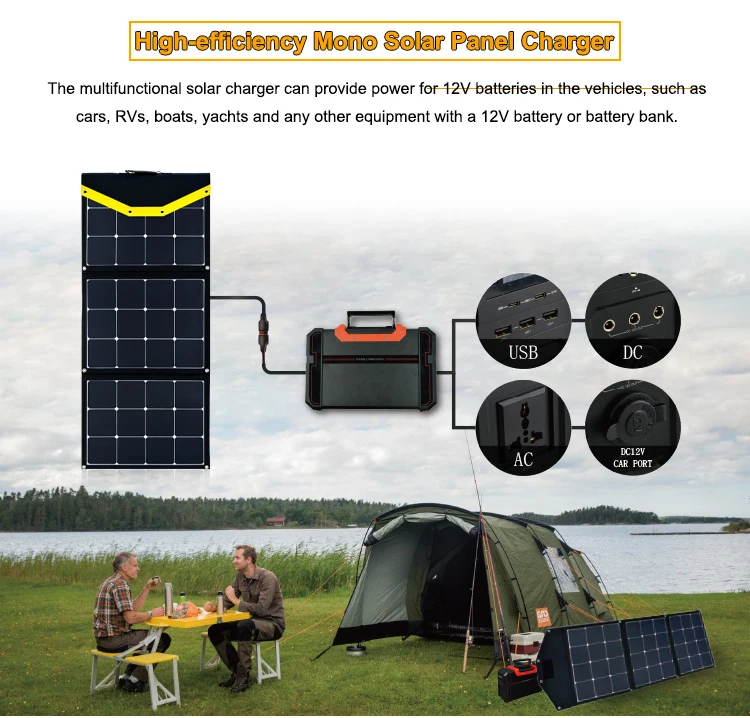

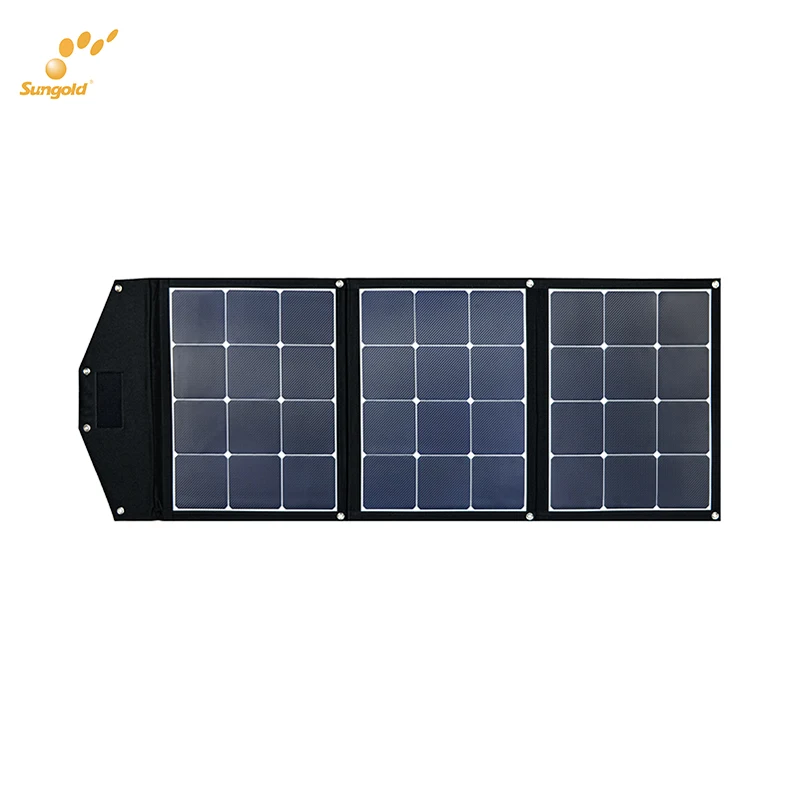

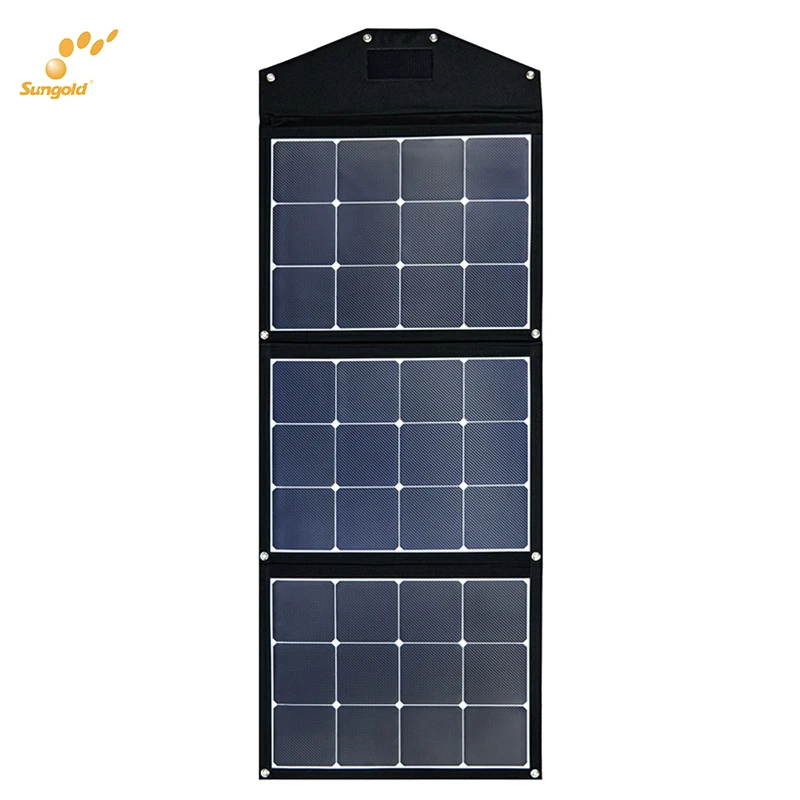

amorphous silicon solar panel 120w folding solar mobile charger for phone
- Category: >>>
- Supplier: Shenzhen Sungold Solar Co. Ltd.
Share on (1600154212548):
Product Overview
Description
Product Parameters
Specifications -Monocrystal series | ||
Component Model | SPC-S-3*40W | |
Solar cells | SunPower | |
Maximum power | 120W | |
Operating voltage(Vmp) | 24.64 | |
Voltage at Pmax(Vmp) | 20.88 | |
Short-circuit current(Isc) | 6.32 | |
Current at Pmax(Imp) | 5.97 | |
Max System Voltage(VDC) | 100V DC | |
Cells Efficiency(%) | 22.60% | |
Power temperature coefficient | ﹣0.39%/℃ | |
Vlotage temperature coefficient | ﹣0.29%/℃ | |
Current temperature coefficient | ±0.05%/℃ | |
Nominal Operating Cell Temperature | 45±2℃ | |
Operating Temperature | ﹣10℃～+60℃ | |

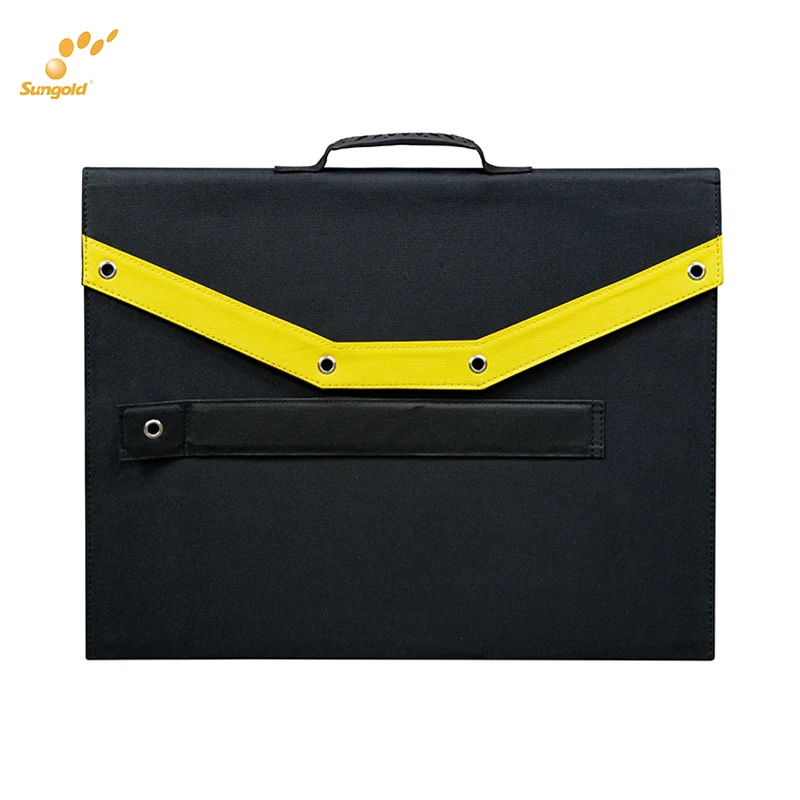

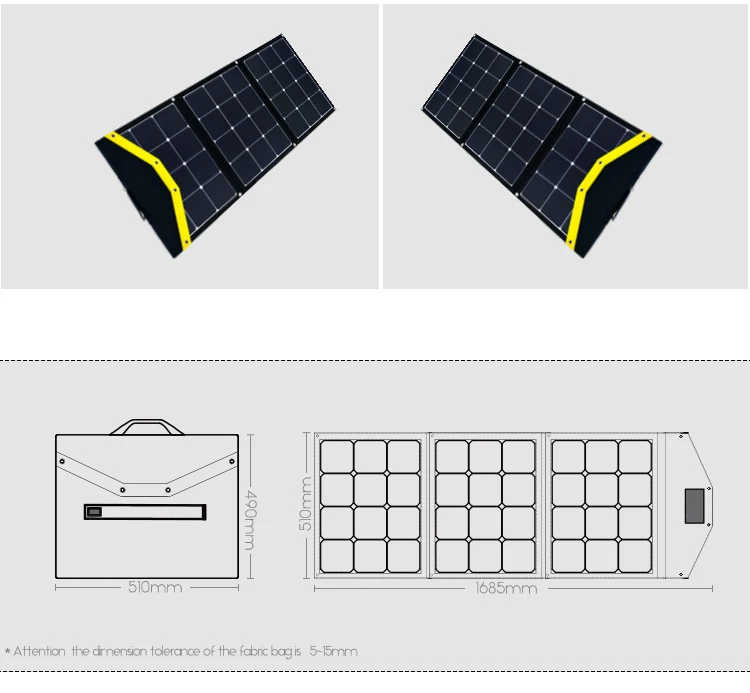

Folding size | 560*440*20mm | |
Module size | 1525*560*4mm | |
Weight | 2.7KG | |
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25℃ Electrical parameters may vary by +-3% | ||

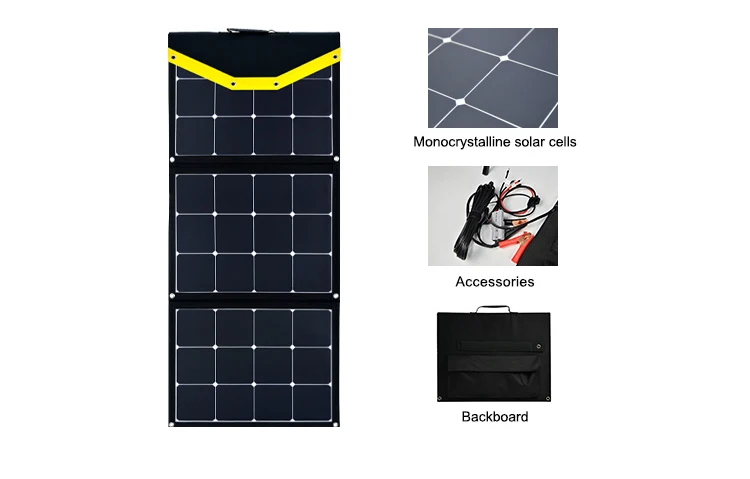

Product Details

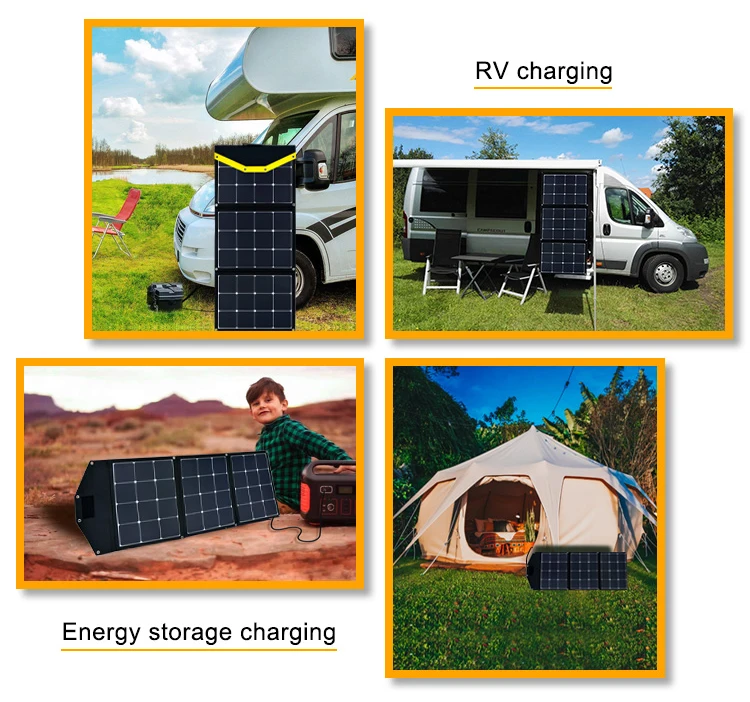

Cases Show
Client Feedback
About Us
Shenzhen Sungold Solar Co., LItd
Sungold Advantages:
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
-The professional producing experience of solar panel for 13 years
Accumulating the experience for more than a decade,Sungold has become a company with mature technology and management system
-Outstanding quality
With the certificates of ISO, RoHS, CE, etc. We professionally provide high quality products with automated production line.
-Professional techniques and service
Every Sungold product is crafted according to the needs of customer, also, the service we do is all for customer.
Exhibition & Certificate
Logistics Transportation
FAQ
1)Q:The price is too expensive,why?
We choose the best material to make. All SunPower A grade cells are imported from the USA, and we insist on the development of quality.
2)Q:What is the payment term?
100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd
3)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
4)Q:What is mono and poly panels?
The panel adopts mono-crystalline and poly-crystalline cells.
5)Q:What is the different between mono and poly?
The cells conversion efficiency is different. The mono cell is higher than poly one. Mono is 20.6%, and poly is 18.3%, so mono panel is more expensive than poly panel.
6)Q: What is the warranty of the panel?
Mono panel and poly panel has 10 years warranty. Flexible panel has 1 year warranty and 5 year service time. Customers told a panel was bought in 2012 is still working.
7)Q: What is the package of the flexible panel?
1 pcs is put in a bubble bag and one carton and 10pcs are put in bigger carton, then wooden pallet.
8)Q: How many workers in Sungold?
Almost 300.
9)Q: Do you have any certificates on the panels?
CE, ROHS and ISO.
10)Q: Can you do OEM for my panels?
Yes, we support OEM and ODM.
We choose the best material to make. All SunPower A grade cells are imported from the USA, and we insist on the development of quality.
2)Q:What is the payment term?
100% T/T in advance 30% T/T in advance balance before shipment when your order over 10000usd
3)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
4)Q:What is mono and poly panels?
The panel adopts mono-crystalline and poly-crystalline cells.
5)Q:What is the different between mono and poly?
The cells conversion efficiency is different. The mono cell is higher than poly one. Mono is 20.6%, and poly is 18.3%, so mono panel is more expensive than poly panel.
6)Q: What is the warranty of the panel?
Mono panel and poly panel has 10 years warranty. Flexible panel has 1 year warranty and 5 year service time. Customers told a panel was bought in 2012 is still working.
7)Q: What is the package of the flexible panel?
1 pcs is put in a bubble bag and one carton and 10pcs are put in bigger carton, then wooden pallet.
8)Q: How many workers in Sungold?
Almost 300.
9)Q: Do you have any certificates on the panels?
CE, ROHS and ISO.
10)Q: Can you do OEM for my panels?
Yes, we support OEM and ODM.
