Protein Purification Low Medium Pressure Liquid Chromatography 26mm Single layer Glass Column
- Category: >>>
- Supplier: Wuxi Galak Chromatography Technology Co. Ltd.
Share on (1600154273670):
Product Overview
Description
Products Description

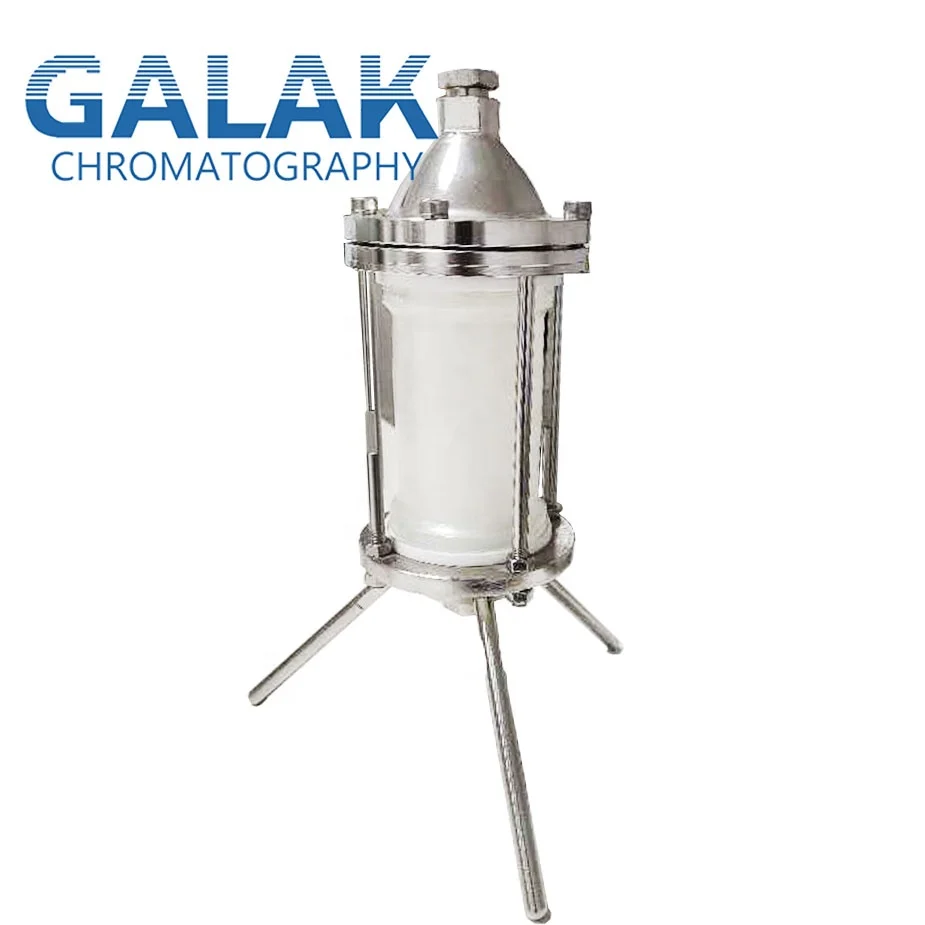

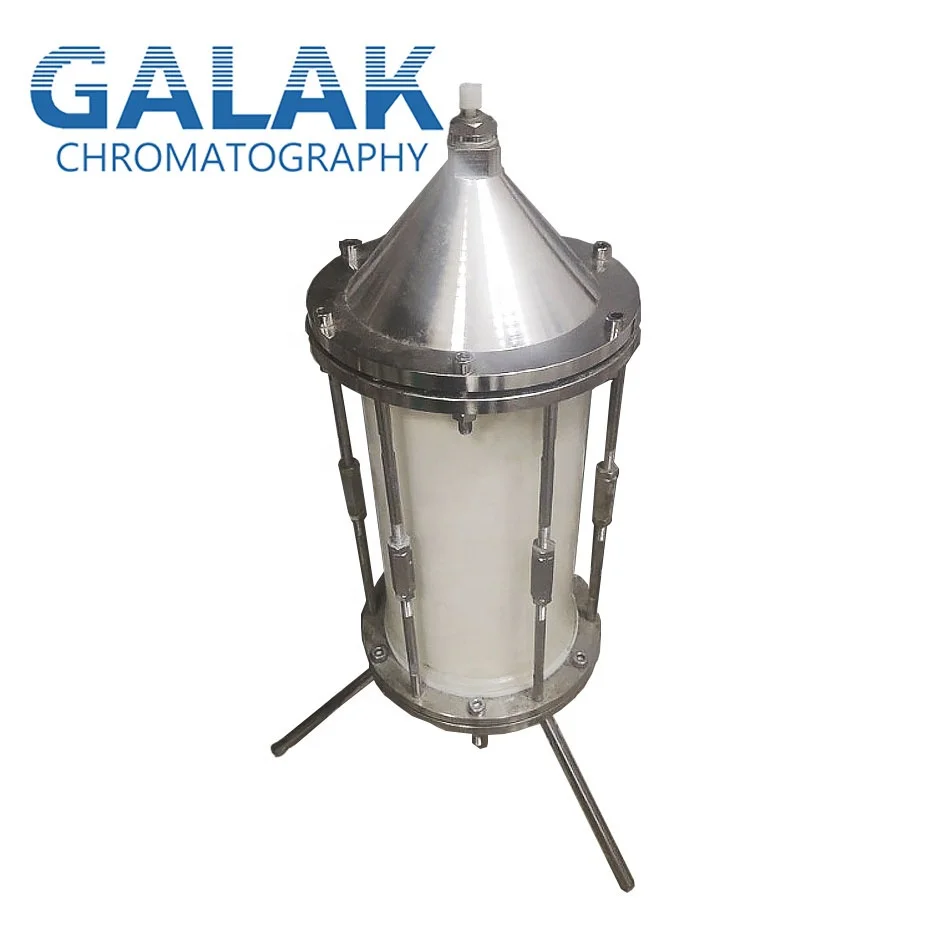

Medium Pressure Single-layer Glass Column
Advantages
* Bell head: the unique head design replaces the traditional sieve plate design, the fluid distribution is more uniform, improve the column efficiency and separation efficiency;
* Solid sample loading: for special samples, solid sample loading and dry sample mixing can be used to effectively prevent the damage of high mobile phase linear velocity to the column bed;
* Large sample loading: the sample loading can be extracted by a pump, which can eliminate the phenomenon of high concentration sample blocking valve interface;
* Wide range 20-60 μm packing fillers, such as silica gel matrix C18, PSDVB resin, agarose
* Fast speed: the purification time is 2-10 times shorter than the open glass column, and the drug impurities or API can be
purified within one
* Humanization: simple column tube design, convenient disassembling and washing, reduce the cost of separation hardware;
* Visualization: visually understand the separation status of natural extracts, pigments, and other colored samples.
* Solid sample loading: for special samples, solid sample loading and dry sample mixing can be used to effectively prevent the damage of high mobile phase linear velocity to the column bed;
* Large sample loading: the sample loading can be extracted by a pump, which can eliminate the phenomenon of high concentration sample blocking valve interface;
* Wide range 20-60 μm packing fillers, such as silica gel matrix C18, PSDVB resin, agarose
* Fast speed: the purification time is 2-10 times shorter than the open glass column, and the drug impurities or API can be
purified within one
* Humanization: simple column tube design, convenient disassembling and washing, reduce the cost of separation hardware;
* Visualization: visually understand the separation status of natural extracts, pigments, and other colored samples.
Inner diameter (mm) | Length (mm) | Max. pressure (bar) | Flow rate (ml/min) | |
HT-1501 | 15 | 310 | 40 | 5-20 |
HT-1502 | 15 | 460 | 40 | 5-20 |
HT-1503 | 15 | 920 | 40 | 5-20 |
HT-2501 | 26 | 310 | 40 | 20-70 |
HT-2502 | 26 | 460 | 40 | 20-70 |
HT-2503 | 26 | 920 | 40 | 20-70 |
HT-3501 | 36 | 310 | 30 | 45-135 |
HT-3502 | 36 | 460 | 30 | 45-135 |
HT-3503 | 36 | 920 | 30 | 45-135 |
HT-5001 | 49 | 310 | 20 | 80-200 |
HT-5002 | 49 | 460 | 20 | 80-200 |
HT-5003 | 49 | 920 | 20 | 80-200 |
HT-7001 | 70 | 310 | 10 | 170-250 |
HT-7002 | 70 | 460 | 10 | 170-250 |
HT-7003 | 70 | 920 | 10 | 170-250 |
HT-10001 | 100 | 310 | 10 | 200-250 |
HT-10002 | 100 | 460 | 10 | 200-250 |
HT-10003 | 100 | 920 | 10 | 200-250 |
HT-15001 | 150 | 300 | 5 | 500-800 |
HT-15002 | 150 | 600 | 5 | 500-800 |
HT-15003 | 150 | 900 | 5 | 500-800 |
GALAK Chromatography Technology offers OEM service for HPLC products and technical service for biochemical molecules like peptites, antibody, protein, natural chemicals. For details, please contact us!
