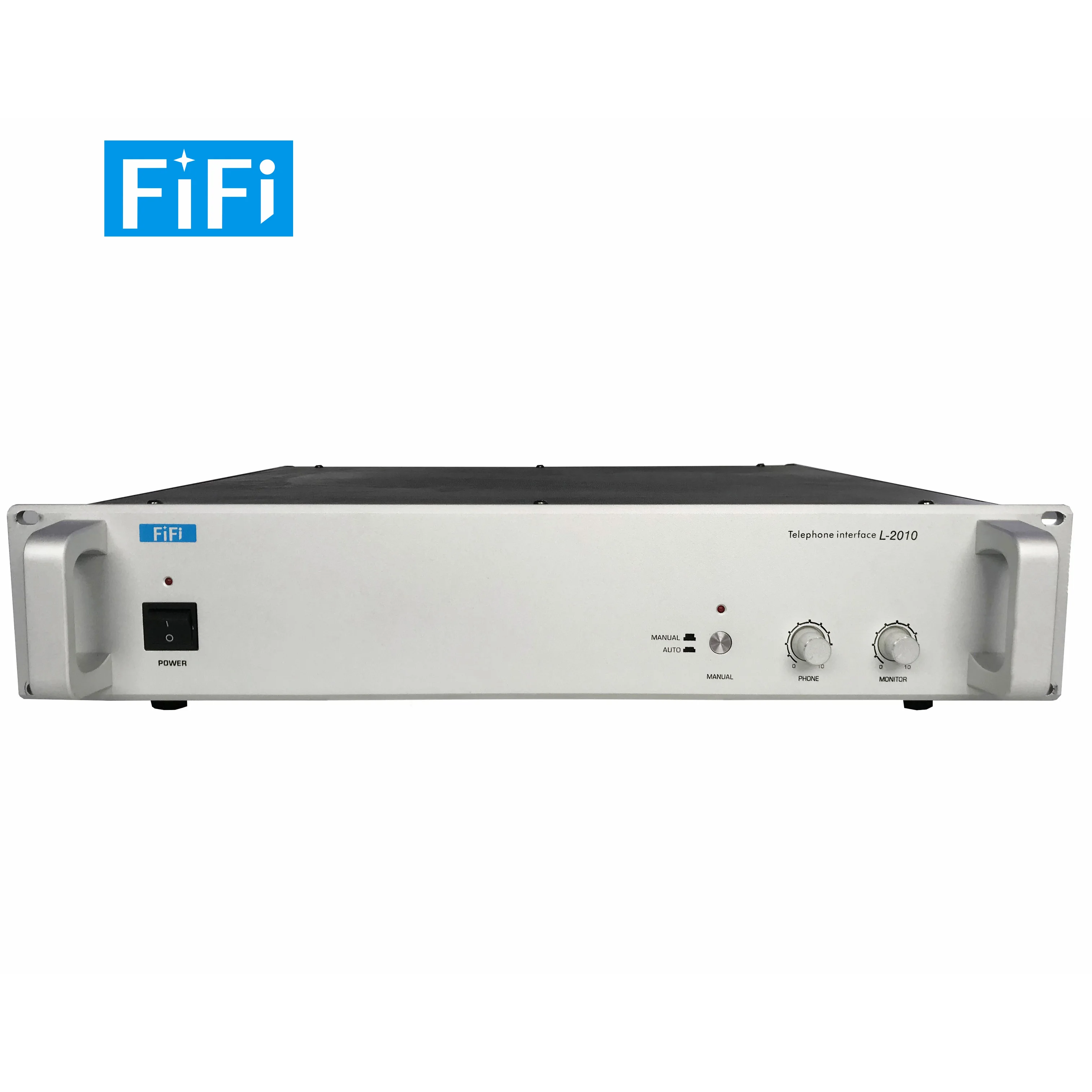

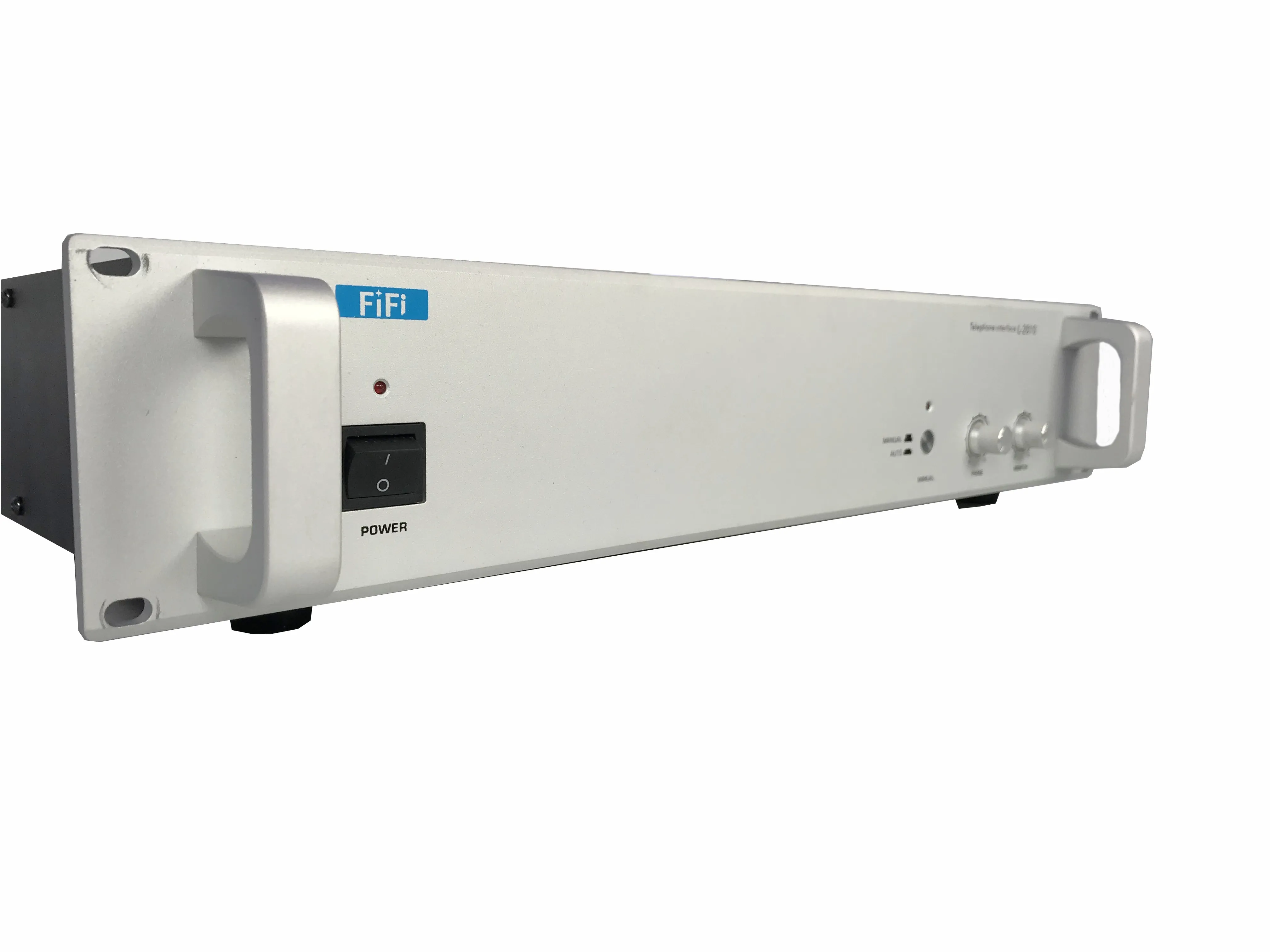

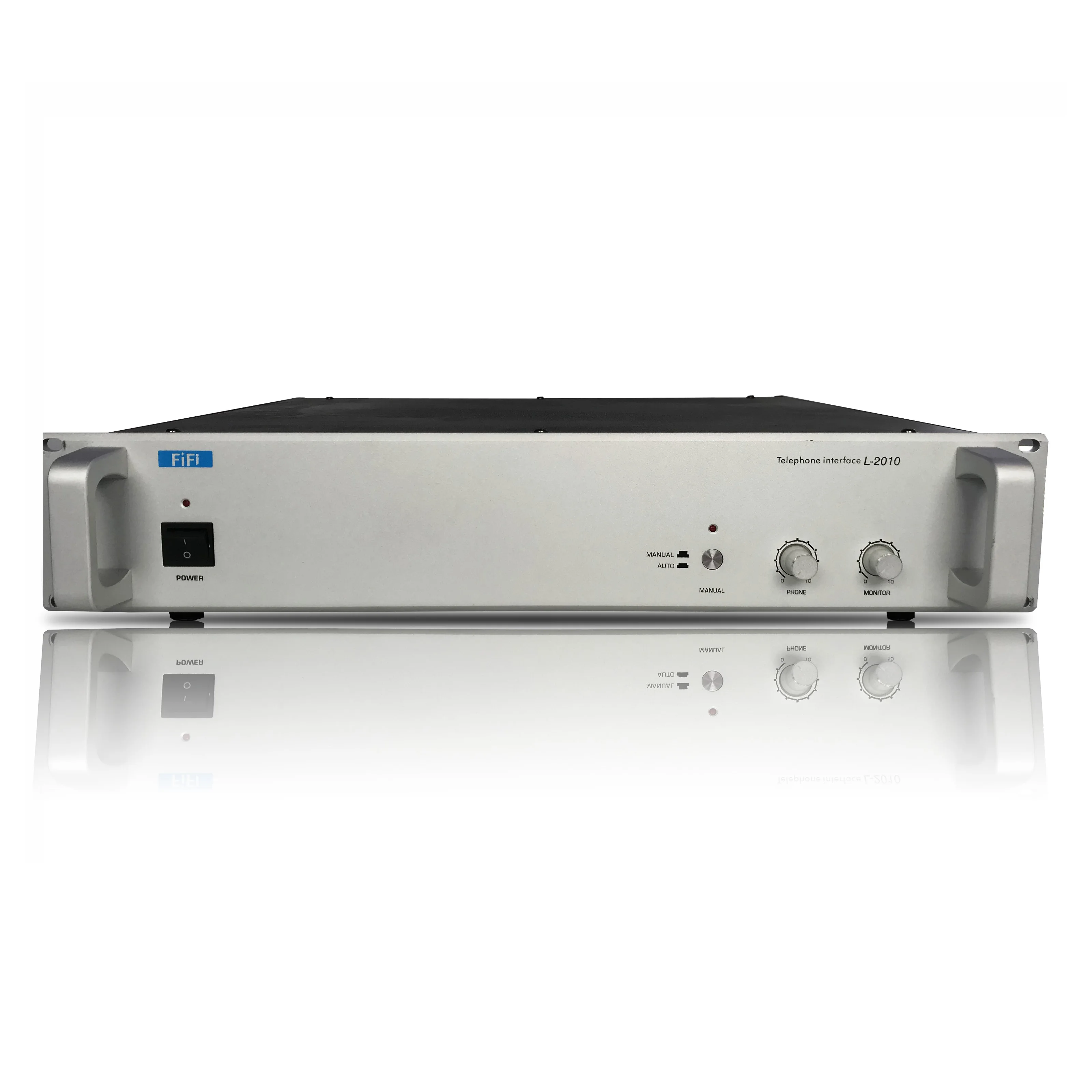

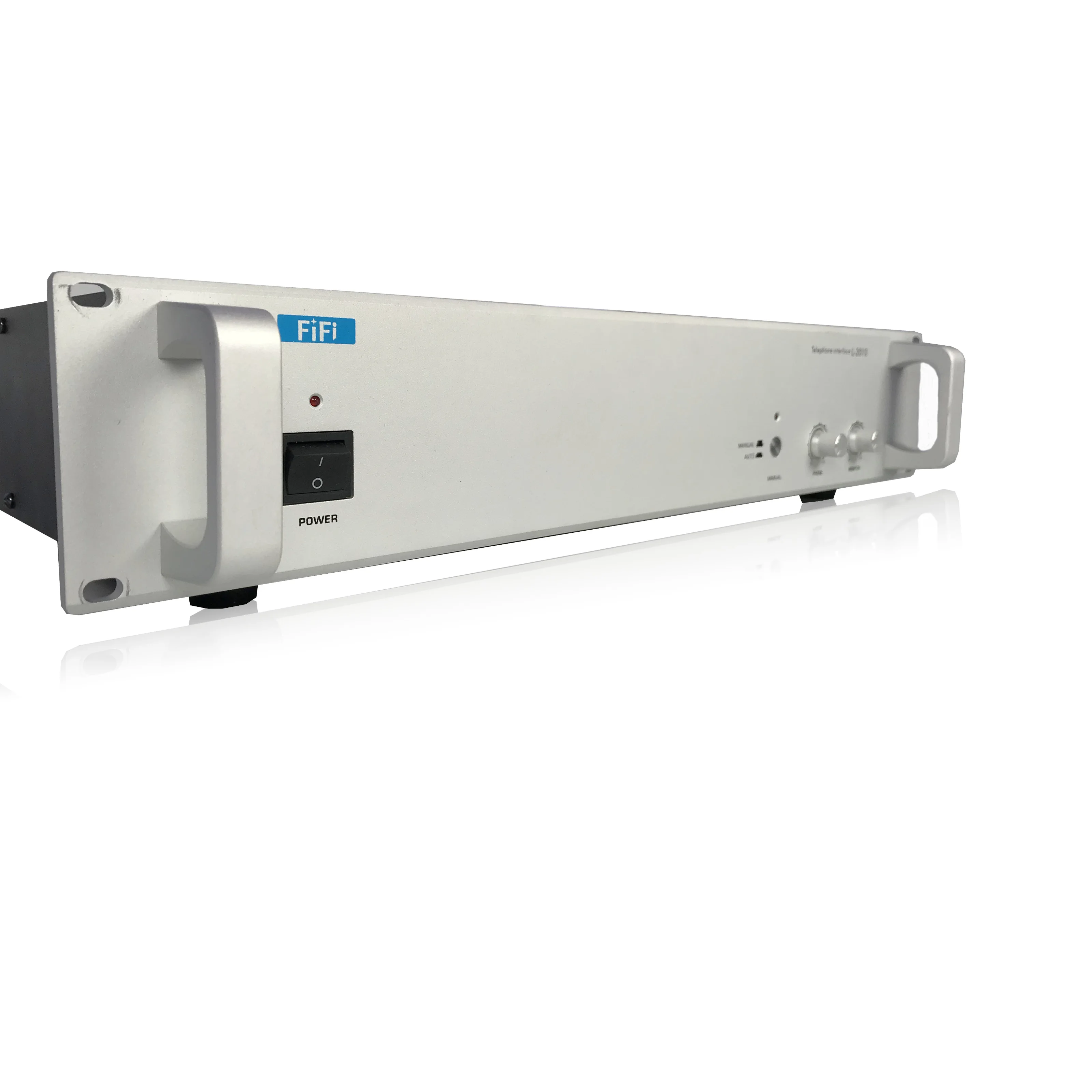

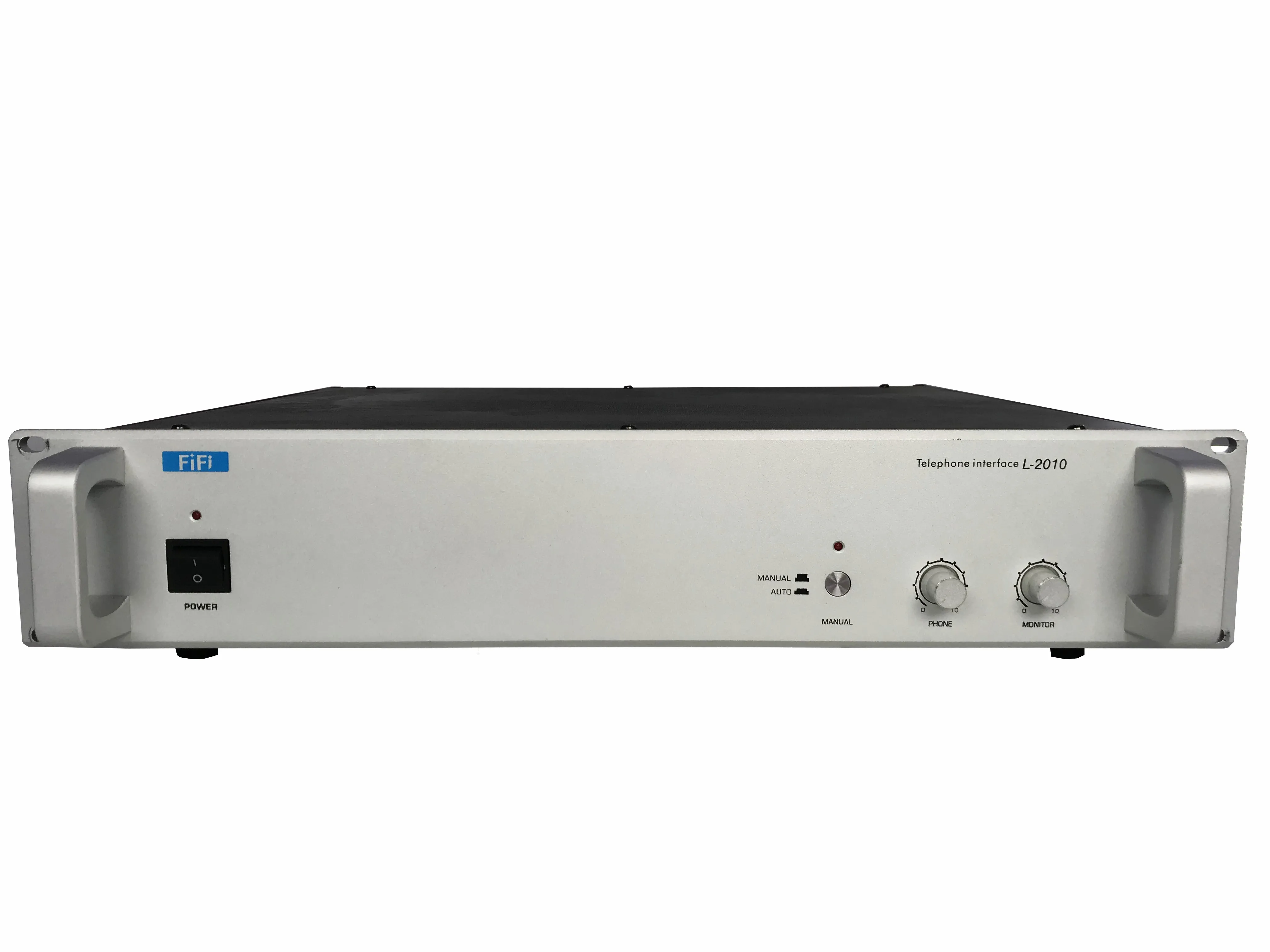

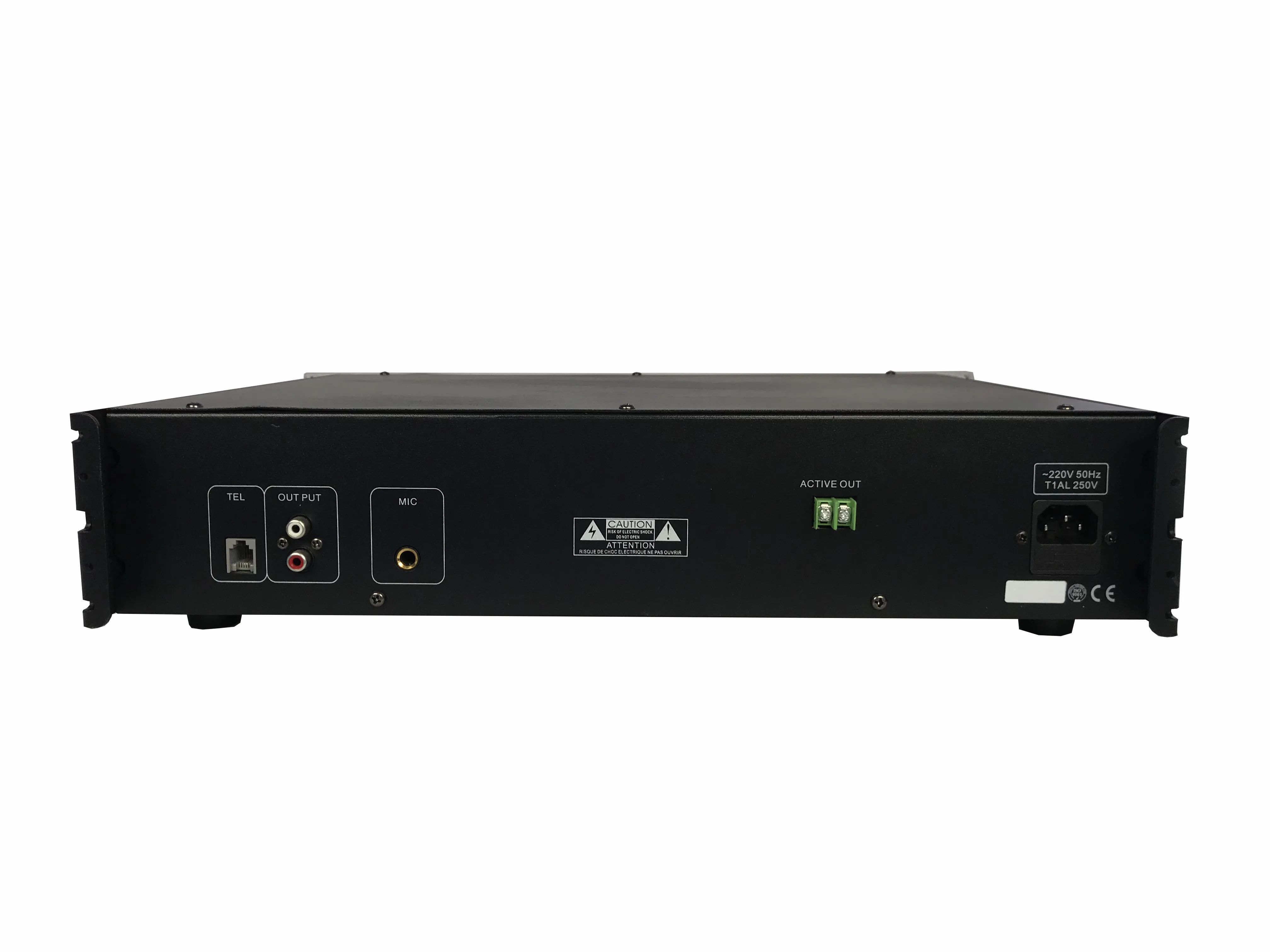

IP pa system professional Telephone access device for public address conference equipment

Share on (1600154280164):


Price:

Quantity:


Product Overview

Description





Equipment Use

To realize the telephone remote paging or teleconference function in PA system, converting a local telephone signal to a voice-audio signal for output.

Functional Features:
■ Standard (2U) cabinet design, silver sandblasted panel, high-grade atmosphere.

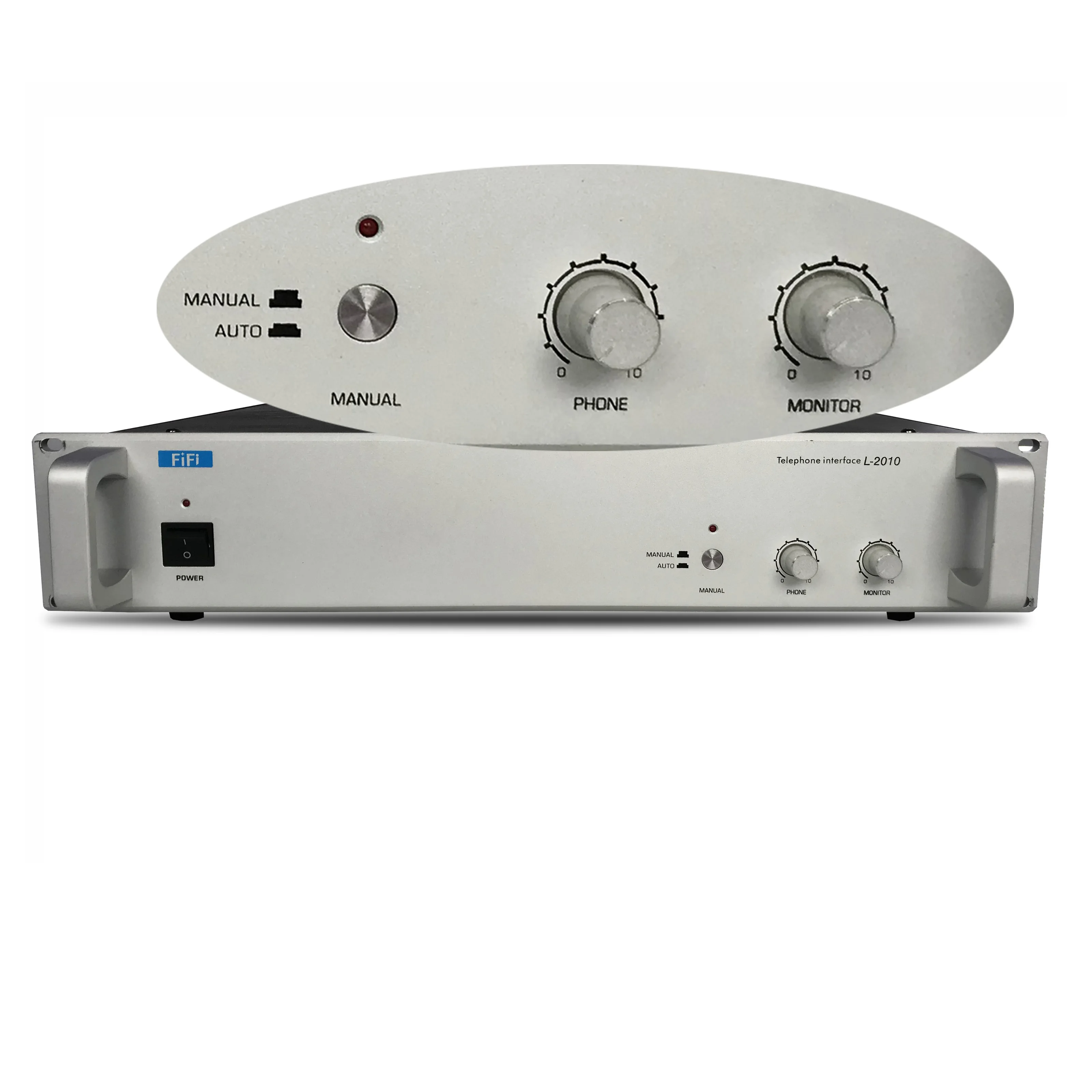

■ Operate with the touch of key, and the LED indicator shows the working status at a glance.
■ Call manual / automatic transfer function, direct access to the broadcast system.

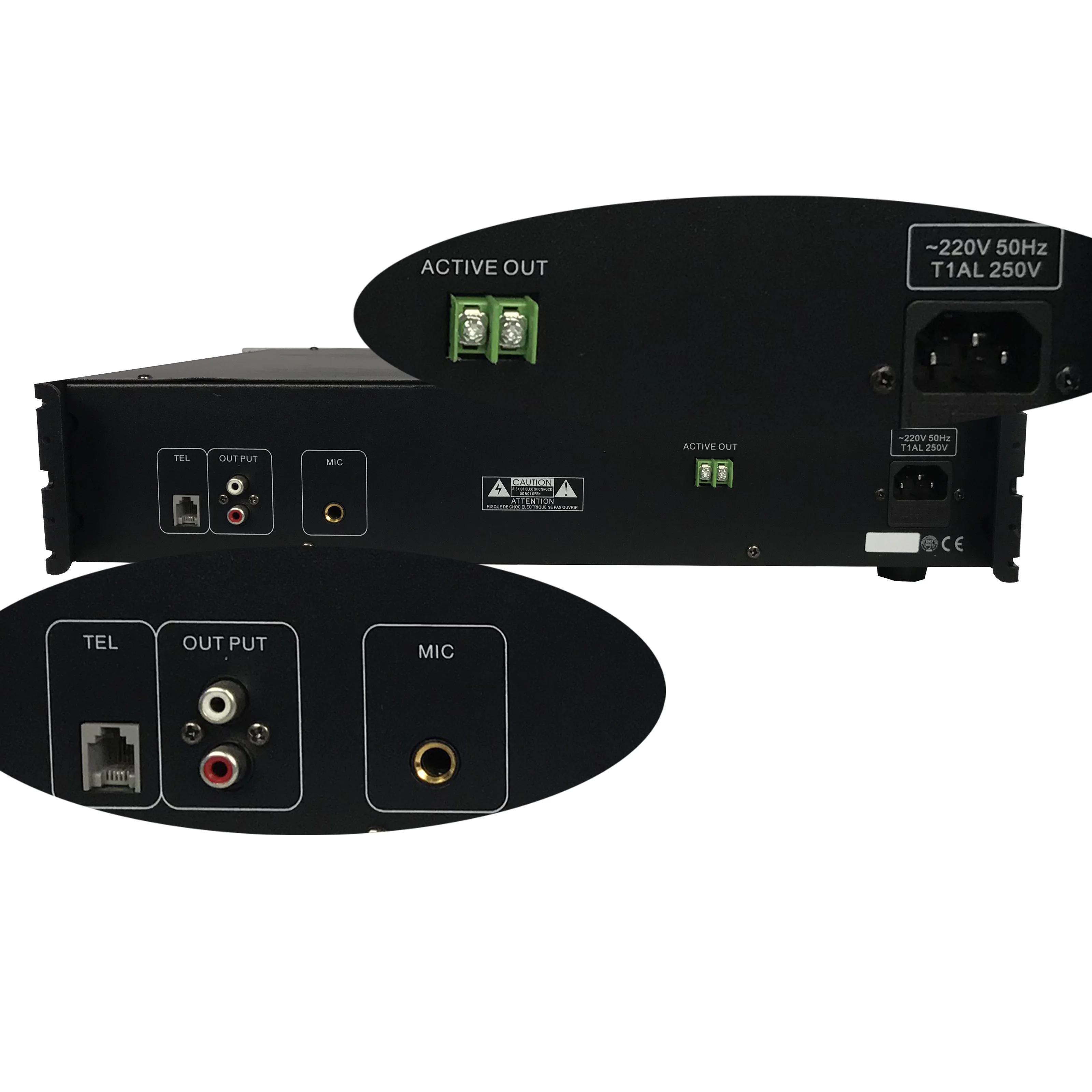

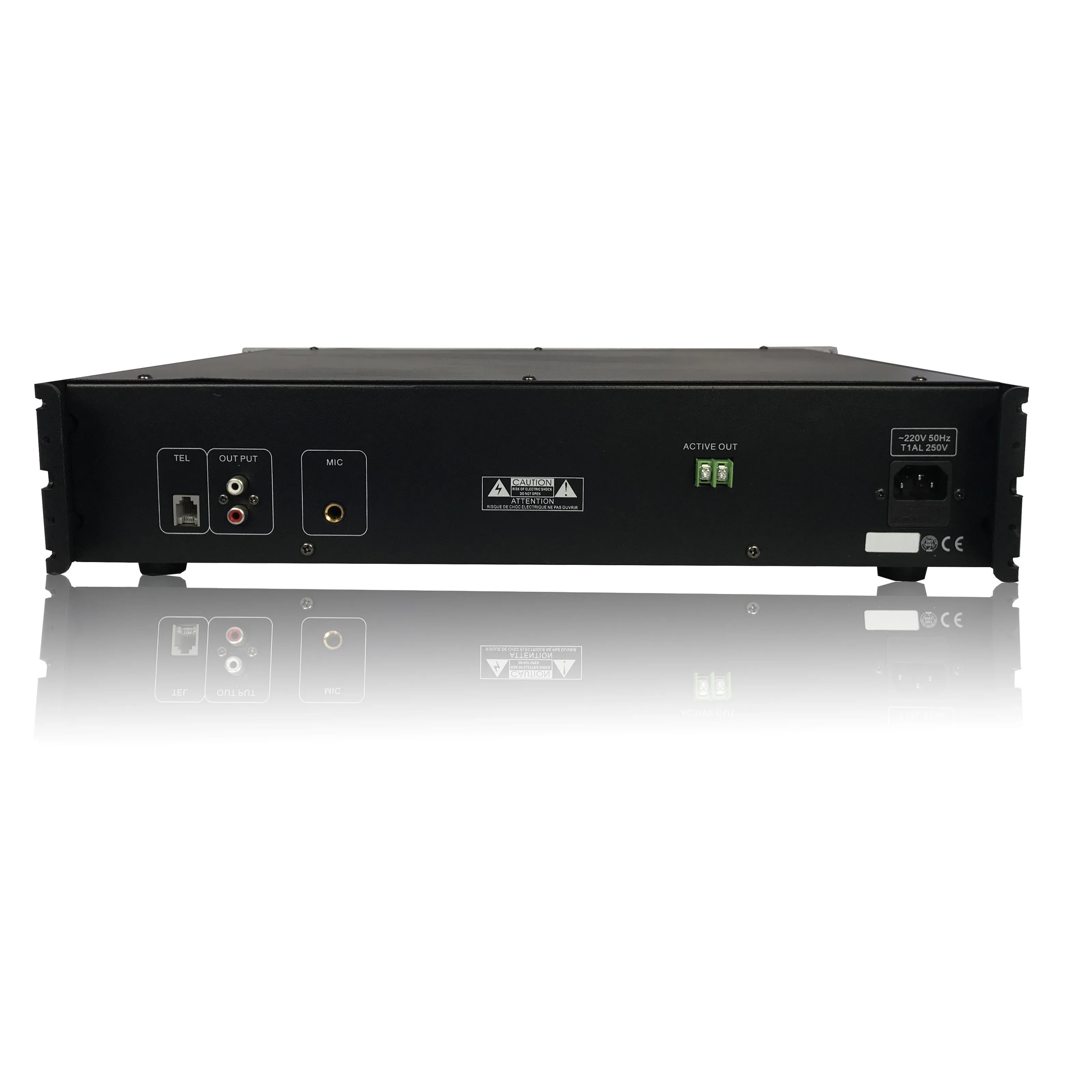

■ 1-way local line interface, connecting to the local line; 1 channel voice signal output interface, connected to pre-amplifier.
■ 1 local microphone line input and 1 short circuit signal line output.
■ Independent adjustment of output volume.
■ With two-way call function, it is convenient to realize the necessary equipment of conference call.
■ Automatically restore the original working state after the call system parameter.


System Parameter


Model
L-2010
Line input
Telephone signal
Microphone input
One 10Kohms (Ω) 350mV
Function
Power switch, manual button, volume adjustment, monitor adjustment
Main power amplifier output port
main1, main2, main3, main4
Indicator light
Power 'Tel
Power supply
AC 220V ± 10% 50-60Hz
Power consumption
12-15w
Equipment size
485 (W) x330 (d) x88 (H) mm
