ACM1252U Y3 USB NFC Reader Module with Detachable Antenna Board

Product Overview

Description

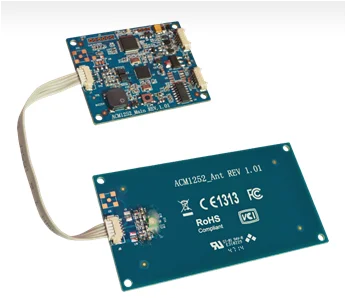

    ACM1252U-Y3 USB NFC Reader Module with Detachable Antenna Board



The ACM1252U-Y3 USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems.

This reader module supports the three NFC modes (card reader/writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, MIFARE®, and FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).

The ACM1252U-Y3 comes with a detachable antenna and optional USB cable, which provide flexibility when integrating the module into embedded systems, such as kiosks and vending machines. It is the perfect front-end interface module to enable NFC transactions for applications involving integrated systems.

Upon request, ACM1251U-Y3 comes with a Class A, ISO 7816-compliant Secure Access Module (SAM) slot.



Features:



• USB 2.0 Full Speed Interface


• CCID Compliance


• USB Firmware Upgradeability


• Smart Card Reader:



  • Contactless Interface:



    • Read/write speed up to 424 kbps


    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)


    • Supports ISO 14443 Type A and B, MIFARE, and FeliCa cards, and all 4 types of NFC (ISO/IEC 18092) tags


    • Supports MIFARE 7-byte UID, MIFARE Plus and MIFARE DESfire


    • Built-in anti-collision feature (only 1 tag is accessed at any time)


    • NFC Support:



      • NFC Reader/Writer Mode


      • Peer-to-Peer Mode


      • Card Emulation Mode














• Application Programming Interface:



  • Supports PC/SC


  • Supports CT-API (through wrapper on top of PC/SC)






• Peripherals:



  • User-controllable bi-color LED


  • User-controllable buzzer





Physical Characteristics
Dimensions (mm)	Main Board: 55.0 mm (L) x 45.0 mm (W) x 5.1 mm (H) Antenna Board: 91.0 mm (L) x 49.5 mm (W) x 5.1 mm (H)
Weight (g)	26.6 g
USB Interface
Protocol	USB CCID
Connector Type	Standard Type A
Power Source	From USB port
Speed	USB Full Speed (12 Mbps)
Cable Length	1.0 m, Detachable (Optional)
Contactless Smart Card Interface
Standard	ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol	ISO14443-4 Compliant Cards, T=CL MIFARE Classic Card Protocol, T=CL ISO 18092, NFC Tags FeliCa
Antenna	77 mm x 49.5 mm
SAM Card Interface
Number of Slots	1 (Optional)
Built-in Peripherals
LED	1 bi-color: Red and Green
Buzzer	Monotone
Other Features
Firmware Upgrade	Supported
Certifications/Compliance
Certifications/Compliance	EN 60950/IEC 60950 ISO 7816 (SAM Slot) ISO 14443 ISO 18092 USB Full Speed PC/SC CCID VCCI (Japan) CE FCC RoHS 2 REACH Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support	Windows® Linux® MAC OS® Solaris Android™
