Product Overview
Description
Product Description
5 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Description | Quantity | ||||
1 | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 1 PC | ||||||
2 | Lifepo4 battery pack | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 1 PC | ||||
3 | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 8 PCS | ||||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 1 Set | ||||
5 | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 1 Set | ||||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 40 M | ||||
7 | PV Waterproof Connector | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 10 Pairs | |||||
10 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 2 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 2 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 16 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 2 Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 2 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 80 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 20 Pairs | ||||
15 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 3 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 3 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 24 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 3 Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 3 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 120 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 30 Pairs | ||||
20 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 4 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 4 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 32 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 4 Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 4 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 160 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 40 Pairs | ||||
25 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 5 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 5 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 40 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 5 Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 5 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 200 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 50 Pairs | ||||
30 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 6 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 6 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 48 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 6 Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 6 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 240 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 60 Pairs | ||||
35 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 7 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 7 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 56 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 7Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 7 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 280 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 70 Pairs | ||||
40 KW Off Grid Hybrid Solar Power System Components List | ||||||||
Item | Parts | Model | Specification | Quantity | ||||
1 | mppt solar charge controller | 48V/5000w | Input：48VDC AC Output：220V/50Hz, 5000W Max Charge Current：80A | 8 PCS | ||||
2 | 48V100AH | Rated Voltage：51.2V Rated Capacity：100AH Net Weight：50kg DOD depth：100% | 8 PCS | |||||
3 | PV Panel | PV380P | Mono Type Vmp:38V ; Imp:9.19A; Voc：46V； Isc：9.64A； Rate Power：380W； Size：1979*992*40mm Weight：24.0 kg | 64 PCS | ||||
4 | PV Panel Monuting Bracket | Customized | Anti-erosion Alumimun Alloy for rooftop or ground monunting | 8Sets | ||||
5 | Power Distirbution Box | Customized | Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc | 8 Sets | ||||
6 | Cabel | PV-1*6mm2 | Special high Anti-UV and Wear-Resistant PV cabel WorkingTemperature：-40℃-90℃ | 320 M | ||||
7 | PV Waterproof Connector | MC4 | Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67 | 80 Pairs | ||||
MPPT Controller Inverter
1. Pure sine wave inverter;
2. Inverter running without battery ;
2. Inverter running without battery ;
3. Built-in MPPT solar controller;
4. Configurable AC/Solar Charger priority via LCD setting
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.
4. Configurable AC/Solar Charger priority via LCD setting
5. Compatible to mains voltage or generator power
6. Auto restart while AC is recovering;
7. Overload/ Over temperature/ short circuit protection
8. Cold start function.

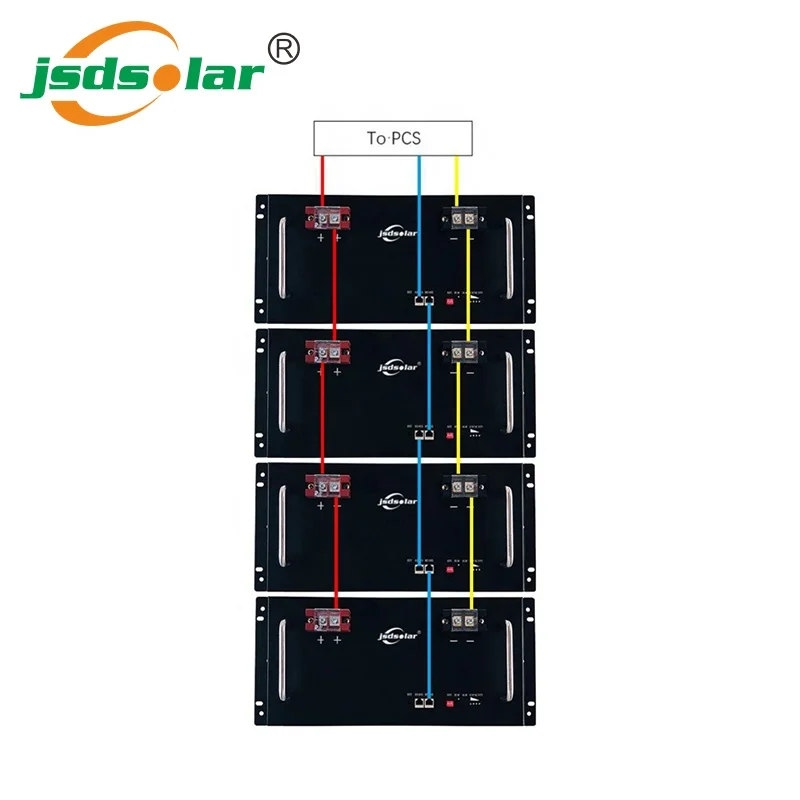

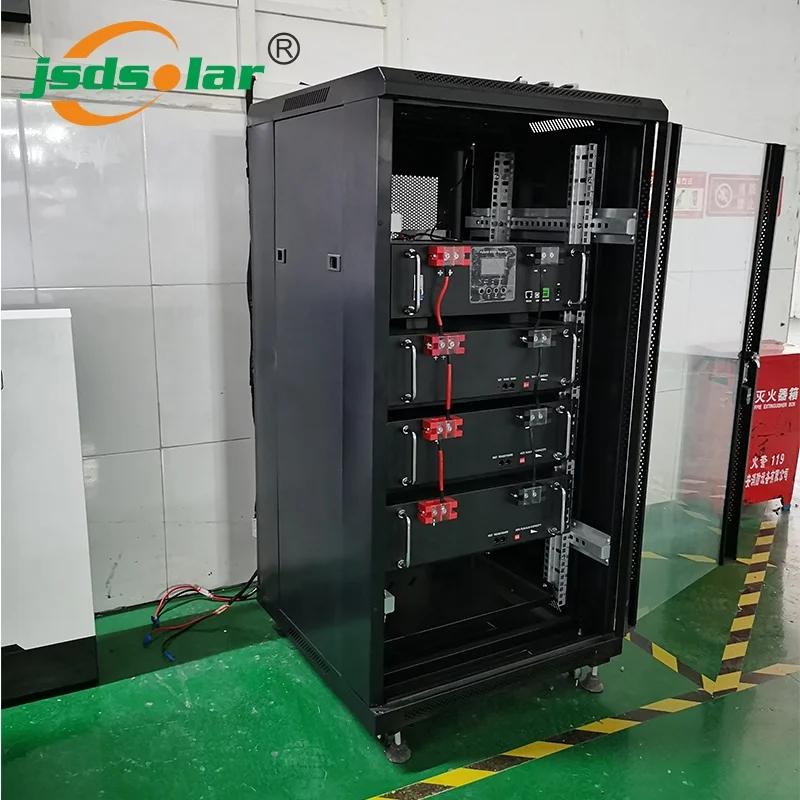

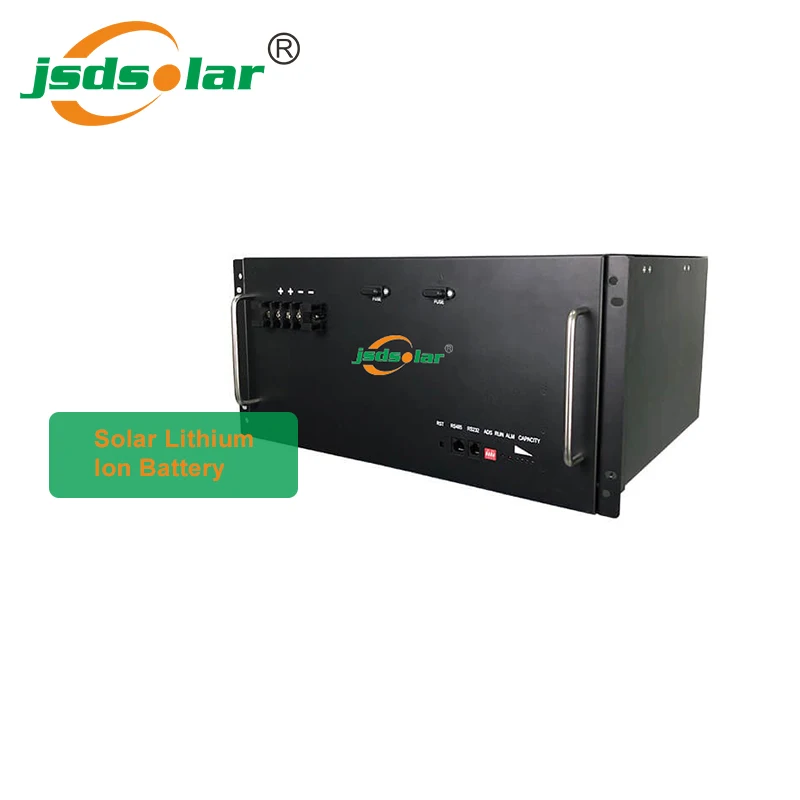

Lithium Ion Battery
1. Long cycle life: with around 6000 times;
2. Aluminum lithium battery cell: with high performance;
3. Excellent electrical performance: low internal resistance, good charging/ discharging;
4. Support multiple communication tools: with RS485, RS232, CAN;
5. Smart BMS: with overcharging/discharging protect cell balance abnormal alarm;
6. High-security performance: no fire, no explosion, no leakage.
Solar Panels
1. 25 years Warranty
2. Highest conversion efficiency of 17%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.
2. Highest conversion efficiency of 17%
3. Anti-reflective and anti-soiling surface power loss from dirt and dust.
PV Panel Monuting Bracket
1. Residential Roof(Pitched Roof)
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system
2. Commercial Roof(Flat roof&workshop roof)
3. Ground Solar Mounting system
4. Vertical wall solar mounting system
5. All aluminum structure solar mounting system
6. Car parking solar mounting system

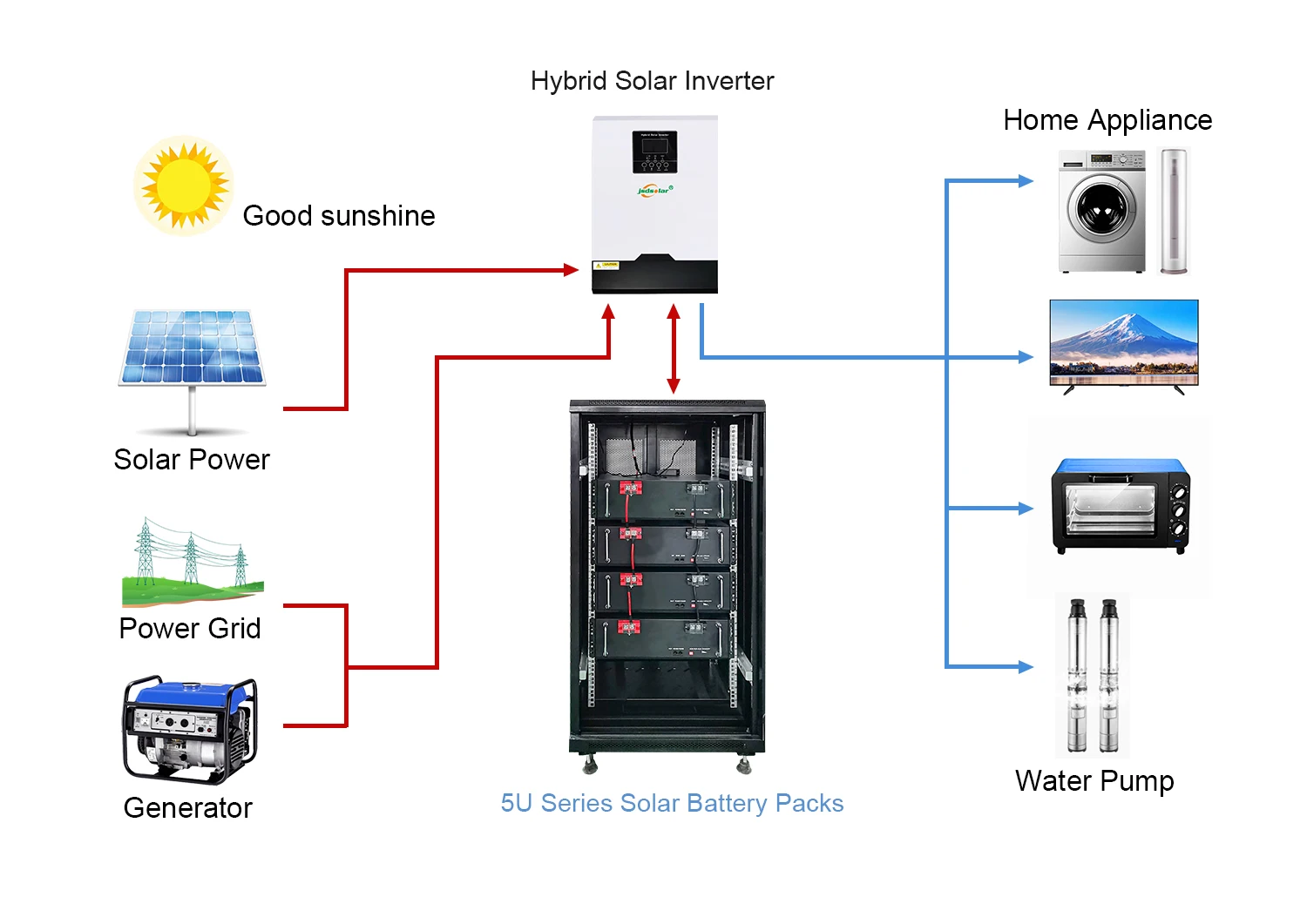

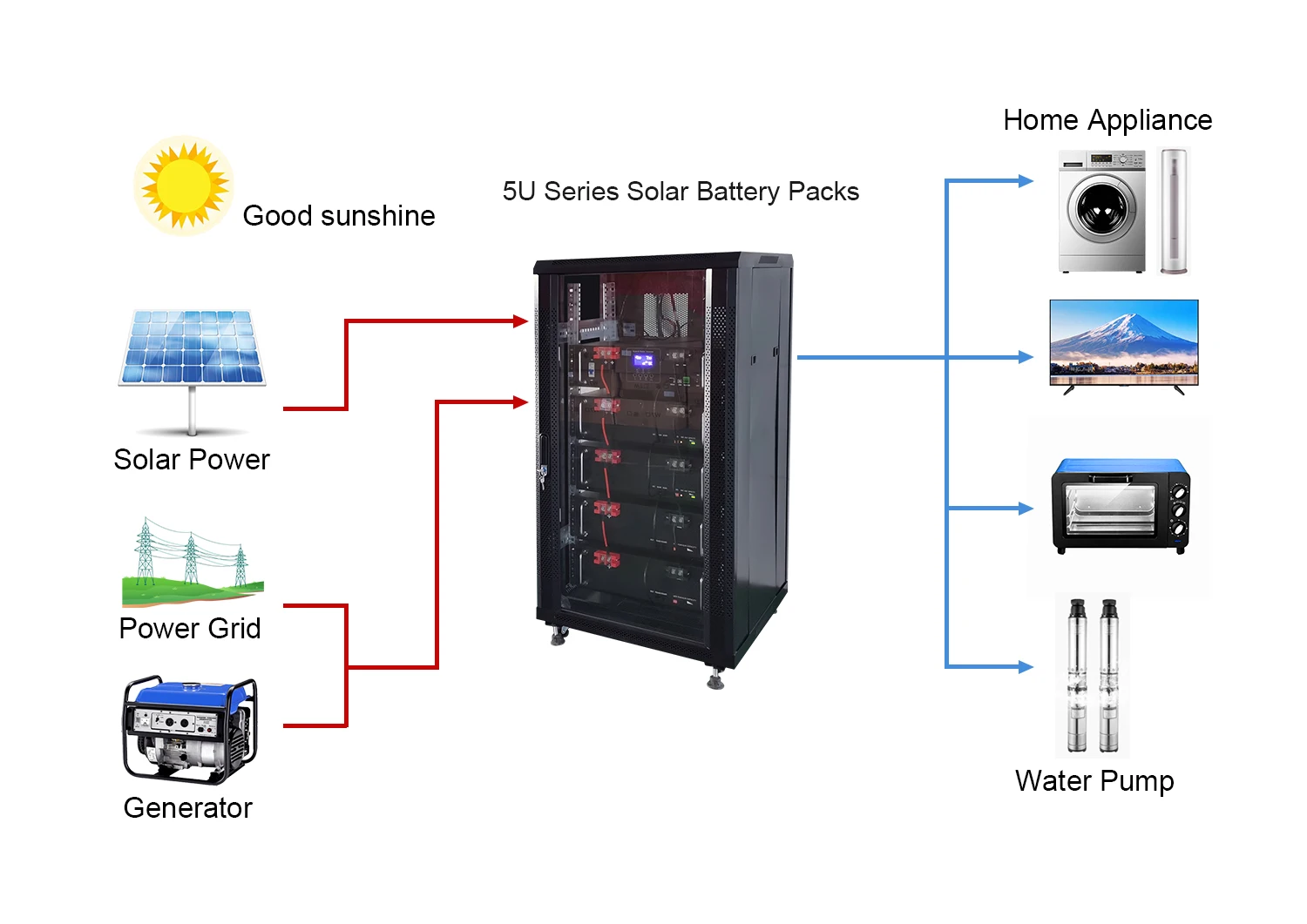

Working Mode
Part Packing & Delivery

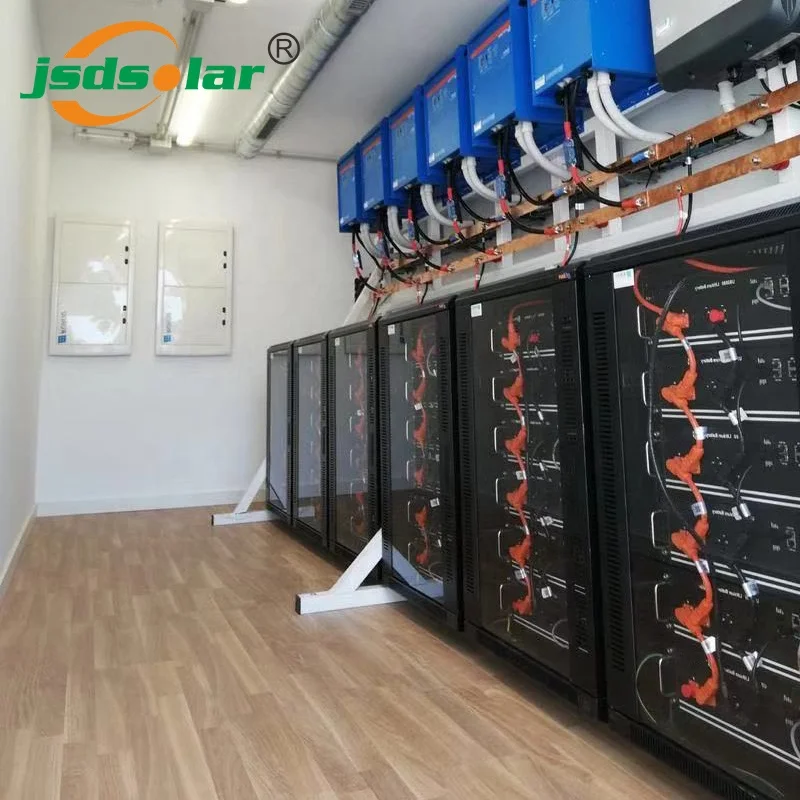

Projects
Company Profile
Shenzhen Jinsdon Lighting Technology Co., Ltd.
Shenzhen Jinsdon Lighting Technology Co., Ltd. is founded in 2010, located in Shenzhen China.We exported to over 50 countries, such as Germany, Japan, UK, USA, South Africa and so on. Our Mainly Products are solar street light, solar battery, off grid solar system, solar inverter with mppt charge controller etc..
