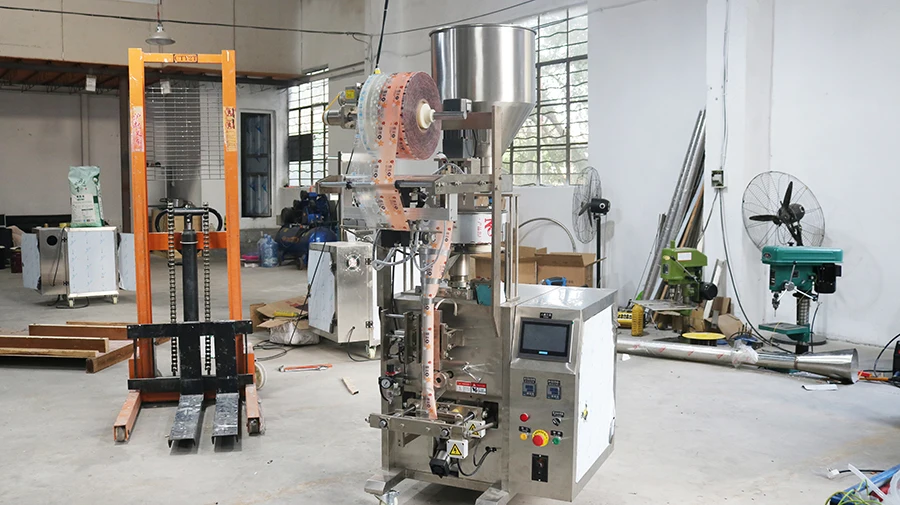

Low Price Automatic Snacks Coated Peanuts Packing Machine Food Packaging Machine
- Category: >>>
- Supplier: Foshan Kincon Packaging Machinery Co. Ltd.
Share on (1600154751607):
Product Overview
Description
Product Overview
Product Description

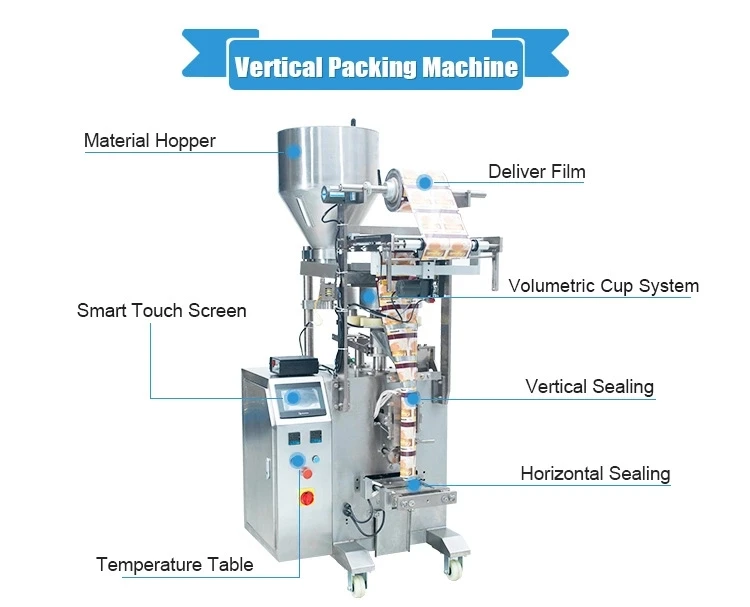

Weighing-Filling-sealing-cutting, Continue packing not cut also available
1. This machine can automatically complete volumetric filler measuring--coding (optional)--bag making--filling--gas injection/exhaust (optional)--sealing--counting.
2. Good control system, color touch screen display, photoelectric tracking, high reliability and intellectualized degree.
3. Has fault display system, easy to operate and maintain.

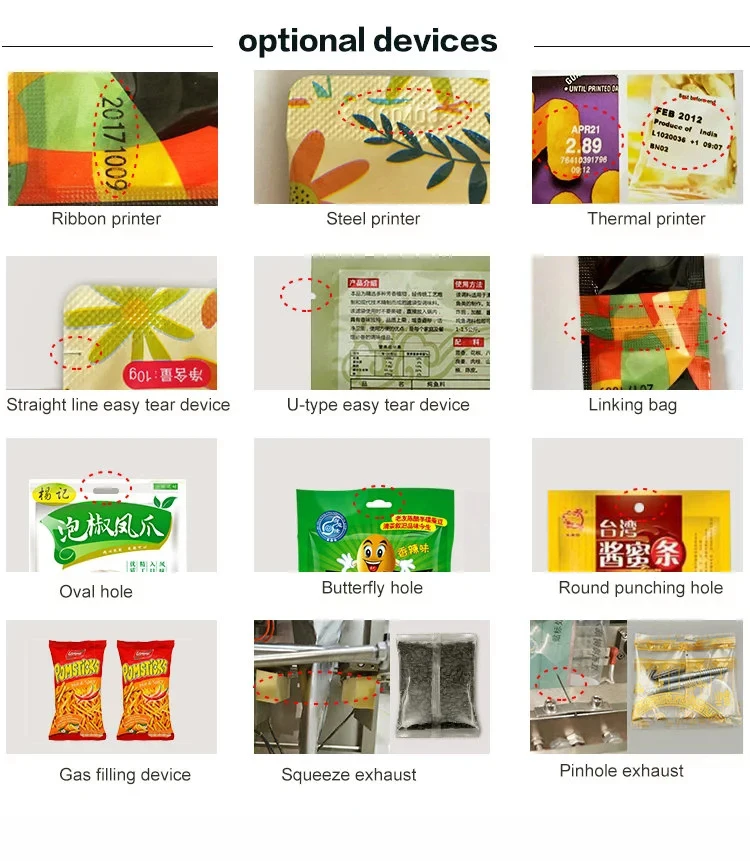

4. Make punching blade (round/euro hole) and gusset bag device after customer's request.
5. Machine body and all food touching part can be customized by 304 stainless steel.
1. This machine can automatically complete volumetric filler measuring--coding (optional)--bag making--filling--gas injection/exhaust (optional)--sealing--counting.
2. Good control system, color touch screen display, photoelectric tracking, high reliability and intellectualized degree.
3. Has fault display system, easy to operate and maintain.
4. Make punching blade (round/euro hole) and gusset bag device after customer's request.
5. Machine body and all food touching part can be customized by 304 stainless steel.
Item | Granule packing machine |
Model | KCH-160A |
Film size(mm) | MAX.320 |
Bag length(mm) | 50-200 |
Bag width(mm) | 50-150 |
Measuring range (ml) | 20-500 |
Packing speed(bag/min) | 5-90 |
Packing material | Opp/cpp,opp/PE,BOPP/VMPE |
Power voltage | 2.2KW/220V 50-60HZ |
Dimension(mm) | L1100*W700*H1900 |
Net weight | 350KG |
Application
Suitable for puffed food, snack, peanut, melon, seed, rice, salt, seeds, monosodium glutamate, white sugar, beans, corn, biscuit,screw, hardware, nail, nut and bolts and other granule, soliad material packaging.
Suitable for puffed food, snack, peanut, melon, seed, rice, salt, seeds, monosodium glutamate, white sugar, beans, corn, biscuit,screw, hardware, nail, nut and bolts and other granule, soliad material packaging.
PRODUCT SPECIFICATIONS
Touch Screen
Size: 7" touch screen and colorful
* Easy Control bag length of each bag, high sensitive electro-optical sensor system is provide to the realize automatic a lignment on the packing film.
* all kind of language, Chinese, English, Russia, France, Korean, Arabic,etc.
* all kind of language, Chinese, English, Russia, France, Korean, Arabic,etc.
Mesauring Parts
Name:Cup Metering Device
Material: Food Grade 304SUS+ plastic
Quantity: 304 Stainless Steel
Size: 10-500ml
* Using volume conversion principle technology, simple and small error range
* Automatic filling goods if full will be stop filling, not need people maual.
*It suitable for all small granule products, like rice, white sugar, beans, washing powder, candy
Material: Food Grade 304SUS+ plastic
Quantity: 304 Stainless Steel
Size: 10-500ml
* Using volume conversion principle technology, simple and small error range
* Automatic filling goods if full will be stop filling, not need people maual.
*It suitable for all small granule products, like rice, white sugar, beans, washing powder, candy

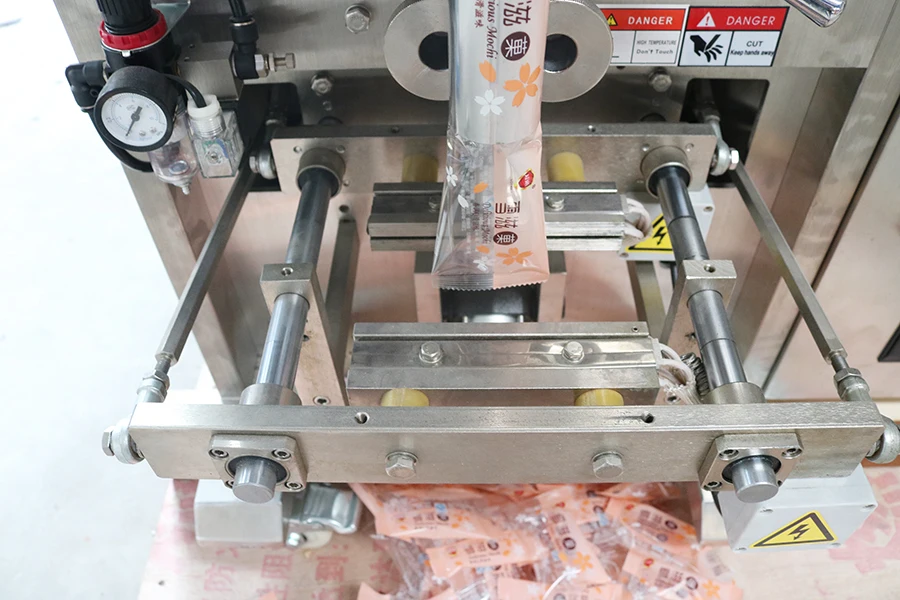

Automatic Cutting Device
Name: Horizontal cutter
Material: 304 Stainless Steel
Size: According Client Need Size To Customized
* The machine can make standard middle sealing bag,3/4 sides sealing bag or gusset bag type.Can be Choice linking bag, hole device,gas filling and so on.
Material: 304 Stainless Steel
Size: According Client Need Size To Customized
* The machine can make standard middle sealing bag,3/4 sides sealing bag or gusset bag type.Can be Choice linking bag, hole device,gas filling and so on.

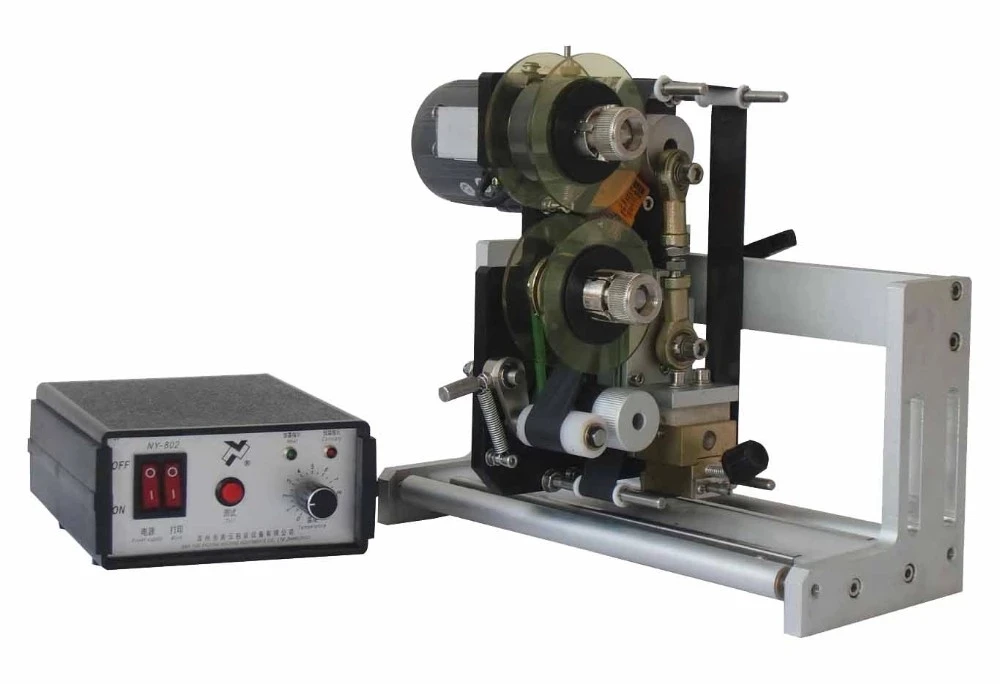

Date Printing Device
*Equipped with a code system enables more credible packaging.

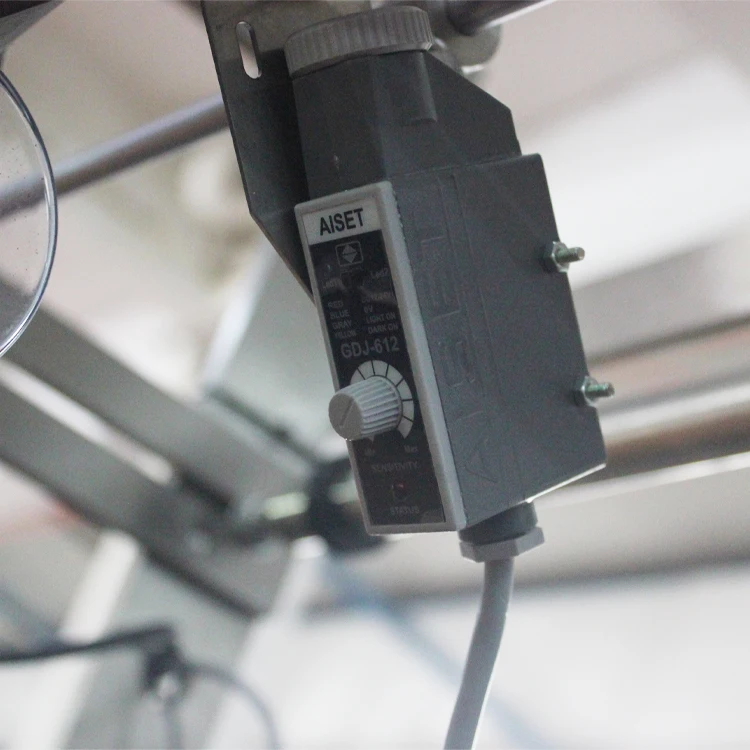

Electronic Eyes
*High sensitive optical lextric color mark tracking system and digital input cutting position,which makes the sealing and cutting more accurate.
1）Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.
2）Impoted servo film transport system, imported color code sensor, accurate positioning,
excellent overall performance and beautiful packaging.
3）A variety of automatic alarm protection functions to minimize losser.
4）Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）Optional English or other languages screen display, easy and simple operation. Both packaging speed and bag length can be set with one click.
7）All machines have CE certification .
excellent overall performance and beautiful packaging.
3）A variety of automatic alarm protection functions to minimize losser.
4）Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）Optional English or other languages screen display, easy and simple operation. Both packaging speed and bag length can be set with one click.
7）All machines have CE certification .
Company Profile
FAQ
Q1. How long is warranty time for your machines?
-- Our warranty time is 12 months ,starts from the issue date of bill of lading.
Q2. We guarantee the below part that in the range of warranty scope.
-- Parts: servo motor, PLC, touch screen, step motor, motor controller
Q3. What after-sales service we can supply?
-- Service: we provide technician support to analyze and find out the mechanical fault by video call. Once we find out the problem parts, we will send out a replacement within 3 days.
Q4. Which part we do not supply after-sales service?
-- Spare parts are not under warranty scope. ( Refer to the spare part list ) Artificial damage is not under warranty scope(for example, broke the monitor of touch screen, Lightning damage)
Q5. What fee that customer should afford?
-- Client afford the Courier fee of parts.Oversea service is available but clients afford the tickets ,visa and accommodation.
Q6. How we will solve warranty repair?
-- We provide technician support to analyze and find out the mechanical fault by video call. Then we will come up with a solution or send you the replacement. If everything we done is failed. You may invite our technician to repair the machine for you.
Q7. What information we need? For recommend machine to you!
-- 1) Product to be packed.
2) Bag width&length.
3) Bag type
4) Packing weight.
Any other questions, please feel free to contact us. We will be always here providing best help.
-- Our warranty time is 12 months ,starts from the issue date of bill of lading.
Q2. We guarantee the below part that in the range of warranty scope.
-- Parts: servo motor, PLC, touch screen, step motor, motor controller
Q3. What after-sales service we can supply?
-- Service: we provide technician support to analyze and find out the mechanical fault by video call. Once we find out the problem parts, we will send out a replacement within 3 days.
Q4. Which part we do not supply after-sales service?
-- Spare parts are not under warranty scope. ( Refer to the spare part list ) Artificial damage is not under warranty scope(for example, broke the monitor of touch screen, Lightning damage)
Q5. What fee that customer should afford?
-- Client afford the Courier fee of parts.Oversea service is available but clients afford the tickets ,visa and accommodation.
Q6. How we will solve warranty repair?
-- We provide technician support to analyze and find out the mechanical fault by video call. Then we will come up with a solution or send you the replacement. If everything we done is failed. You may invite our technician to repair the machine for you.
Q7. What information we need? For recommend machine to you!
-- 1) Product to be packed.
2) Bag width&length.
3) Bag type
4) Packing weight.
Any other questions, please feel free to contact us. We will be always here providing best help.
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
