Liquid level float balls for pool ball switch indicator control for water tank gauge for tanks
- Category: >>>
- Supplier: Zhuhai Qixinli Technology Co. Ltd.
Share on (1600155019031):
Product Overview
Description
Product Overview

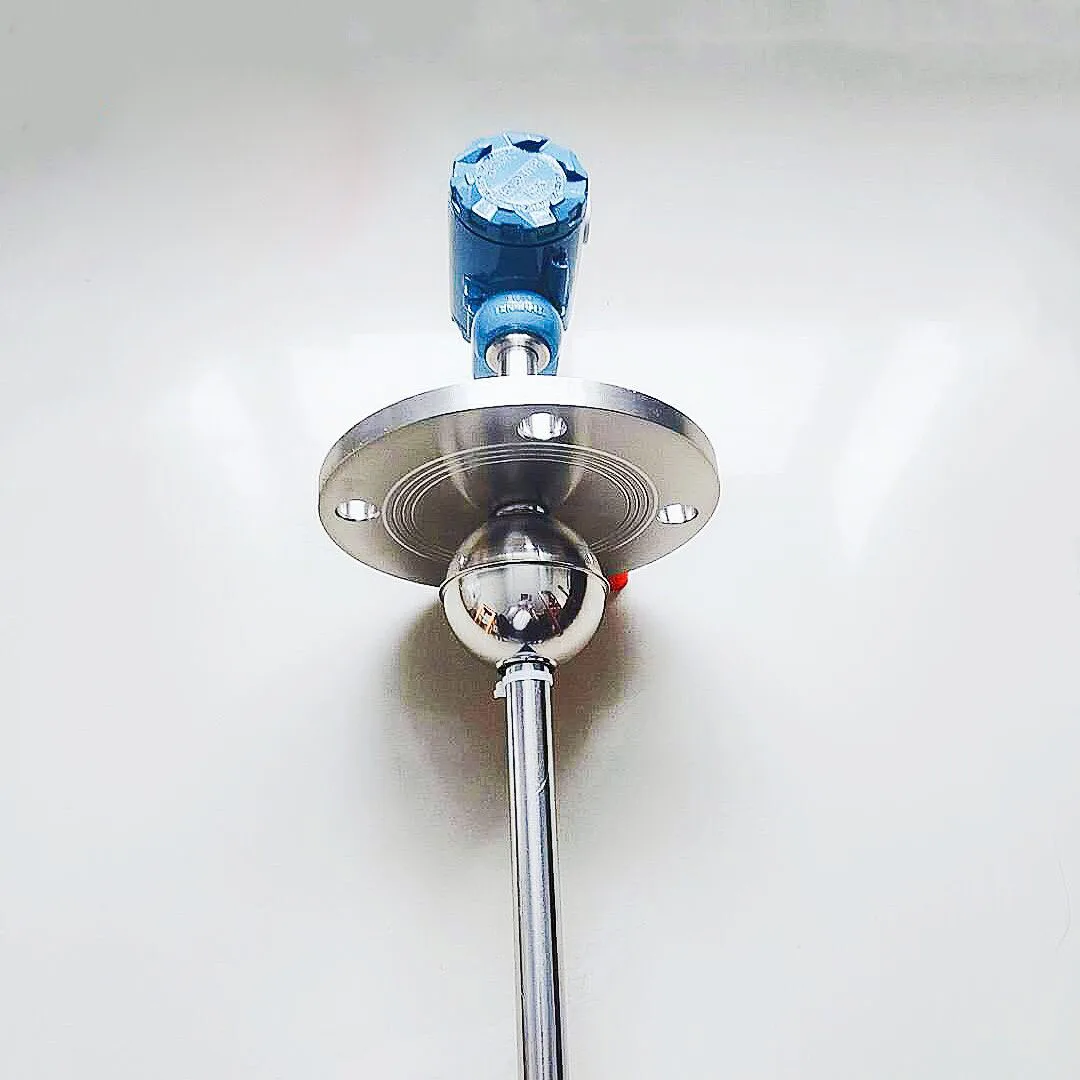

Continuous Magnetic Float Level Transmitter water Level Controller Fuel Liquid Vertical 4-20mA Sensor

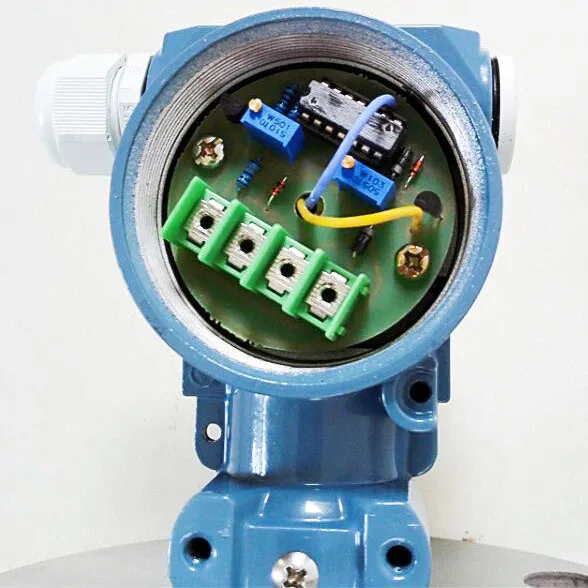

Continuous Float Level Transmitter uses the magnetic inside of the floating ball following as the change of liquid level to change divider circuit composed by the resistor inside of the rod and the magnetic reed switch, thus converted into divider signal which can be turned by transmitter into standard industrial signal of 4~20mA so as to test the liquid level.
Transmisor de nivel de flotador magnético continuo Controlador de nivel de agua Líquido de combustible Sensor Vertical de 4-20 mA
Liquid level float balls for pool ball switch indicator control for water tank gauge for tanks
FEATURES AT A GLANCE
The smaller the clearance of the magnetic reed switch is, the higher the accuracy is. This level indicator can also be used for
long-distance indication if combined with other secondary instrument. It is a reliable indicator with simple principle. Continuous
Float Level Transmitter is widely used in level control and alarm of all kinds of industry such as electronic, electric power,
chemical, water treatment, water supply and drainage, dyeing, machinery etc.
long-distance indication if combined with other secondary instrument. It is a reliable indicator with simple principle. Continuous
Float Level Transmitter is widely used in level control and alarm of all kinds of industry such as electronic, electric power,
chemical, water treatment, water supply and drainage, dyeing, machinery etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Contact capacity | AC220V/1A; DC24V/0.5A |
Working pressure | ≤ 10Mpa |
Share float | 0.6 |
Output signal | 4 ~ 20mA |
Operating temperature | -20 ~ 80 °C/ 200°C |
Protection class | IP65 |
Float material | SUS304/SUS316L |
Body Material | SUS304/SUS316L |
Connection | Flange connection (can be customized) |
PRODUCT CONFIGURATION
CHANGCHAI high power engine
Imported EATON control valve
Japan Shimadzu hydraulic motor
