Product Overview
Description

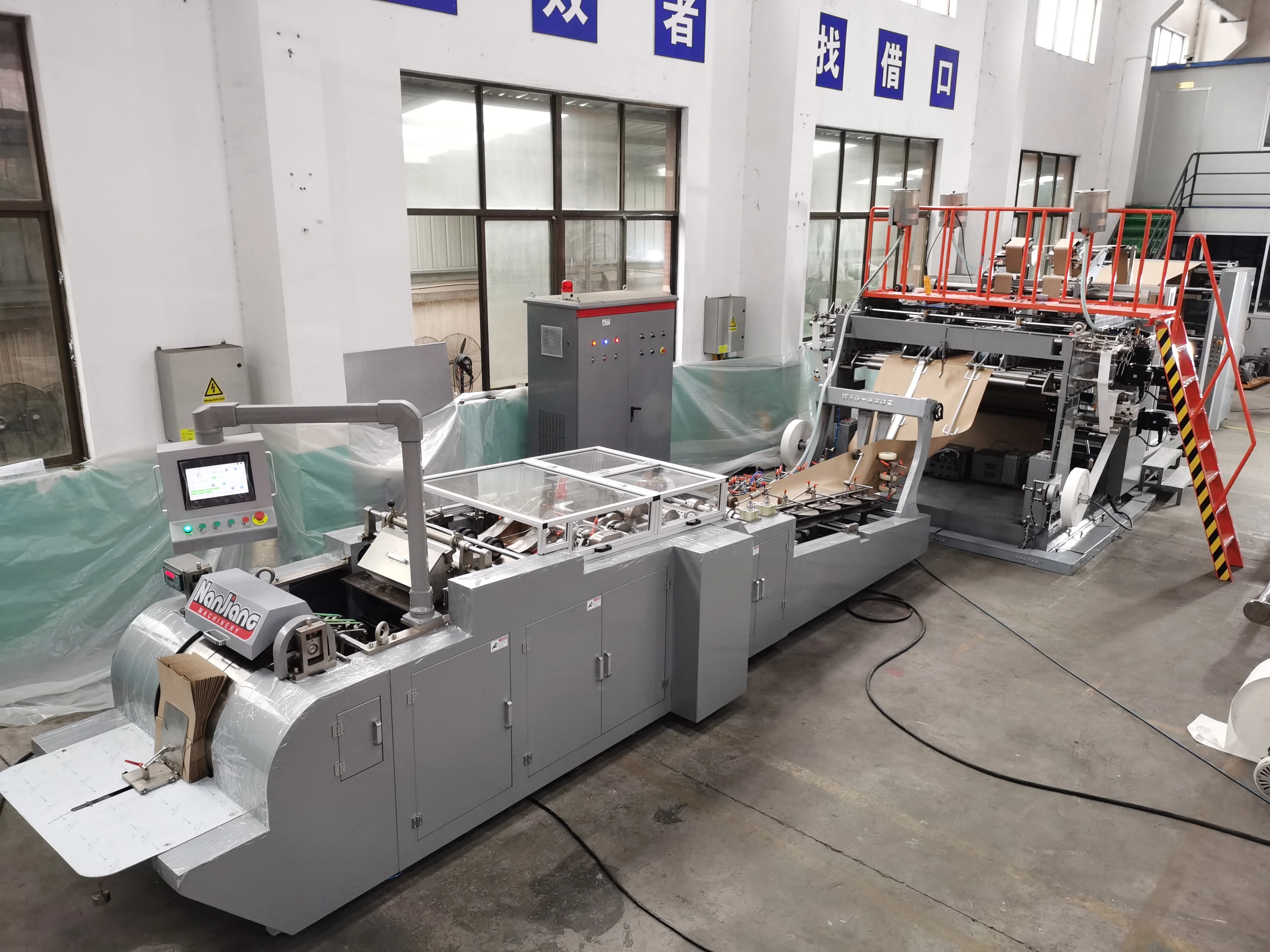

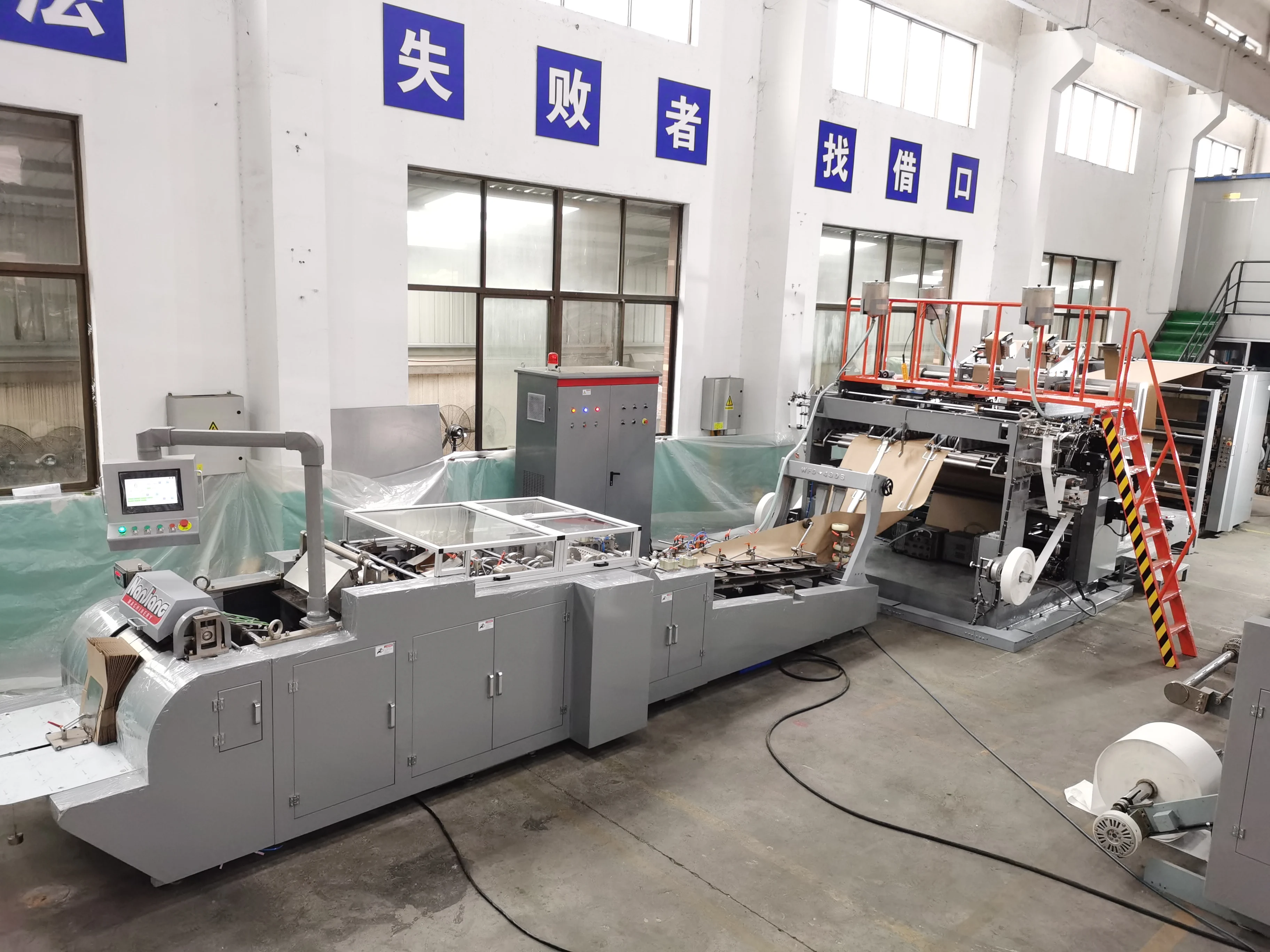

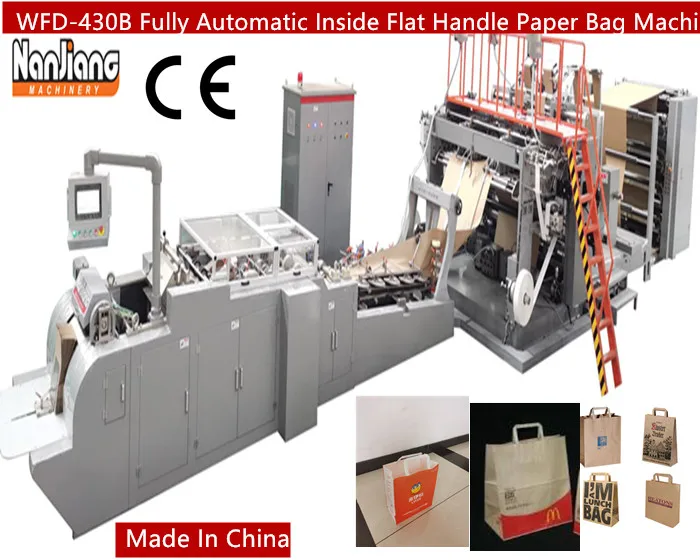

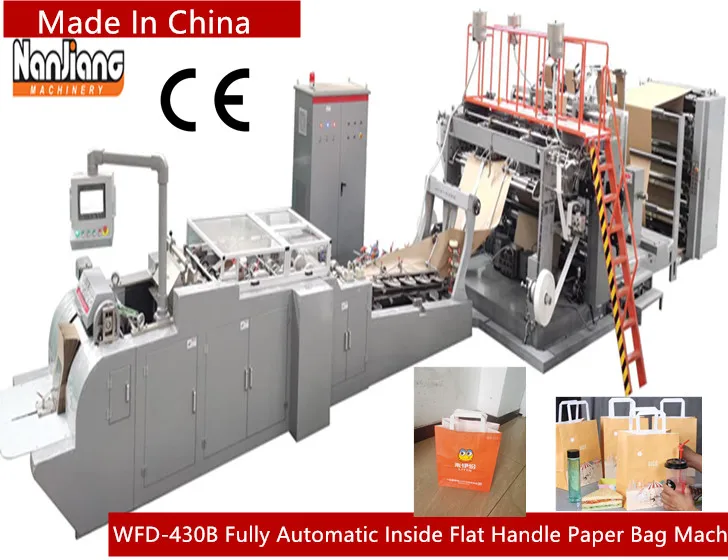

WFD-430B Fully Automatic Roll Fed Inside Flat Handle Paper Bag Machine

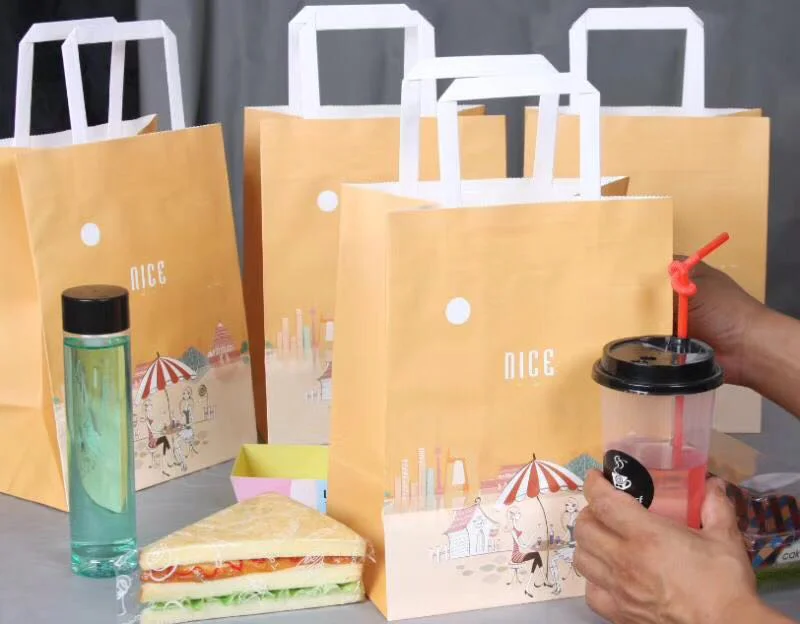

Fully Auto Square bottom paper bags with flat-rope handles,By implementing steps including printing, handle making, handle application, tube forming, tube cutting and bottom forming within a fully automatic process, this machine can effectively save labor costs. It is an idea machine for making inside flat handle paper carrier bags.
It is the most advanced machine for the production of shopping bags with inside flat handle. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.

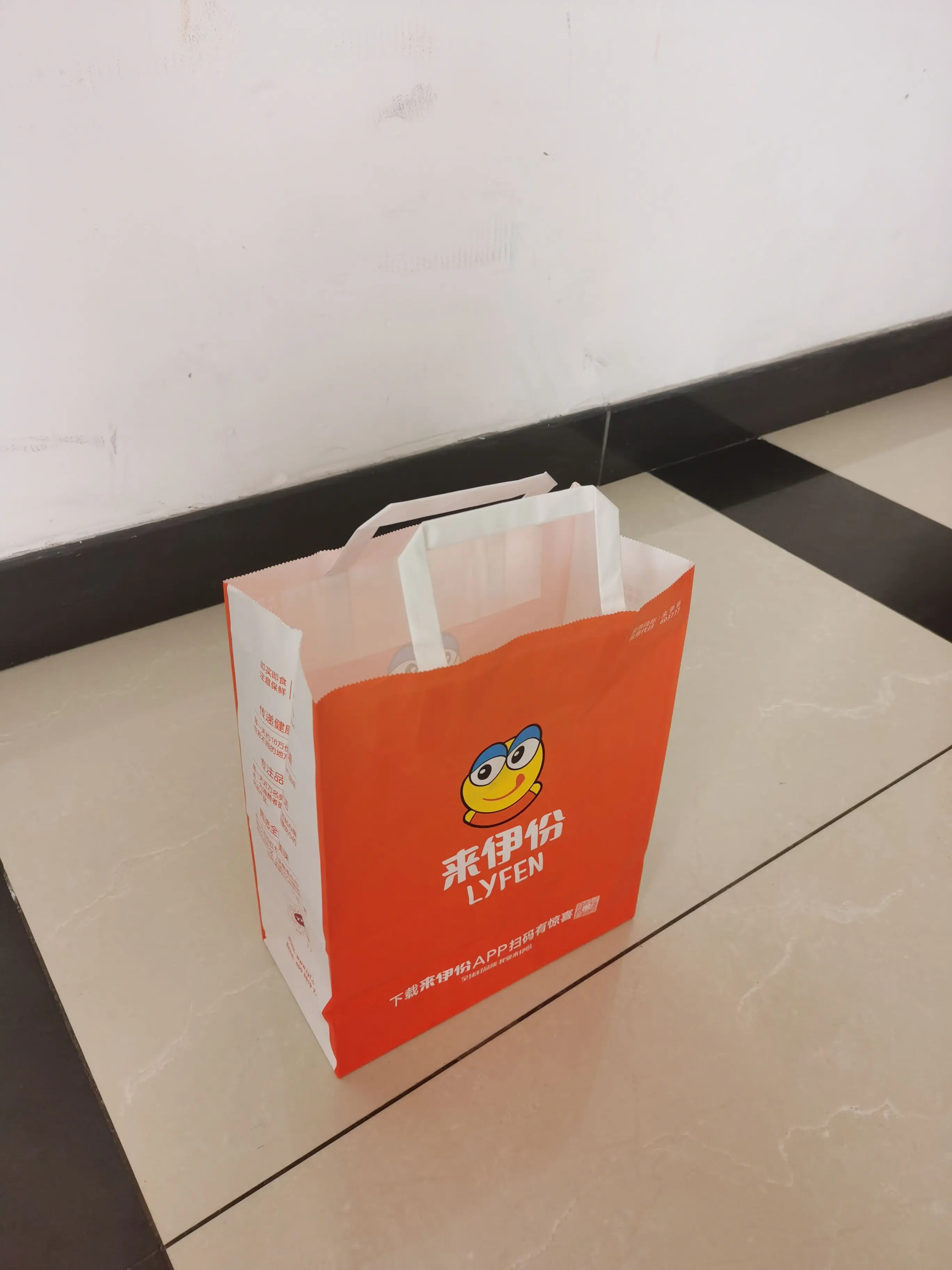

It can produce a variety of small, medium and large handled bags in one process and effectively save labor costs. Distinct flat-handle making process and special bag counting function greatly improve packing efficiency of finished paper bags.
Product Description

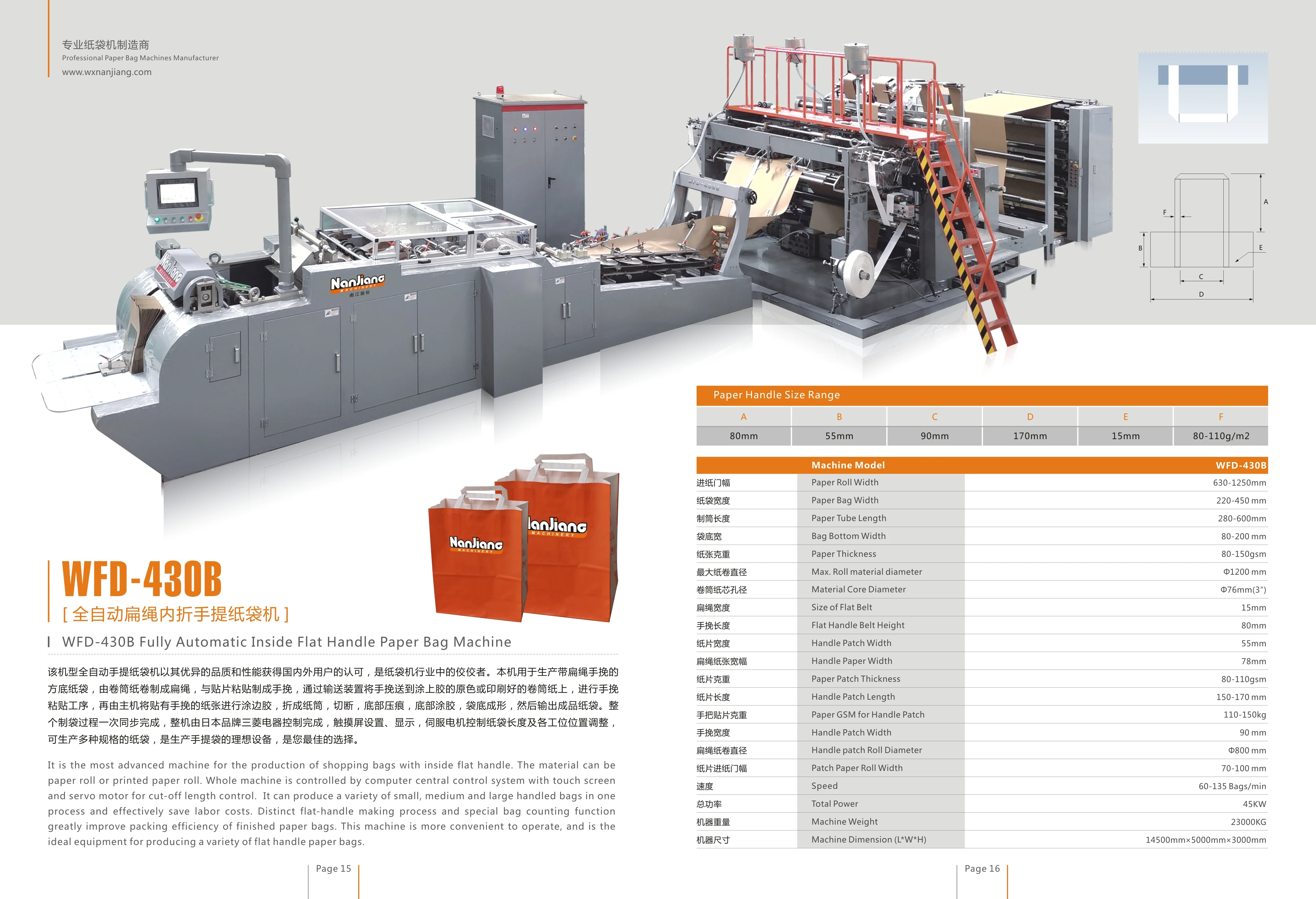

Main Technical Parameter
Machine Model | WFD-430B |
Paper Roll Width | 630-1250mm |
Paper Bag Width | 220-430 mm |
Paper Tube Length | 280-600mm |
Bag Bottom Width | 80-200 mm |
Paper Thickness | 80-150gsm |
Max. Roll material diameter | 1200 mm |
Material Core Diameter | 76mm(3″) |

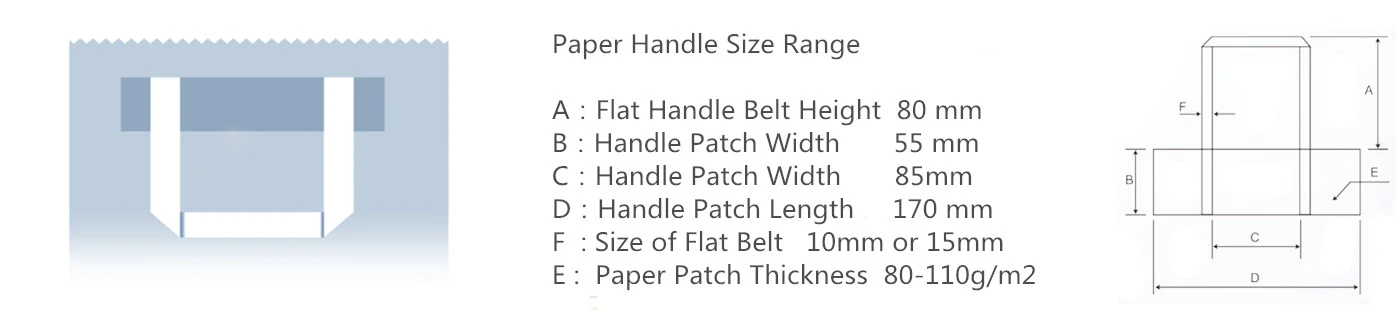

Size of Flat Belt | 15mm |
Flat Handle Rope Height | 80mm |
Handle Patch Width | 55mm |
Handle Width | 78mm |
Paper GSM for Handle patch | 70-100gsm |
Handle Patch Length | 170 mm |
Handle Patch Width | 55mm |
Handle patch Roll Diameter | 800 mm |
Paper Patch Roll Width | 70-100 mm |
Max. Production Speed | 135Bags/min. |
Total Power | 20KW/60KW(if with printing) |
Machine Weight | 22000KG |
Machine Dimension (L*W*H) | 16000 x 3000 x 2600 mm 18000 x 3000 x 2600 mm(with printing) |
Packaging & Shipping
Our Services
Services Terms:
A. Installation and training are done by our technician(s) at buyer’s factory.
Buyer should send an invitation letter for visa application.
The return flight tickets, accommodation & traffic expenses and service fees at USD100/day/person shall be borne by the buyer.
B. Seller provides 2 years Guarantee period, all spare parts free of charge in one year time.
C. After sale services and component replacement
During the period of quality guarantee, we supply the spare part in free for replacement.
D. Packaging
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
E. Delivery time
Within 90 days after receive 30% advance payment.
F. Payment terms
30% by T/T as advanced payment, 70% by T/T or irrevocable L/C at sight before shipment(After inspection).

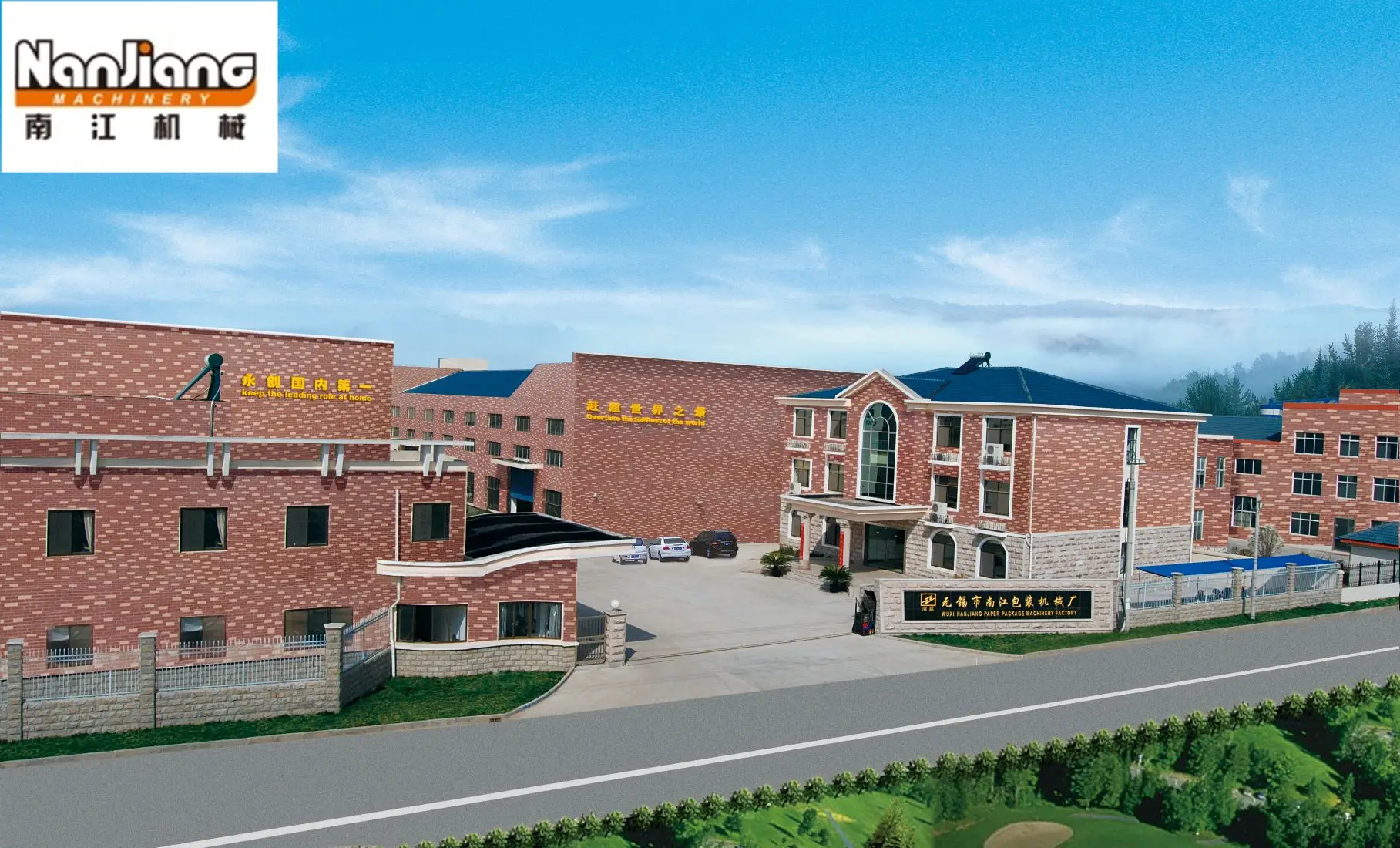

Company Information
We are one of the China’s leading suppliers of equipment to printing and packaging manufacturers in the eco friendly paper bags industries to give them completely solutions of manufacturing paper bags.
We have already built business relationships with over 70 countries and regions global customers,All the machine have proved by CE certifications with Quality Management system standard ISO9001 : 2008.
We specializing in manufacturing paper bag machines and paper bag auxiliary machines such as: WFD-330/WFD-430/WFD-550/ WFD-350/WFD-450 Roll Fed /Sheet Fed Paper Bag with inline handle machine(Twisted or Flat Handles), HD-200/HD-260/HD330/HD430-1/HD-460/HD-550 Roll Feeding Square Bottom Paper Bag Making Machine, HD-180/HD340/HD430 Sheet Feeding Paper Handbag Making Machine, WFD-100 High-speed Paper Handle Making Machine, WFD100-1 Twist & Flat-belt Rope Handle Making Machine, WFD100-2 Right Angle Flat-belt Paper Handle Making Machine, WFD-400 High Speed Paper Food Bag Making Machine, WFD-600 Automatic Paper Food Bag Making Machine, ZSL-400 Paper Rope Making Machine etc, and we got ISO9001: 2000 Certificate in 2005 and CE Certificate in 2006.
FAQ
FAQ
1 Are you manufacturer or trading company?
We are the manufacturer and have our own workers and factories.
2 Where are your factories located?May I have a visit?
First of all,warmly welcome!
Our factory located in Wuxi city, very close to Shanghai city.We have another factory located in Xuyi county,huaian city.
3 Do you have machines in stock to sell?
No,we produce according to customers’ requirements.
4 How is the quality of your machine?
We are in this industry for about 20 years and regard quality as the life of the enterprise.
We choose the world famous manufacturers as our suppliers.And besides,we have our own quality inspector.Machine parts are checked one by one according to the drawings!
Good quality and good after-sales help us obtain good reputation in the international market!
We have a technical team of seven person and at the same time cooperate with other Research Institutes.
We are committed to providing customers with the best packaging machine.
5 Anything we need to know in order to buy a suitable machine? What information should I let you know if I t a quotation?
First, Paper raw material: Reel paper or Sheet Paper.
Second, sizes of the paper bags, thickness of paper.
Send sample bag picture if available.
Then we will recommend the right machine to you!
6 Do you have related machine working VIDEO?
Yes,contact me by email. Thanks.
